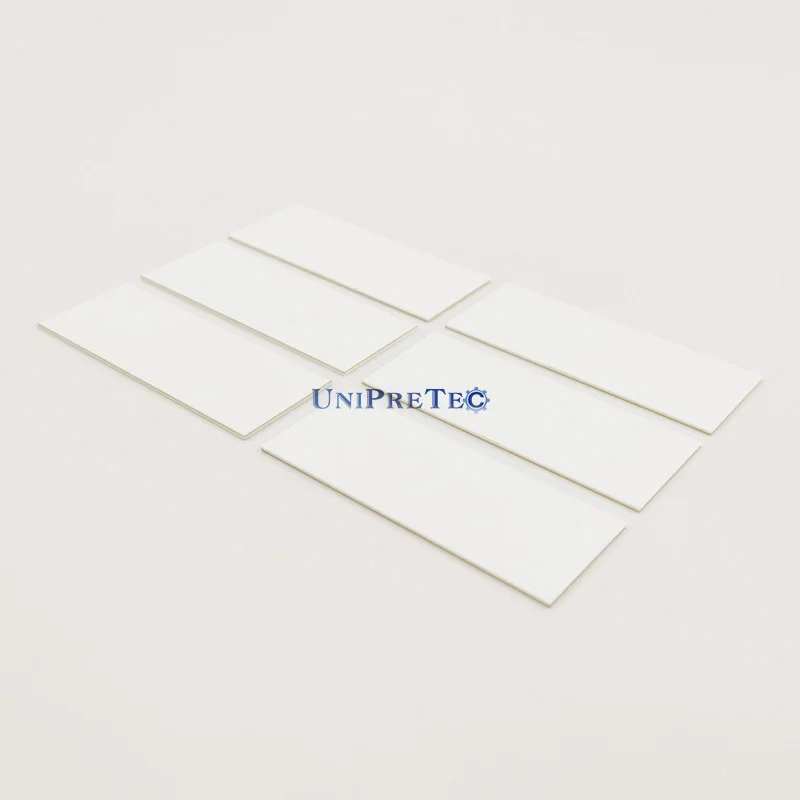

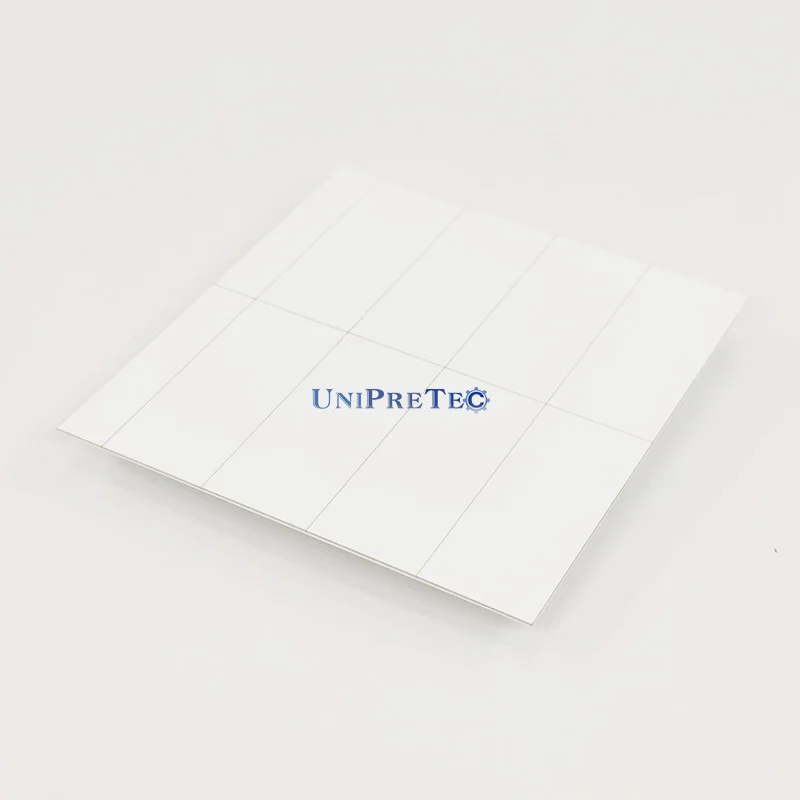

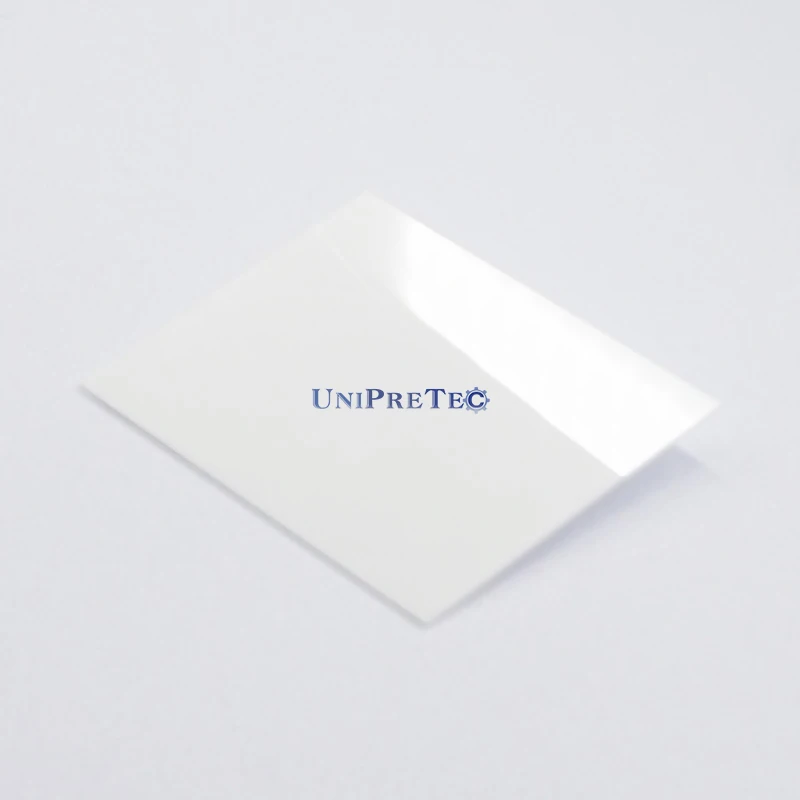

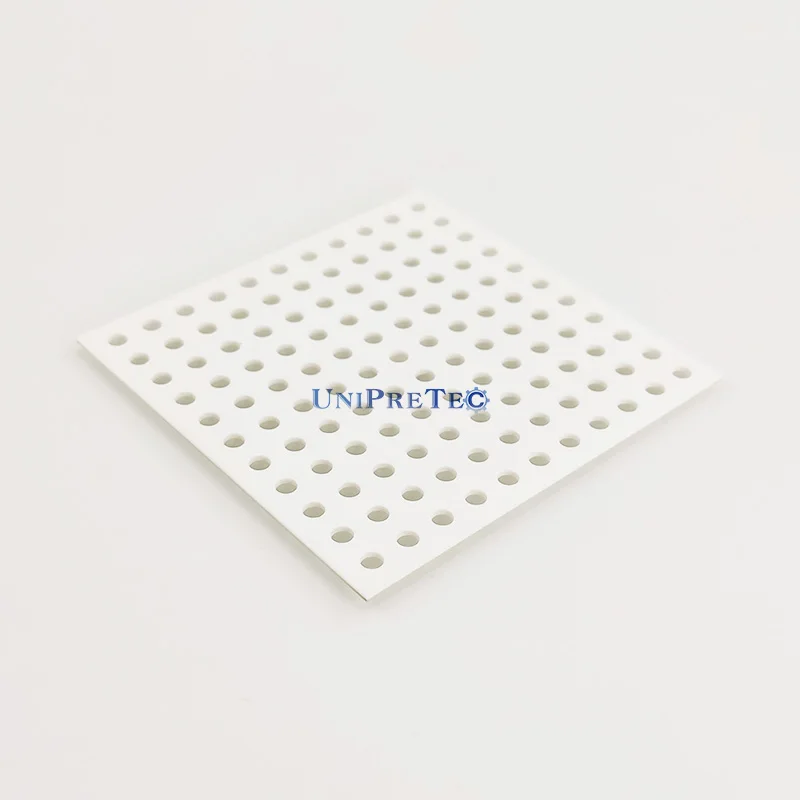

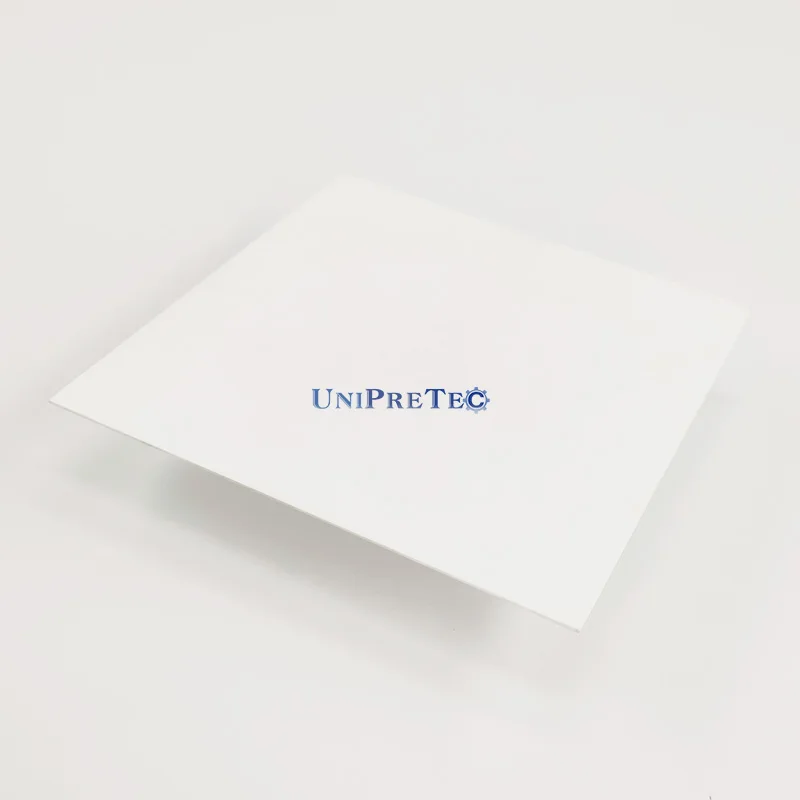

96 Alumina Ceramic Plate
- Category: >>>
- Supplier: Xiamen Unipretec Ceramic Technology Co. Ltd.
Share on (62544228551):
Product Overview
Description
Material Introduction
With the development of electronic equipment, the power is getting higher and higher and the element is getting smaller and smaller, so the requirements for thermal conductivity are getting higher and higher, the previous thermal insulation materials have been more and more unable to meet the demand. In this case, alumina ceramic substrate as a high thermal conductivity and high insulation ceramic material, with 25W/m.k thermal conductivity and 17KV dielectric strength, has become a more and more popular substrate choice of many high-power equipment, compared to the silicon sheet substrate with thermal conductivity only 0.6W/m.k, and the dielectric strength of alumina Al2O3 substrate is also only 2KV. Relying on exceptional performance and very high price/performance ratio, the application of alumina substrate has become wider and wider. As we all know, ceramic is fragile, but our company relies on advanced equipment and many years of production experience, the strength of the production of tape casting alumina substrates on the original basis of the strength greatly improved!
Material Properties
ITEM | UNIT | A960 |
Main Content | - | Al2O3 > 96% |
Density | g/cm3 | > 3.7 |
Color | - | White |
Water Absorption | % | 0 |
Warpage | - | < 2‰ |
Surface Roughness (Ra) | um | 0.2 - 0.7 |
Flexural Strength | Mpa | 380 |
Thermal Conductivity (25 ℃) | W/m.K | > 25 |
Thermal Expansion Coefficient (25 - 300 ℃) | 10-6 mm/℃ | 6.5 - 7.5 |
Thermal Expansion Coefficient (300 - 800 ℃) | 10-6 mm/℃ | 6.5 - 8.0 |
Working Temp. | ℃ | < 1200 |
Dielectric Strength | KV/㎜ | > 17 |
Dielectric Constant | 1 MHz | 9 - 10 |
Electrical Resistivity (25 ℃) | Ω·cm | > 1014 |
∆ The above data is offered for reference and comparison only, exact data will vary depending on manufacturing method and part configuration.

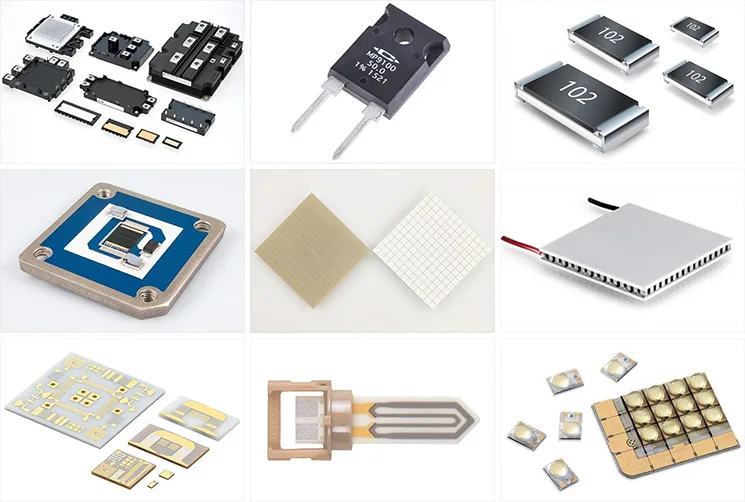

Applications
About Us
UNIPRETEC is a representative technical ceramic company in China. Relying on the technical team with more than 10 years of experience and the cooperation of well-known domestic colleges and institutions, our company covers the manufacturing and sales of oxide, nitride and carbide ceramic products. Based on the research in the advanced ceramic industry, our company is good at providing suitable products and suggestions flexibly according to customers' applications and needs. For many years, our company has focused on meeting the needs of customers from all over the world. Many praises from customers and partners have been encouraging UNIPRETEC to move forward and develop.
