Greenpedel 36v 48v 500w 27.5 28 29 inch rear cassette wheel hub motor electric bike bicycle conversion kit for e bike
- Category: >>>
- Supplier: Changzhou Green Pedel Co. Ltd.
Share on (62544276756):
Product Overview
Description
Related Production
Our electric bike kit does not include battery, if you need, you can purchase them at the link below. Of course, you can also contact us directly, we will provide you with the best match according to your needs.
Product Paramenters
Motor | 36v/48v 500w geared brushless hub motor with 9 pin waterproof cable |
Rim | Aluminium double wall rim 1.5-1.95 |
Spokes | 12G/13G |
controller | 36V/48V 22A controller |
PAS | BZ(4) 1:1 8 magnets PAS |

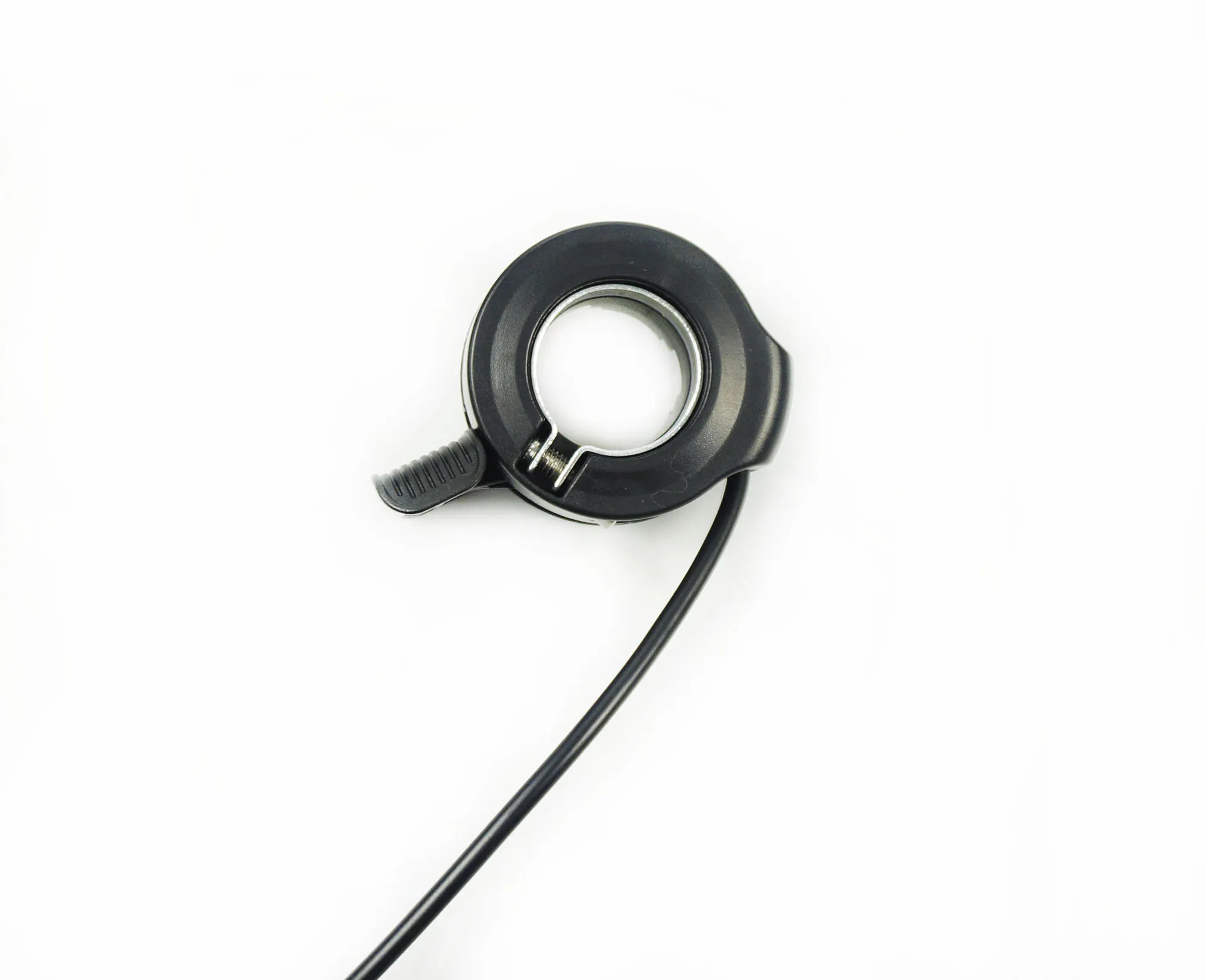

throttle | 130X thumb throttle |
Brake | Ebrake(hydraulic brake) |
Hall sensor | Yes |
Brake type | V brake or Disc brake |
Integrated Speed Sensor | Yes |

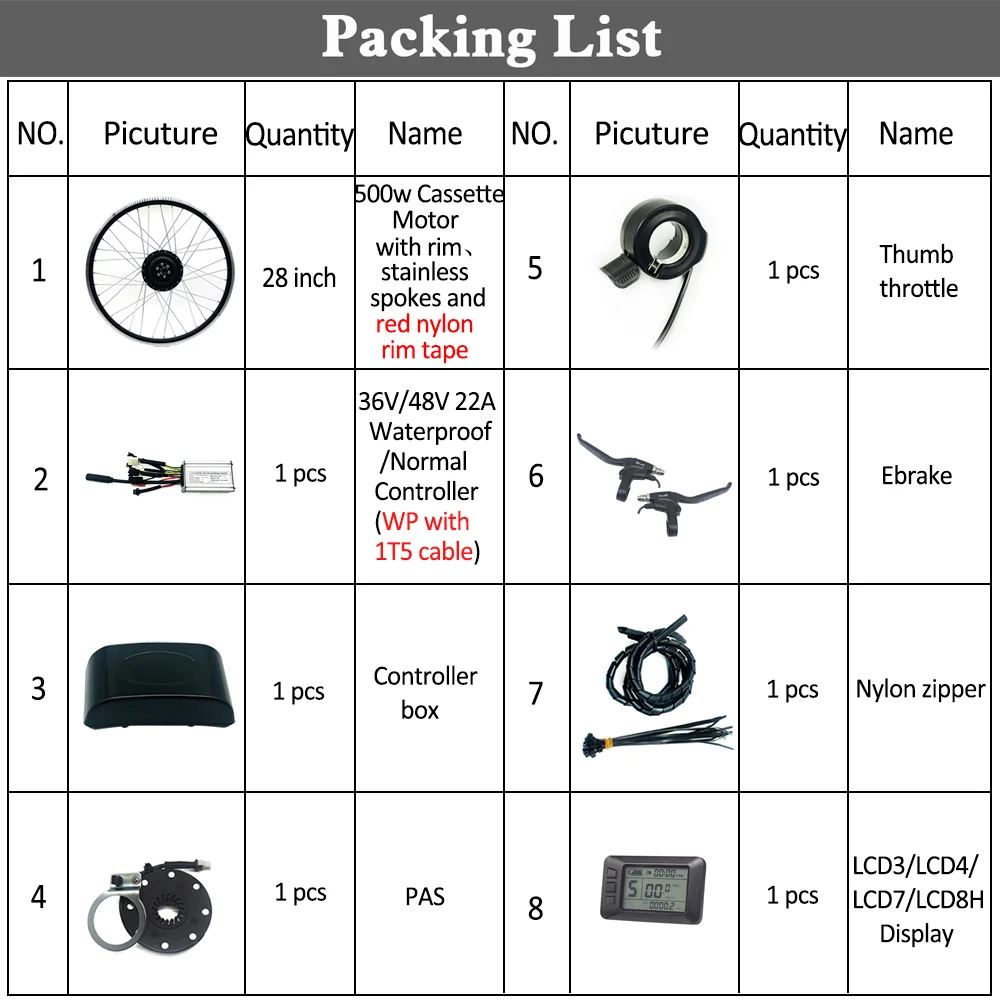

1 PCS * high quality red nylon rim tape

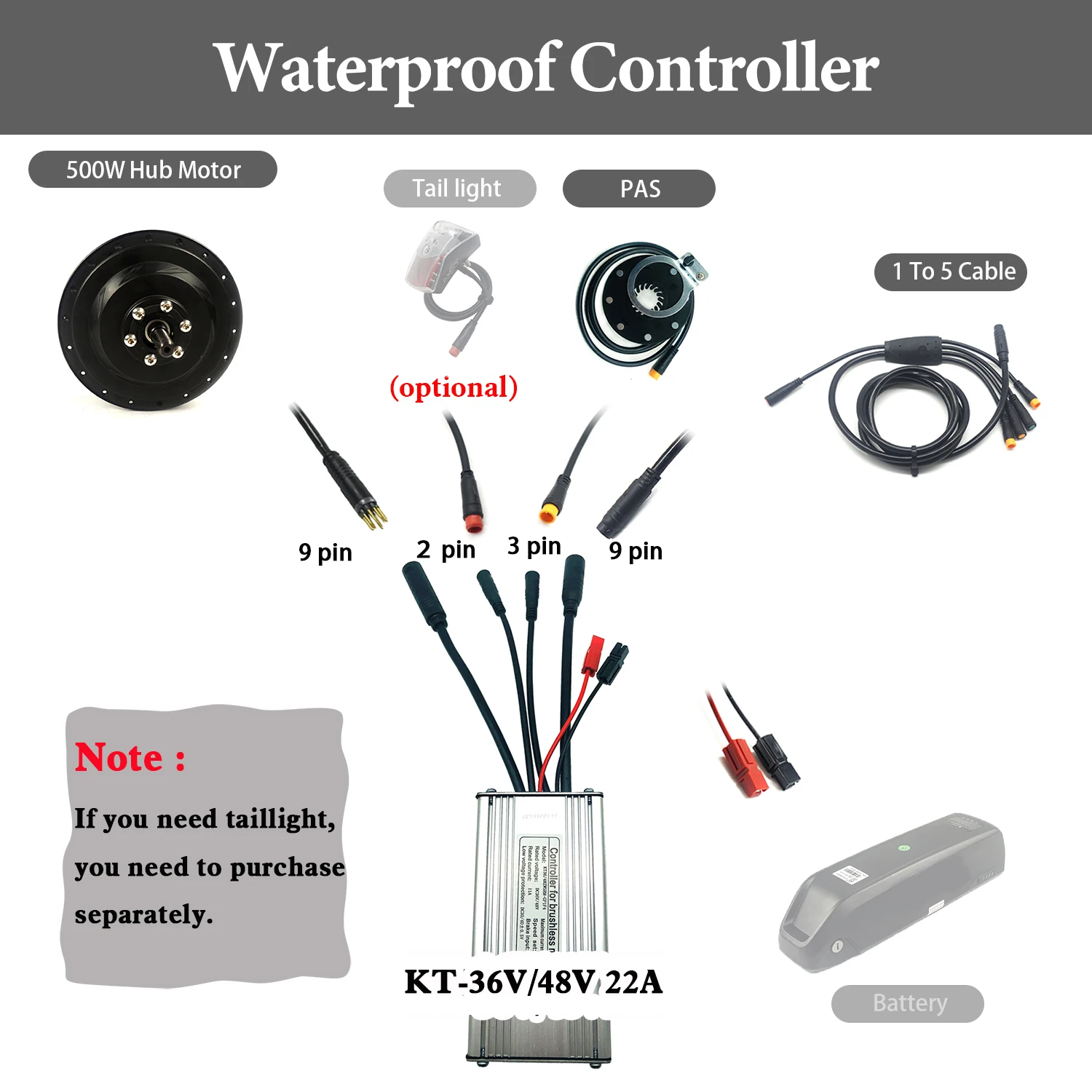

1 PCS * KT 36V/48V 22A Controller(Waterproof with 1T5 cable)
1 PCS * Wuxing 130X Thumb Throttle（Both right and left hands can be used）
1 Pair * Wuxing 115PDD Ebrake（You can ask for a brake sensor instead .Please leave a message when you order.）
1 PCS * 1:1 PAS, 8 magnet
1 PCS * Controller Box
1 Pair * Wuxing 115PDD Ebrake（You can ask for a brake sensor instead .Please leave a message when you order.）
1 PCS * 1:1 PAS, 8 magnet
1 PCS * Controller Box
1PCS * LCD display( LCD3/LCD4/LCD7/LCD8H)
This product provide 28 inch wheel size motor kit , if you need another , please click on the picture above or you can contact us directly.
This product provide Cassette wheel motor kit , if you need another , please click on the picture above or you can contact us directly.
250W ebike kit
350W ebike kit
500W ebike kit
750W ebike kit
1000W ebike kit
Fat tire ebike kit
Details Images

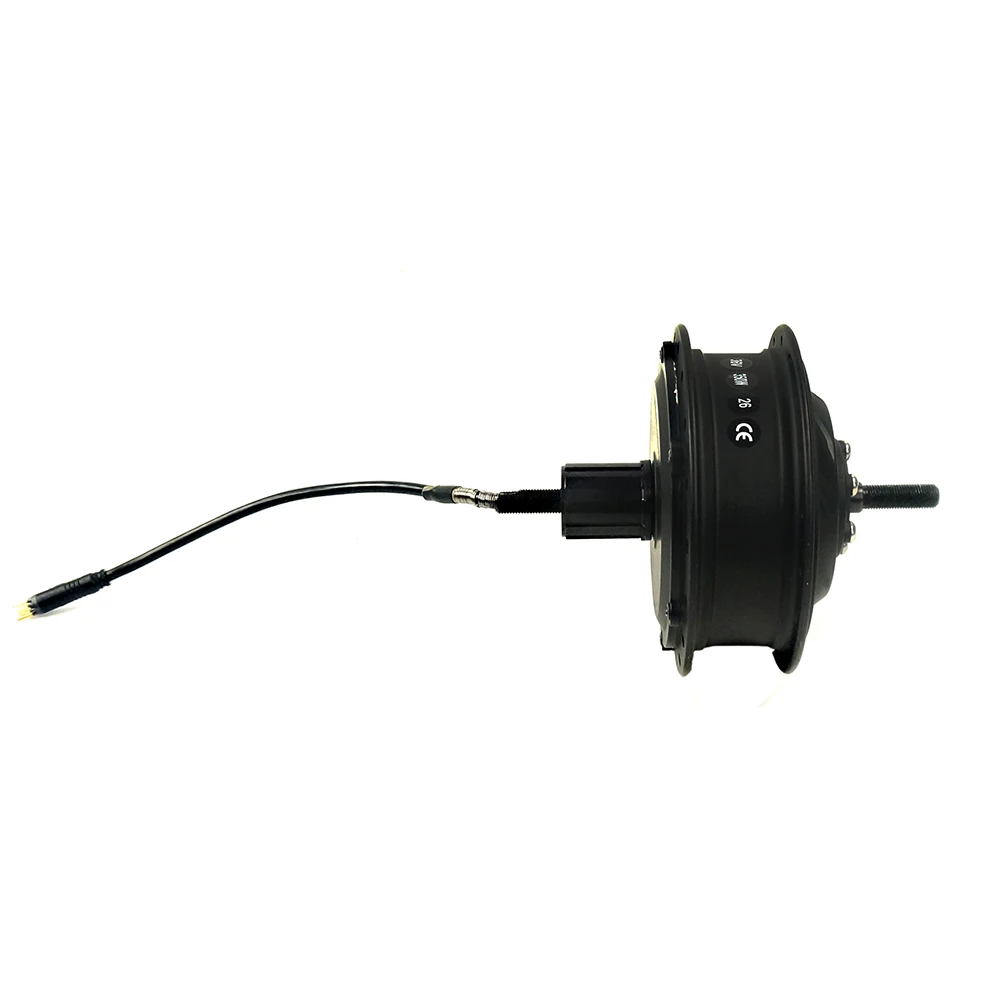

Type : 36V/48V 500W cassette geared hub motor wheel
Rated Efficiency : ≥ 80%
Reduction Ratio : 1:5
Open Size : 135 mm
Color : Black
Noise : ＜62db
Waterproof Grade : IP54
Connector : Julet 1.2 square 9 pin waterproof plug
Rated Efficiency : ≥ 80%
Reduction Ratio : 1:5
Open Size : 135 mm
Color : Black
Noise : ＜62db
Waterproof Grade : IP54
Connector : Julet 1.2 square 9 pin waterproof plug

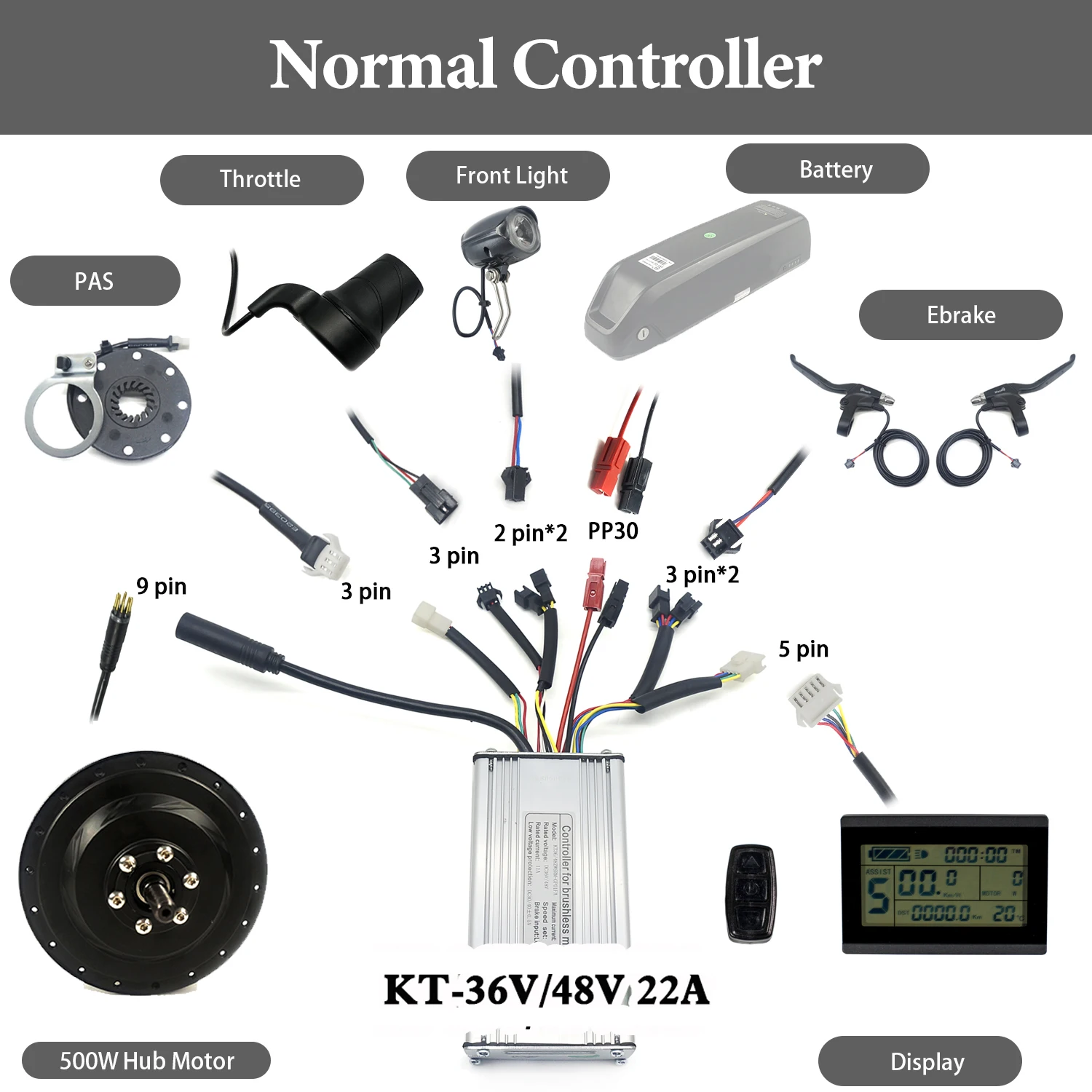

Color : Silver
Dimension : 126*66*38.5mm
Mosfet : 9 Mosfet
Maximum current : 22±1A
Rated current : 11A
Rated voltage : DC36V/48V
Speed set : 1-4.2V
Brake input : Low-Level
Low voltage protection : DC30/40±0.5V
Cable length : all about 13-18cm

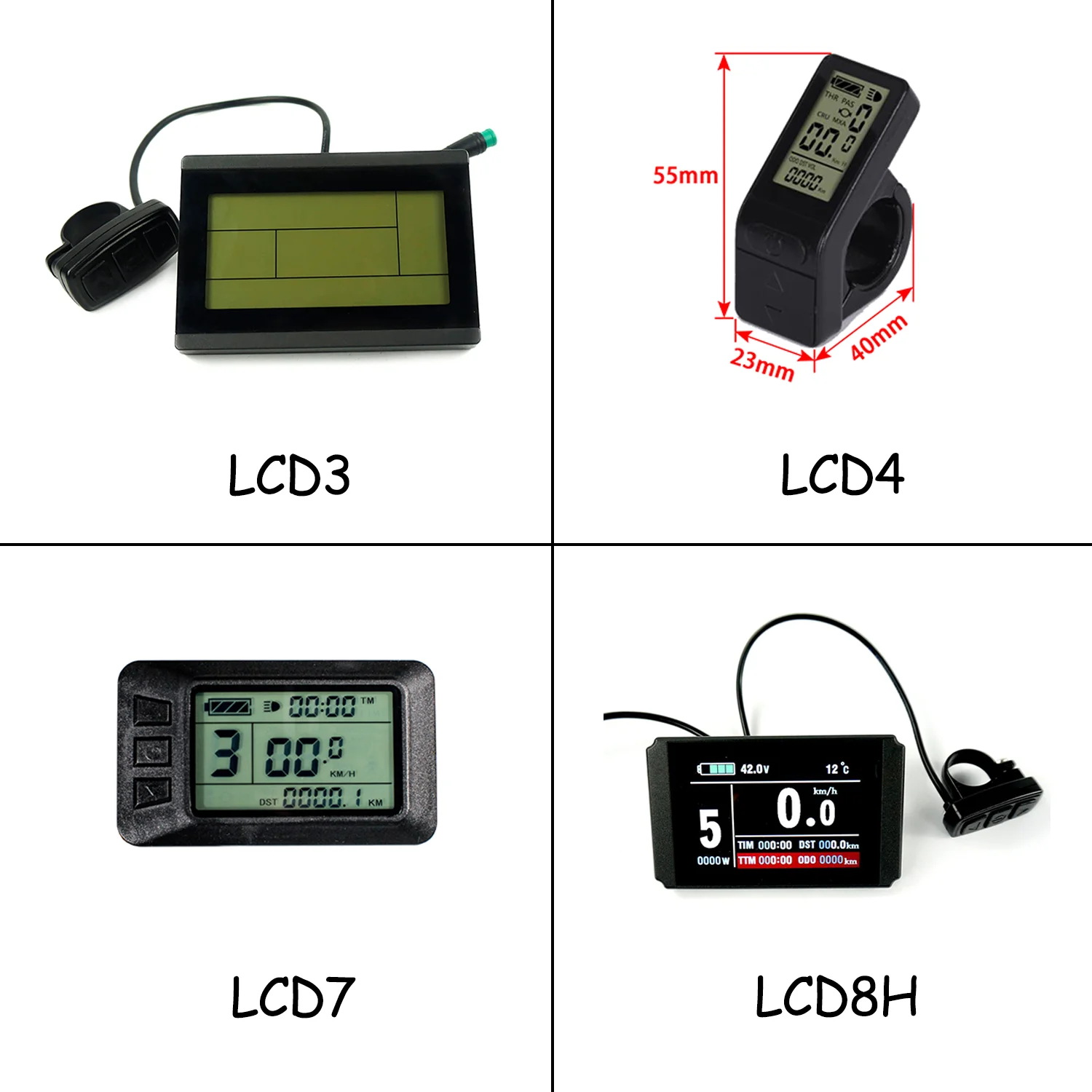

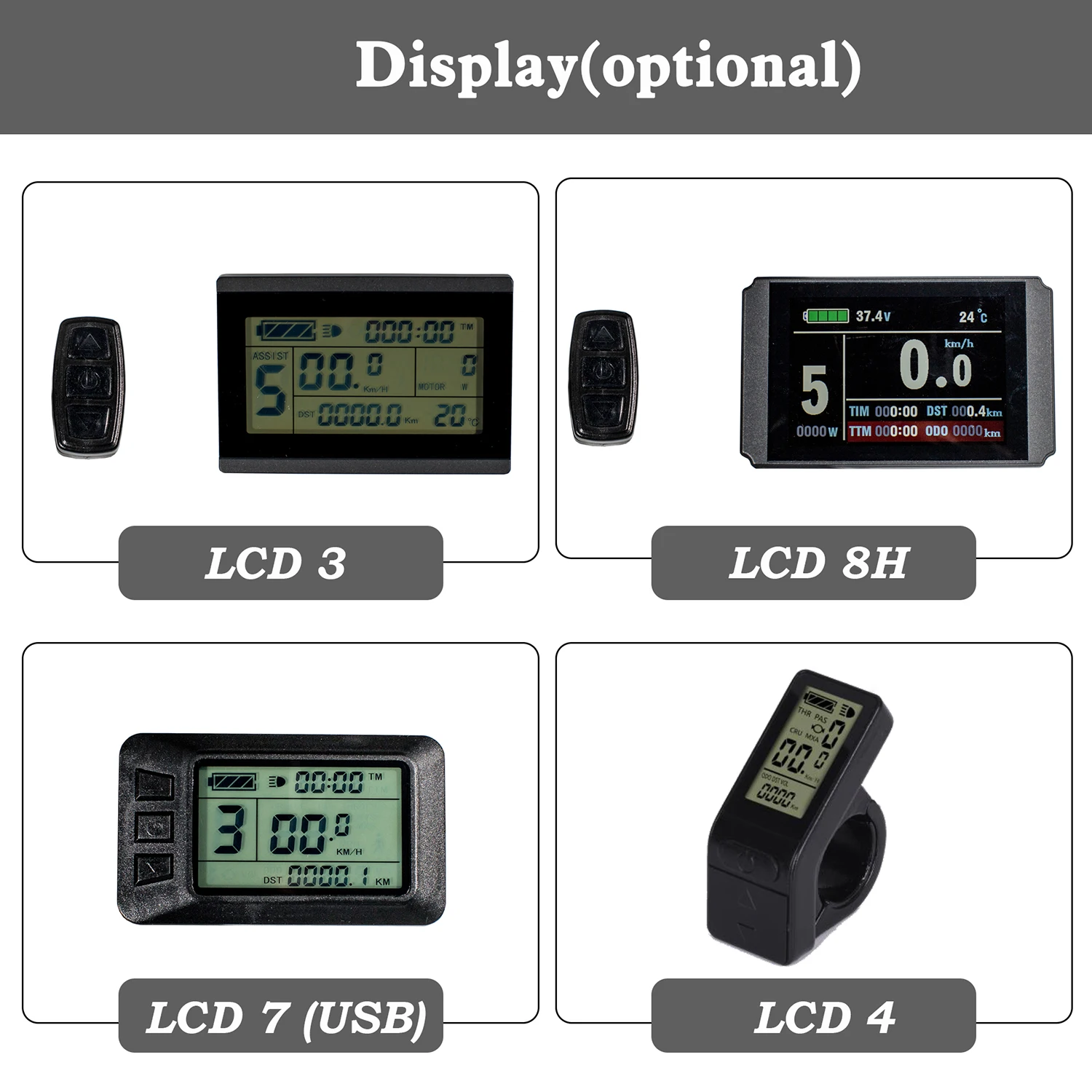

Type : KT-LCD3/LCD4/LCD7/LCD8H
Handlebar size for holdin : Φ22.2mm/Φ25.4mm
Plug : 5 pin connector
Color : Black
Cable Length : Normal(180cm including the connector), Waterproof(25cm including the connector)
Handlebar size for holdin : Φ22.2mm/Φ25.4mm
Plug : 5 pin connector
Color : Black
Cable Length : Normal(180cm including the connector), Waterproof(25cm including the connector)
Material : Aluminum Alloy
Installation : Left/Right
Size : L 156mm W 105mm H 34mm
Color : Black
Cable Length : SM(180cm including the connector), WP(2 pin/3pin 25cm including the connector)
Waterproof : IP76

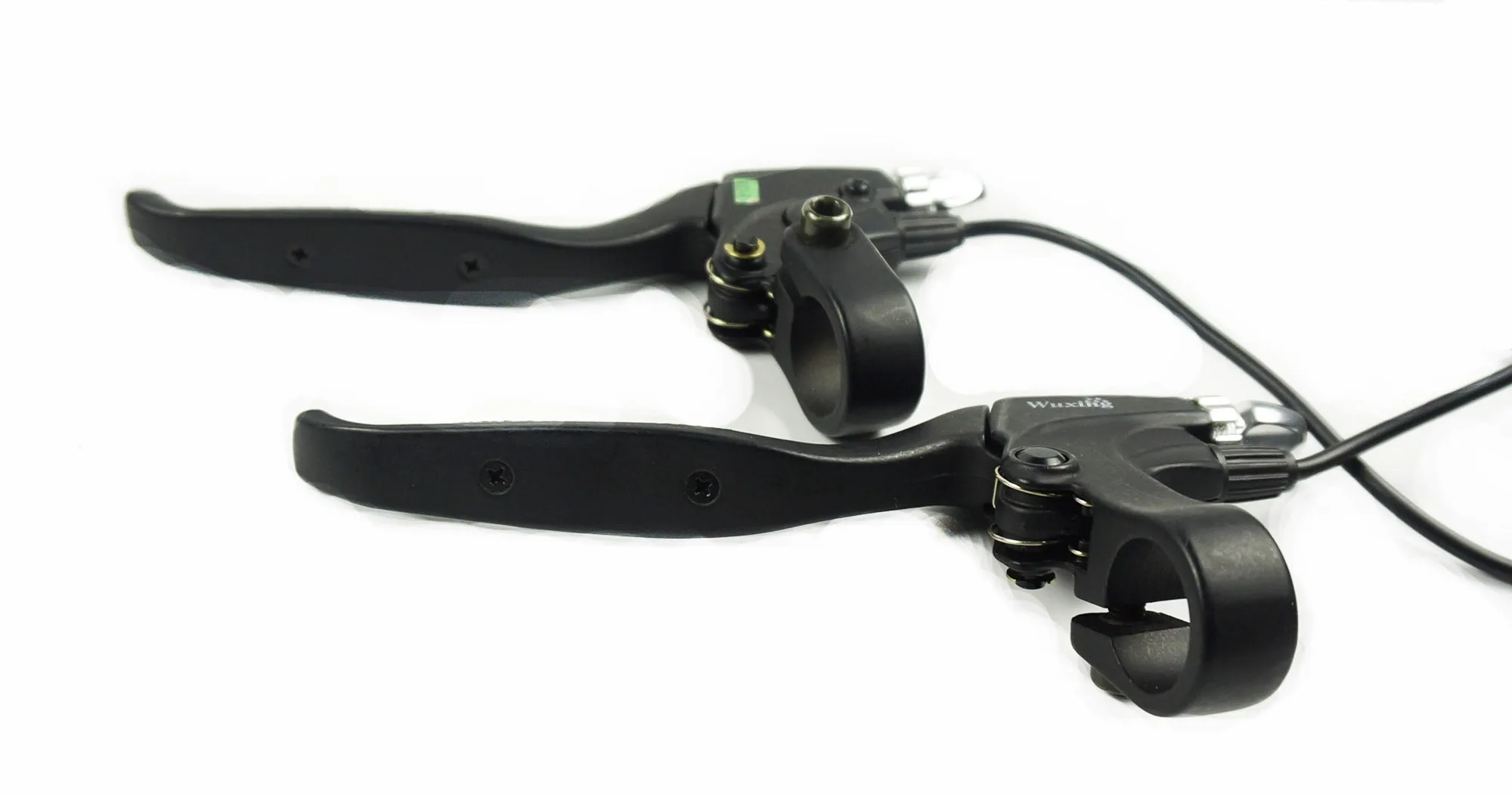

You can freely ask for a brake sensor instead if you need.
Wire length:180cm(SM) ,25cm(Waterproof)
Plug:3 Pin Connector
Installation:Left/Right

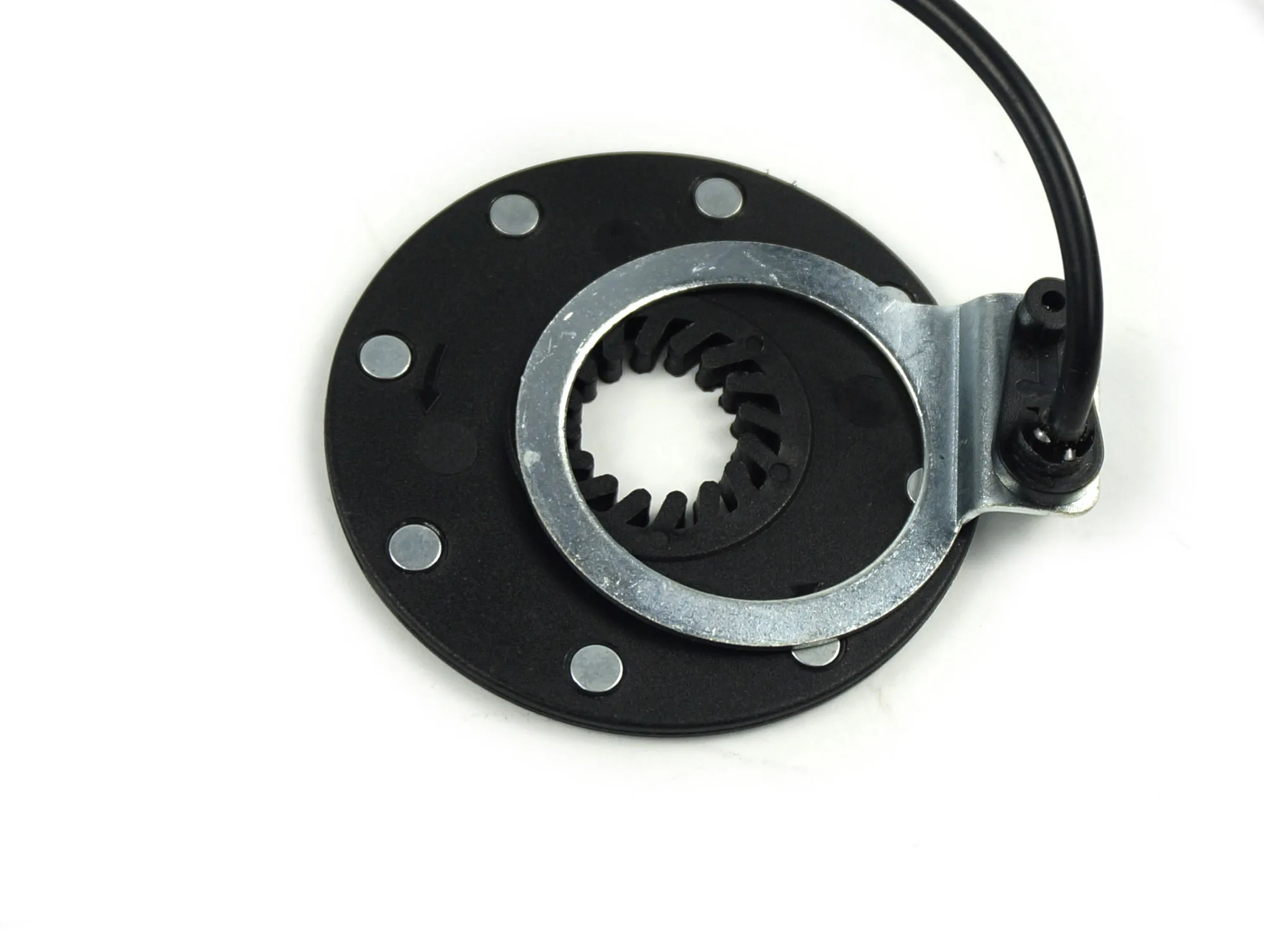

Installation : Left
Color : Black
Magnet : 8 Magnets
Cable Length : 80cm including the connector
Plug : 3 Pin Connector
