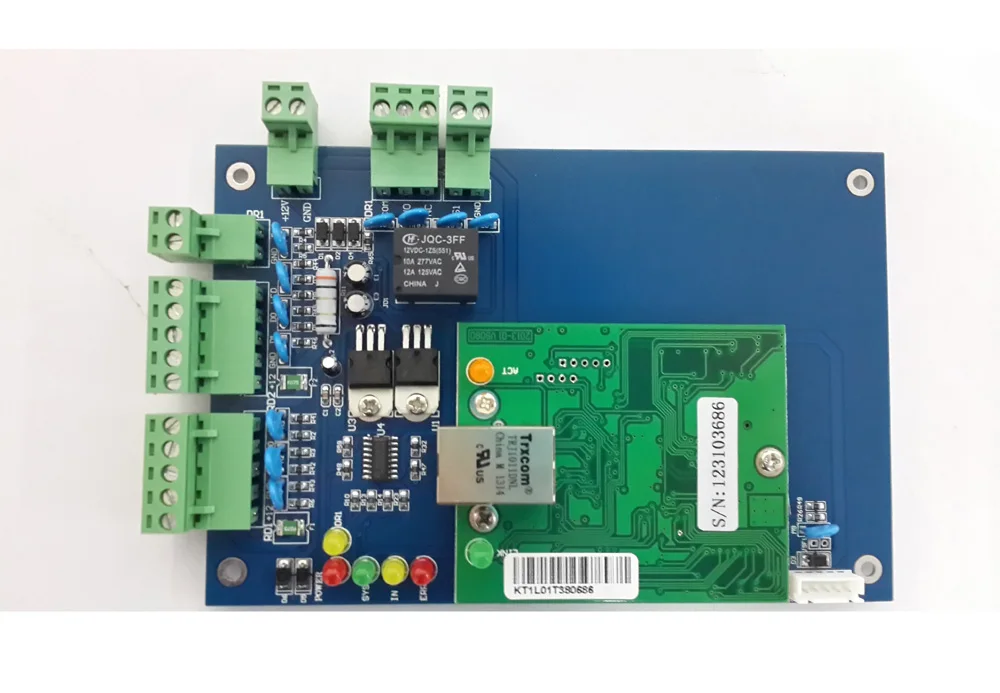

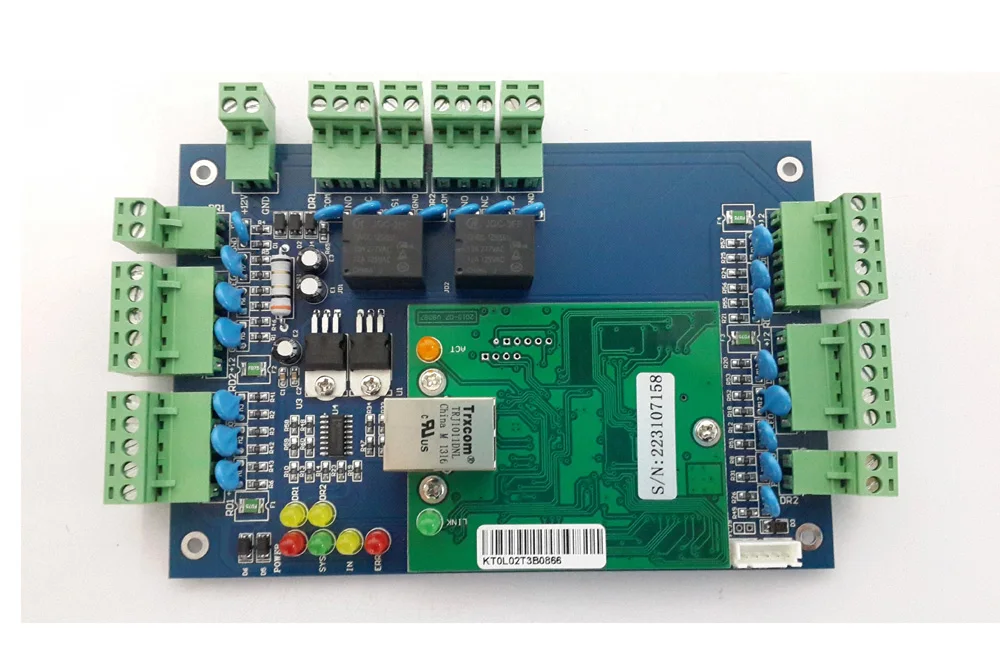

TCP/IP Interface Access Controller Board for 4 Doors

RFID Access Control Board

Parameter

One door access control system

Two door access control system

Four door access control  system

Type No.

NP-R01

NP-T01

NP-R02

NP-T02

NP-R04

NP-T04

Communication

RS485

TCP/IP

RS485

TCP/IP

RS485

TCP/IP

Short description

Dual directional control for one door

Dual directional control for two doors

Single directional control for four doors

Main board size

160mm×106mm

160mm×106mm

218mm ×106mm

Control box size

273mm×228mm×65m

Power supply

12VDC 3A or   12VDC 5A

Main board power   consumption

Less than100mA

Input reader format

Wiegand 26   (compatible with any reader under this standard, such as Motorola ,HID,EM,,Mifare oneetc. )

Readers input No.

1×2

2×2

4×1

NC/NO output No.

1×2

2×2

4×1

Door open delay

From 1sec to   600secs

Maximum capacity

N×256

Unlimited

N×256

Unlimited

N×256

Unlimited

Note: N stands for the Nos of COMs or RS485 HUB ports, ACC access control supports 256 COMs in one system

Working temperature

-40 to 70°C

Working humidity

10-90%RH, no condensation

Card capacity

20,000   privileges

Storing capacity  when offline

100,000

Power failure   Protection

Flash memory

Max distance   from reader to main board

100 meters, suggest not to exceed 80 meters

Max distance   from previous main board to next main board

RS232: less than 13 meters, suggest not to exceed 3 meters

RS485: BUS length less than 1200 meters, suggest not to exceed 1000 meters,   could reach 3000 meters with RS485 expander.

TCP/IP : rely on network performance.

Accessories

Main board, main   board cover, power supply and control box, cables, disk, 2 keys, cartoon

Open too long   alarm

Yes

Yes

yes

Illegal invasion   alarm

Yes

Yes

yes

Force open alarm

Yes

Yes

yes

Alarm activation auxiliary

Software alarm   only if no expander board connected, it will activate auxiliary equipments   when expander board connected

Manual setup NO or NC the door

Yes

Yes

yes

Remote opening door

Yes

Yes

yes

Interlocking   doors

Yes

Yes

Anti tail-after/anti pass-back

Yes

Yes

Multi card open

Yes

Yes

yes

Timing open or close

Yes

Yes

yes

Monitoring map

Yes

Yes

yes

Emergency open or close

Yes

Yes

yes

First card in

Yes

Yes

yes

Keypad password

Yes

Yes

yes
