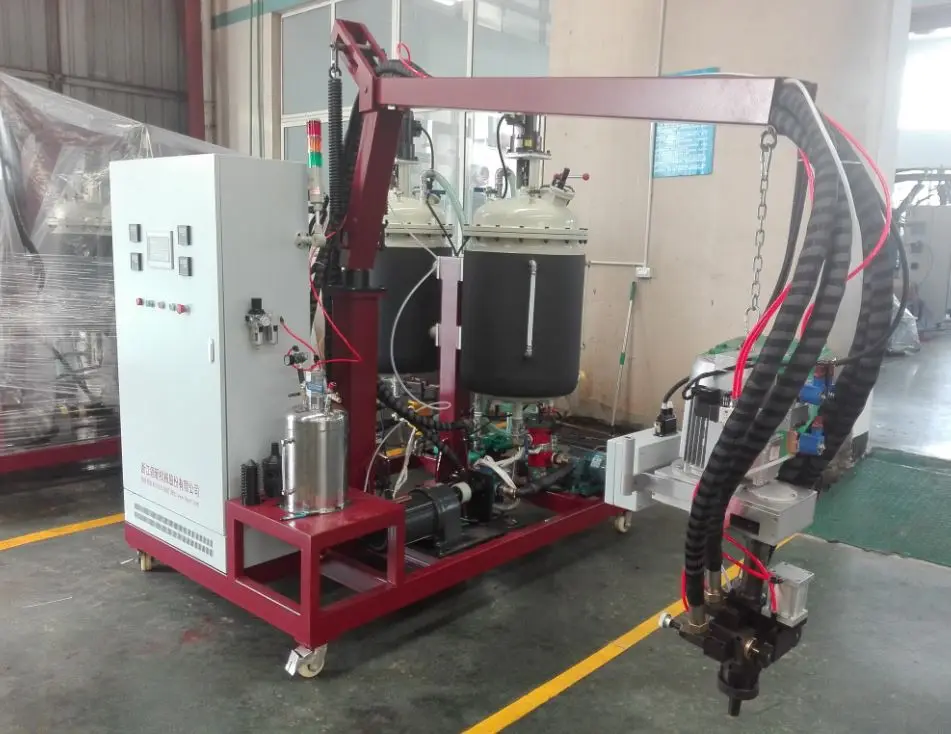

A Polyurethane foam injection pu injection machine
- Category: >>>

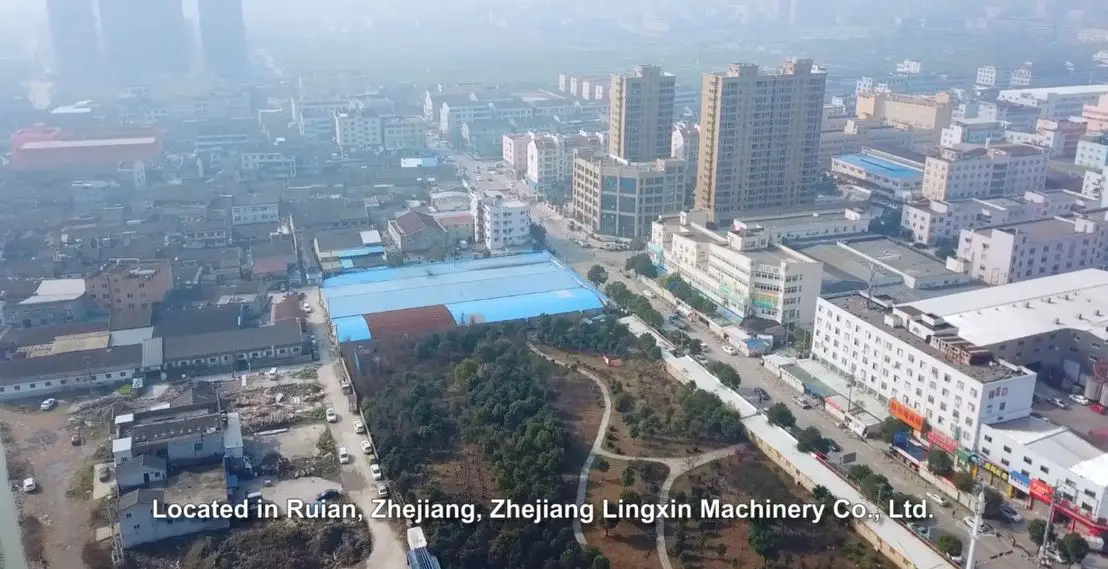

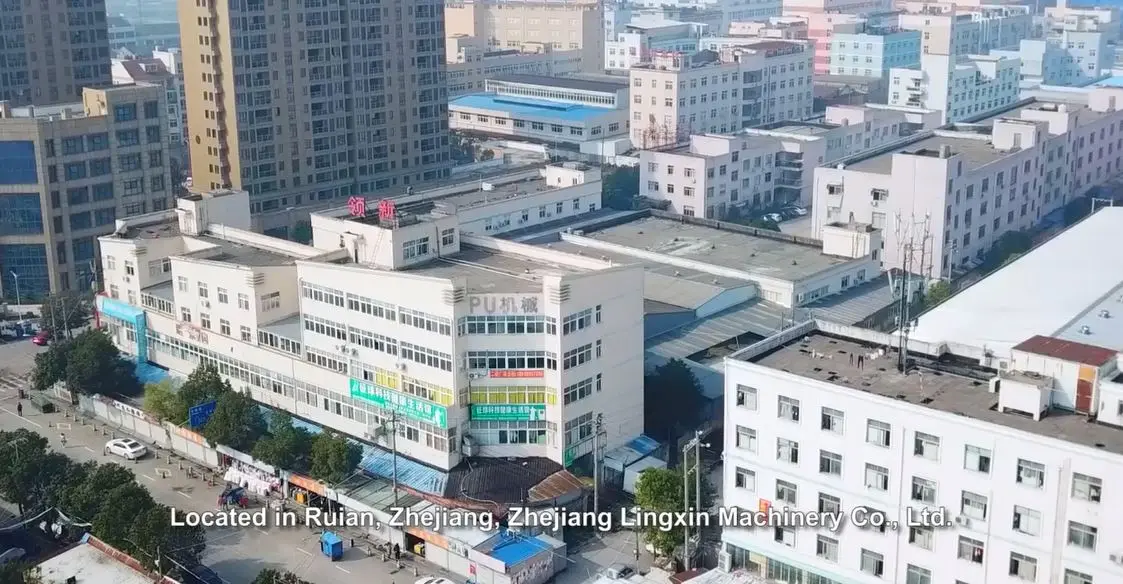

- Supplier: Zhejiang Lingxin Machinery Co. Ltd.
Share on (62544386740):
Product Overview
Description
Equipment Characteristics:

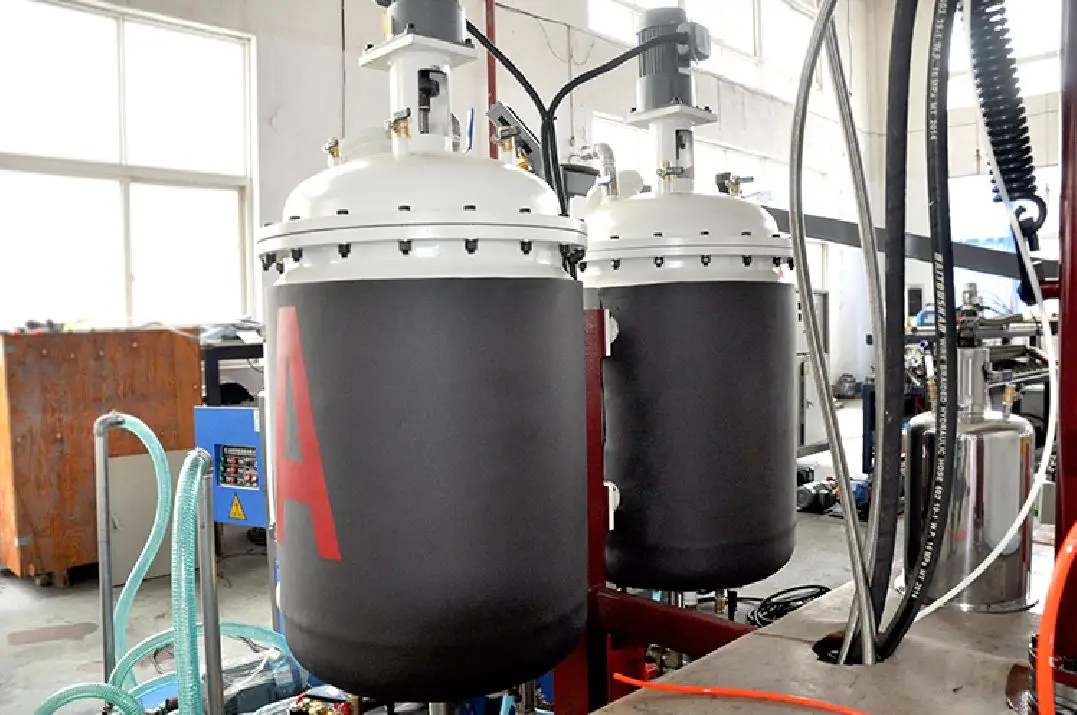

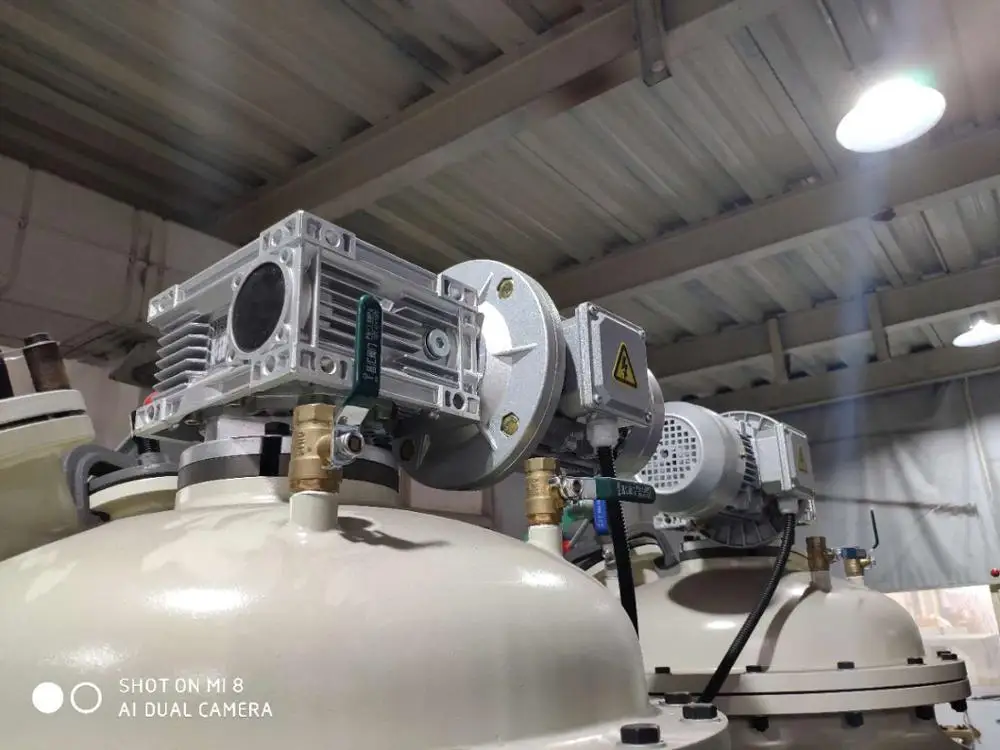

1.For sandwich type material tanks, it has good heat preservation.

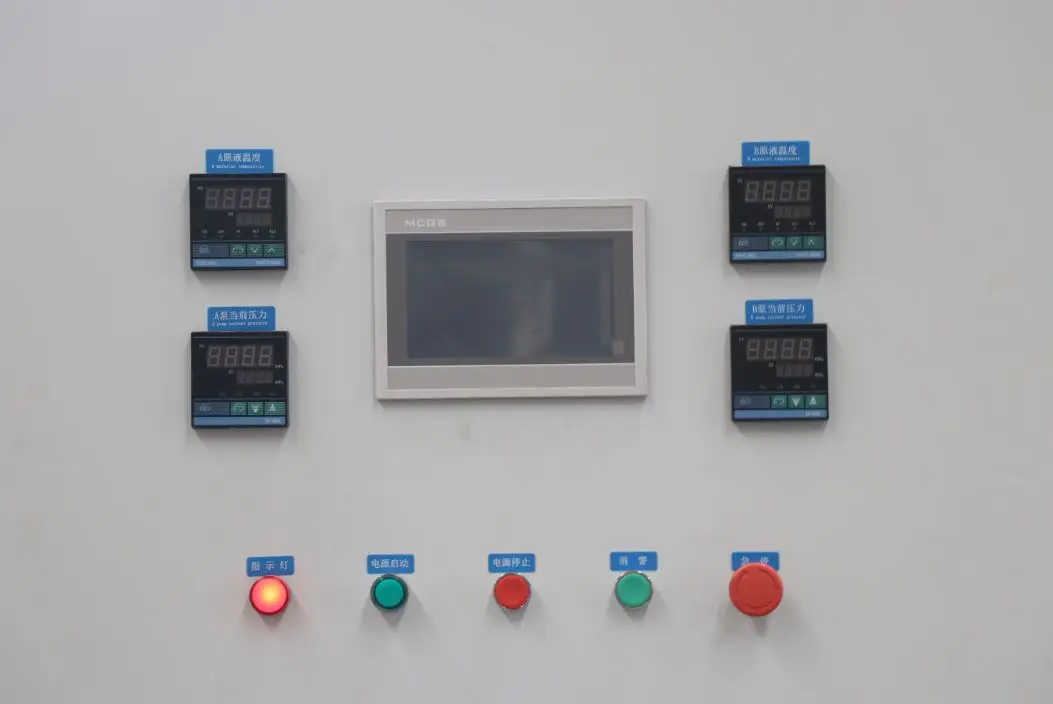

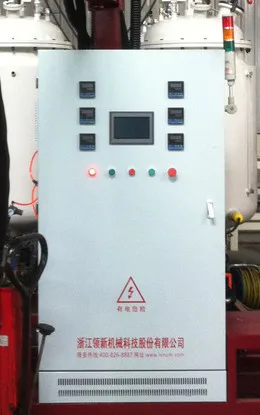

2.The adoption of PLC touch screen human-computer interface control panel makes the machine easy to use and the operating situation of machines easy to see.

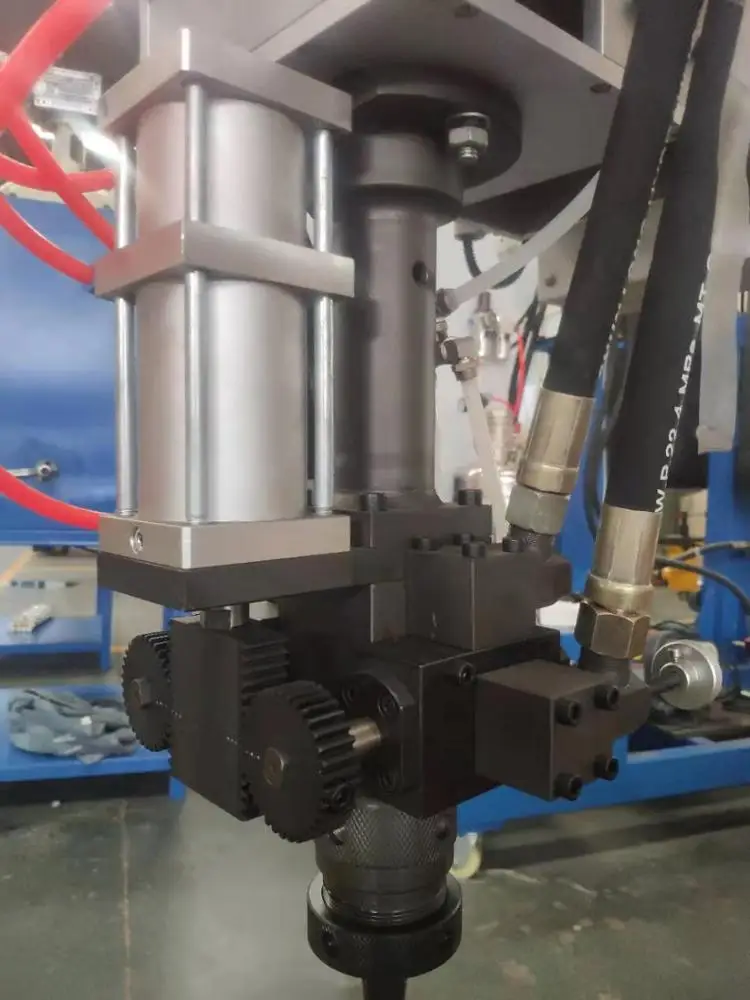

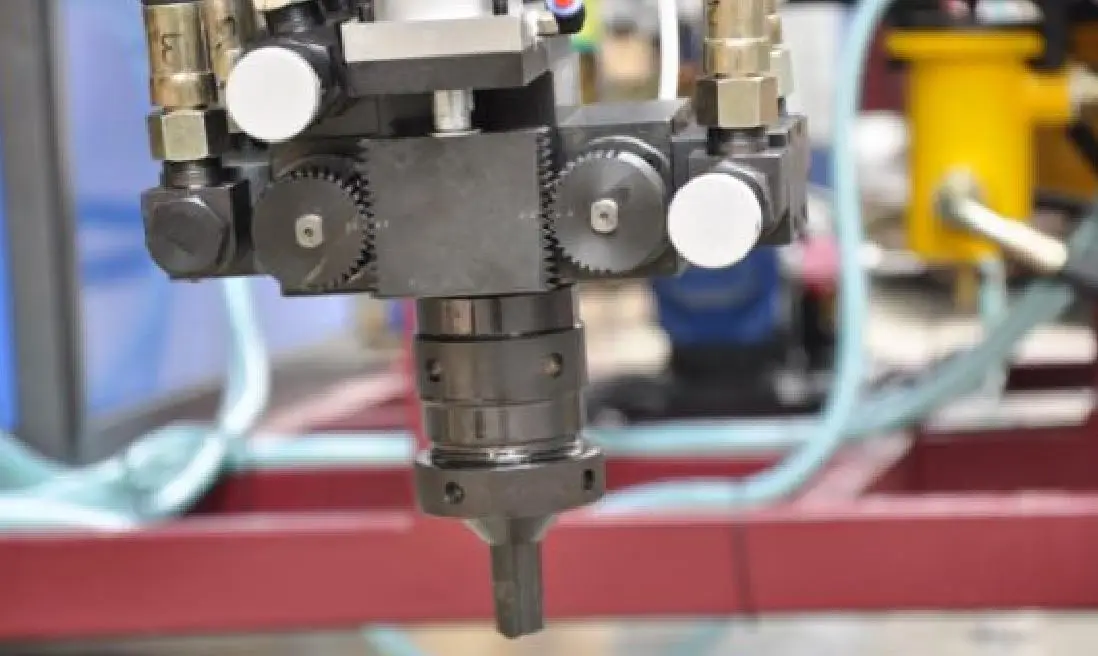

3.The adoption of new type mixing head makes the mixing even, the noise low and the machine sturdy and durable.

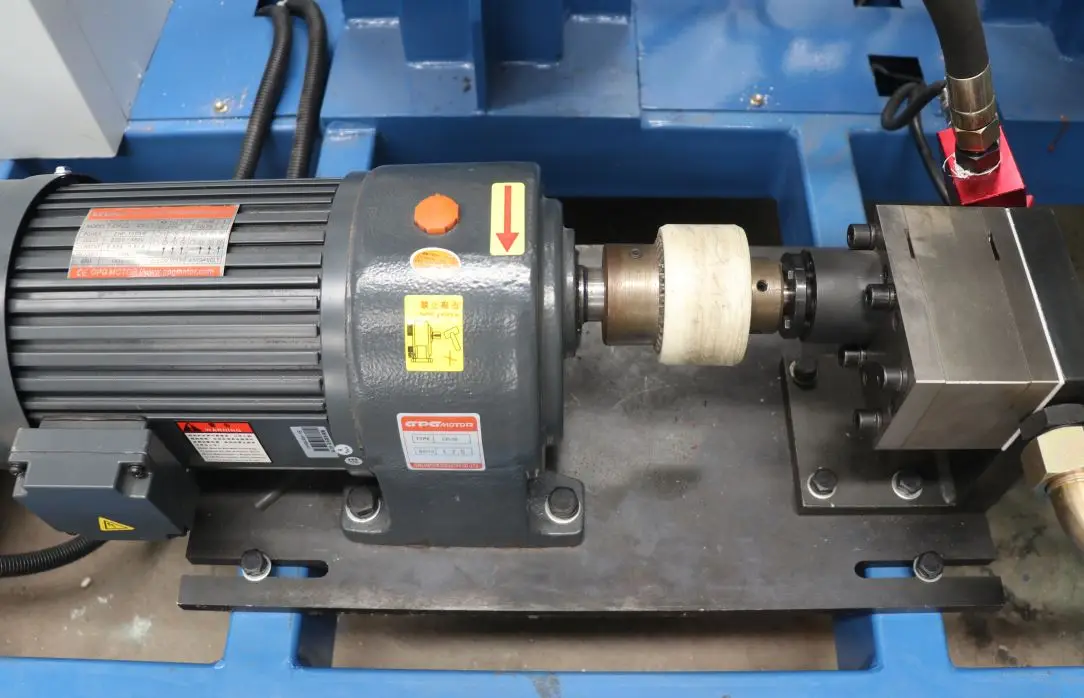

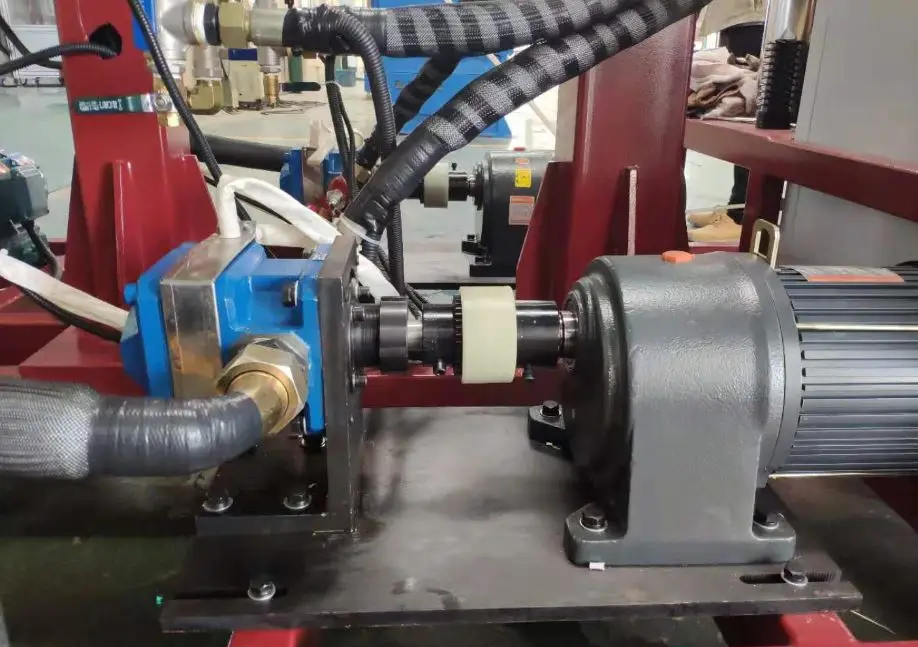

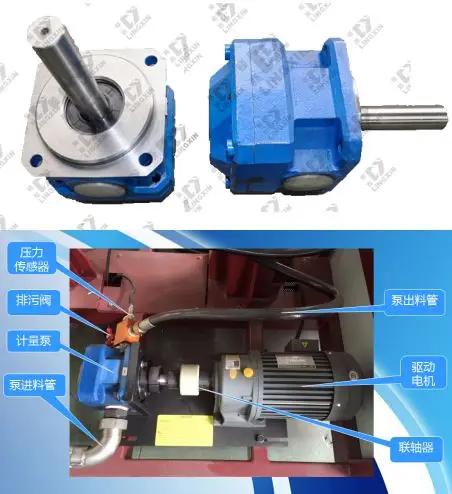

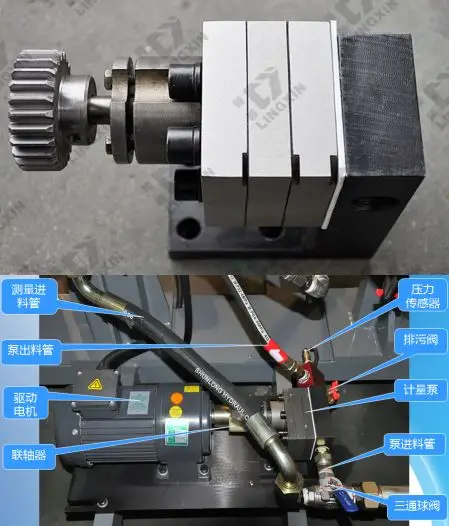

4.The imported pumps make the measurement accurate.
Technical Parameter:
| Injection Output: | 0.9-1600g/s | Temperature control system: | heat:2×3Kw |
| Material tank volume: | 30L-120L-250L | Input power: | three-phase five-wire 380V 50HZ |
| Mixing ratio range: | 100:50~150 for rigid foam making 100: 28~ 48 for flexible foam making | Rated power: | 6KW-15KW |
| Dimension | Micro-scale:1000(L)*1750(W)*1800(H)mm Normal:4100(L)*1250(W)*2300(H)mm | ||
| Mixing head: | 2800-5000rpm, forced dynamic mixing | Color( customizable): | Cream-colored/orange/deep sea blue |
| Compressed air needed: | dry, oil free, P:0.6-0.8MPa Q:600NL/min(customer-owned) | Weight: | 600Kg-1500Kg |
| Nitrogen requirement: | P:0.05MPa Q:600NL/min(customer-owned) | Raw material viscosity(22ºC): | POL ~3000CPS ISO ~1000MPas |
