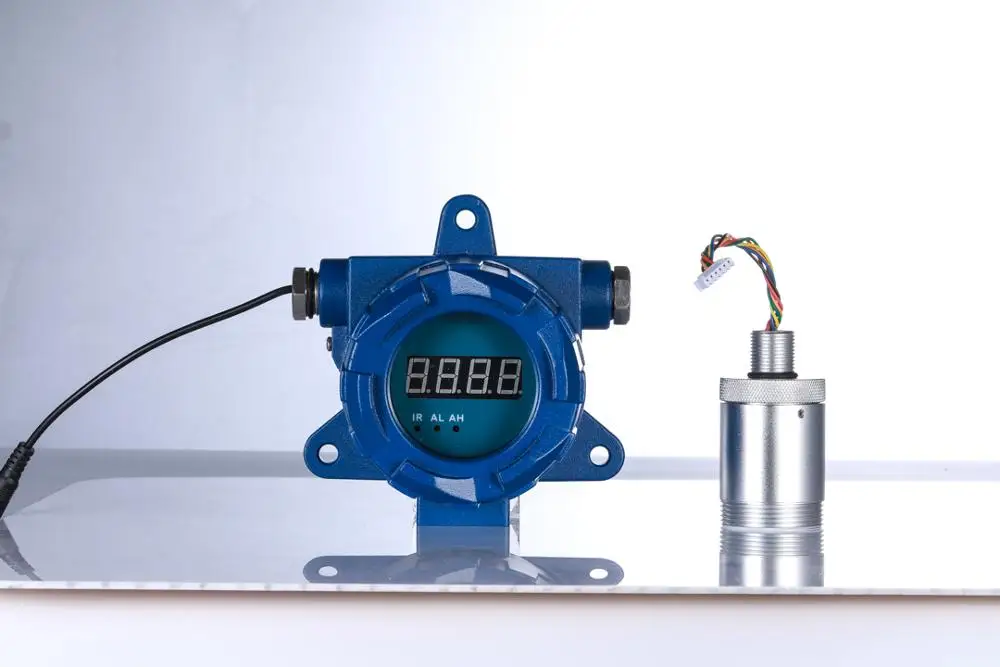

Industrial Fixed Display Ozone Gas Leak Monitor Controller Relay O3 Sensor With Alarm Light ATEX CE
- Category: >>>
- Supplier: Shenzhen Yuante Technology Co. Ltd.
Share on (62544406339):
Product Overview
Description
Industrial Fixed Display Ozone Gas Leak Monitor Controller Relay O3 Sensor With Alarm Light ATEX CE
A Professional: We have been focused on gas detection devices for more than 10 years and been cooperating with PB group, PetroChina, Sinopec, Huawei, Samsung, Panasonic, etc famous companies. We are with rich experience to provide you professional solutions.
B Innovation: Strong R&D team (invest 40% revenues into research and experienced engineers team) makes our products stand out in the market.
C Quality: International top brands sensor and IC /100% production test, make sure a good quality.
D Professional technical support: Provide detailed pre-sales and after-sales technical support, no need to worry about any problem during usage.
E Completed certifications: ATEX / SIL / CE / CNEX / ISO9001/, meet government standard as well guarantee your safety health.
F Services: We provide 24*7 hours service, if there have any question, Celia will reply you in 1 hours. Meanwhile, we can provide OEM services.
G Delivery: We can ship it out in 2-3 days. For some mass production and special customised gas analyzer, we can ship it out in 7 days.
Product Description
Ozone Gas Leak Monitor advantages
1. Employing overseas original sensor.
2. Standard equipped with three-wire system 4-20mA analog output;
relay output; RS485 output (optional)
3. Unique infrared ray control function, which can non-contacted controlthe device. Being compatible with all kinds of controlled alarms, PLC, DCS and
other control system, can be remote monitored.
4. Explosion-proof design, fast, reliable and stable.
5. Explosion-proof grade: II 2G Ex db IIC T6 Gb IP65
6. With self-calibration function and three standard keys will be used to
realize on-site maintenance.
Ozone Gas Leak Monitor Features

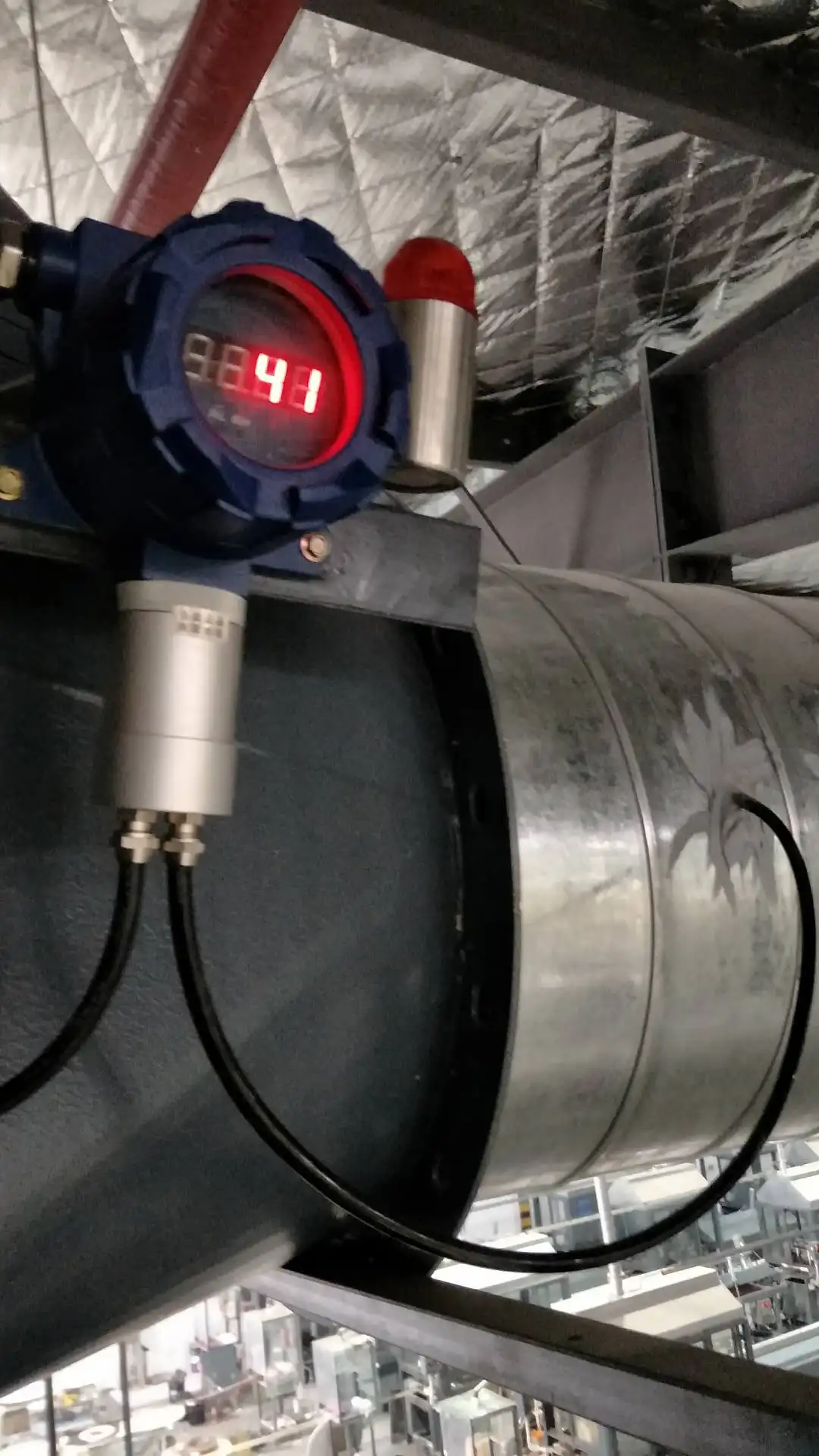

1. Monitor the O3 Ozone gas concentration in environment or pipeline
and alarm.
2. With self-calibration and zero calibration function,
makes the detection more accurate and reliable.
3. With temperature compensation, this is able to realize gas concentration compensation under conditions of different temperatures. Two-stage alarm with sound and light, alarm point is settable.
4. Infrared ray controller can remote control alarm point settings,
zero calibration, and address modification.
5. Can output one or two on-off signals, can drive ventilator or
solenoid valve and other external devices.
6. Working Voltage:12-36V DC
7. Case:die-cast aluminum + stainless steel (alarm light)
Ozone Gas Leak Monitor Technical Specification
Gas Detected | Ozone / O3 | ||
Detection principle | Eletrochemistry | ||

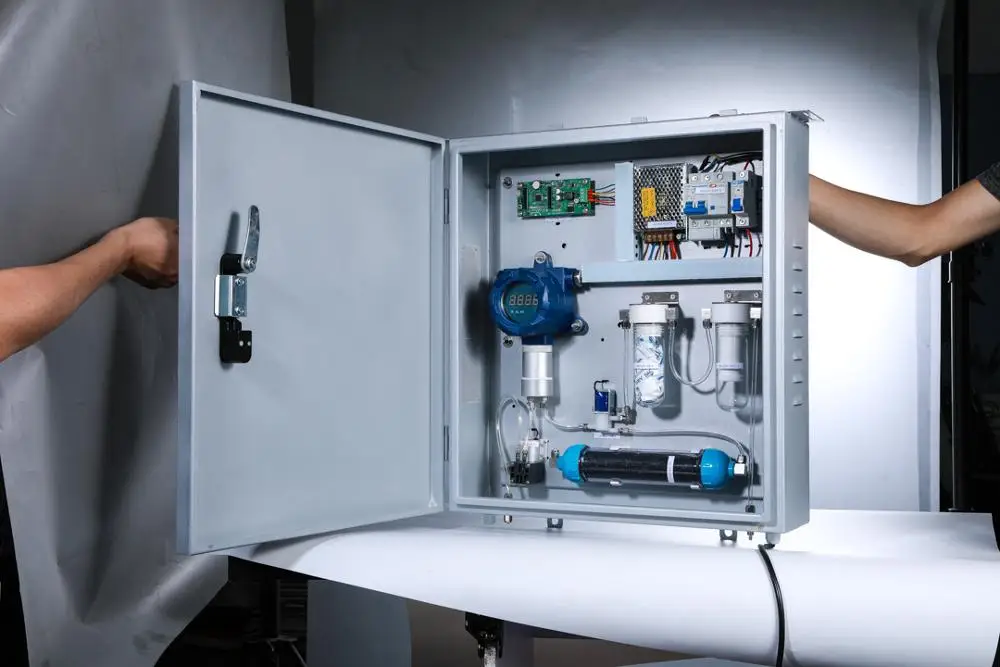

Install Method | Wall-mounted, piping type, flow-type(according to the detected environment) | ||
Measure Range | 0-1ppm, 0-10ppm, 0-20ppm, 0-50ppm, 0-100ppm, 0-500ppm, 0-1000ppm | ||
Resolution | 0.001ppm, 0.01ppm, 0.1ppm, 1ppm | ||
Precision | ≤± 1%FS for high precision sensor or 3% F.S. for normal sensor | ||
Signal Output | 4-20MA, 0-5V, RS485, RS232, relay, wireless digital(optional) | ||
Response Time | ≤10S | Recovery Time | ≤10S |
Repeatability | ≤±1% | Linearity error | ≤±1% |
Zero shift | ≤±1%(F.S/year) | Display | High light nixie tube display |
Connection mode | G1/2 external thread explosion-proof flexible pipe | Unit | ppm, mg/m3 |
Temperature | -20℃~50℃ | Humidity | 0-90%RH |
Explosion-Proof | II 2G Ex db IIC T6 Gb IP65 | Degree of protection | IP65 |
Power | 12-36V DC | Operating time | 24h |

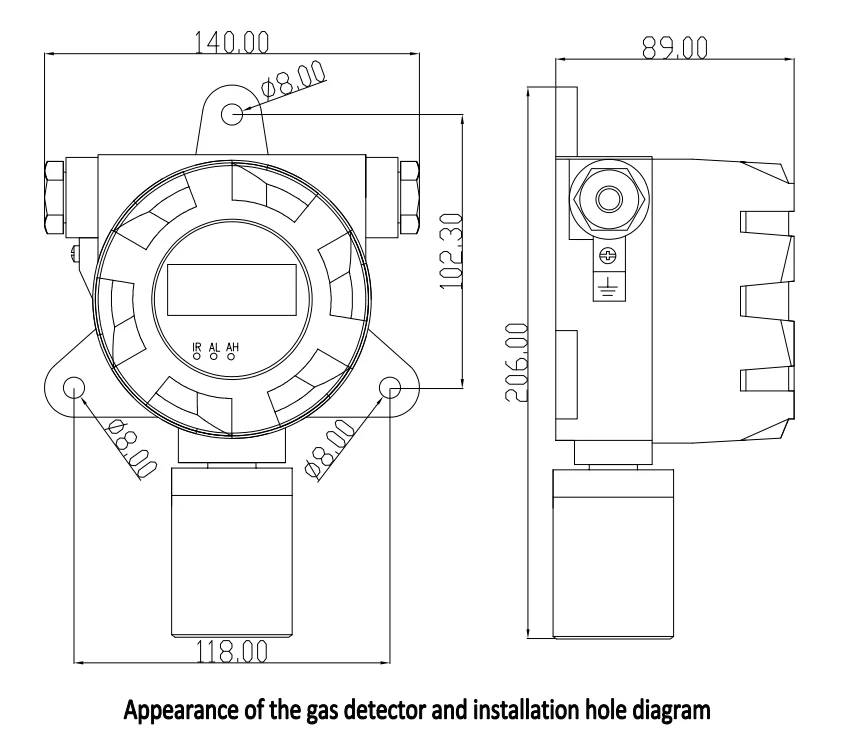

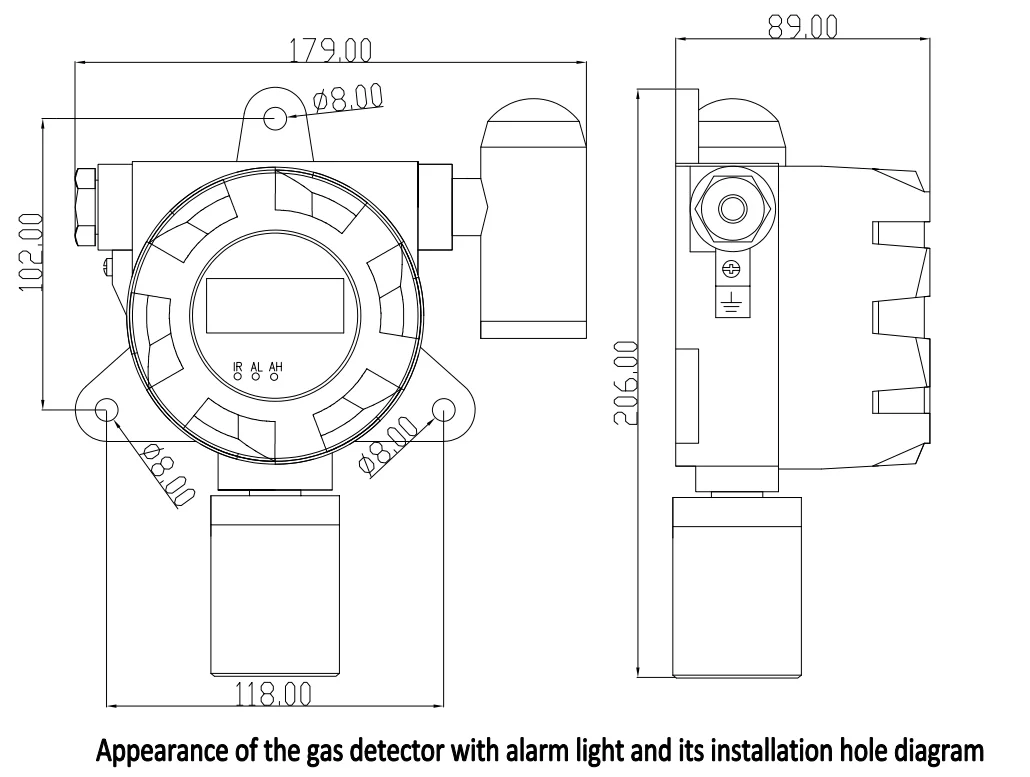

Dimensions | 180*150*90mm | Weight | ≤1.6kg |

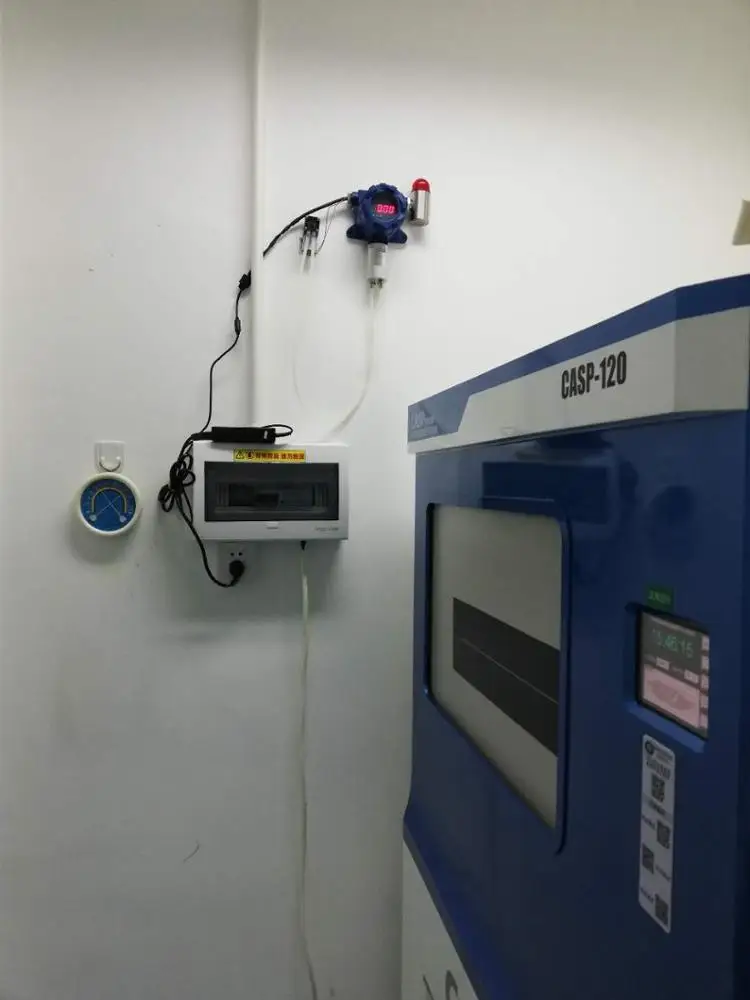

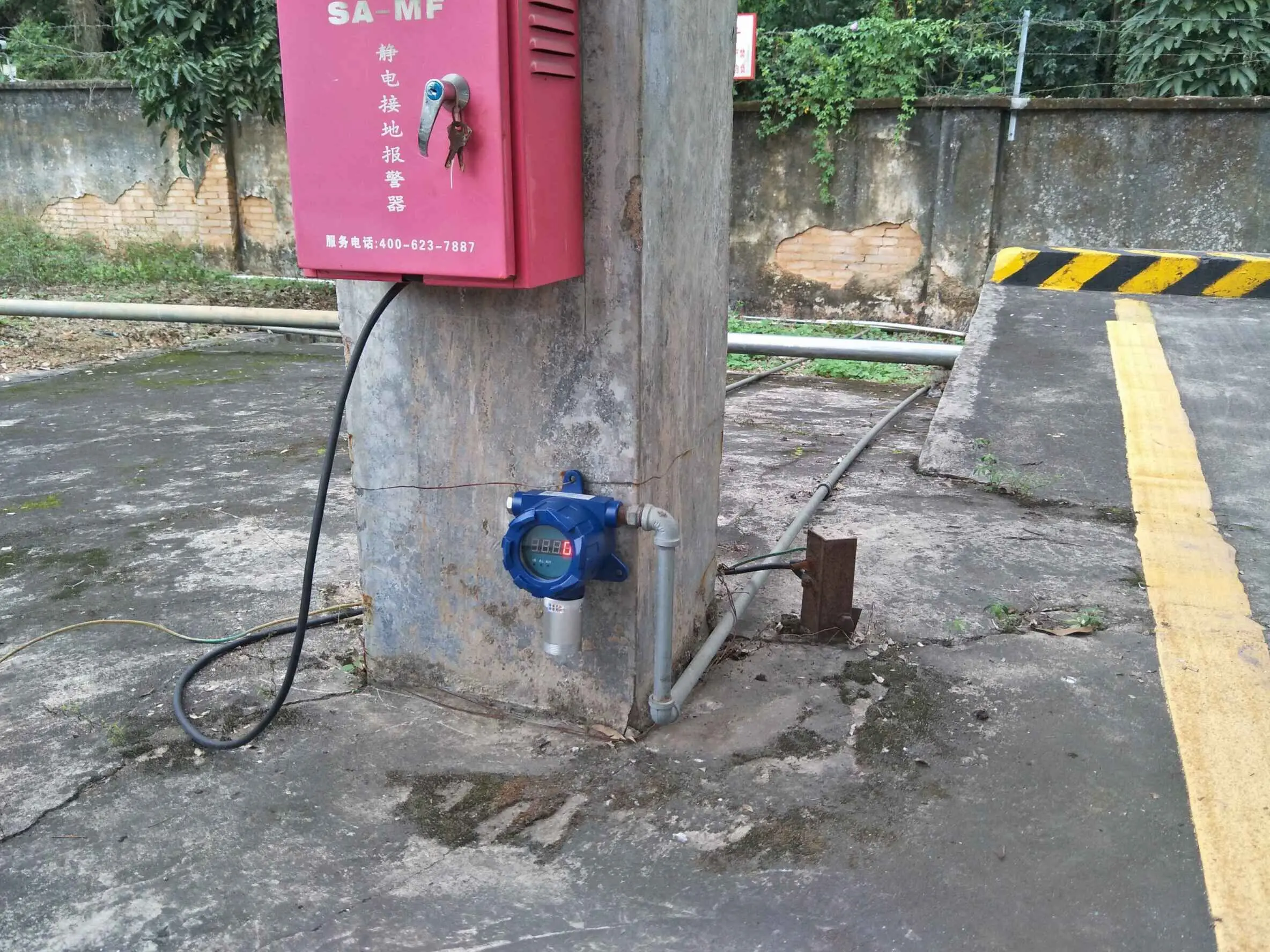

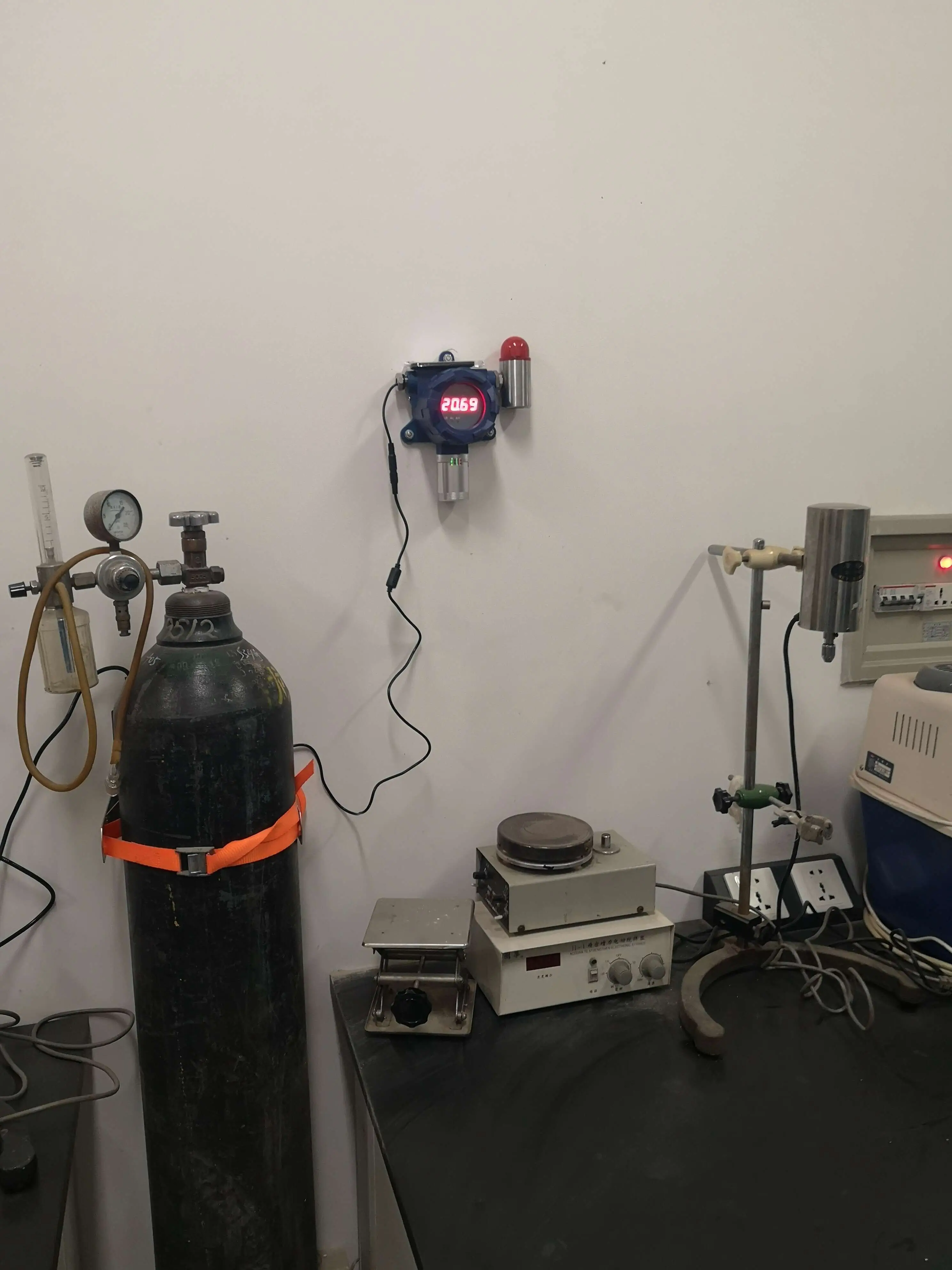

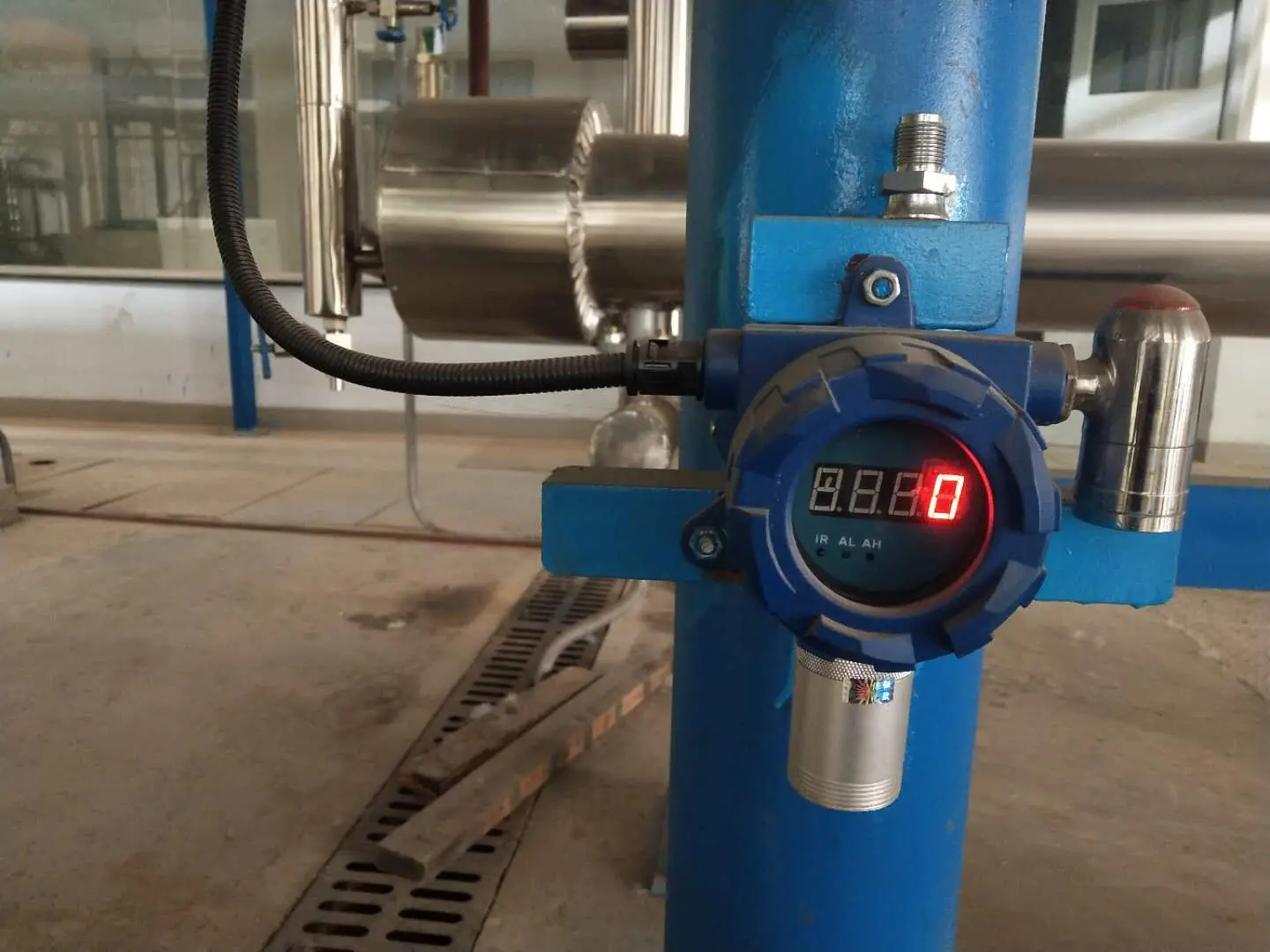

Application&Installation
Furniture, Floor, Wallpaper, Coating, Gardening, Interior Decoration and Renovation, Dyestuff, Papermaking, Pharmacy, Health Care, Foodstuff, Antiseptic.
Disinfection, Chemical Fertilizer, Resin, Adhesive, Pesticide, Raw Material, Sample, Technological Process,
Livestock Farm, Refuse Processing Plant, Perm Place.
Bio-pharmaceutical Plant, Green Household, Livestock Breeding, Green House Cultivating, Warehouse Logistics, Brewing And Fermentation, Agricultural Production.
Disinfection, Chemical Fertilizer, Resin, Adhesive, Pesticide, Raw Material, Sample, Technological Process,
Livestock Farm, Refuse Processing Plant, Perm Place.
Bio-pharmaceutical Plant, Green Household, Livestock Breeding, Green House Cultivating, Warehouse Logistics, Brewing And Fermentation, Agricultural Production.
Company Information
Certifications
ATEX CE CNEX SIL ISO9001
Contact
Celia Wu
SHENZHEN YUANTE TECHNOLOGY CO.,LTD(Safegas)
Mobile/WhatsApp/Wechat: +86 15889417475
Email: sales04@szyuante.com
