110V 220V 983A high precision digital display dispensing machine Auto Glue Dispenser Solder Paste Liquid Controller Dropper
- Category: >>>
- Supplier: Shenzhen Chuang Xin Jia Technology Co. Ltd.
Share on (62544442006):
Product Overview
Description
110V 220V 983A high-precision digital display dispensing machine Auto Glue Dispenser Solder Paste Liquid Controller Dropper
index parameter:
1 spit out the way: 16 free settings, with spit time display *
2 automatic timing spit out: 00.01S-99.99S
3 artificial timing spit: Sustainable spit coating, scribing
4 minimum spit: 0.0001ML
5 spit interval: 0.1-9.9S (automatic timing function)
6 input voltage: 220V + 0.1 50Hz/110V + + 0.1 60Hz
7 internal voltage: 12VDC/24VDC
8 input air pressure: 10-100pSi
9 output pressure: pSi 1-80
10 external dimensions: 235*225*63mm
11 weight: <2.2kg

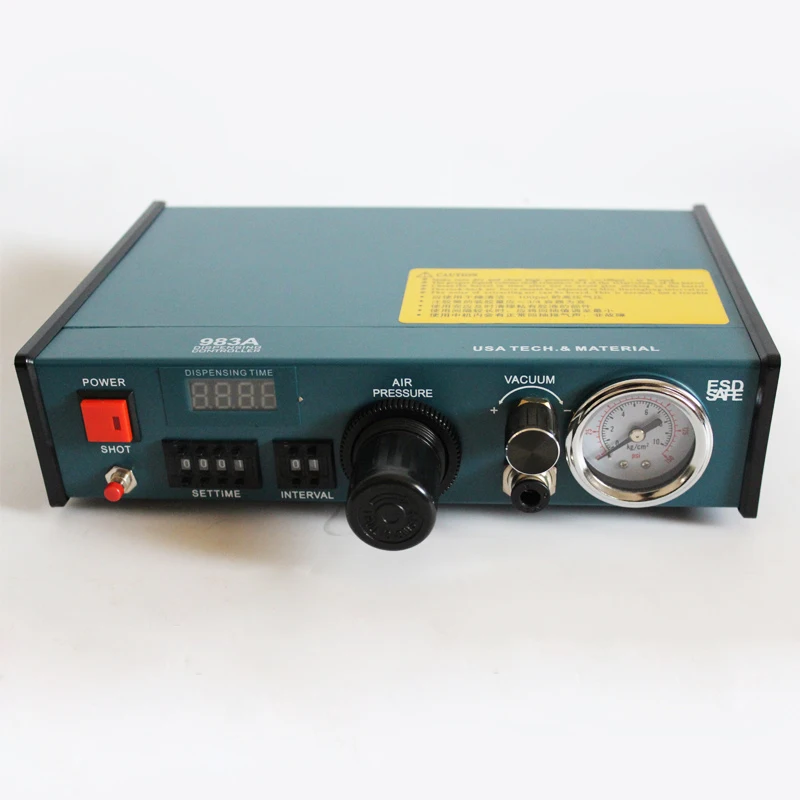

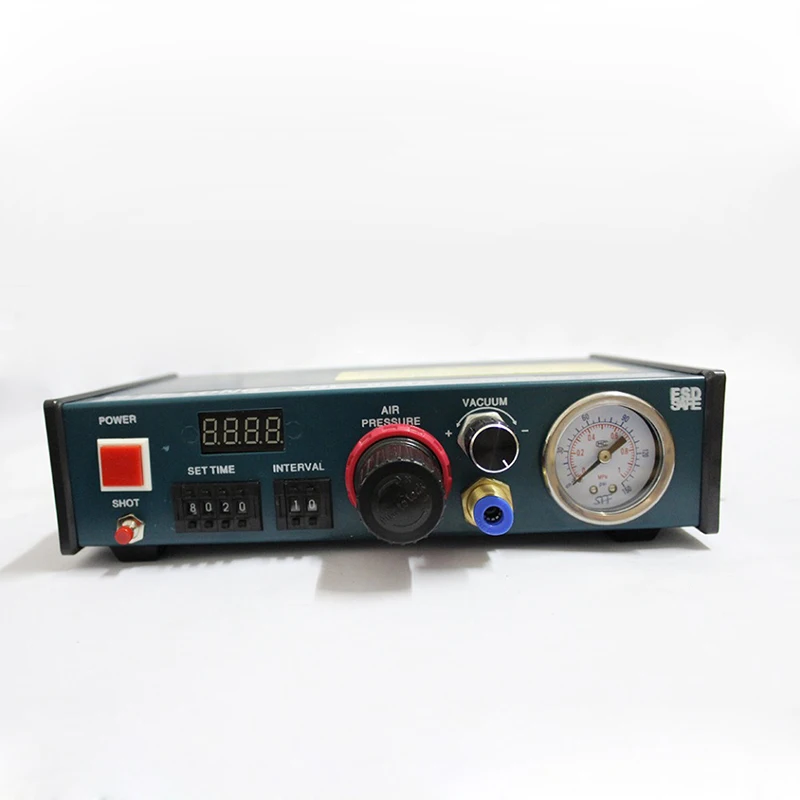

Component description:
Power button: press the light to turn on and off.
Spit out time display: display setting time *
Input pressure regulator: first pulled out, reverse pressure, clockwise for atmospheric pressure
Barometer: display range of 0-100pSi
Vacuum controller: vacuum pumping and reverse vacuum pumping back small clockwise
Test key: in debugging, can replace the use of foot switch
Spit time dial key: display set time, using addition and subtraction 00.01S-99.99S
Interval setting dial key: display set time, using addition and subtraction 0.1S-9.9S (automatic timing)
Spit out the output: connect the spit cylinder (syringe)

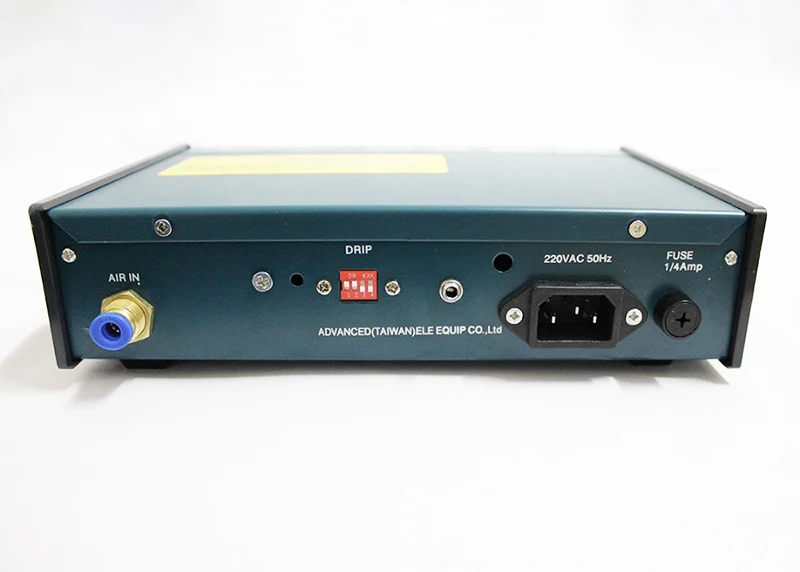

10 pressure inlet: connect clean high pressure source
11 out of 16 way: programmer is free to set out the way
12 foot controller interface: connect foot switch
13 power input socket
14 safe
Product Description
