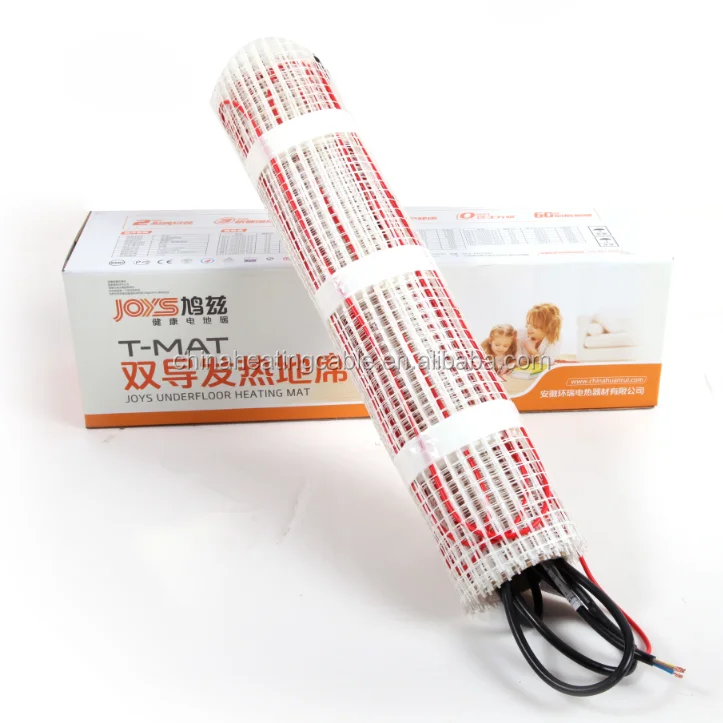

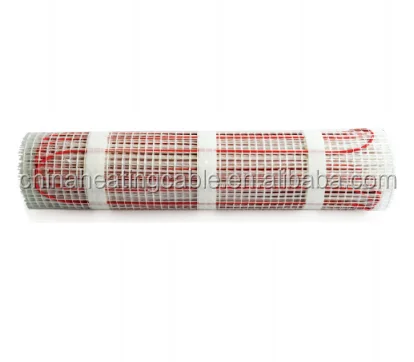

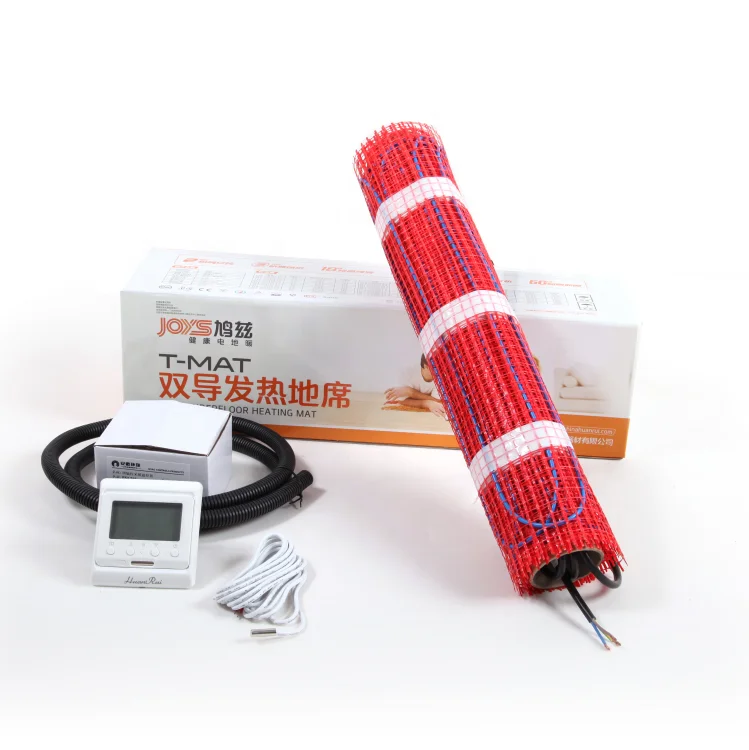

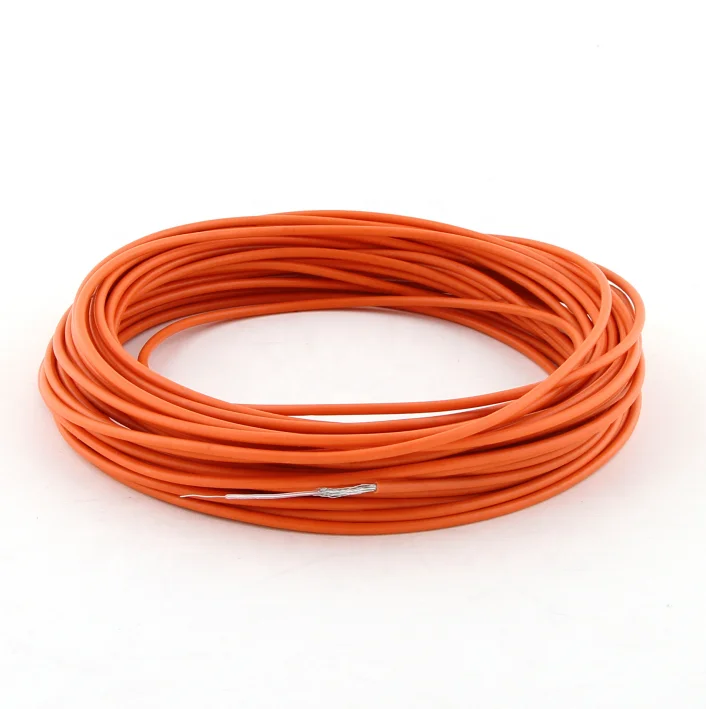

Low carbon electric warmfloor CE certificate energy saving heating mat
Introduction

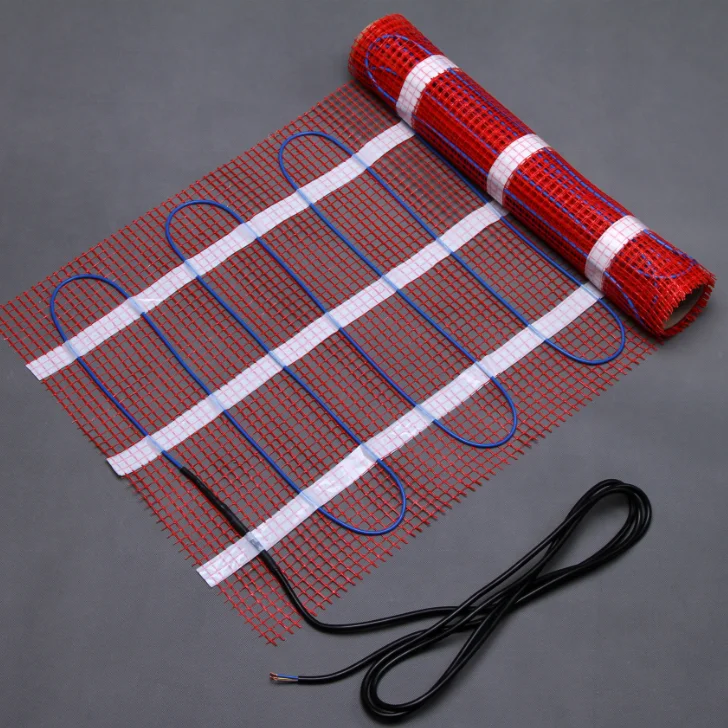

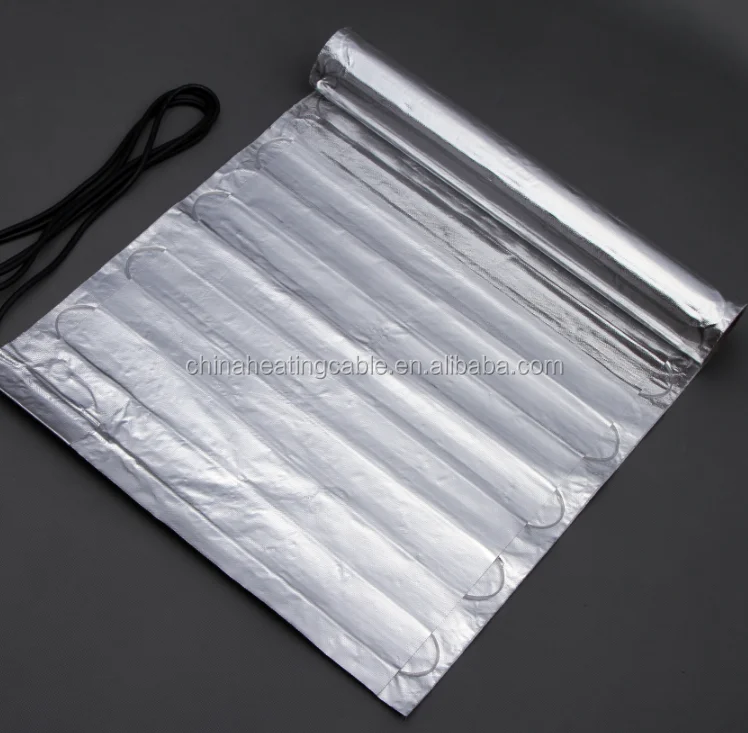

T-mat underfloor heating mat uses a twin conductor heating cable for easy installation, and this mat is with zero EMF, designed for installation into thin adhesive beds, leveling compounds or thin screed beds beneath tiled and wooden floor.
150w/m² underfloor heating mats are suitable as a primary heating source providing adequate insulation. These are our most commonly used mats for kitchens, dining rooms, large bathrooms and most other areas with tiled floors.
200w/m² underfloor heating mats are generally used in areas where high heat loss is a problem, such as conservatories. These mats are only suitable for under-tiled floors, giving a 25% faster warm up time.
Feature
*Zero EMF
*Self-adhesive mat
*One cold lead 2.5 meter
*Flexible and 100% screened
*Twin conductor heating cable
Part Number | Mat Dimensions / m*m | Heating Area / m2 | Output Power / Watts | Resistance / Ω |
T-mat150-150 | 0.5*2 | 1 | 150 | 352.7 |
T-mat150-225 | 0.5*3 | 1.5 | 225 | 235.1 |
T-mat150-300 | 0.5*4 | 2 | 300 | 176.3 |
T-mat150-375 | 0.5*5 | 2.5 | 375 | 141.1 |
T-mat150-450 | 0.5*6 | 3 | 450 | 117.6 |
T-mat150-525 | 0.5*7 | 3.5 | 525 | 100.8 |
T-mat150-600 | 0.5*8 | 4 | 600 | 88.2 |
T-mat150-675 | 0.5*9 | 4.5 | 675 | 78.4 |
T-mat150-750 | 0.5*10 | 5 | 750 | 70.5 |
T-mat150-900 | 0.5*12 | 6 | 900 | 58.8 |
T-mat150-1050 | 0.5*14 | 7 | 1050 | 50.4 |
T-mat150-1200 | 0.5*16 | 8 | 1200 | 44.1 |
T-mat150-1350 | 0.5*18 | 9 | 1350 | 39.2 |
T-mat150-1500 | 0.5*20 | 10 | 1500 | 35.3 |
T-mat150-1800 | 0.5*24 | 12 | 1800 | 29.4 |
Part Number | Mat Dimensions / m*m | Heating Area / m2 | Output Power / Watts | Resistance / Ω |
T-mat200-200 | 0.5*2 | 1 | 200 | 264.5 |
T-mat200-300 | 0.5*3 | 1.5 | 300 | 176.3 |
T-mat200-400 | 0.5*4 | 2 | 400 | 132.3 |
T-mat200-500 | 0.5*5 | 2.5 | 500 | 105.8 |
T-mat200-600 | 0.5*6 | 3 | 600 | 88.2 |
T-mat200-700 | 0.5*7 | 3.5 | 700 | 75.6 |
T-mat200-800 | 0.5*8 | 4 | 800 | 66.1 |
T-mat200-900 | 0.5*9 | 4.5 | 900 | 58.8 |
T-mat200-1000 | 0.5*10 | 5 | 1000 | 52.9 |
T-mat200-1200 | 0.5*12 | 6 | 1200 | 44.1 |
T-mat200-1400 | 0.5*14 | 7 | 1400 | 37.8 |
T-mat200-1600 | 0.5*16 | 8 | 1600 | 33.1 |
T-mat200-1800 | 0.5*18 | 9 | 1800 | 29.4 |
T-mat200-2000 | 0.5*20 | 10 | 2000 | 26.5 |
T-mat200-2400 | 0.5*24 | 12 | 2400 | 22 |
Related Products

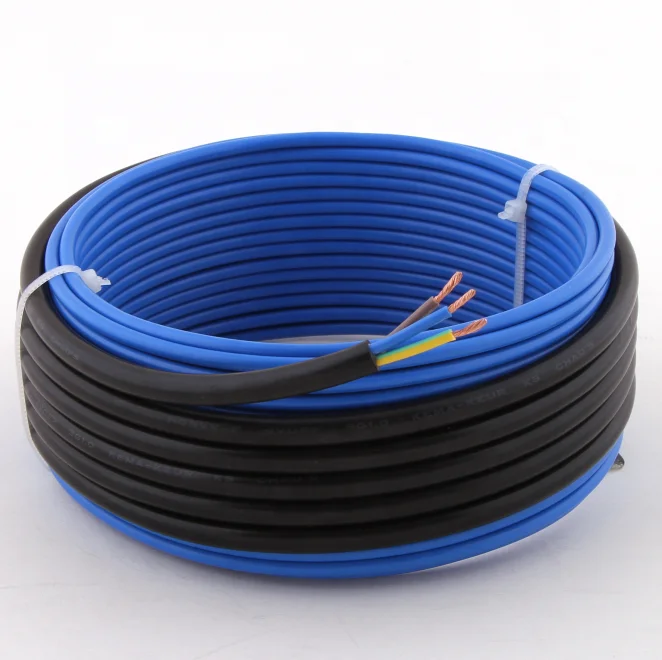

T-cable
