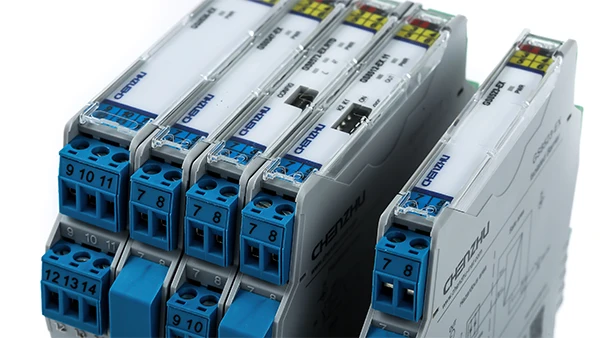

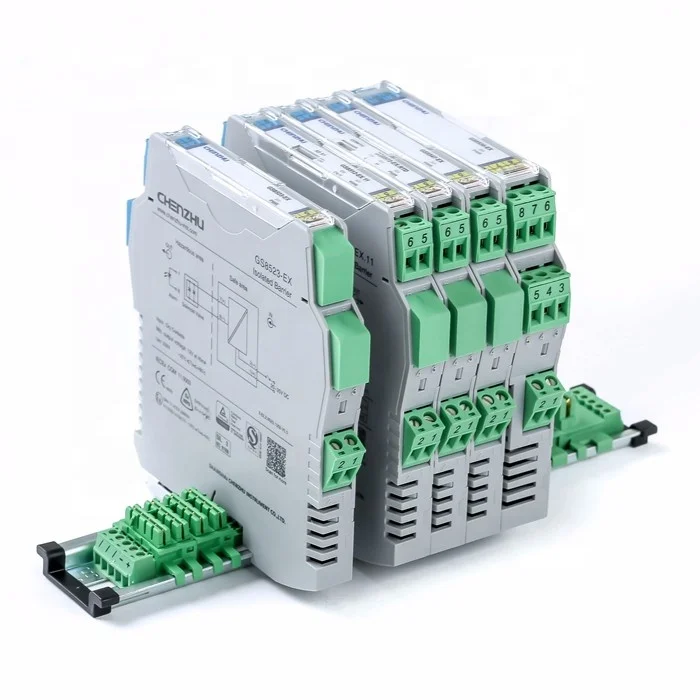

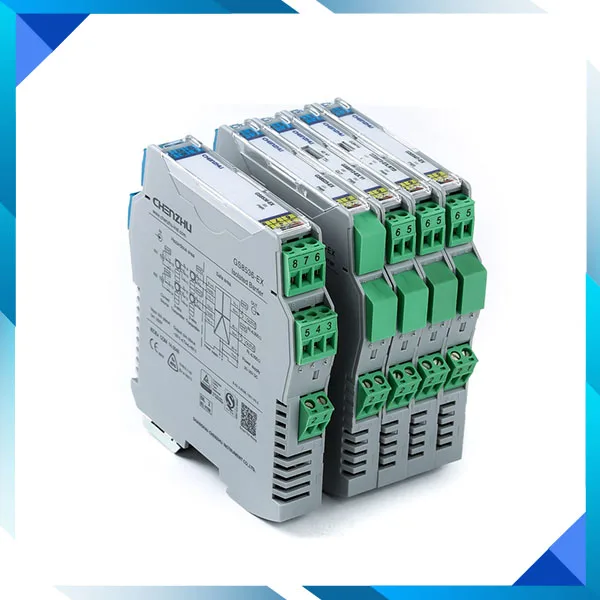

GS8572 EX.TC TUV SIL2 input Isolated Barrier Temperature Input intrinsically safe isolator 1 input 1 output CHENZHU
- Category: >>>
- Supplier: Shanghai Chenzhu Instrument Co. Ltd.
Share on (62544581377):
Product Overview
Description
Product Description
Product Application

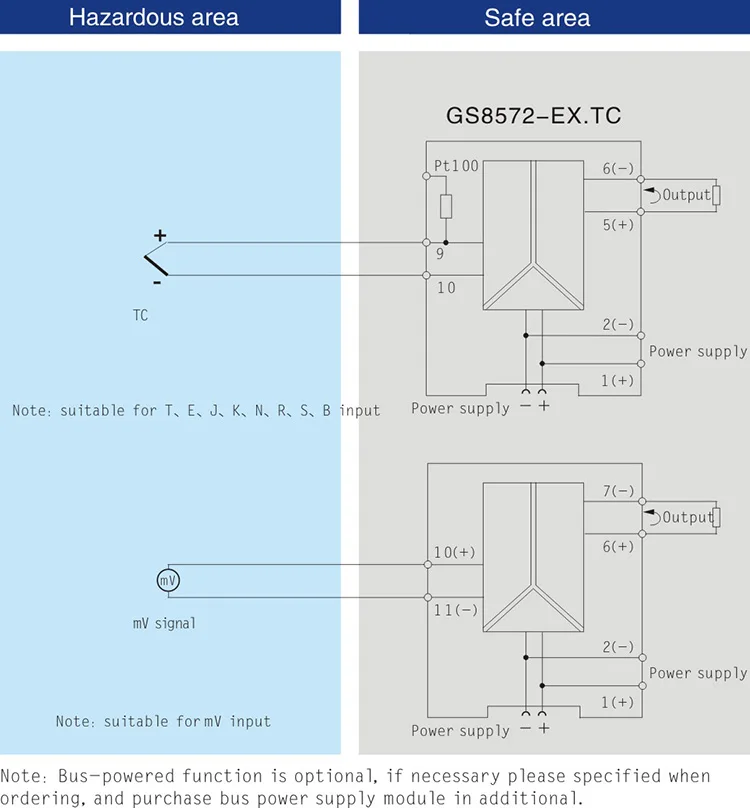

Isolated barrier, converters thermal couple and mV signal in hazardous area into 0/4~20mA or 0/1~5V signal. It is intelligent and has cold junction compensation function, TC and mV indexing number and range can be configured through computer. The product should be supplied power independently. Input, output and power are each galvanically isolated.
Technichal Data | ||||||
Basic Parameter | Number of channels | 1input/1output | ||||
Temperature drift | 0.01%F.S./℃ | |||||
Response time | ms | Reach 90% of final value in 1s | ||||

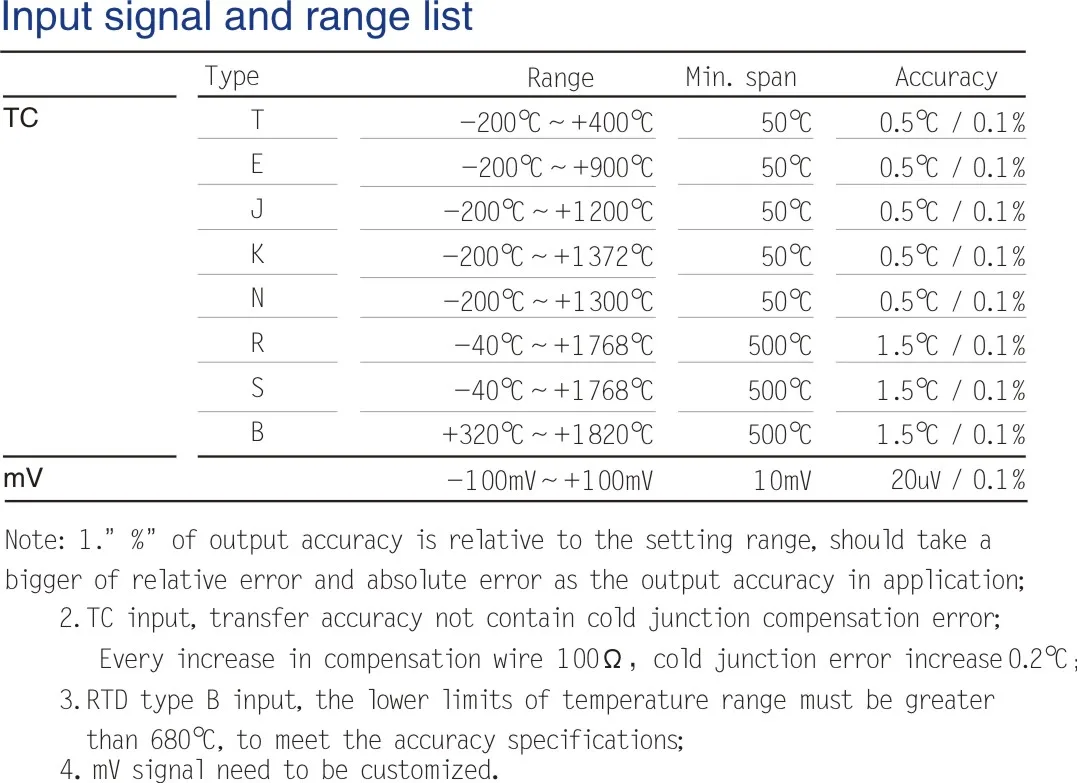

Security Data | Input signal | T;E;J;K;N;R;S;B;mV | ||||
Output signal | 0~20mA;4~20mA;0~5V;1~5V | |||||
Supply voltage(Ue) | DC | 20~35V DC | ||||
Other | Power protection | Reverse protection of power supply | ||||
Power supply mode | Independent power supply | |||||
Dimensions | D*H*W | 118.9*106*12.5mm(T、E、J、K、N、R、S、B input)/17.5mm(mV input) | ||||
Main Features:
1) G3 Coating
2) 3-way isolation with max.dielectric strength≥4000V AC
3) Ultra-thin structure with low power dissipation design 0.05%F.S.
4) Housing protection level (IEC 60529): IP20
5) Easy install DIN35mm
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* 5 years warranty.
* Professional training.
* Fast respone.
Packing & Delivery
Unit Packaging | ||
Size | 140(L) * 115 (W) * 12.5 (D) mm | |
Net Weight | 0.4 KG | |
Packaging Details | The normal package is carton box(Size: L*W*H). Unit package for one piece, then outer packing. If you have special request for packing, please inform us in advance.. | |
Outer Packaging | ||
Size | 170 (L) * 145 (W) * 130 (D) mm | |
Carton Weight | 0.05 Kg | |
Packaging Details | The normal package is carton box(Size: L*W*H). Unit package for one piece, then outer packing. If you have special request for packing, please inform us in advance.. | |
Our Factory
Max capability of production reached to 1,000,000 pcs/year
Our factory created a versatlie smart production approach through system integation and establishment of information network in order to offer customer reliable, high efficiency, and high quality products.
Our Laboratory
FAQ
Q: What information should I provide before order?
A: Please confirm the input data, output data and another function you need.
Q: How long is your warranty period?
A: Dedication to our customers and recognition of industry requirements, we announced 5 years warranty at 2 0 1 3 and continues to drive our development of new products and solutions to meet our customers’ needs.
Q: Are you trading company or manufacturer ?
A: We are manufacturer, providing own brand product and also ODM/OEM services.
Q: How long is your delivery time?
A: ≤ 20 pcs, generally it is 3 days after 100% down-pay; 20--100 pcs, it is 3-10 days according to quantity; More than 100 pcs, pls contact with our support.
Q: What is your terms of payment ?
A: 100% T/T in advance.
A: Please confirm the input data, output data and another function you need.
Q: How long is your warranty period?
A: Dedication to our customers and recognition of industry requirements, we announced 5 years warranty at 2 0 1 3 and continues to drive our development of new products and solutions to meet our customers’ needs.
Q: Are you trading company or manufacturer ?
A: We are manufacturer, providing own brand product and also ODM/OEM services.
Q: How long is your delivery time?
A: ≤ 20 pcs, generally it is 3 days after 100% down-pay; 20--100 pcs, it is 3-10 days according to quantity; More than 100 pcs, pls contact with our support.
Q: What is your terms of payment ?
A: 100% T/T in advance.
