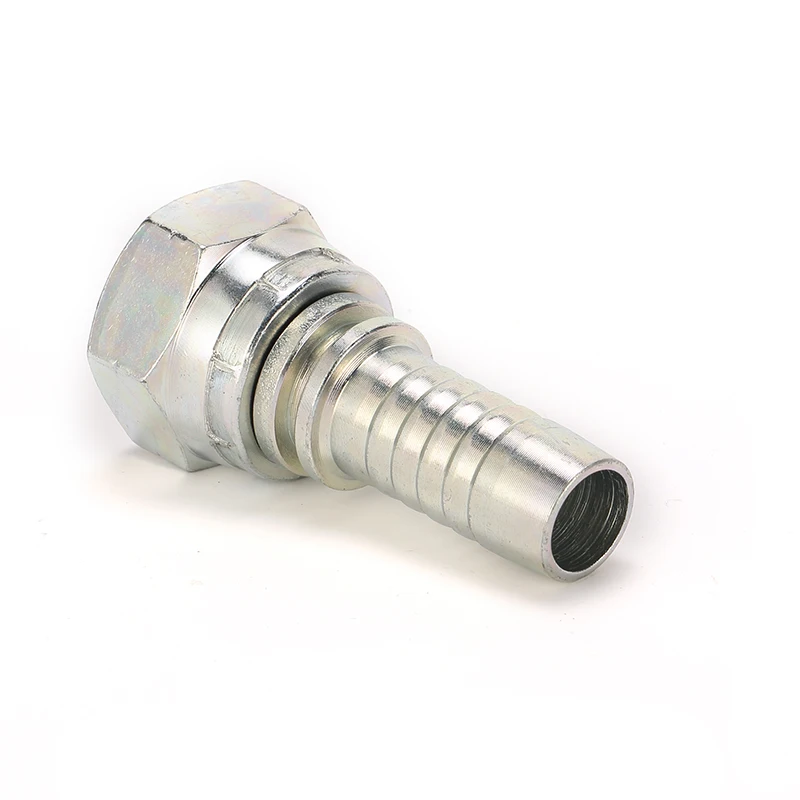

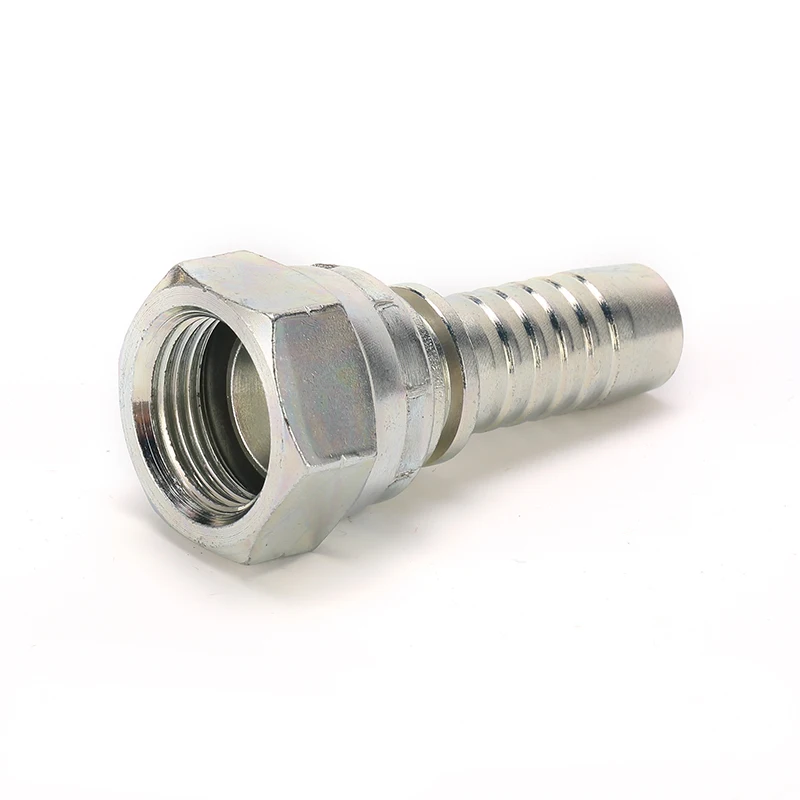

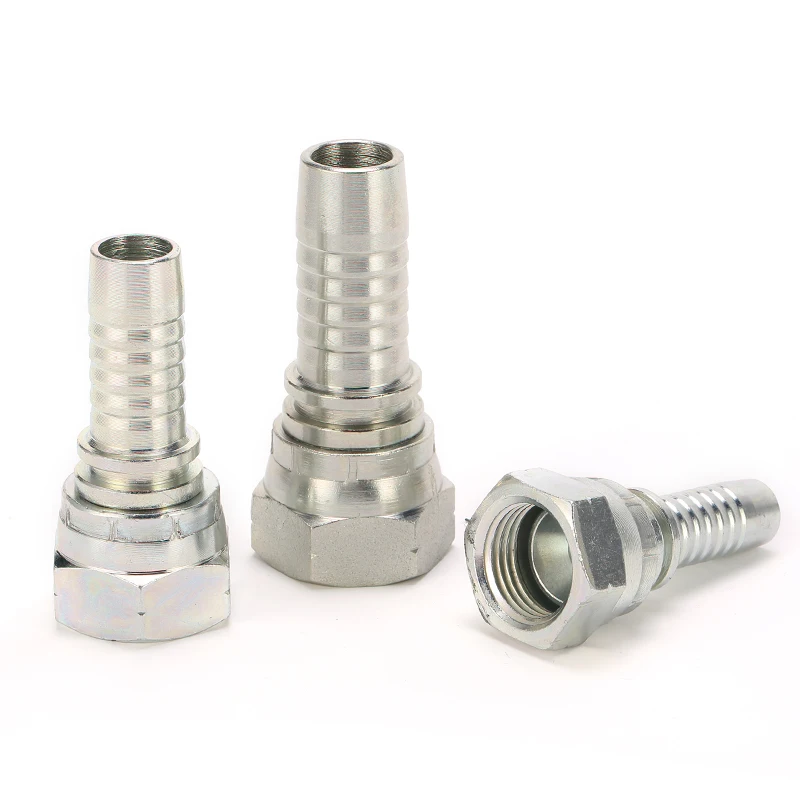

Carbon Steel Female GAS 60 Degree Cone Seal Straight Hose Tube Pipe Hydraulic Hose Crimp Fittings

Product Overview

Description





JIS thread swaged 1/4'-2' inch hydraulic hose fittings







PART NO.	THREAD E	HOSE BORE		DIMENSIONS
		DN	DASH	C	S1	S2
P29611-02-03	G1/8"X28	4	03	6.5	14	14
-04-04	G1/4"-19	6	04	8	19	19
-04-05	G1/4"-19	8	05	8	19	19
-06-04	G3/8"X19	6	04	9	22	22
-06-06	G3/8"-19	10	06	9	22	22
-08-06	G1/2"X14	16	10	11.5	27	27
-08-08	G1/2"-14	12	08	12	27	27
-10-10	G5/8"X14	16	10	11.5	20	30
-12-10	G3/4"X14	16	10	13.5	32	32
-12-12	G3/4"-14	20	12	13.5	32	32
-12-10	G3/4"-14	16	10	13.5	32	32
-16-16	G1"-11	25	16	16	41	41
-20-20	G1.1/4"-11	32	20	18.5	50	50
-24-24	G1.1/2"-11	40	24	19	55	55
-32-32	G2"-11	50	32	23	70	70



Delivery Detail: 1-2weeks

Package Detail:  Nylon plastic+corrugated carton +Multiple plywood case

Custom-orientated Service: produce according to your drawings or sample, offer custom-design



Our advantage:        1. High quality                  2. Rich inventory

                                   3. Prompt delivery          4. Reasonable price
