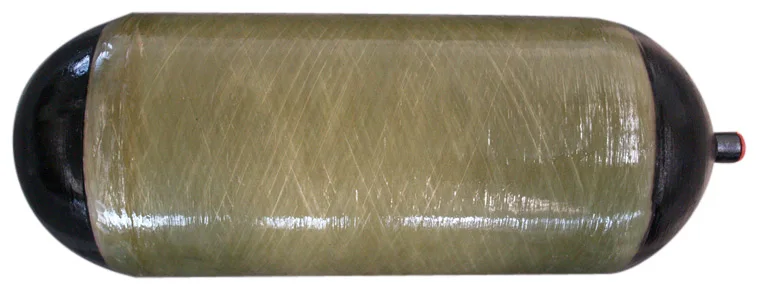

ISO Standard CNG Gas Cylinder For Automotive Vehicles
- Category: >>>
- Supplier: Shanghai Qilong High Pressure Container Co. Ltd.
Share on (62544713341):
Product Overview
Description
Products Description
Standard:
GB 24160-2009
ISO 11439
ECE R 110
Liner Material:
30CrMo/34CrMo4
Working Pressure:
20MPa
GB/JWM Standard
Hoop-wrapped composite cylinders with steel liner for the on-board storage of compressed natural gas as a fuel for automotive vehicles
Type | Design wall thickness (mm) | Liner Outside Diameter (mm) | Cylinder Outside Diameter (mm) | Nominal Water Capacity (L) | Length Of Shell (Without Valve) (mm) | Nominal Weight (kg) |
CNG2-G-300-60-20B | 4.0 | 300 | 310 | 60 | 1040 | 44 |
CNG2-G-300-65-20B | 65 | 1115 | 48 | |||
CNG2-G-325-45-20B | 4.5 | 325 | 335 | 45 | 710 | 37 |
CNG2-G-325-50-20B | 50 | 785 | 41 | |||
CNG2-G-325-55-20B | 55 | 850 | 43 | |||
CNG2-G-325-60-20B | 60 | 915 | 47 | |||
CNG2-G-325-65-20B | 65 | 980 | 50 | |||
CNG2-G-325-70-20B | 70 | 1045 | 53 | |||
CNG2-G-325-75-20B | 75 | 1110 | 56 | |||
CNG2-G-325-80-20B | 80 | 1175 | 59 | |||
CNG2-G-356-60-20B | 4.7 | 356 | 370 | 60 | 805 | 48 |
CNG2-G-356-65-20B | 65 | 860 | 52 | |||
CNG2-G-356-70-20B | 70 | 910 | 54 | |||
CNG2-G-356-75-20B | 75 | 965 | 58 | |||
CNG2-G-356-80-20B | 80 | 1015 | 60 | |||
CNG2-G-356-90-20B | 90 | 1125 | 68 | |||
CNG2-G-356-100-20B | 100 | 1230 | 73 | |||
CNG2-G-356-115-20B | 115 | 1395 | 84 | |||
CNG2-G-356-120-20B | 120 | 1445 | 87 | |||
CNG2-G-356-140-20B | 140 | 1660 | 100 | |||
CNG2-G-356-145-20B | 145 | 1715 | 103 | |||
CNG2-G-406-82-20B | 5.5 | 406 | 420 | 82 | 840 | 69 |
CNG2-G-406-90-20B | 90 | 910 | 74 | |||
CNG2-G-406-100-20B | 100 | 990 | 80 | |||
CNG2-G-406-110-20B | 110 | 1070 | 87 | |||
CNG2-G-406-115-20B | 115 | 1115 | 90 |
ISO 11439 Standard
Hoop-wrapped composite cylinders with steel liner for the on-board storage of compressed natural gas as a fuel for automotive vehicles
Type | Design Wall Thickness (mm) | Liner Outside Diameter (mm) | Cylinder Outside Diameter (mm） | Nominal Water Capacity (L) | Length of Shell (without valve) (mm） | Nomial Weight (kg) |
CNG2-G-370-100-20B(T) | 4.7 | 356 | 370 | 100 | 1230 | 73 |
ECE R 110
Hoop-wrapped composite cylinders with steel liner for the on-board storage of compressed natural gas as a fuel for automotive vehicles
Type | Design Wall Thickness (mm) | Liner Outside Diameter (mm) | Cylinder Outside Diameter (mm） | Nominal Water Capacity (L) | Length of Shell (without valve)(mm） | Nomial Weight (kg) |
CNG2-G-370-100-20B(T) | 4.7 | 356 | 370 | 100 | 1230 | 73 |
CNG2-G-420-82-20B (T) | 5.5 | 406 | 420 | 82 | 840 | 69 |
CNG2-G-420-100-20B(T) | 100 | 990 | 80 |
Package& Delivery

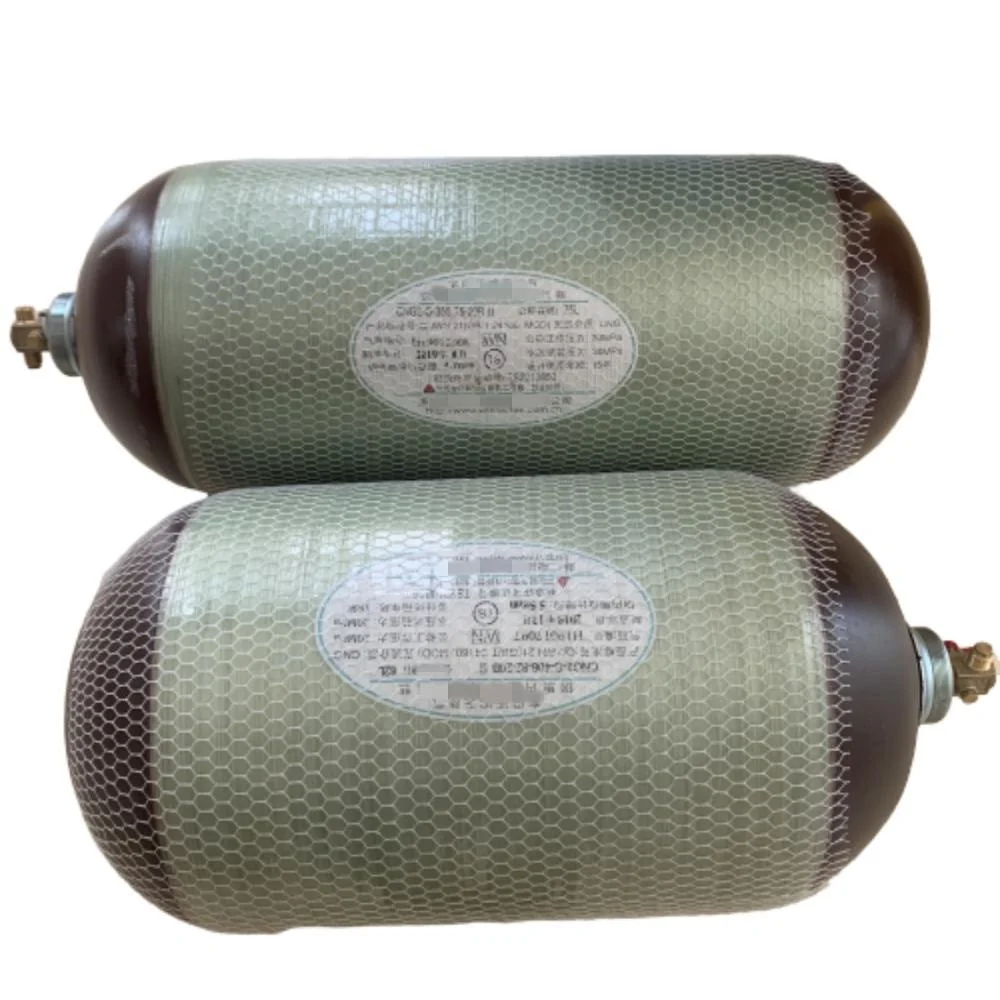

Suitable Cartons
Nylon Net Package
Wooden Pallets
Safe and Fast Transportation
Certifications
