Lithium Battery Automatic Vacuum Heat Sealer Sealing Packaging Machine for Pouch Cell Second Final Sealing after electrolyte fil
- Category: >>>
- Supplier: Dongguan Zhik Energy Technology Co. Ltd.
Share on (62544715623):
Product Overview
Description
Product Description

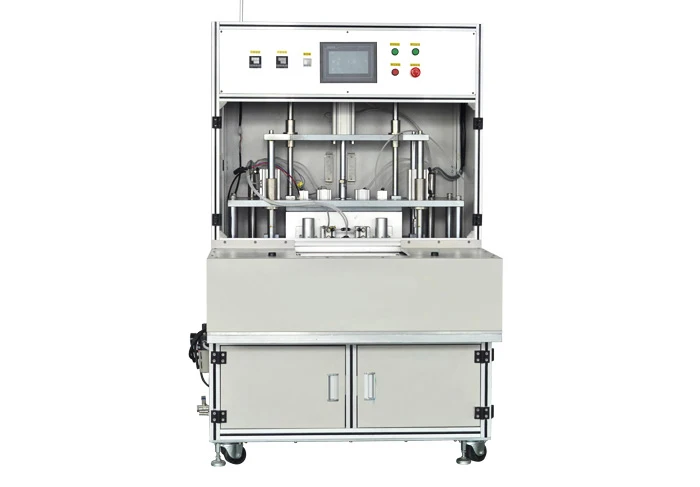

Rotary disc vacuum final sealing machine
ZK-HS200 rotary disc vacuum final sealing machine can be applied to the puncturing and secondary vacuum final sealing process of flexible packaging lithium batteries. The machine adopts a turntable design, which can realize many functions such as manual loading and unloading, automatic vacuum exhaust, piercing and drainage, heating sealing. The vacuum of the working chamber of the equipment is maintained well, the sealing effect is high, and the flatness of the finished battery is good.
It is applied to the puncture and final sealing of soft pack batteries, and is compatible with batteries of a certain size range;
Double-station turntable structure, single group piercing and head design;
The vacuum is kept good to ensure the moisture content of the finished battery;
Using soft sealing method, good temperature uniformity, high packaging consistency and long service life;
Acupuncture piercing function to discharge excess electrolyte from the battery;
PLC control, HMI operation, adjustable sealing pressure and time;
Double-station turntable structure, single group piercing and head design;
The vacuum is kept good to ensure the moisture content of the finished battery;
Using soft sealing method, good temperature uniformity, high packaging consistency and long service life;
Acupuncture piercing function to discharge excess electrolyte from the battery;
PLC control, HMI operation, adjustable sealing pressure and time;

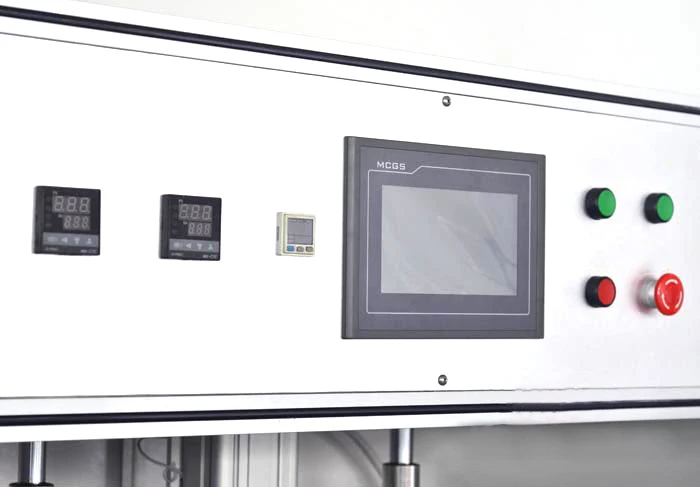

PLC touch screen control
This equipment adopts PLC touch screen control to monitor the operation parameters of the equipment throughout the process, which is convenient for users to adjust.

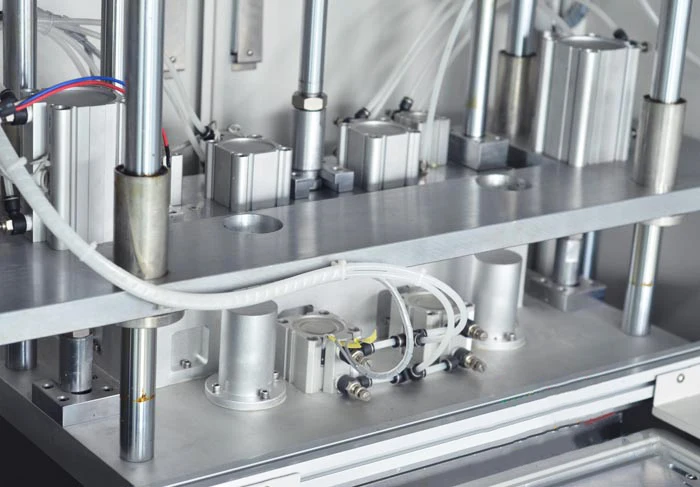

Independent cylinder control
The sealing, pressure plate and bayonet are controlled by separate independent cylinders, which can control the movement of individual components at will.

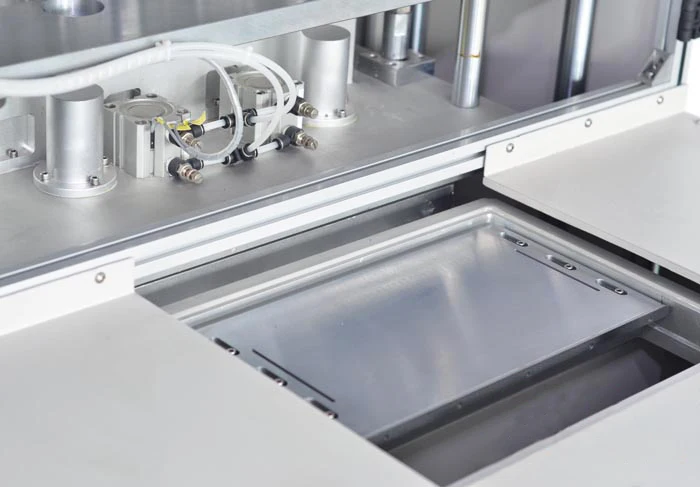

Battery placement
The open battery placement position is convenient for placing and handling the battery. The placement position is flat and the position can be adjusted.
technical parameter
1 | power supply | Voltage single-phase 220VAC ± 10% (customizable 110VAC), frequency 50Hz / 60Hz, power 1.5KW |
2 | Gas source | 0.5 ~ 0.8MPa compressed air or inert gas |
3 | Head temperature | Max. 250 ℃ |
4 | Temperature control accuracy | ± 2.5 ℃ |
5 | Battery size | Max. L180 * W135 * H15mm |
6 | Edge width | Standard configuration 6MM, can be customized according to customer requirements |
7 | Sealing length | Max. 200mm |
8 | Sealing pressure | Adjustable by air pressure |
9 | Heat sealing time | 0 ~ 99s adjustable, recommended 3-4s |
10 | Piercing method | Metal puncture |
11 | Vacuum | Adjustable, up to -95Kpa |
12 | Work cycle | At air pressure ≥180 times / h |
13 | Dimensions | L600mm * w640mm * h1460MM |
14 | weight | 500KG |
