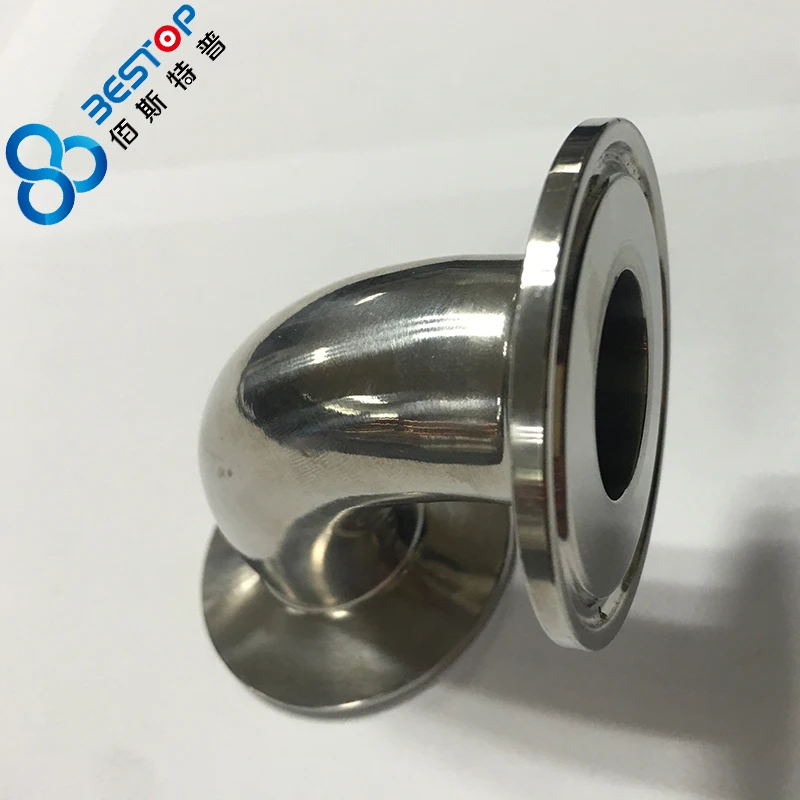

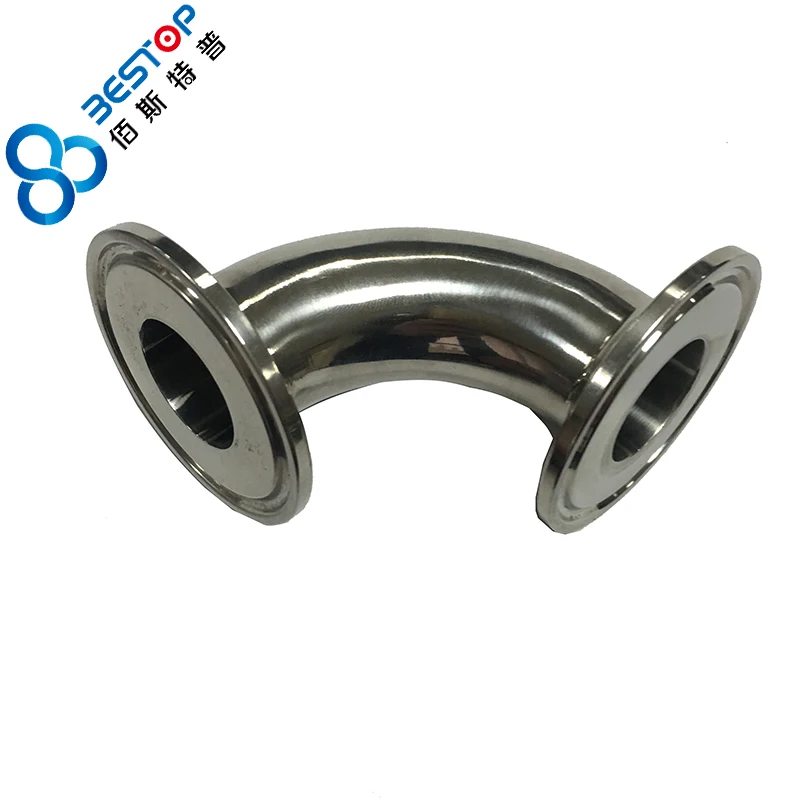

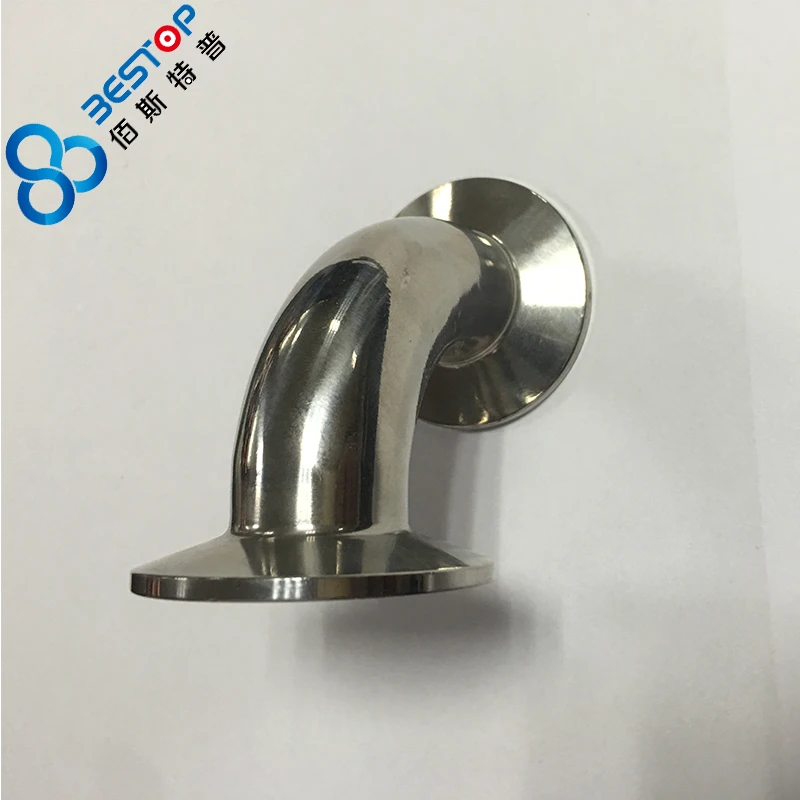

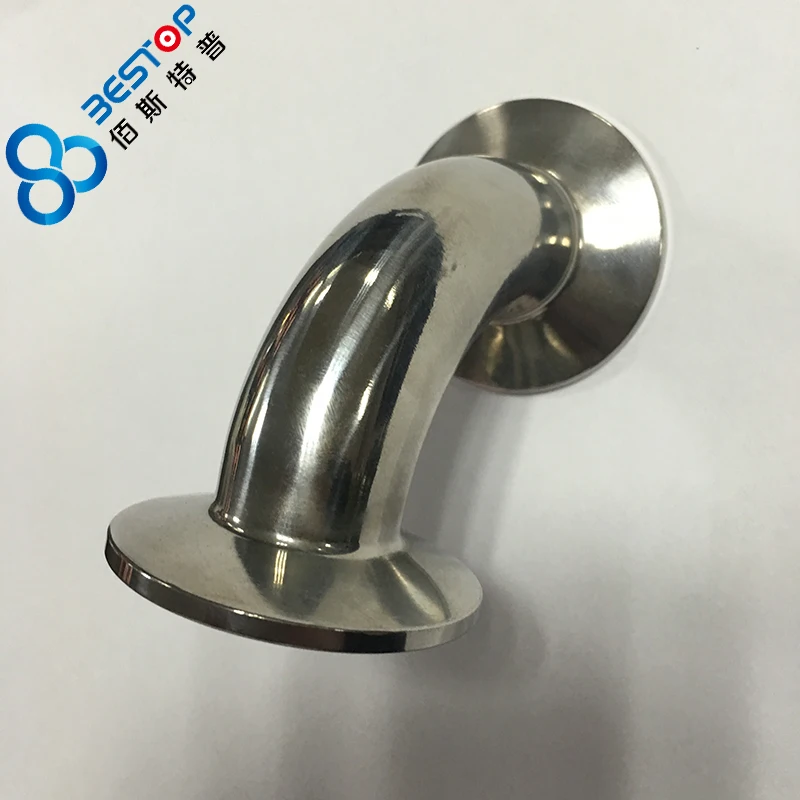

Sanitary fittings stainless steel 45 degree elbow
- Category: >>>
- Supplier: Wenzhou Bestop Steel Co. Ltd.
Share on (62544744569):
Product Overview
Description
Product Description
Product Name: Stainless Steel 45 Degree Elbow sanitary elbow
Size Range: 1"- 4"
Wall Thickness: 1.65-2.1mm
Material: Stainless Steel 304
Manufacture Standard:
ASME B16.9,ASME B16.11,ASME B16.28 ,MSS SP-43,JISB2311,JIS B2312,JIS B2313,DIN 2605,DIN 2606 ,DIN2615,DIN2616,BG12459-90,GB/T13401,HGJ514 ,SH3408 ,SH3409, HG/T21635, HG/T21631,
End Bevel: According to the standard or the customer's requirements
Surface Treatment: Shot blasted, rust-proof black oil
Non-destructive testing: penetration test, ultrasonic test, radiographic test, any third parties inspection
Size Range: 1"- 4"
Wall Thickness: 1.65-2.1mm
Material: Stainless Steel 304
Manufacture Standard:
ASME B16.9,ASME B16.11,ASME B16.28 ,MSS SP-43,JISB2311,JIS B2312,JIS B2313,DIN 2605,DIN 2606 ,DIN2615,DIN2616,BG12459-90,GB/T13401,HGJ514 ,SH3408 ,SH3409, HG/T21635, HG/T21631,
End Bevel: According to the standard or the customer's requirements
Surface Treatment: Shot blasted, rust-proof black oil
Non-destructive testing: penetration test, ultrasonic test, radiographic test, any third parties inspection
SIZE | L1 | D | R |
1'' | 28.5 | 50.5 | 38.1 |
3/2'' | 36.5 | 50.5 | 57.2 |
2'' | 64.044.5 | 64.0 | 76.2 |
5/2'' | 52.3 | 77.5 | 95.3 |
3'' | 60.3 | 91.0 | 114.3 |
4'' | 76.2 | 119.0 | 152.4 |

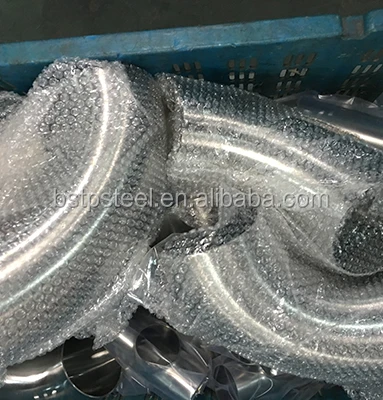

Packing&Shipping
Plywood or Wooden Case Packing/ Pallet Packing/ other packing suitably protected for sea-worthly delivery or as requested.
