Лабораторная цена высокотемпературной электрической муфельной печи
- Category: Laboratory Heating Equipments >>>
- Supplier: Xiamen Lith Machine Limited
Share on (62544895729):
Product Overview
Description
Product Description

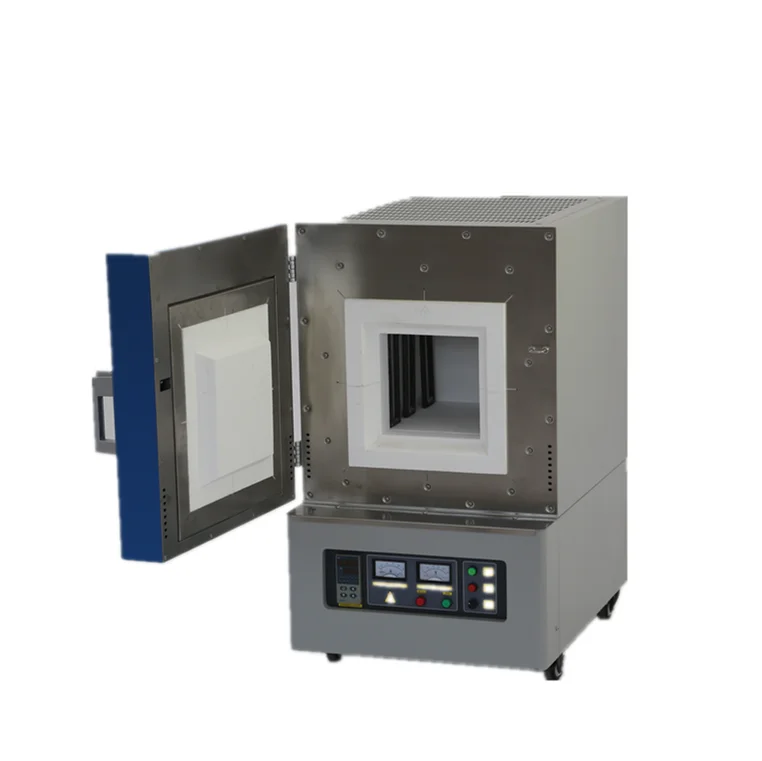

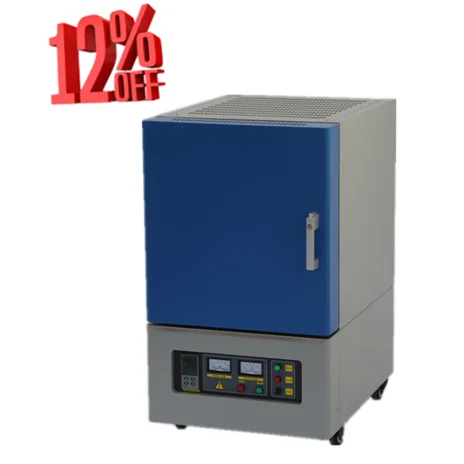

Laboratory Price Of High Temperature Electric Muffle Furnace
Features
1 Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
2 Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
3 Built-in computer interface.
4 Long life type B thermocouple.
5 CE compliant

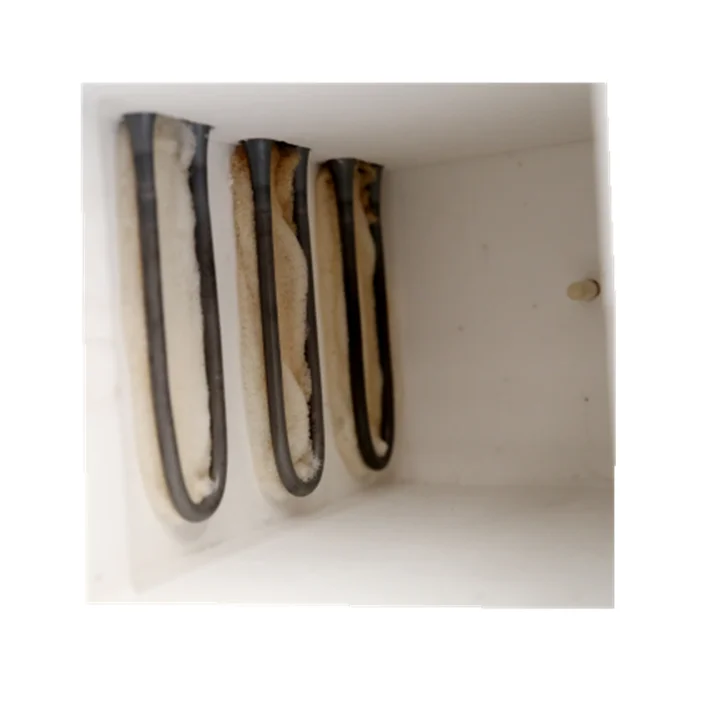

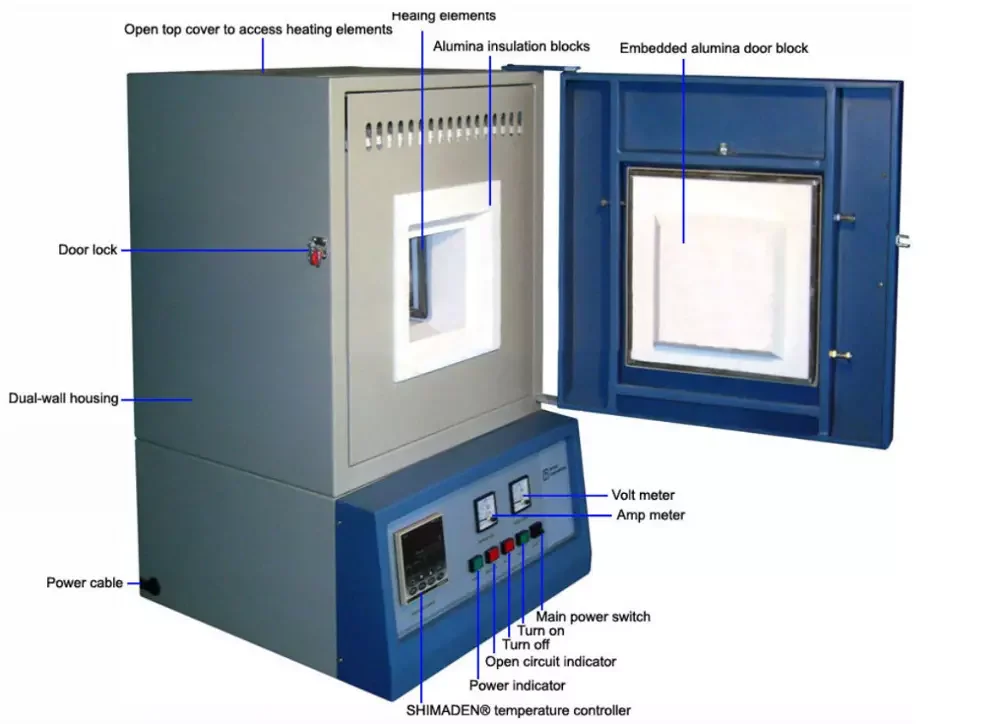

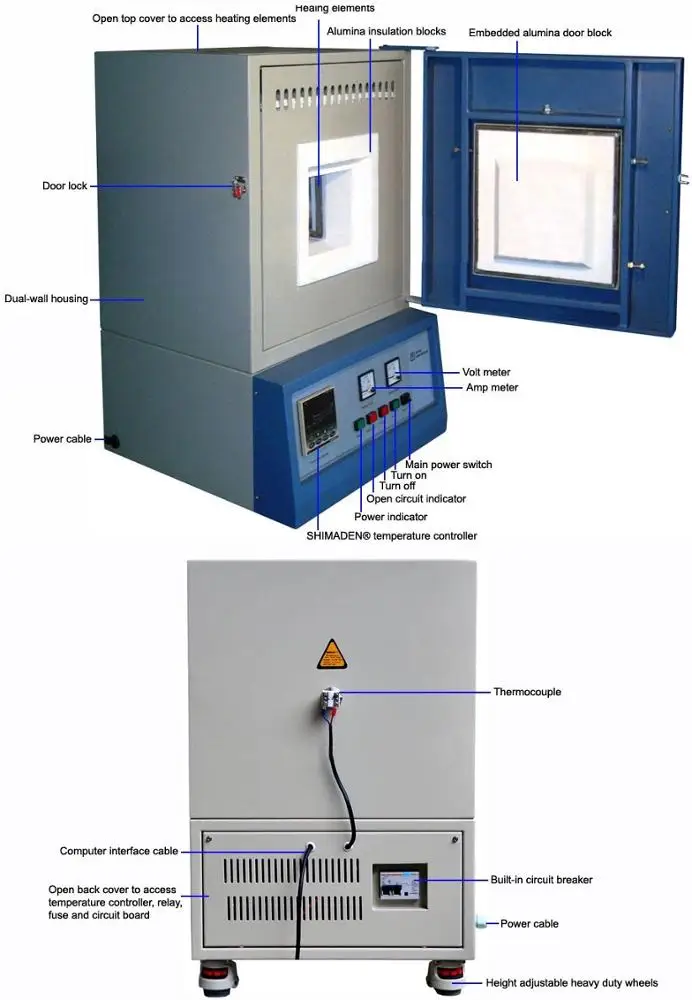

LI-1800Muffle muffle furnaces feature a chamber with Mitsubishi (Japan) high quality grade 1900 alumina fiber insulation and the famous molybdenum silicide (MoSi2) heating elements. A dual-wall steel housing helps minimize heat loss to exterior surface.

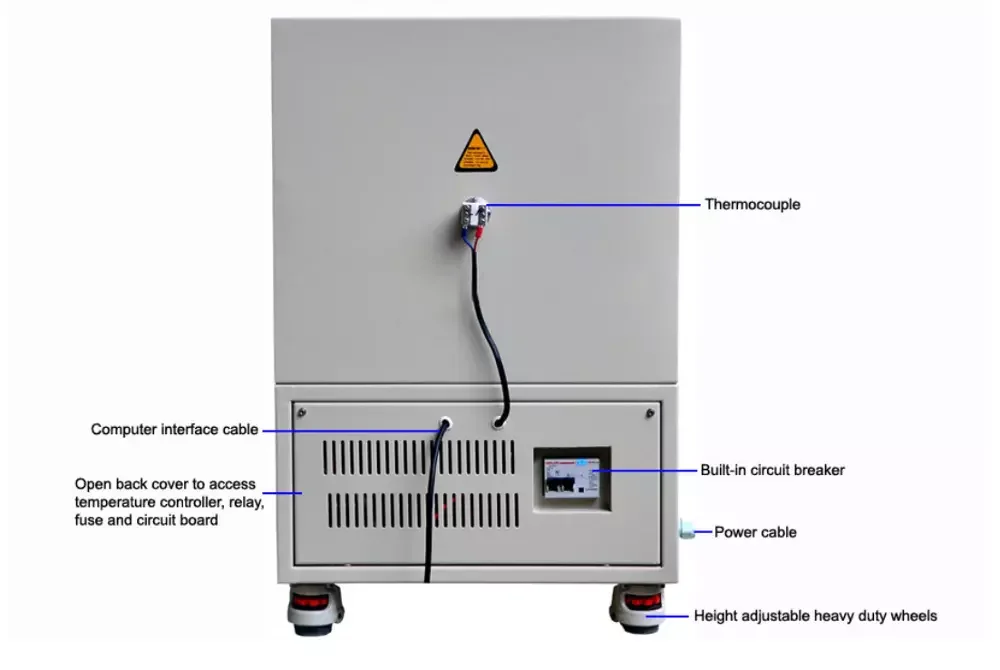

Furnace operation is controlled by Shimaden (Japan) 40-segment digital controller with built-in RS485 digital communications port and USB adaptor, allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results.
Safety
1 Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.
2 Power failure protection resumes furnace operation right after the point of failure when power is reestablished.
Chamber vs usable size (DxWxH) | 7 x 6 x 6" (0.15 cubic foot) / 5 x 5 x 5.5" |
Max. working temperature | 1800°C (3272°F) for less than 5 hours |
Refractory lining | Mitsubishi (Japan) high quality grade 1900 fiber alumina |
Heating element | grade 1900 Molybdenum Silicide (MoSi2), 6 installed |
Thermocouple type | B or PtRh40-PtRh20 (optional) |
Min. working temperature | 300°C (572°F) |
Max. constant working temperature | 1700°C (3092°F) or 1750°C with PtRh40-PtRh20 (optional) |
Temperature controller | Shimaden fp93 (Japan) with 4 programs and |
Max heating / cooling rate | 1200°C and below: <30°C/min, 1200°C+: < 15°C/min |
Temperature accuracy | +/- 1°C |
Input | 208-240v AC, 50/60Hz, single phase |
Maximum output | 4.5 kW |
Unit/shipping dimensions (WxDxH) | 24 x 22 x 34" / 30 x 29 x 42" |
Shipping weight | 300 Lb |
CE compliance | Yes |
Certifications
Company Information
Cooperative Partners
FAQ
Q. Are you a manufacturer or a trading company?
A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.
Q. Our country's power supply and plug are different. How do you solve it?
A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.
Q. How long is your delivery time? If I want to customize the instrument, how long does it take?
A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.
Q. How to pay?
A.T / T, L / C, D / P, etc., it is recommended to use Alibaba Trade Guarantee.
Q. How is the package of goods? Delivery methods?
A.1. Standard export fumigation sign wooden box packaging
2. Express, air, sea shipping according to customer requirements, find the most suitable way.also accept LC at sight.
Packaging & Shipping
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
