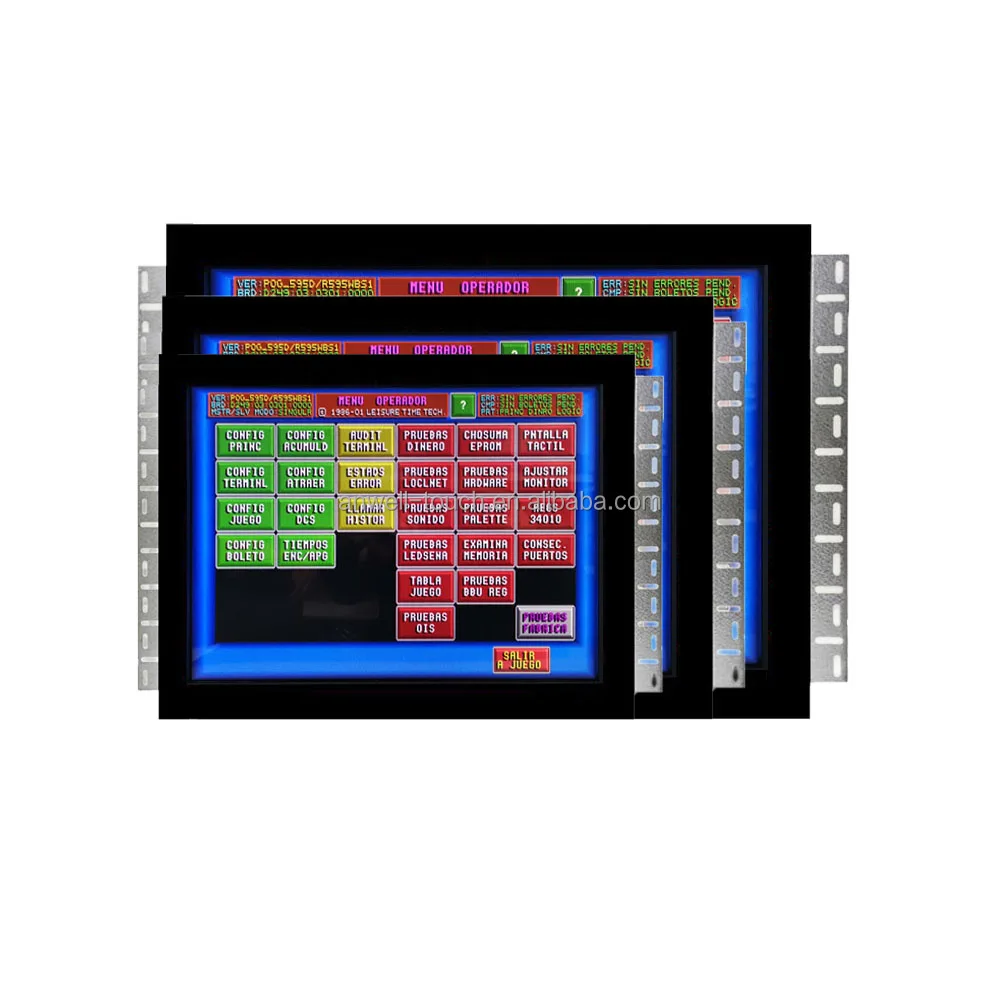

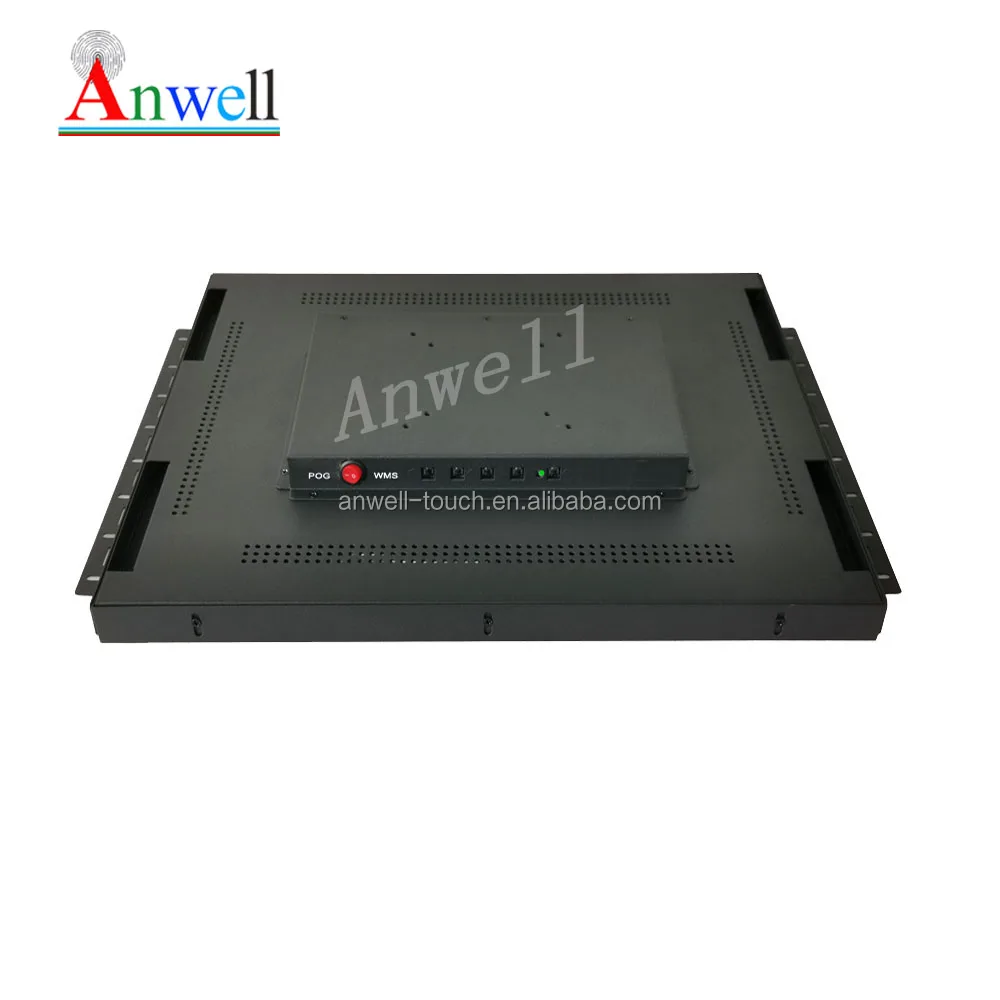

19 inch 3M controller screen open frame POG WMS touch monitor
- Category: >>>
- Supplier: Shenzhen Anwell Touch Technology Co. Ltd.
Share on (62544962946):
Product Overview
Description
Product Description
POT O GOLD/WMS/T340 touch Gaming monitor
Anwell touch Gaming monitor is a reliable product for Game market. Designed with reliability from the start, Gaming monitor deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses. Create a super-fast and smooth experience for gamers.
Touch Gaming monitor Feature:
• Gaming monitor size: 15", 17", 19", 22", 32"
• Compatible with 3M/ELOs protocol
• Touch signal input : RS232 / USB
• Sensitive touch: Infrared touch
• Signal input: VGA/CGA
• With bezel optional
• Application area: Work on Pot O Gold/ WMS/ FOX340/ MGP340 etc game
Specifications | ||
Model | AW190IB-G007 | |
Color | Black / Silver | |
Aspect Ratio | 5:4 | |
Native Resolution | 1280 x 1024 at 60 Hz | |
Number of Colors | 16.7 million | |
Number of Touches | Single-touch ( multitouch optional) | |
Brightness (typical) | 300cd/m² | |
Response (typical) | 5 msec | |
Viewing Angle | 178/178(°) | |
Contrast Ratio | 1000:1 | |
Backlight Lifetime (hours) | LED / 50,000 | |
Touch Panel | ||
Touch Technology | Infrared touch | |
Touch Connector | USB / RS232 | |
Touch Panel Drivers | compatible with 3M/ELO protocol | |
Touch Life (Contacts) | Unlimited | |
Surface Hardness | 7H | |
Power | ||
Power Supply | Input AC110 ~ 240V | |
Output | DC12V/4A | |
Frenquency | 55Hz-75Hz | |
Power consumption | 25W | |

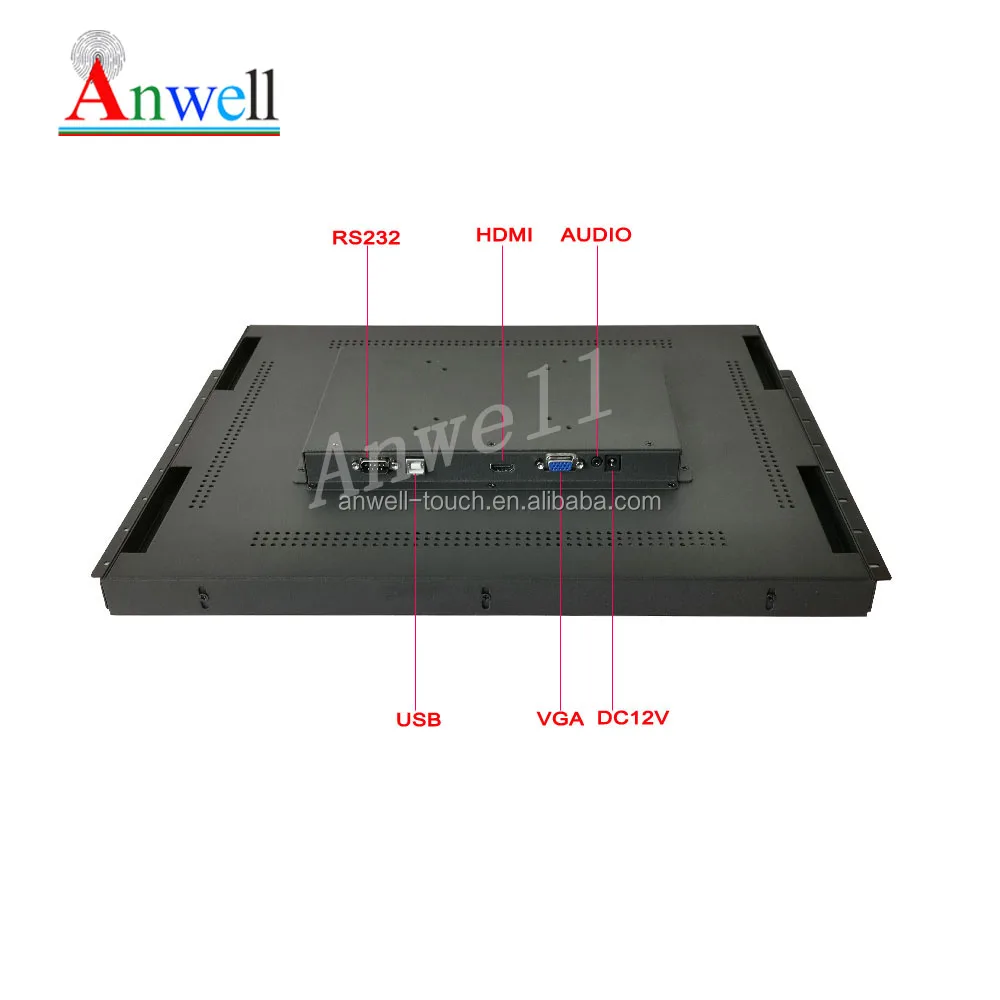

External Connectors | ||
Video | CGA / VGA / HDMI | |
Touch Connector | USB / RS232 | |
Connectors | 12V DC-IN | |
Operation / Mechanical | ||
Operating Temperature | -10 ~ +65(°C) | |
Humidity Range (RH) | 10%-90% | |
Housing material | Metal | |
Mounting | 75mm and 100mm VESA mount; Rear mount ; Flush mount with included brackets | |
Support Operating System | ||
Working on T340 ( POT O GOLD ) or WMS or FOX 340 | ||
Details Images

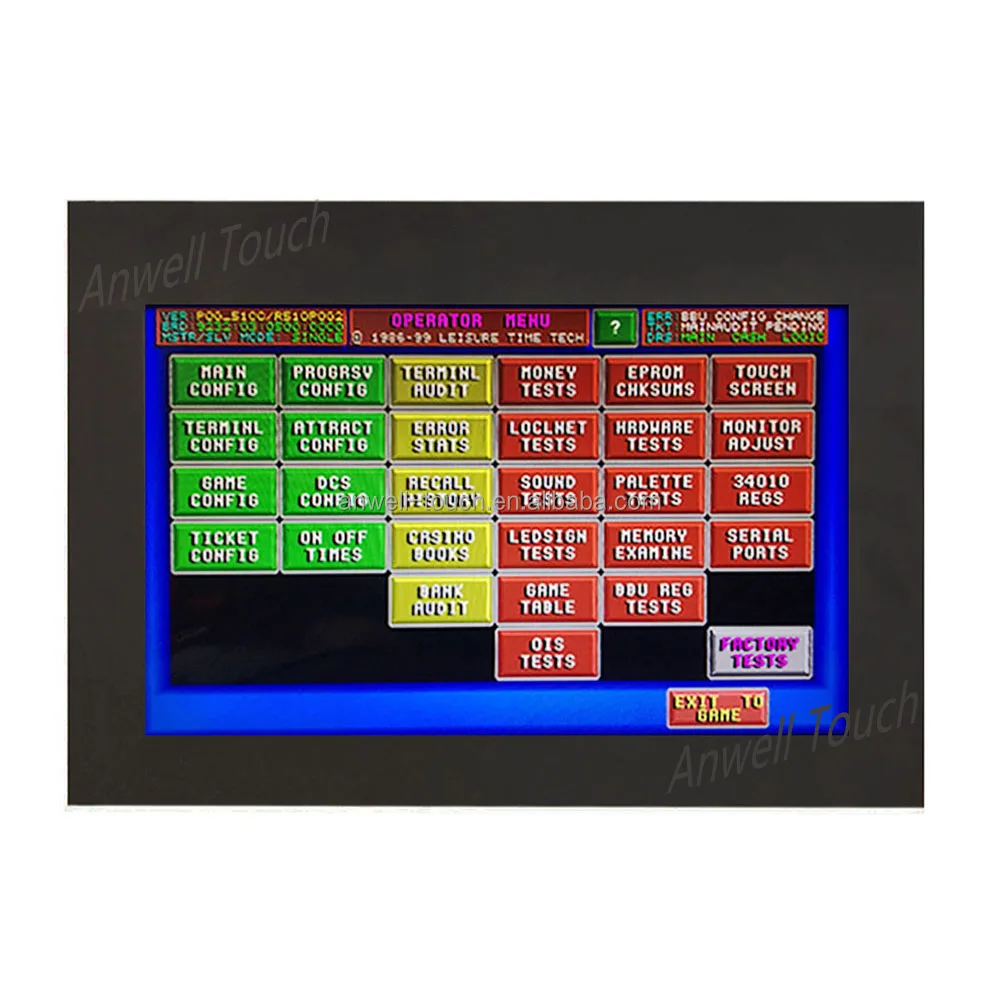

POG Game Board

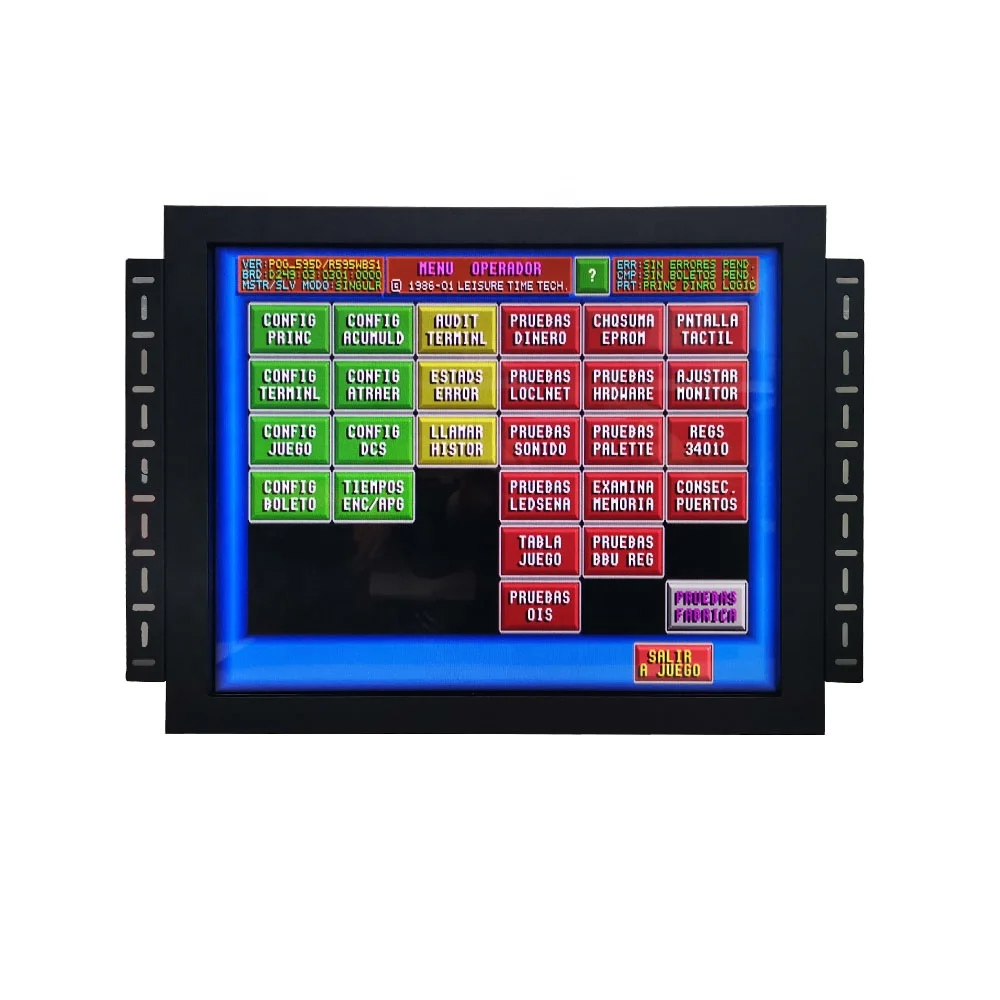

Game infrared touch screen
with controller

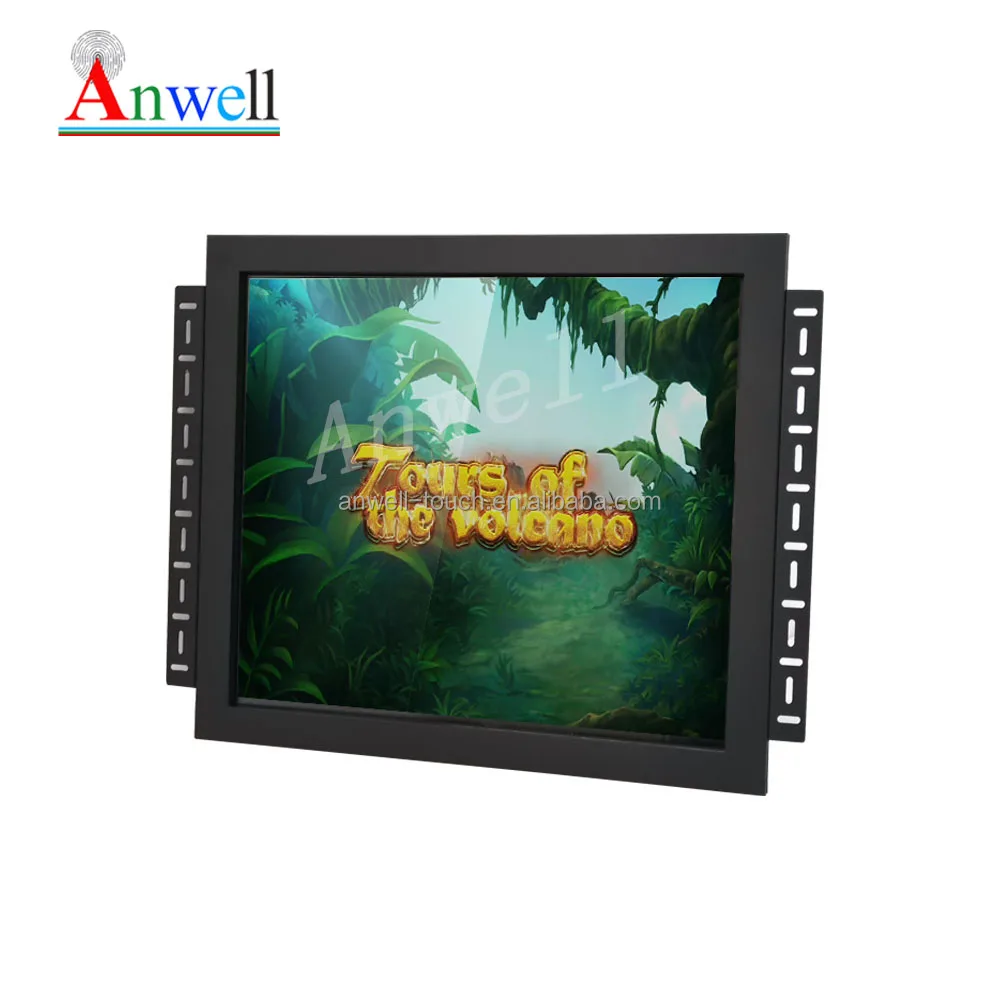

With bezel optional
Packing&Shipping
Pearl cotton-- Waterproof, shakeproof, environmental attribute
Export carton-- Convenient packaging, easy transport
PE bag-- Moistureproof, stable chemical properties.
Export carton-- Convenient packaging, easy transport
PE bag-- Moistureproof, stable chemical properties.
