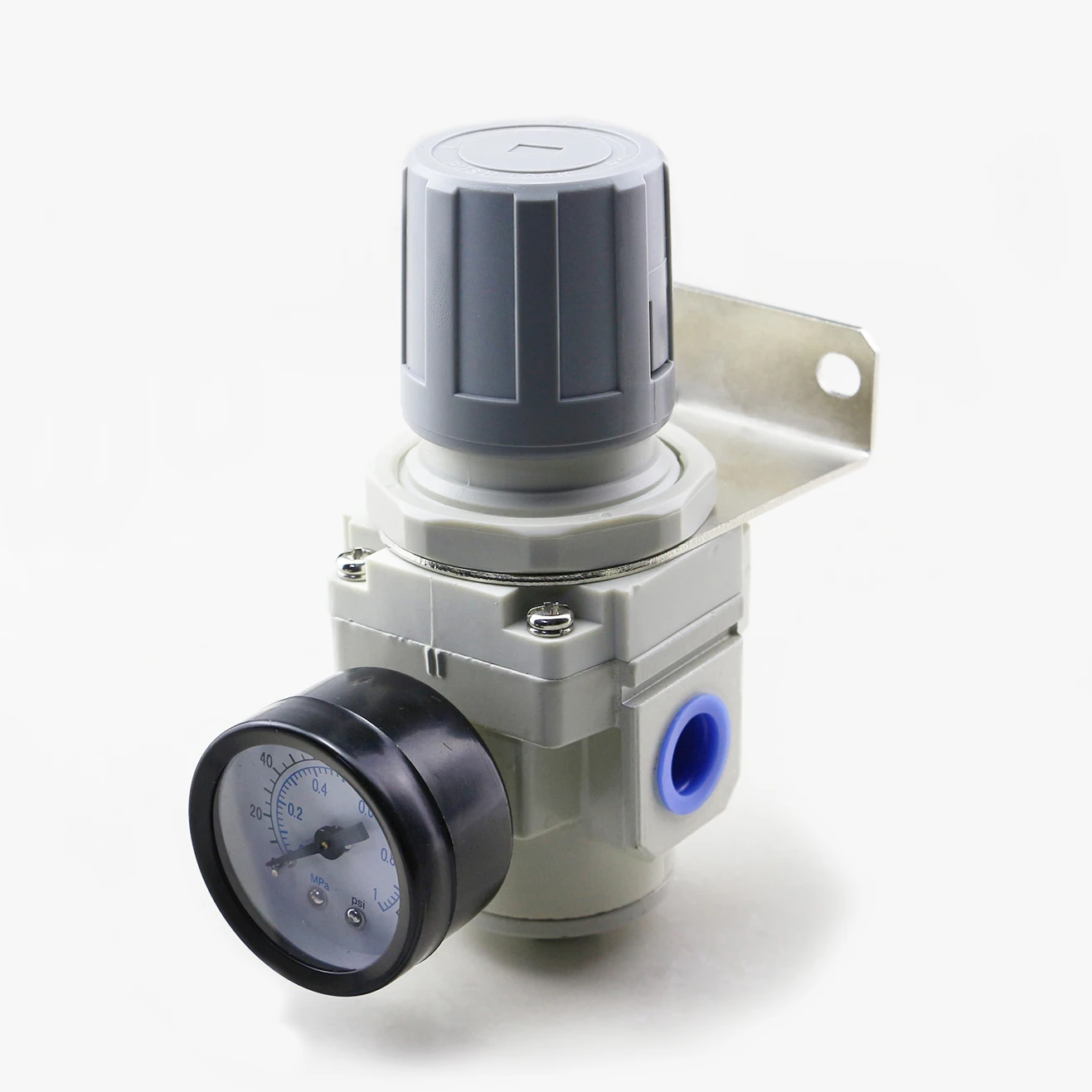

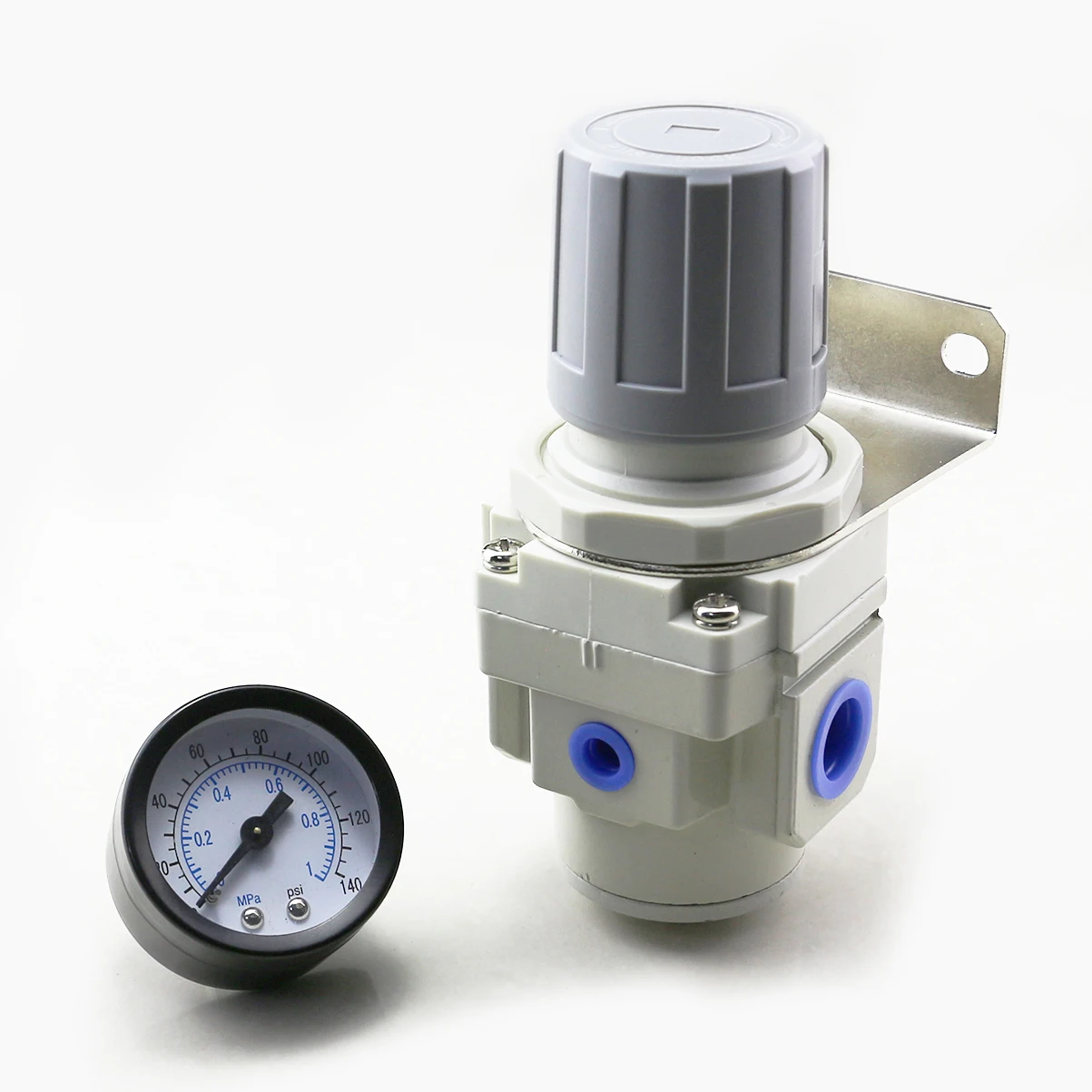

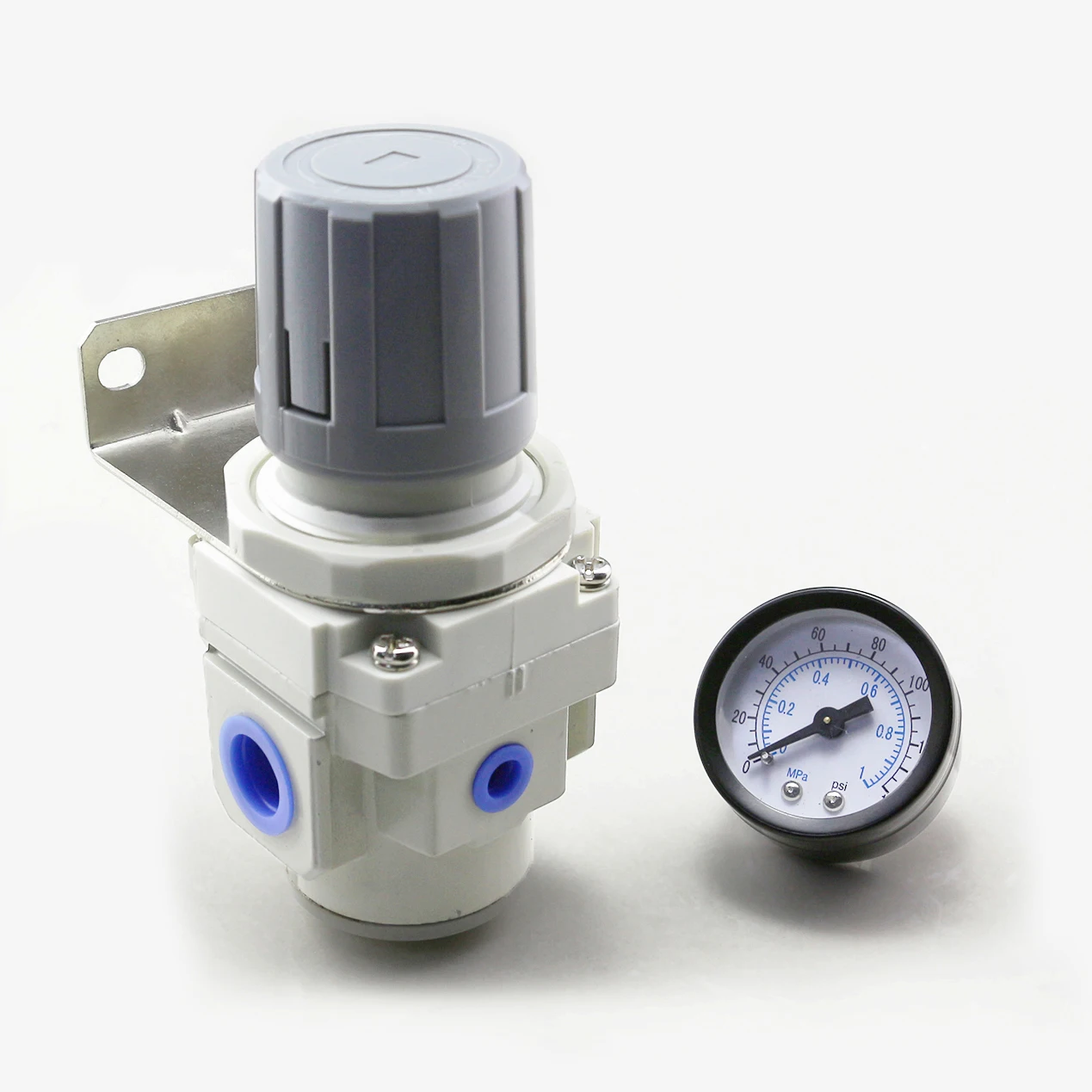

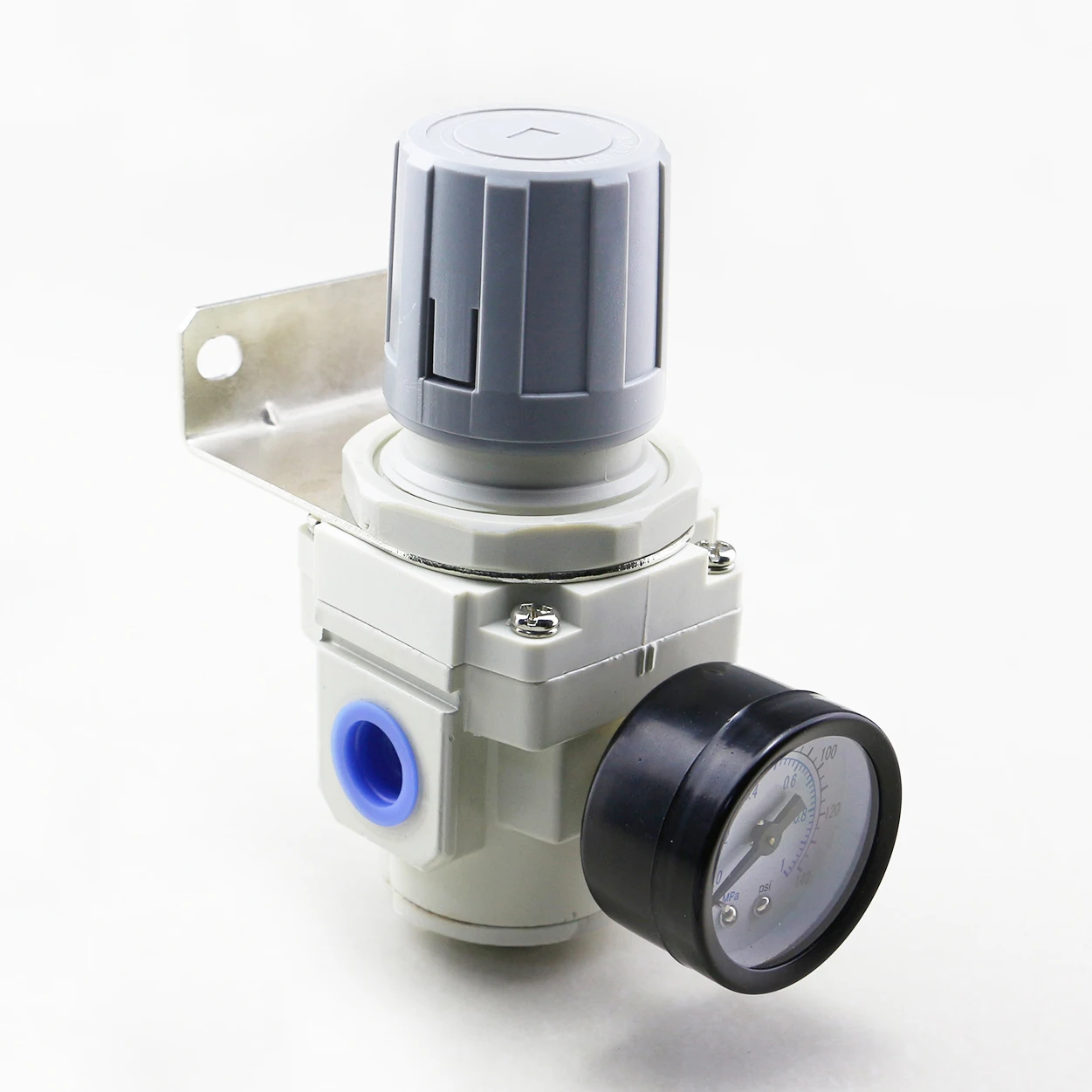

1/2 Air Regulator Compressed Air Regulator AR4000 04 SMC Pressure Regulator for Air
- Category: >>>
- Supplier: Taizhou Chenming Automation Technology Co. Ltd.
Share on (62545174374):
Product Overview
Description
1/2 Air Filter Regulator Compressed Air Regulator AR4000-04 SMC Pressure Regulator for Air
Product Description
Ordering Code
AR 2000 - 02
Model Size Port size
Regulator 2000 01: 1/8''
3000 02: 1/4''
4000 03: 3/8''
5000 04: 1/2''
06: 3/4''
10: 1''
Specification
| Model | AR2000-01 | AR2000-02 | AR3000-02 | AR3000-03 | AR4000-04 | AR4000-06 | AR5000-06 | AR5000-10 |
| Port size | 1/8'' | 1/4'' | 1/4'' | 3/8'' | 1/2'' | 3/4'' | 3/4'' | 1'' |
| Flow rate (L/Min) | 550 | 550 | 2000 | 2000 | 4000 | 6000 | 7000 | 7000 |
| Fluid | Air | |||||||
| Proof pressure | 1.5Mpa(15.3kgf/cm²) | |||||||
Max. operating pressure | 1.0Mpa(10.2kgf/cm²) | |||||||
| Ambient & fluid temperature | 5~60°C | |||||||
| Adjustable Pressure range |
0.05~0.85Mpa | |||||||
| Pressure gauge | Y40-01Z | Y50-02Z | ||||||
| Body material | Aluminum alloy | |||||||
Dimension
Product Details
Main Product
Company Information
Our Service
FAQ
Q: What is your MOQ?
A: 5pcs for MOQ.
Q: What is your packing?
A: Each F.R.L by one box packing with protection.
Q: What is your quality?
A: Sample will tell you what you want.
Q: What is your warranty?
A: One year under normally used.
Q: Can you do OEM?
A: Yes, we can.
