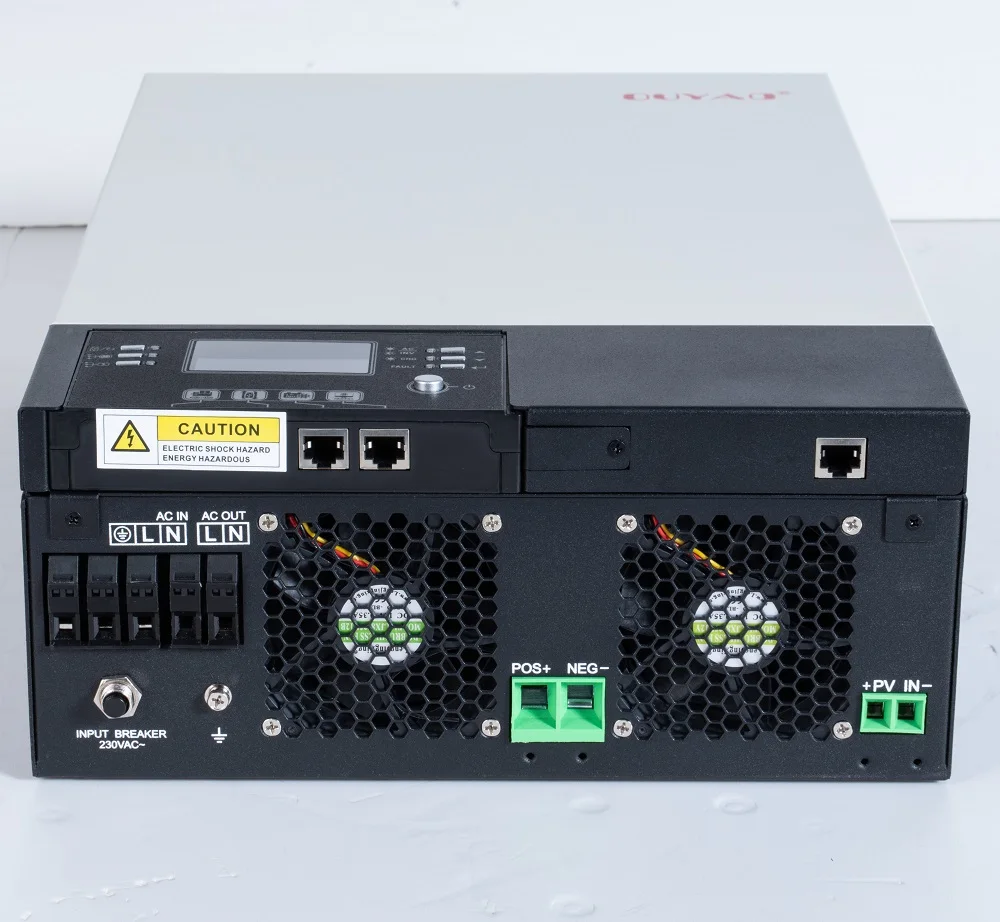

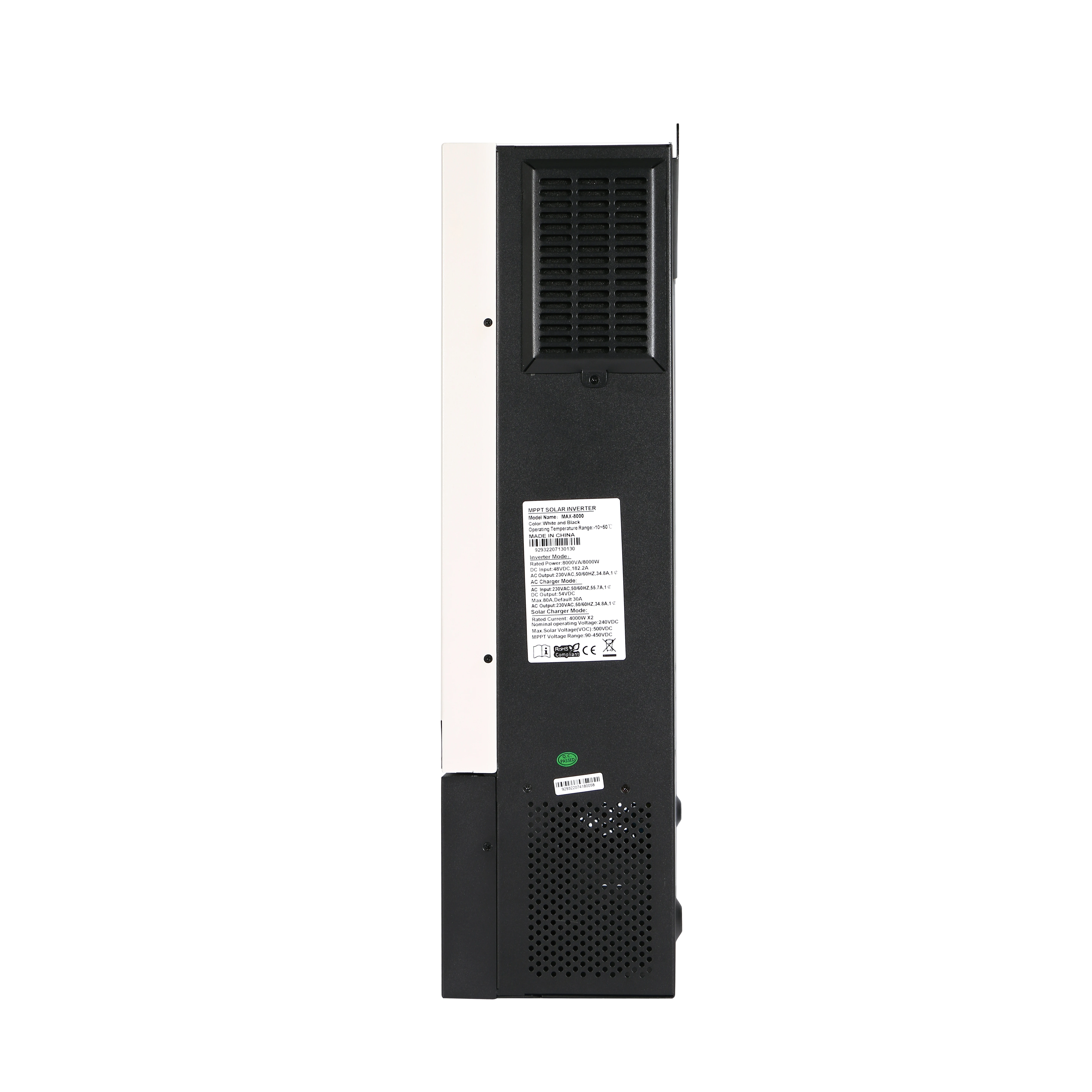

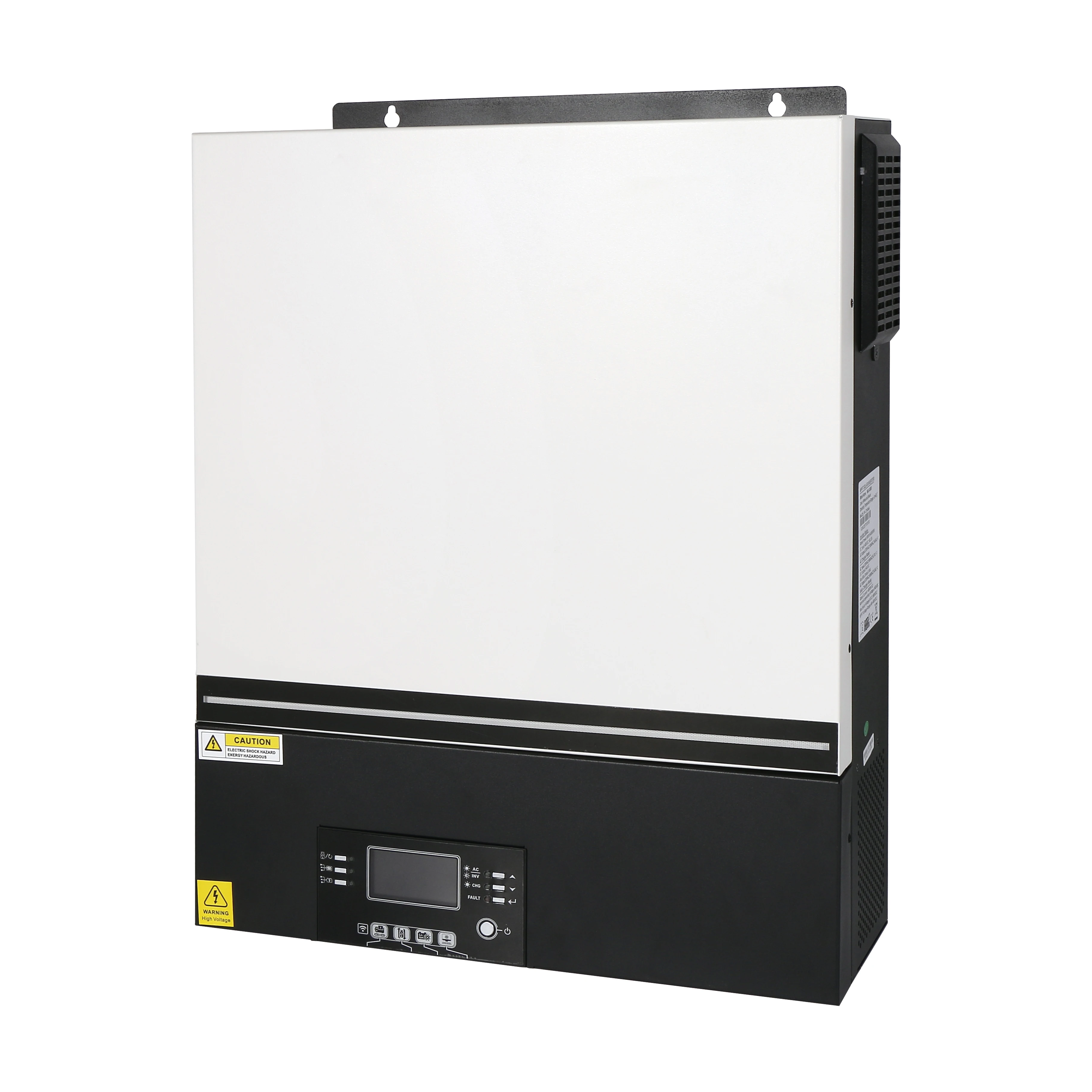

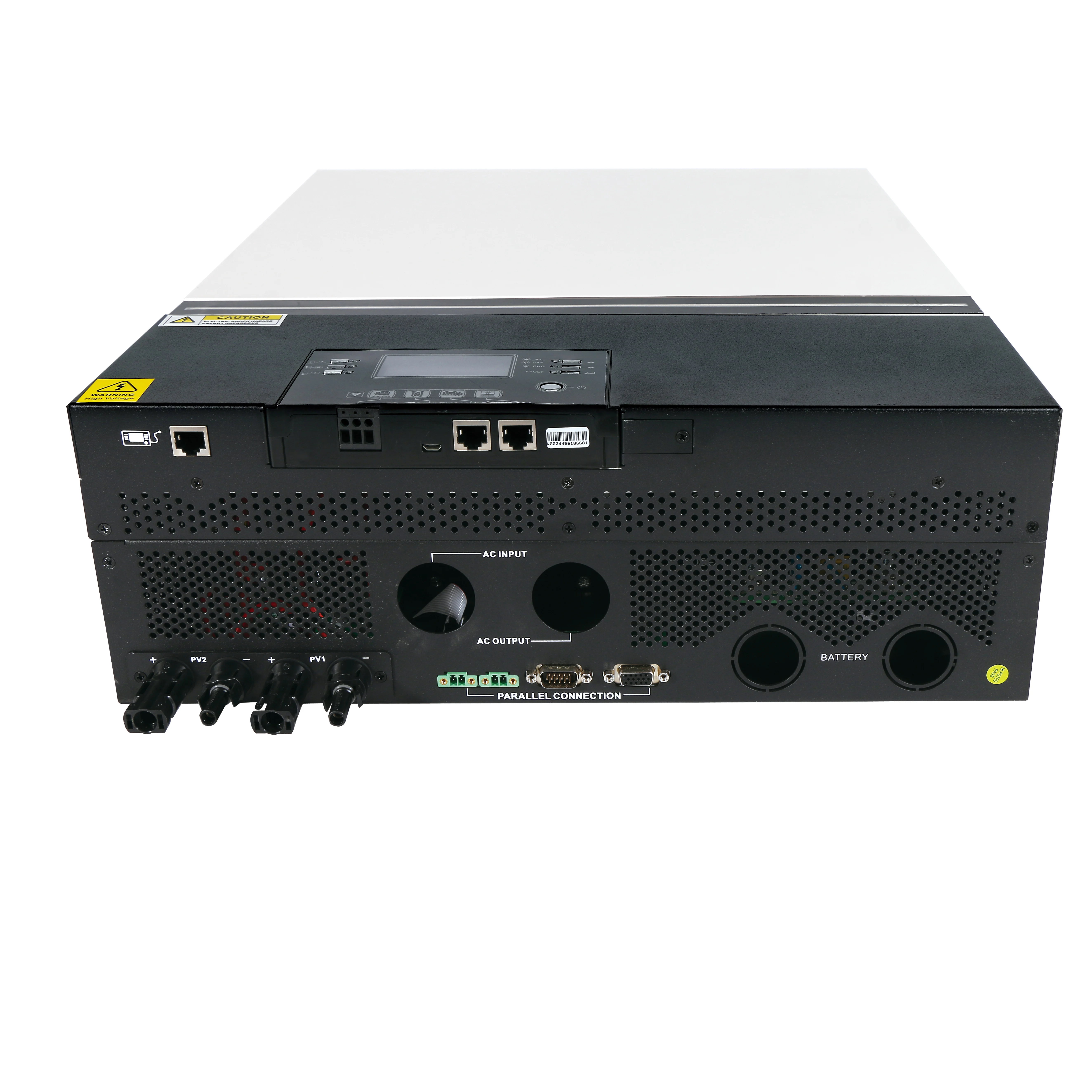

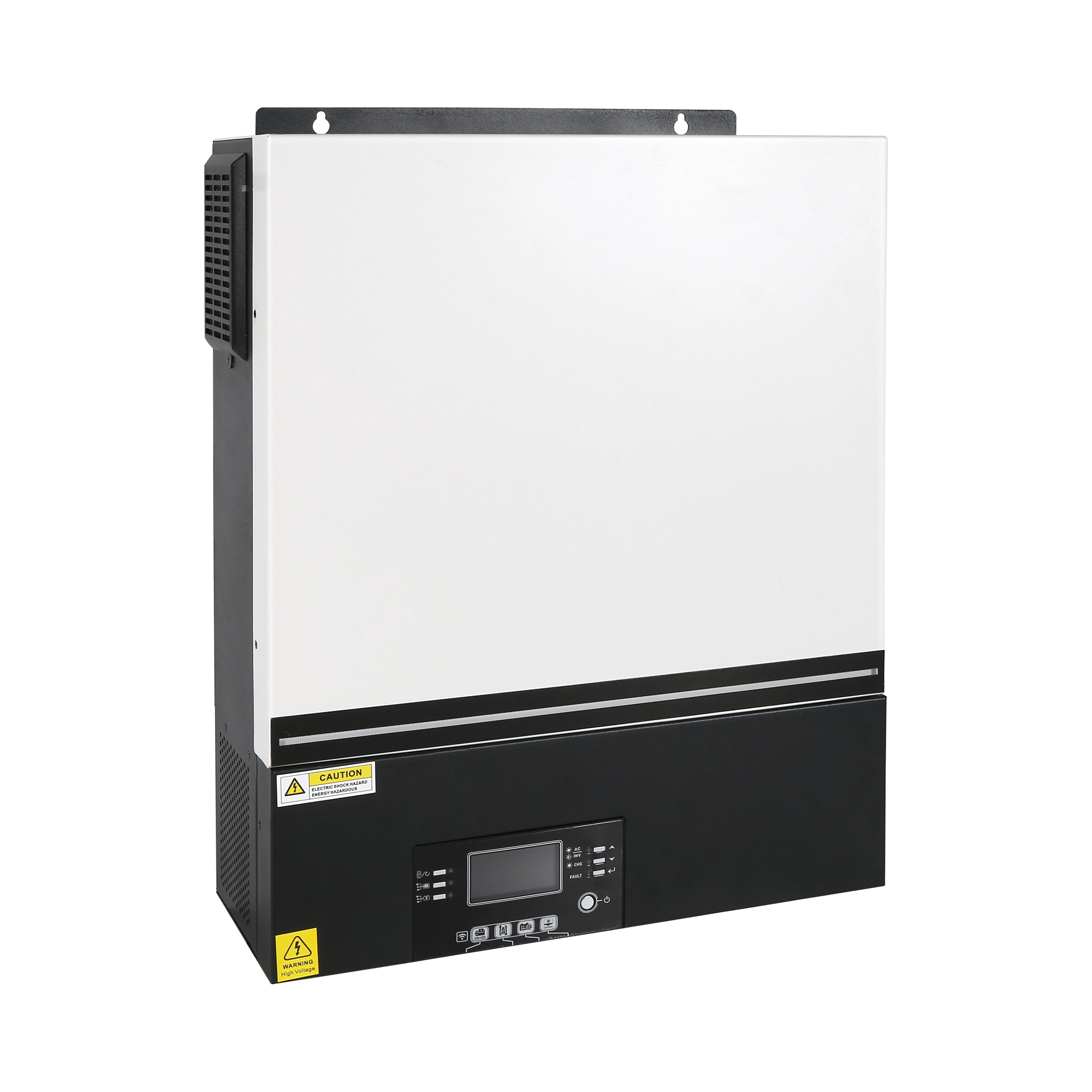

11 kw off grid inverter MPPT 80A 230VAC output expert max.
- Category: >>>
- Supplier: Foshan Ouyad Electronic Co. Ltd.
Share on (62545198222):
Product Overview
Description
Product Description
Main Features:
1.Dual outputs,for smart load management;
2.Maximum PV input current increases to 27A
3.Wide PV input voltage range 90-450VDC.
4.Status indication with RGB lights.
5.Built-in Wifi for mobile monitoringIAndroid/ios app is available).
6.Supports USB on the go function.
7.Reserved communication port for BMS.(RS485,CAN-BUS,or RS232)
8.Replaceable fan design for ease of maintenance.
9.Battery independent design.
10.Selectable high power charging current.
11.Compatible to Utility mains or generator input.
12.Built-in anti-dust kit.
13.Optional DC output for DC fan,LED bulb.
14.Paralel operation with 6 units.
Specification
Model | MAX 11000 | |
Rated Power | 11000VA/11000W | |
Parallel Capability | Yes, 6 units | |
INPUT | ||
Voltage | 230VAC+-5% | |
Surge Power | 22000VA | |
Efficiency(Peak) | 93% | |
Transfer Time | 10ms(For Personal Computers) 20ms(For Home Appliances) | |
Waveform | Pure sine wave | |
DC Voltage | N/A | |
BATTERY | ||
Battery Voltage | 48VDC | |
Floating Charge Voltage | 54VDC | |
Overcharge Protection | 63VDC | |
SOLAR CHARGER & AC CHARGER | ||
Solar charger type | MPPT | |
Max PV Array Power | 11000W(5500Wx2) | |
MPP Range @operating Voltage | 90-450VDC | |
Max PV Array Open Circuit Voltage | 500VDC | |
Maximum PV Input Current | 27Ax2(MAX 40A) | |
Max Solar Charge Current | 150A | |
Max AC Charge Current | 150A | |
Max Charge Current | 150A | |
PHYSICAL | ||
Dimension(DxWxH) | 147.4x432.5x553.6 | |
Net Weight(kgs) | 18.4 | |
Packing & Delivery
Carton box , size:430*350*240mm, 10KG/pc
One 20GP container can load 800pcs
One 40FT container can load 1650pcs
one 40HQ container can load 1900pcs
One 20GP container can load 800pcs
One 40FT container can load 1650pcs
one 40HQ container can load 1900pcs
Company Profile
Company info. & Advantages
OUYAD Group was established in 2000, main products are solar modules(power from 5Wp to 370Wp), wind turbine generator system(power from 200W to 50KW), inverters, UPS and batteries for wind/solar power systems.
Main Honor:
2010 Ouyad was accredited as "High-Tech Enterprise of Guangdong Province" by Guangdong Province government;
2014 Ouyad was accredited as "National High-Tech Enterprise" by China government;
2016 Ouyad was accredited as "Foshan City Smart Wind & Solar Hybrid Power System engineering technology research Center" by Foshan City government;
2017 Ouyad was accredited as "Guangdong Province Smart Wind & Solar Hybrid Power System engineering technology research Center" by Guangdong Province government;
Product Quality Control
Ouyad Group as an export-oriented company, product quality standards are in full accordance with international standards like IS09001, GB/T28001-2011,IDTOHSHS18001:2007. Products all international certified like CE, CQC, VDE, LVD, SONCAP, Inmetro etc.
OUYAD Group was established in 2000, main products are solar modules(power from 5Wp to 370Wp), wind turbine generator system(power from 200W to 50KW), inverters, UPS and batteries for wind/solar power systems.
Main Honor:
2010 Ouyad was accredited as "High-Tech Enterprise of Guangdong Province" by Guangdong Province government;
2014 Ouyad was accredited as "National High-Tech Enterprise" by China government;
2016 Ouyad was accredited as "Foshan City Smart Wind & Solar Hybrid Power System engineering technology research Center" by Foshan City government;
2017 Ouyad was accredited as "Guangdong Province Smart Wind & Solar Hybrid Power System engineering technology research Center" by Guangdong Province government;
Product Quality Control
Ouyad Group as an export-oriented company, product quality standards are in full accordance with international standards like IS09001, GB/T28001-2011,IDTOHSHS18001:2007. Products all international certified like CE, CQC, VDE, LVD, SONCAP, Inmetro etc.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2007,sell to Africa(32.00%),Mid East(30.00%),Domestic Market(15.00%),Southeast Asia(15.00%),North America(2.00%),Western Europe(2.00%),Eastern Europe(2.00%),Northern Europe(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Inverter,Solar,Panel,Windturbine,Lithium Ion Battery
4. why should you buy from us not from other suppliers?
Company info. & Advantages
OUYAD Group was established in 2000, Ouyad Group is a scientific and technological enterprise engaged in the research, development and production of solar, wind and ternary lithium battery energy storage systems,solar inverter.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2007,sell to Africa(32.00%),Mid East(30.00%),Domestic Market(15.00%),Southeast Asia(15.00%),North America(2.00%),Western Europe(2.00%),Eastern Europe(2.00%),Northern Europe(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Inverter,Solar,Panel,Windturbine,Lithium Ion Battery
4. why should you buy from us not from other suppliers?
Company info. & Advantages
OUYAD Group was established in 2000, Ouyad Group is a scientific and technological enterprise engaged in the research, development and production of solar, wind and ternary lithium battery energy storage systems,solar inverter.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
