Core i5 5300U 4K UHD display OPS Computer PC for finger touch interactive whiteboard

OPS450 PC Specification:

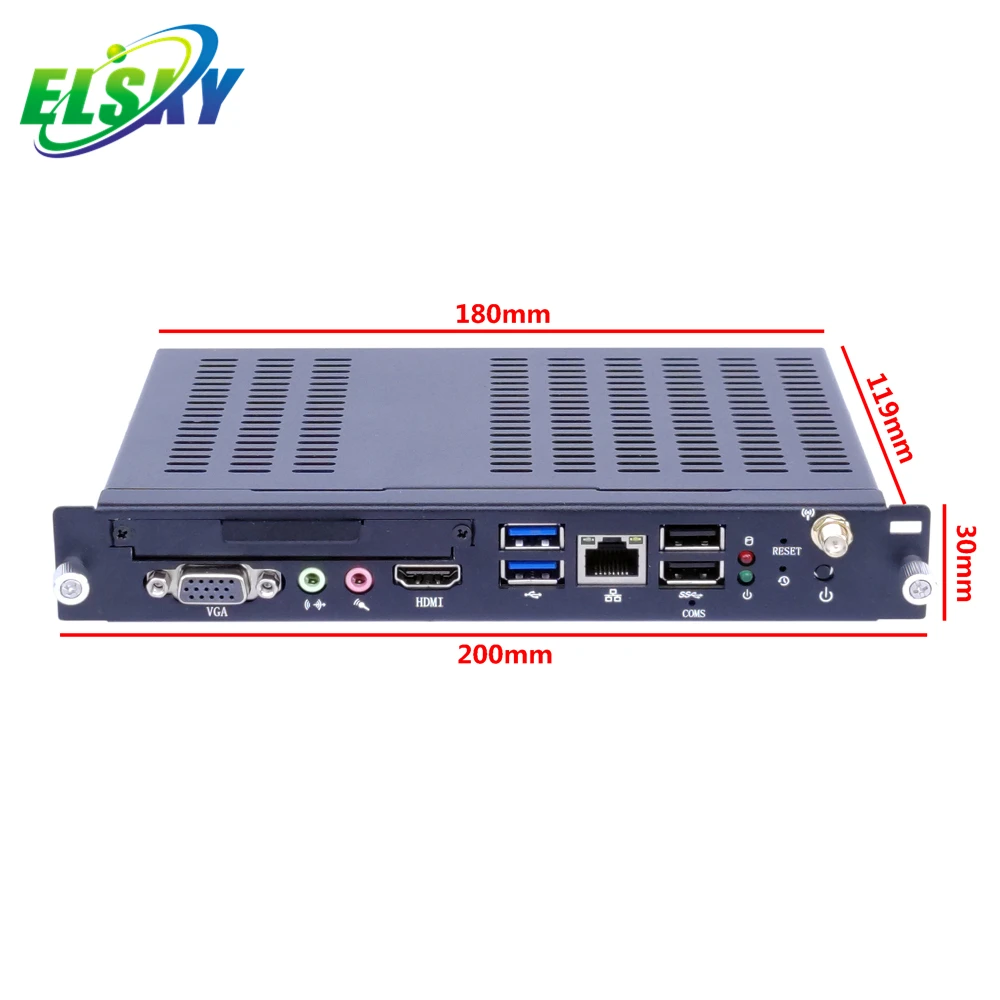

Case size

180*120*30mm(L*W*H)

Intel CPU

Support 4th generation Core i3-4005U,i3-4010U,i3-4030U,i5-4500U, i7-4500U,i7-4510U,etc.

Support 5th generation Core i3-5005U,i3-5010U,i5-5200U,i5-5250U,i7-5500U,i7-5600U,etc.

Chipset

Haswell-U,Broadwell-U high speed chipset.

Memory

1*NB-DDR3 SODIMM Memory channel,1600MHz,1.35V,Max.8GB RAM.

Power Supply

1*DC_IN

Support 12V/19V;,DC port:5.5*2.5MM;

About 35W full-load power consumption;

Recommended 12V 5A/7A/10A;19V 6.3A power adapter.

Display

Integrated Intel HD Graphics 4400/5500;

Support single/dual display;Single display in DOS;

1*VGA DB15 port supports Max.resolution 1920 * [email protected];(2K 1080P,HD)

1*HDMI 1.4 port supports Max.resolution 4096/3840*[email protected]/30Hz.(4K,UHD)

Ethernet

1*RJ45 LAN port

Realtek 8111H 10/100/1000Mbps Gigabit RJ45 LAN;

Support Wake on LAN and PXE diskless boot function.

1*Mini-PCIE port

Support WIFI module;If you need Blutooth,3G,4G,GPS,please contact us to change the signal in advance.

I/O ports

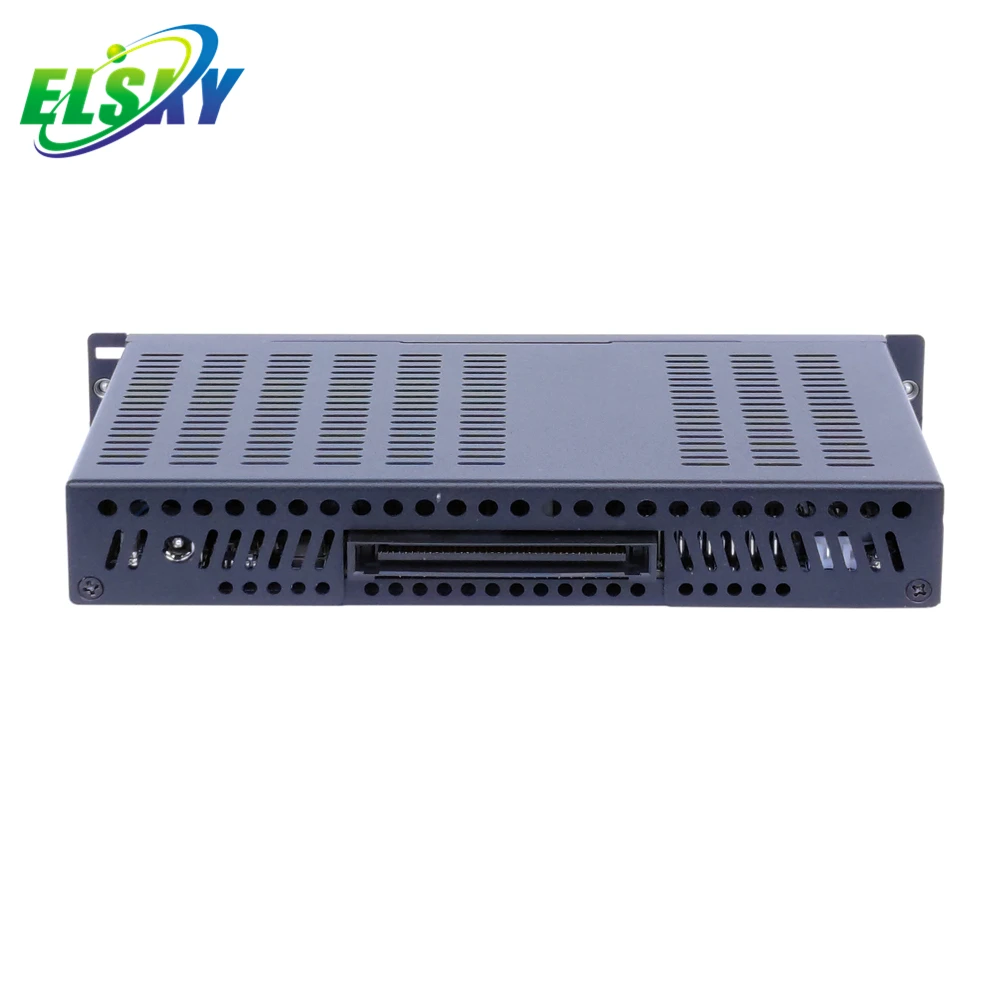

1*80PIN OPS slot, 1*DC port, 1*HDMI, 1*VGA, 2*USB3.0, 1*RJ45 LAN, 2*USB2.0, 1*Line-out, 1*Mic-in, 1*WIFI hole.

External Button

1*Restart button, 1*Power on/off button, 1*One-key recovery system button.

Hard Disk

1*JSATA port

It is 2.5inch hard disk slot for SSD,HDD. (SATA3.0)

1*MSATA slot

Support MSATA hard disk (SATA 3.0)

Audio

Integrated Realtek ALC662 HD digital audio decoder,6-channel high-fidelity audio controller.

1*Line_out port

Support Audio output(Green color)

1*Mic_in port

Support microphone input(Red color)

USB

2*USB3.0 ports

Rear USB3.0 ports

2*USB2.0 ports

Rear USB2.0 ports

1*PWR_SW button

Switch button

1*SIM_CARD slot

Support SIM card.If you use 3G / 4G, you must have a SIM card.

1*CMOS_SW button

Motherboard reset and discharge buttons.

Operating Environment

Operating temperature:-20℃~60℃;

Working humidity:5%~95% Relative humidity, no condensation.

BIOS

AMI BIOS;Support power on,timing switch,remote switch,intelligently identify devices.

Watch Dog

Watch Dog programming supports hardware reset function (256 levels, 0~255 seconds).

Operating System

Support Windows 10,Windows 8,Windows 7,Linux,etc.
