E3CMOS Series Professional Digital Camera C mount Support USB3.0 CMOS Microscope Camera for Video Microscope
- Category: >>>
- Supplier: Suzhou Jingtong Instrument Co. Ltd.
Share on (62545397265):
Product Overview
Description
 |
Product Description
Super high sensitivity up to 1120mV(IMX185)
Rolling Shutter or Global Shutter
Standard C-Mount
CNC aluminum alloy housing
USB3.0
E3CMOS Series adopt SONY Exmor CMOS sensor as the image-picking device and USB3.0 is used as the data transfer interface.
E3CMOS Series hardware resolutions range from 0.4M to 20M and come with the integrated CNC aluminum alloy compact housing.
E3CMOS comes with advanced video & image processing application; Providing Windows/Linux/ OSX multiple platforms SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;
The E3CMOS can be widely used in bright field light environment and microscope image capture and analysis with higher frame rate.
Features
- SONY Exmor, Exmor R(Back-illuminated), Exmor RS CMOS sensor with USB3.0 interface
- Real-time 8/12/14/16bit depth switch(depending on sensor)
- Super high sensitivity up to 1120mV(IMX185)
- Ultra low noise and low power dissipation by using column-parallel A/D conversion
- With hardware resolution among 0.4M to 20M
- Rolling Shutter or Global Shutter
- Standard C-Mount camera
- CNC aluminum alloy housing
- USB3.0 5 Gbps interface ensuring high frame rates
- With advanced video & image processing application
- Providing Windows/Linux/Mac OS multiple platforms SDK
- Native C/C++, C#/VB.Net, DirectShow, Twain, LabView
Specification
Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dark Signal | FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
E3CMOS20000KPA | 20M/IMX183(C) | 2.4 x2.4 | 462mv with 1/30s | 5.5@5440x3648 16@2736x1824 21@1824x1216 | 1x1, 3x3 | 0.1ms~15s |
E3CMOS20000KMA | 20M/IMX183(M) | 2.4 x2.4 | 776mv with 1/30s | 17.5@5440x3648 40@4080x2160 48@2736x1824 60@1824x1216 | 1x1, 1x1, 3x3 | 0.1ms~60s |
E3CMOS20000KPB | 20M/IMX147(C) | 1.2 x1.2 | 130mv with 1/30s | 5.2@5200x3888 15@2592x1944 30@1728x1296 | 1x1, 3x3 | 0.1ms~15s |
E3CMOS12300KMA | 12.3M/IMX304(M) | 3.45 x3.45 | 1146mv with 1/30s | 23.4@4096x3000 46.3@2048x1500 | 1x1, 1x1, | 0.244ms~15s |
E3CMOS06300KPA | 6.3M/IMX178(C) | 2.4x2.4 | 425mv with 1/30s | 15@3072 x2048 | 1x1, 2x2 | 0.244ms~2000ms |
E3CMOS06300KMA | 6.3M/IMX178(M) | 2.4x2.4 | 425mv with 1/30s | 30@3072 x2048 | 1x1, 2x2 | 0.244ms~2000ms |
E3CMOS05000KPA | 5.0M/IMX264(C, GS) | 3.45x3.45 | 1146mv with 1/30s | 15@2448x2048 51@1224x1024 | 1x1 | 0.1ms~60s |
E3CMOS05000KMA EM105000A(Suspended) | 5.0M/IMX264(M, GS) | 3.45x3.45 | 915mv with 1/30s | 35@2448x2048 60@1224x1024 | 1x1, 2x2 | 0.1ms~60s |
E3CMOS03100KPA | 3.1M/IMX036(C) | 2.5x2.5 | 200mv with 1/30s | 28@2048x1536 | 1x1, 2x2 | 0.244ms ~2000ms |
E3CMOS03100KPB | 3.1M/IMX123(C) | 2.5x2.5 | 600mv with 1/30s | 25@2048x1536 | 1x1 | 0.244ms~2000ms |
E3CMOS03100KMC | 3.1M/IMX265(M, GS) | 3.45x3.45 | 1146mv with 1/30s | 53@2048x1536 85@1024x768 | 1x1 1x1 | 0.1ms~15s |
E3CMOS02300KPA | 2.3M/IMX185(C) | 3.75x3.75 | 1120mv with 1/30s | 38@1920x1200 | 1x1, 2x2 | 0.244ms ~2000ms |
E3CMOS02300KPB | 2.3M/IMX249(C,GS ) | 5.86x5.86 | 1016mv with 1/30s | 30@1920x1200 | 1x1 | 0.244ms~2000ms |
E3CMOS02300KMC EM102300C | 2.3M/IMX174(M, GS) | 5.86x5.86 | 1016mv with 1/30s | 120@1920x1200 | 1x1 | 0.244ms~2000ms |
E3CMOS01500KMA | 1.5M/IMX273(M, GS) | 3.45x3.45 | 1830mv with 1/30s | 228@1440x1080 530@720x540 | 1x1 2x2 | 0.1ms~60s |
E3CMOS01200KPA | 1.2M/IMX224(C) | 3.75 x3.75 | 2040mv with 1/30s | 60@1280x960 120@640x480 | 1x1, | 0.105ms~15s |
E3CMOS00400KPA EP100400A(New) | 0.4M/IMX287(C,GS) 1/2.9”(4.97x3.73) | 6.9x6.9 | 4584mv with 1/30s | 520@720x540 | 1x1 | 0.244ms~15s |
E3CMOS00400KMA EM100400A(New) | 0.4M/IMX287(M,GS) 1/2.9”(4.97x3.73) | 6.9x6.9 | 7469mv with 1/30s | 520@720x540 | 1x1 | 0.244ms~15s |
C: Color; M: Monochrome;GS: Global Shutter
For the suspended models, customer can choose the corresponding models from E3ISPM series with faster frame rate.
Other Specification for E3CMOS Camera | |
|---|---|
Spectral Range | 380-650nm (with IR-cut Filter) |
White Balance | ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor |
Color Technique | Ultra-FineTM Color Engine/NA for Monochromatic Sensor |
Capture/Control API | Native C/C++, C# /VB.Net,, DirectShow, Twain and Labview |
Recording System | Still Picture and Movie |
Cooling System* | Natural |
Operating Environment | |
Operating Temperature(in Centidegree) | -10~ 50 |
Storage Temperature(in Centidegree) | -20~ 60 |
Operating Humidity | 30~80%RH |
Storage Humidity | 10~60%RH |
Power Supply | DC 5V over PC USB Port |
Software Environment | |
Operating System | Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit) OSx(Mac OS X) Linux |
PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher |
Memory: 2GB or More | |
USB Port: USB3.0 High-speed Port | |
Display: 17” or Larger | |
CD-ROM |
Extension of E3CMOS with Microscope or Telescope Adapter
Extension | Picture | |
|---|---|---|
C-mount Camera |
| Machine vision; Medical imaging; |
Microscope Camera |
| |
Telescope Camera | ||
Product Details
|  |

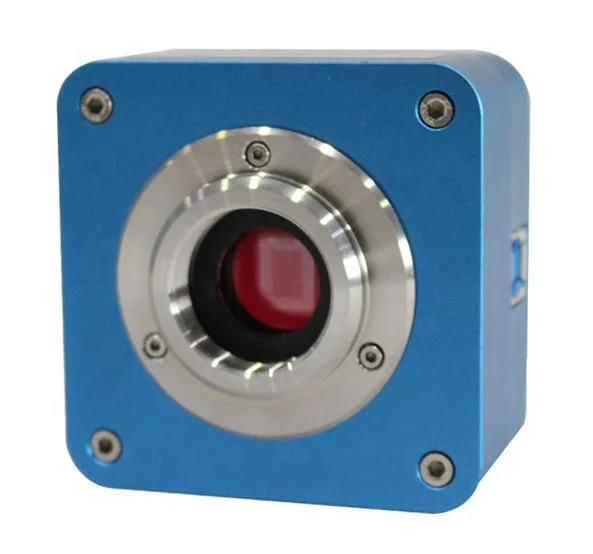

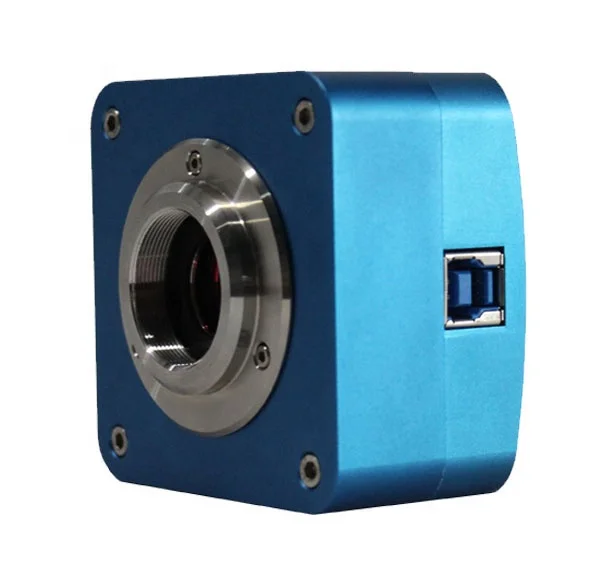

E3CMOS Series Camera
| |
| |

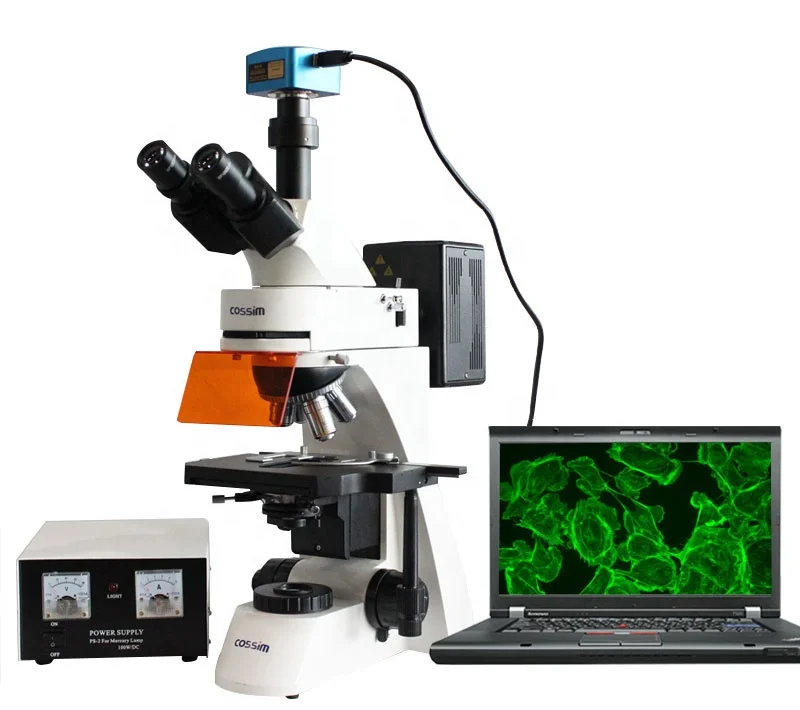

| E3CMOS Series Camera and Microscope | |
Dimension
The E3CMOS body, made from tough, CNC aluminum alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.

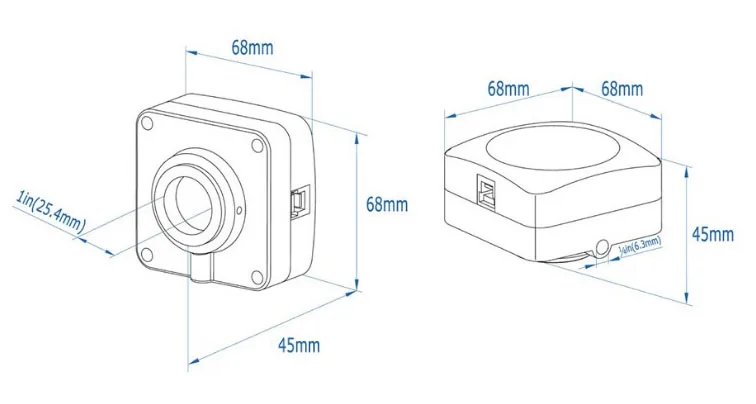

Dimension of E3CMOS Sereis Camera

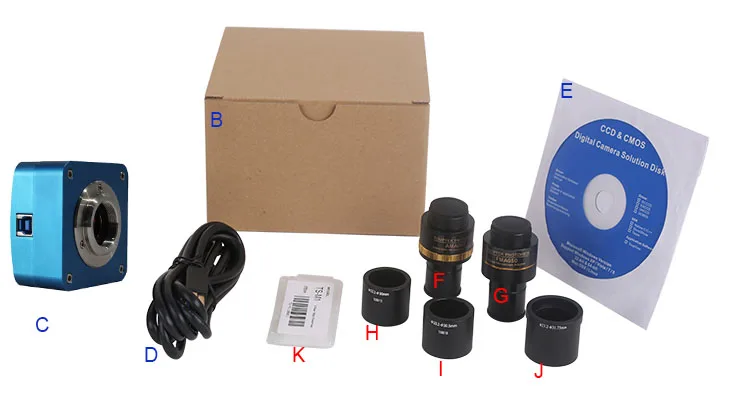

Packing List
Standard Camera Packing List | |||
|---|---|---|---|
A | Carton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photo | ||
B | Gift box L:15cm W:15cm H:10cm (0.58~0.6Kg/ box) | ||
C | E3CMOS series USB3.0 C-mount CMOS camera | ||
D | High-speed USB3.0 A male to B male gold-plated connectors cable /2.0m | ||
E | CD (Driver & utilities software, Ø12cm) | ||
Optional Accessory | |||
F | Adjustable lens adapter | C-mount to Dia.23.2mm eyepiece tube | 108001/AMA037 108004/AMA100 |
C-mount to Dia.31.75mm eyepiece tube | 108008/ATA037 108011/ATA100 | ||
G | Fixed lens Adapter | C-mount to Dia.23.2mm eyepiece tube | 108005/FMA037 108008/FMA100 |
C-Mount to Dia.31.75mm Eyepiece Tube | 108011/FTA037 108014/FTA100 | ||
Note: For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera) , Jingtong engineer will help you to determine the right microscope or telescope camera adapter for your application; | |||
H | 108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube | ||
I | 108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube | ||
J | 108017(Dia.23.2mm to 31.75mm Ring)/ Adapter rings for 31.75mm eyepiece tube | ||
K | Calibration kit | 106011/TS-M1(X=0.01mm/100Div.); | |
