4SSC96750 1HP Solar dc submersible water pump with RS485 or india market price
- Category: >>>
- Supplier: Ningbo Jilu Leader Drive Technologies Co. Ltd.
Share on (62545402211):
Product Overview
Description
Product Description
Product Detailed
Material
Pump Outlet: 304 stainless steel
Pump Body: 304 stainless steel
Impeller: 304 stainless steel
Motor Body: 304 stainless steel
Motor Cable: 2 meters 3cores copper cable/2mm2
Bear: NSK
Screw: 316 stainless steel
Motor: Full Oil Permanent Magnet BLDC Motor
Controller Shell: Die-cast Aluminum
Packing & Delivery
Full Set Includes
1. Solar Pump with 2m cable 1pc
2. MPPT Pump Controller 1pc
3. Level Sensor for well 2pcs
4. Lever Sensor for tank 3pcs
5. Heat-shrinkable tube 6pcs
6. Connection terminals 5pcs
7. Allen key 1pc
8. User Manual 1pc
Note: Solar panels, solar panel connectors, pump outlet fitters, electric cables, electric box are optional, please tell us if you need our offer for them.
Packaging Review
Strong Plywood Cases
Plastic Film Column Air Bag
Clear Model Name Print
Delivery
1. For sample order or small order, lead time 2-7 days.
2. For bulk order, lead time 7-20 days.
Deliveryed by Express (DHL, UPS, FedEX, TNT, EMS), by Air, by Sea are all accepted, please contact us to advice best
shipping way for you.
Installation

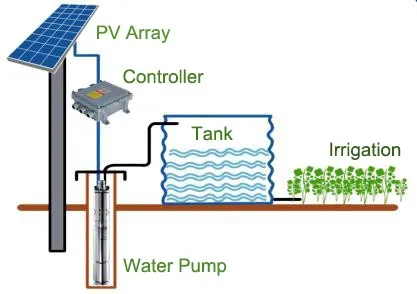

Solar Pumping System Connection

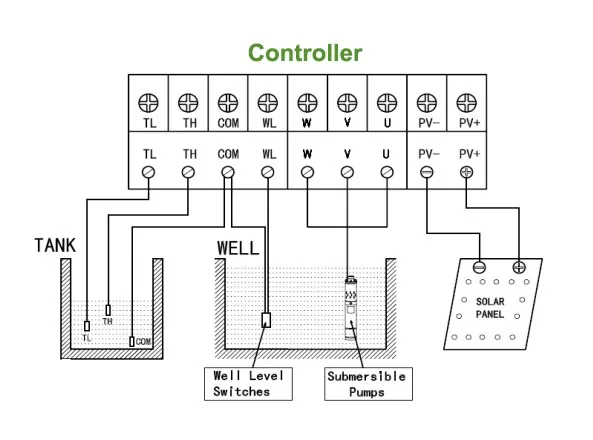

Connection detail

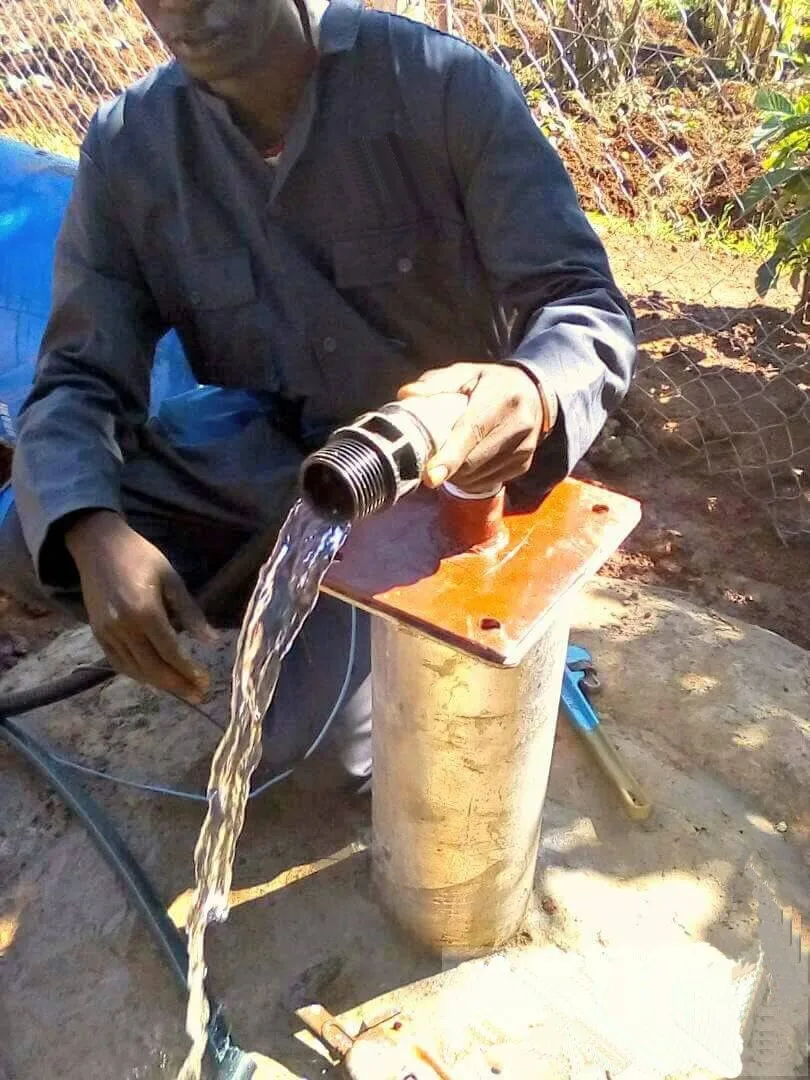

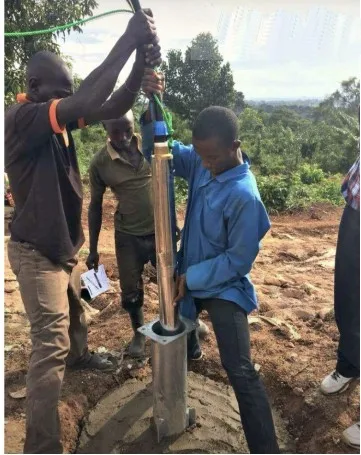

Solar Pump Intallation

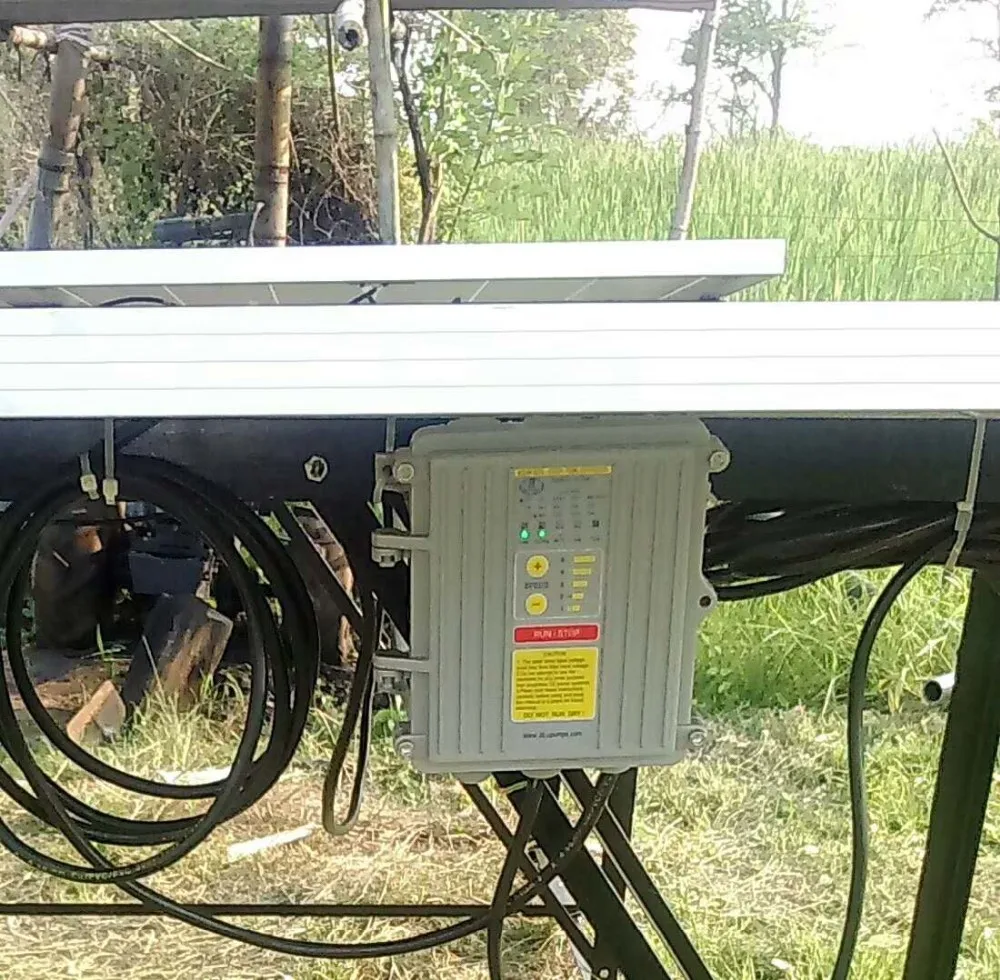

MPPT Controller Intallation
Water Pumping
Our Service
Quality Control

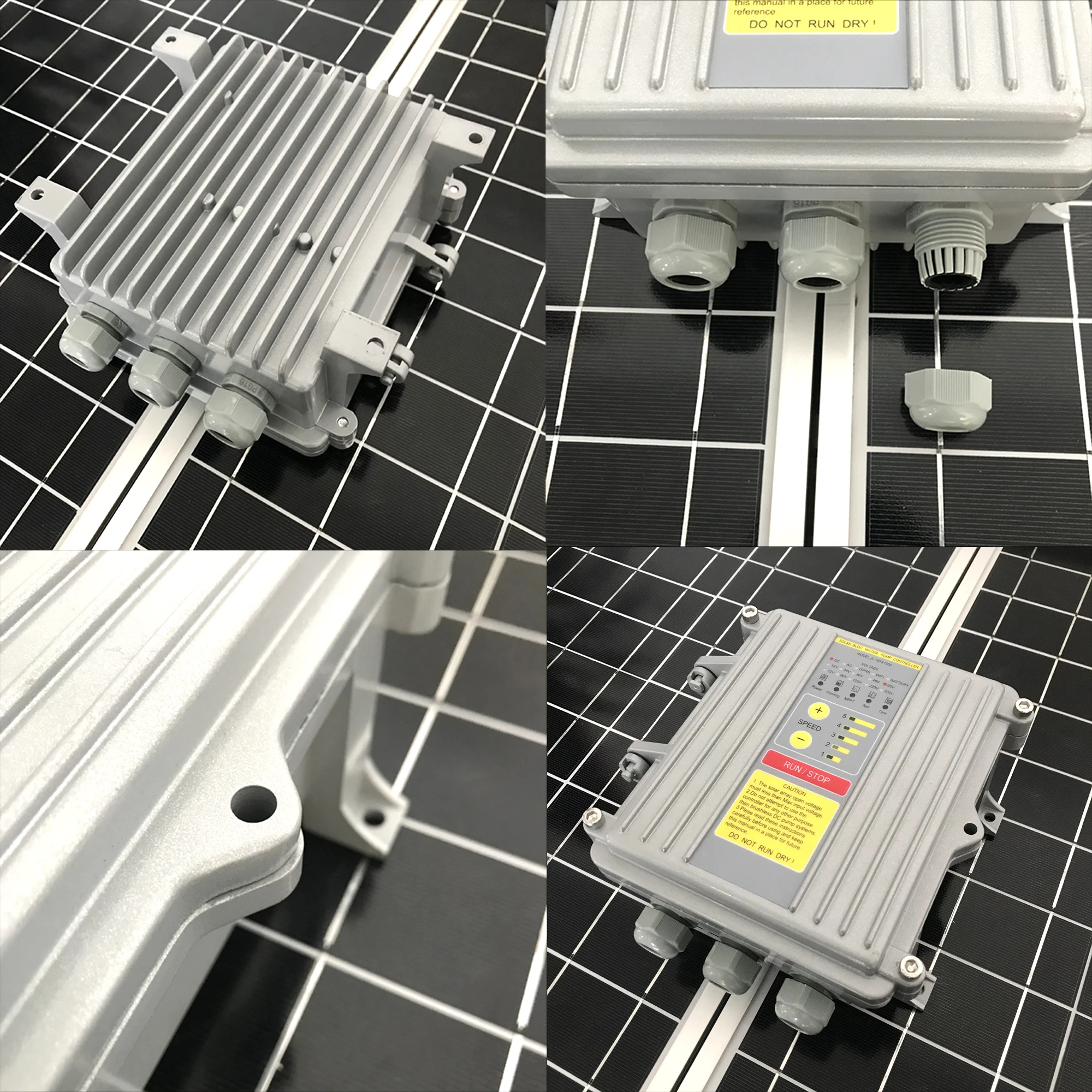

Controller Shell-Unique shell in China with design patent.
Factory Acceptance -Test-Each finished controller shall be tested for at least 72 hours.
MOSFET-The rate current of controller is 15A, we use 100A MOSFET
Capacitor-We leave 30% extra. If require 2000uF, we use 2500-3000uF.
Copper Foil Thickness-1.0oZ is required, we use 1.5oZ.
Intelligent Cloud Platform--Optional.
Soft Start-Up System-Motor starts up placidly and current is far less than traditional hardware start-up
Factory Acceptance -Test-Each finished controller shall be tested for at least 72 hours.
MOSFET-The rate current of controller is 15A, we use 100A MOSFET
Capacitor-We leave 30% extra. If require 2000uF, we use 2500-3000uF.
Copper Foil Thickness-1.0oZ is required, we use 1.5oZ.
Intelligent Cloud Platform--Optional.
Soft Start-Up System-Motor starts up placidly and current is far less than traditional hardware start-up
technologies.
MPPT&DSP Chip Technique-The MCU can detect the circuit automatically and can be displayed by LED, to prevent the motor from starting up frequently, protect the pump motor and prolong the motor life time.
Protection-Over voltage protection/Under-voltage protection/Over-current protection/Over-load protection.
Full-Automatic-Operation-Unmanned guarding, apply to photovoltaic direct power.
MPPT&DSP Chip Technique-The MCU can detect the circuit automatically and can be displayed by LED, to prevent the motor from starting up frequently, protect the pump motor and prolong the motor life time.
Protection-Over voltage protection/Under-voltage protection/Over-current protection/Over-load protection.
Full-Automatic-Operation-Unmanned guarding, apply to photovoltaic direct power.
Strict Testing
Mppt Controller Test Platform
We test each controller carefully for
72 hours or more connected with solar pump and solar panels.
Solar Panel on Factory Roof
Solar panels are connected on our factory roof for our test of each model.
Test Platform
We use this machine to test pump flow, head, power etc.
Service We offer
In warranty, if your pump or controller is broken, we can repair it or offer a new one to you.
2 sets extra parts for every 100 sets order could be provided to customer.
We would like offering technical training and support to our agent face to face if possible.
Our intelligent engineers are available for technical problem.
Any suggestions to our products, we'll be glad to hear from you.
Contact Us
Chen Liqiao
Tel: +86 83083687
Mobile/Whatsapp/Wechat:
+86 13957471310
QQ: 3413709990
Web: www.jilupumps.com
Professional mufacturer and supplier for BLDC motor, PMSM, solar dc pump, and mppt controller.
