Product Brief Introduction

This slitter is for pressure sensitive paper label laminate.big loading and unloading type using in packaging material and label

Machine Specification


The following parameter is only for reference. The exact specification can be designed according to buyer's request
                          BASIC PARAMETERS
Slitting Material
 Pressure sensitive adhesive label：
paper+paper：
paper+film（PE,BOPP,PET,）：
film（PE,BOPP,PET）+film（PET）
Machanical Speed
Max. 900m/min
Slitting Way
Shear air cut
Unwinding Way
Shaftless motor-drive unwinding
Unwinding Width
850mm-2180mm
Unwinding Diameter
500-1500mm
Unwinding Core Size
3″6″paper core (3" paper core OD is more than 94mm)
Edge guide Way
Oscillation device
Rewinding Way
Central shaftless rewinding
Rewinding Width
850mm-2180mm
Rewinding Diameter
1200mm
Rewinding Core Size
3″6″paper core (3" paper core OD is more than 94mm)
Rewinding shaft
2（Alternative）
Unloading Way
Unloading with trolleys
Edge Trim Way
Edge Trim unit
Equipment Power
380V, 50Hz, 3 phase AC
Equipment Size
About 4000mm (length)×6900mm (width)×2750mm(height)
Control System
Germany siemens servo system
Heating splicing table
Include

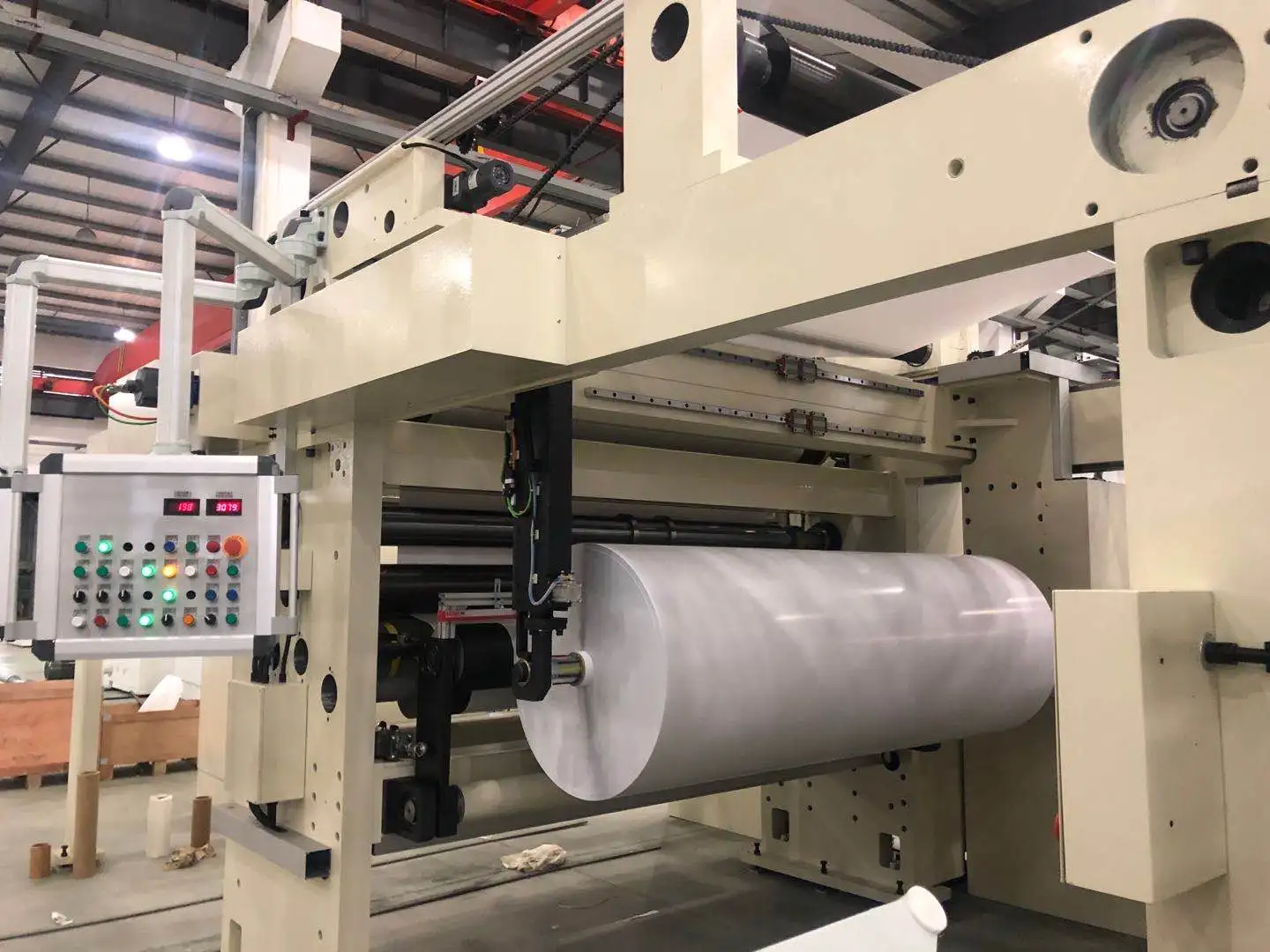

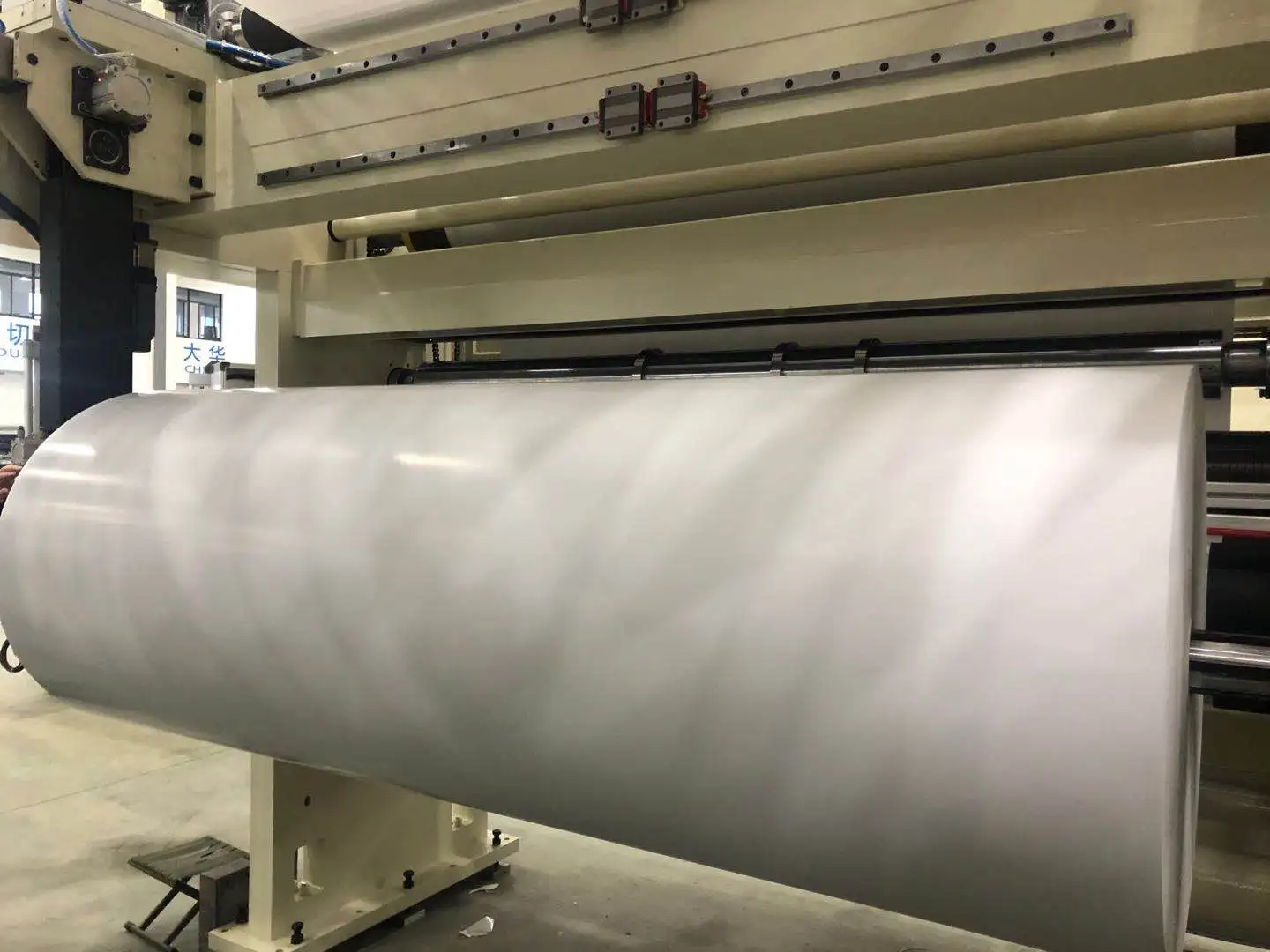

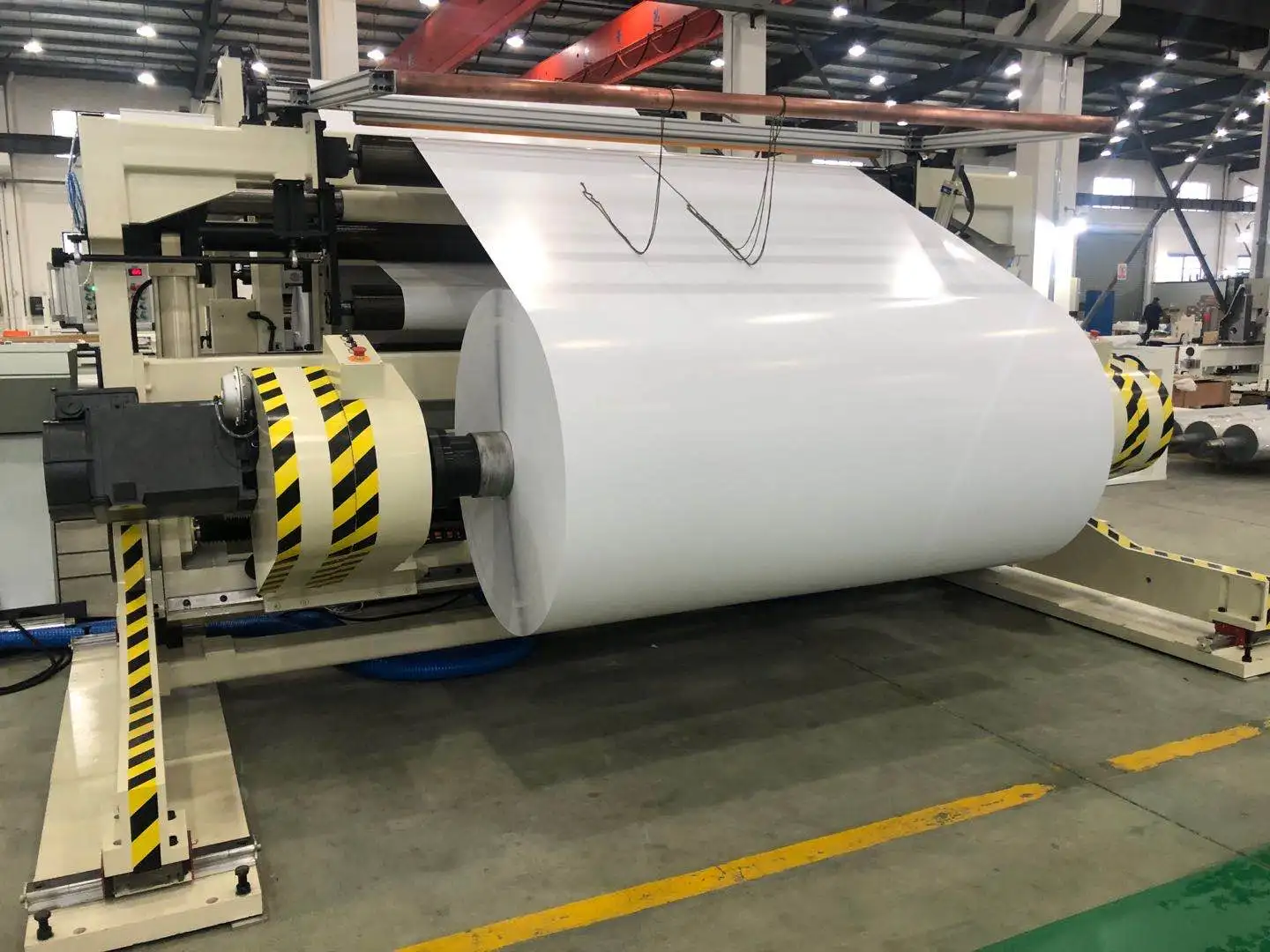

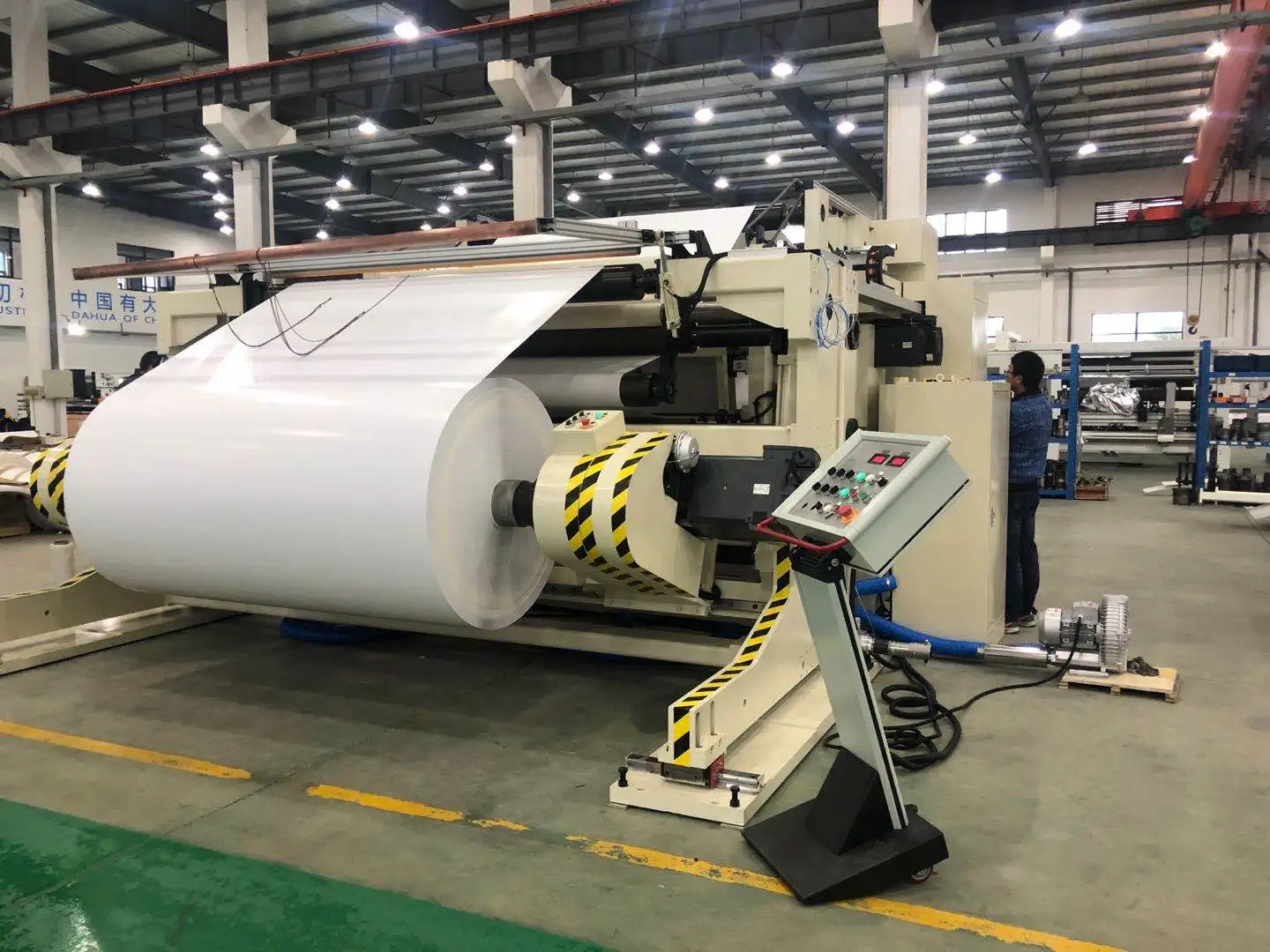

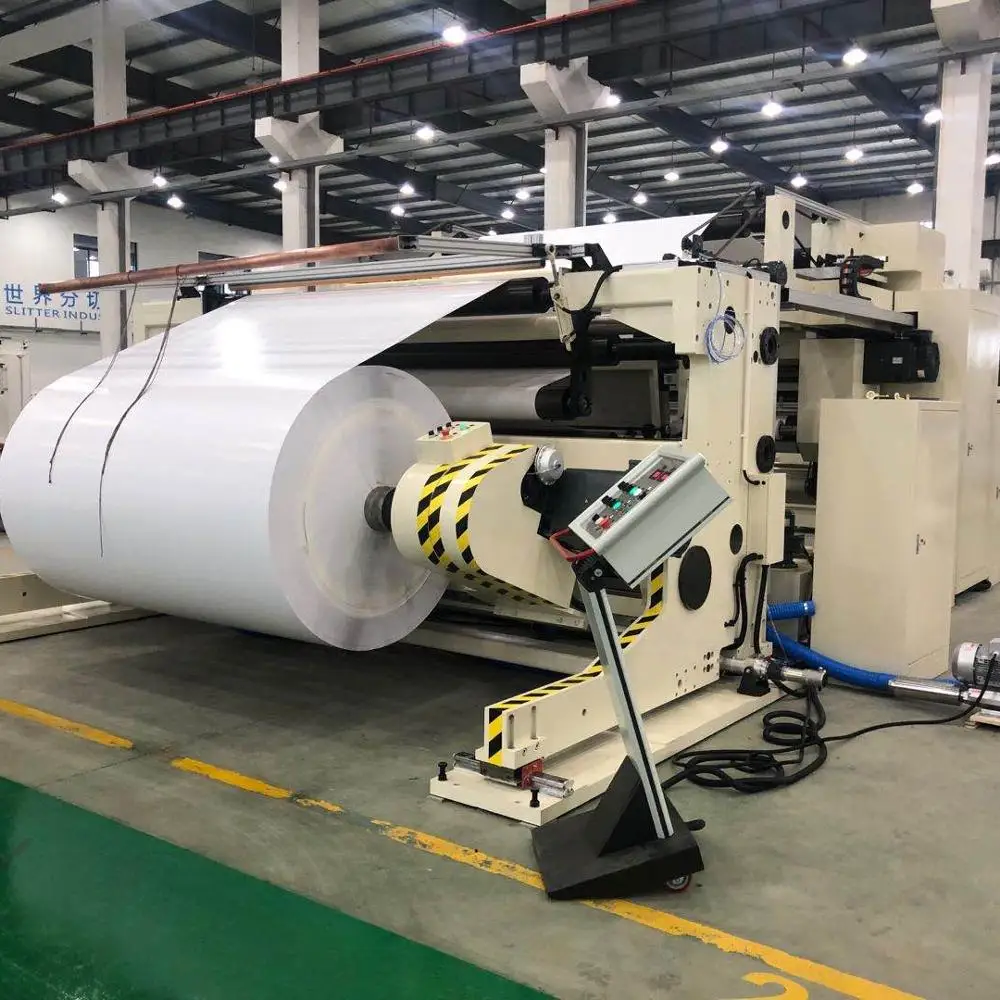

Detail Images
Equipment Main Feature
1、High efficiency with reliable performance
2、Large tension control for board laminates
3、Center rewinding technology to ensure the good quality finish roll
4、Cost effective machine
Acceptance index
1、Machine speed 900m/min
2、Tension for air expanding shaft： 120N/M-900N/M
3、Sides of finished roll are mirror (≦1mm), surface plain and average tightness of winding.
Special instructions of Equipment
1、The hydraulic lift system to pick up the unwinding roll easily.

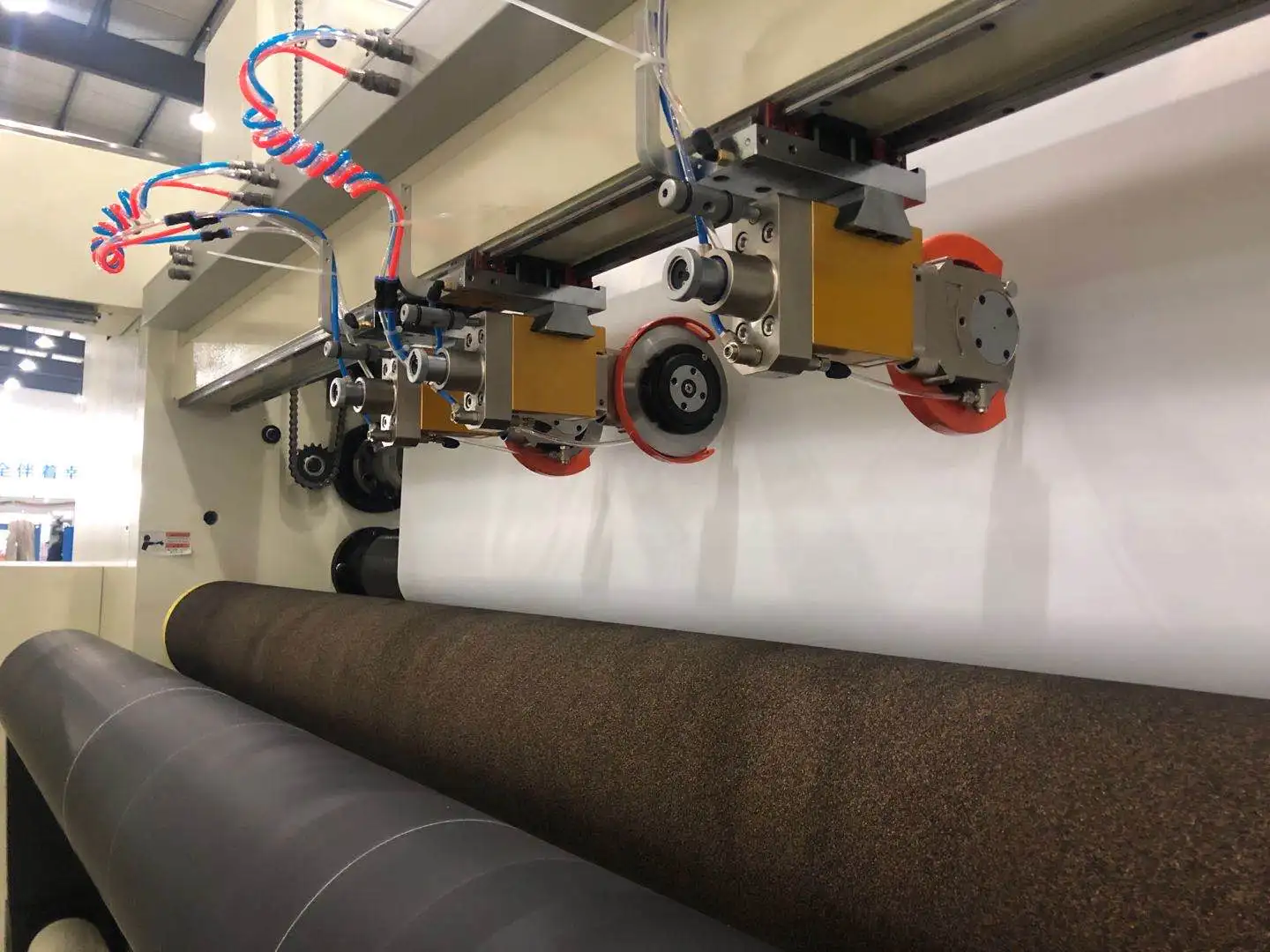

2、Pneumatic shear air cut system to slit the material properly and easy for knife movement
3. Dancing roll design to control the tension properly.
