Powder Coating Booth Dust Collector Filter Cartridge Collection Module
- Category: >>>
- Supplier: Hangzhou Kafan Machinery & Equipment Co. Ltd.
Share on (62545570089):
Product Overview
Description
Product Description

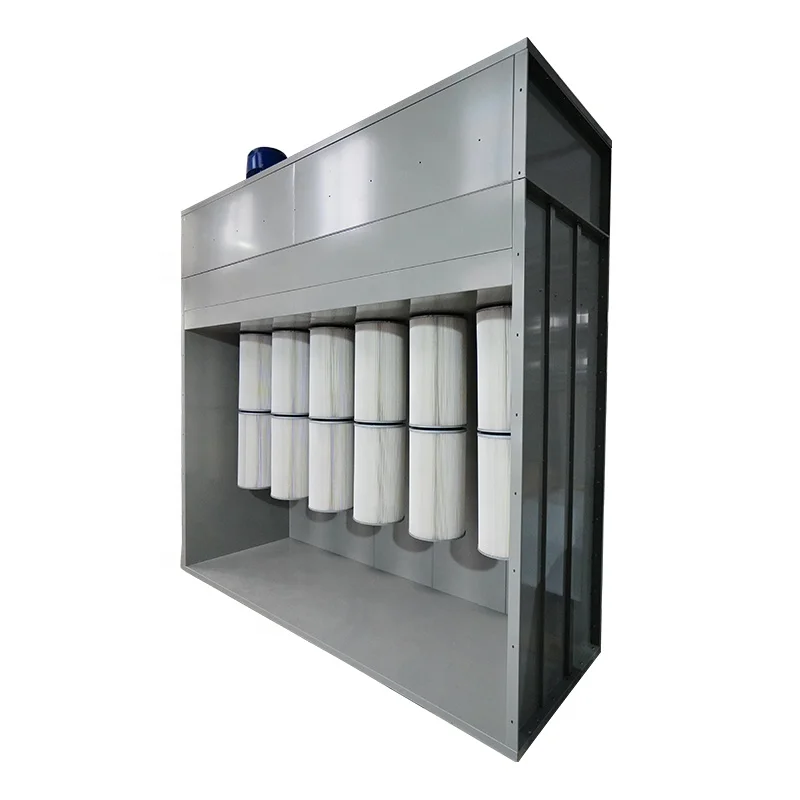

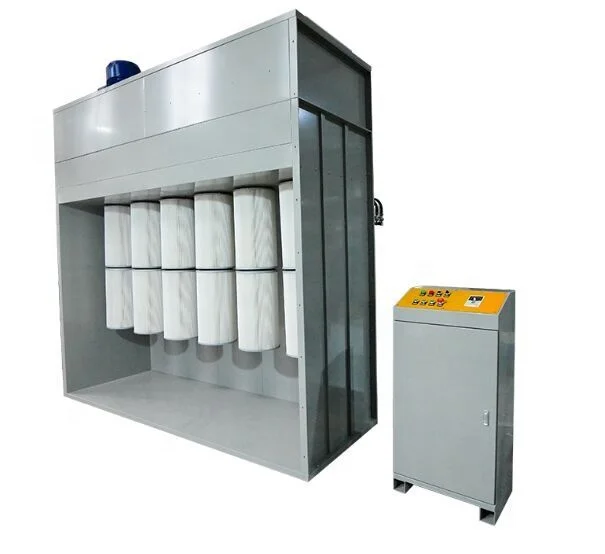

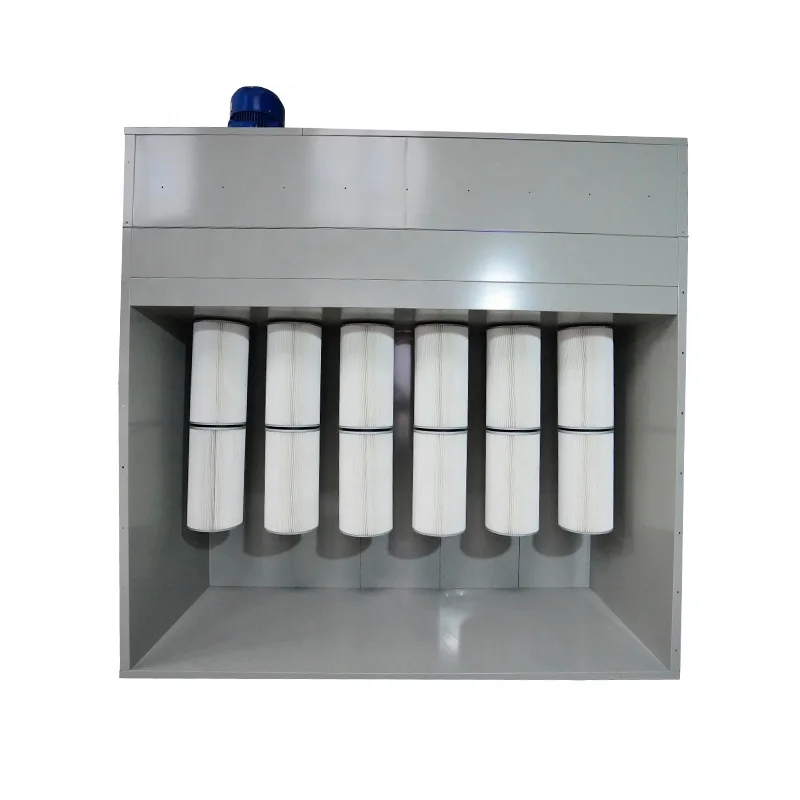

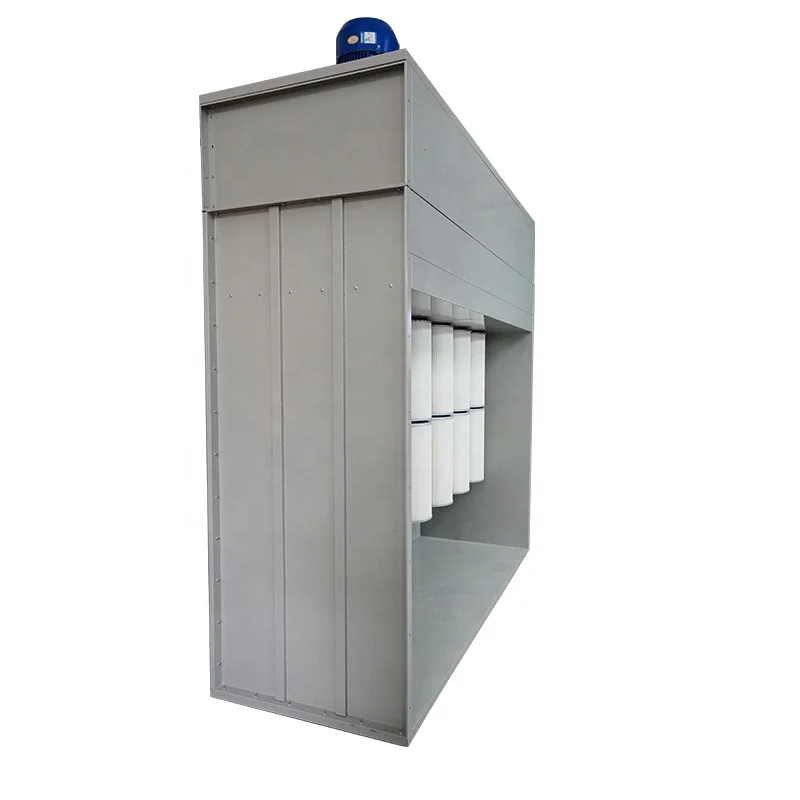

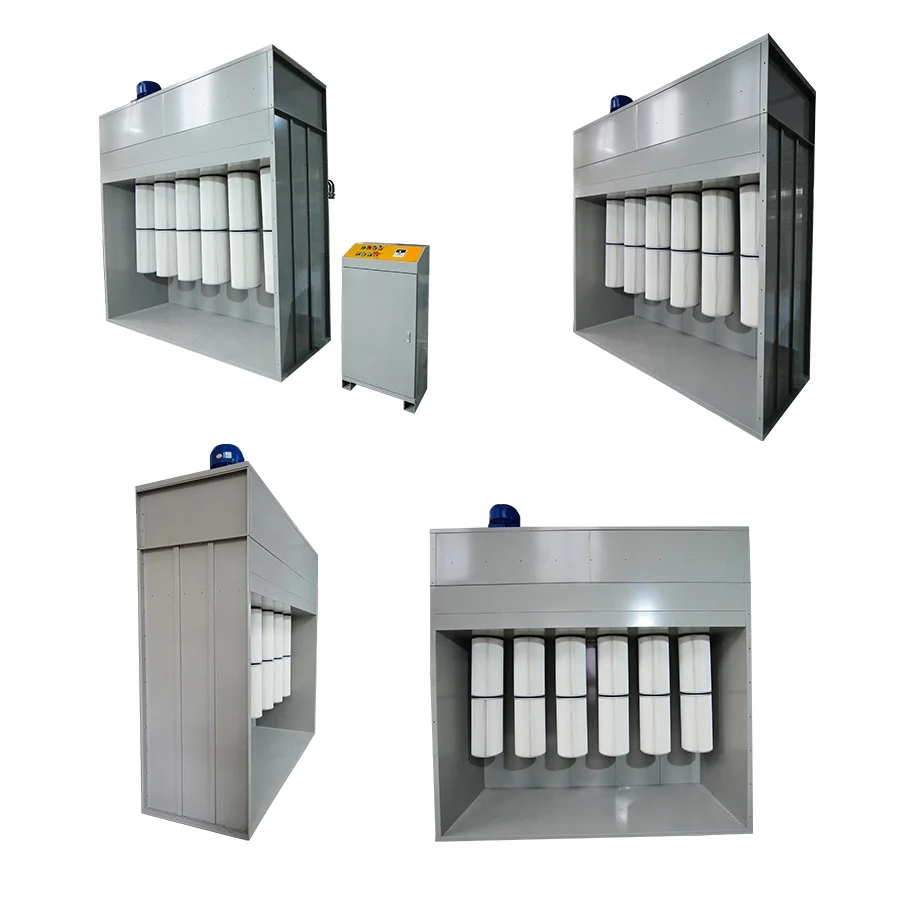

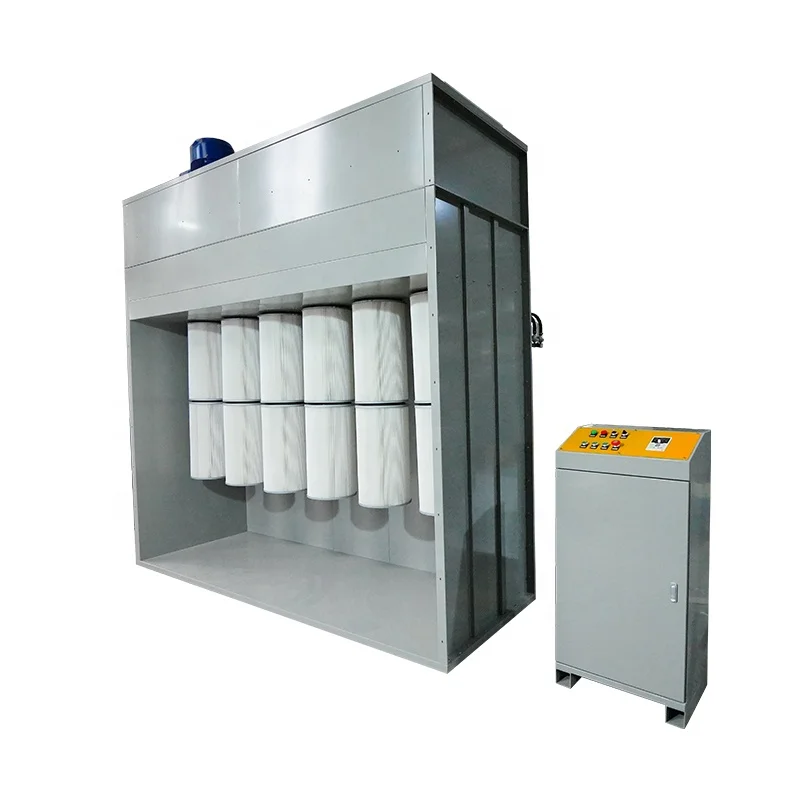

Cartridge Filter Dust Collector Module for Powder Coating Booth Recovery
The powder coating filter module can be connected wirh various spray booths, walk-in type or conveyorised type, delivers high efficiecy of powder collection. The powder dust collector can be designed with different quantity of cartridge filters, different CFM, all can be customized as required.
Powder Coating Booth Dust Collector Features
1. High-precision filters for superior filtration performance, capture even 0.1 micro particulates.
2. Pulse-jet solenoid valve intervally cleans filters automatically, thus filter life can be maximized. .
3. The fan provides high suction performance and maintain uniform constant airflow in the booth.

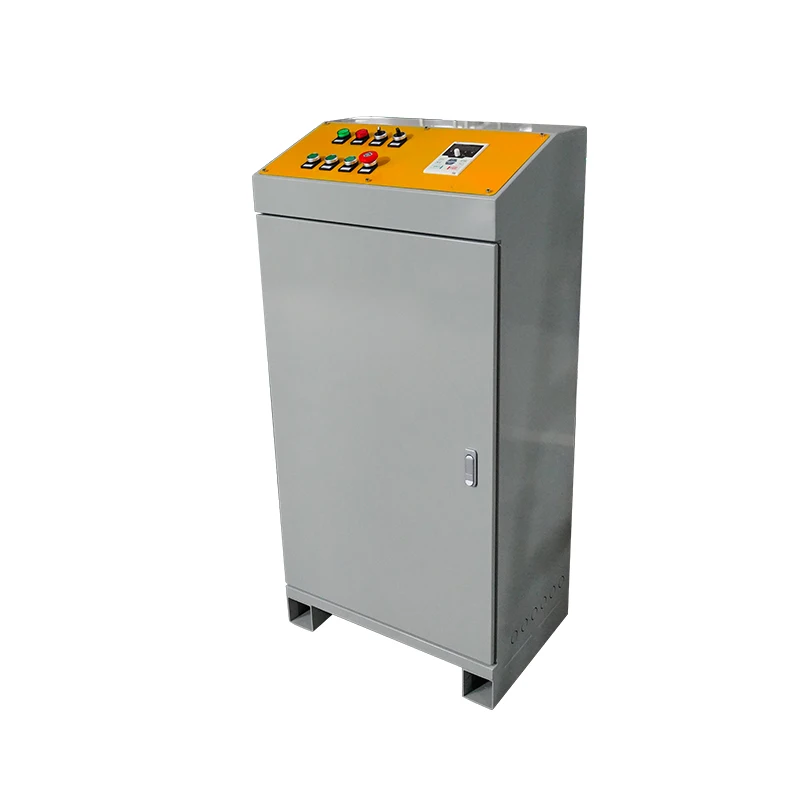

4. An individual electric control box is convenient to control fan working, reverse-pulsing and other settings.
5. We can custom designs and specifications of powder booth collector module as your precise requirments
2. Pulse-jet solenoid valve intervally cleans filters automatically, thus filter life can be maximized. .
3. The fan provides high suction performance and maintain uniform constant airflow in the booth.
4. An individual electric control box is convenient to control fan working, reverse-pulsing and other settings.
5. We can custom designs and specifications of powder booth collector module as your precise requirments

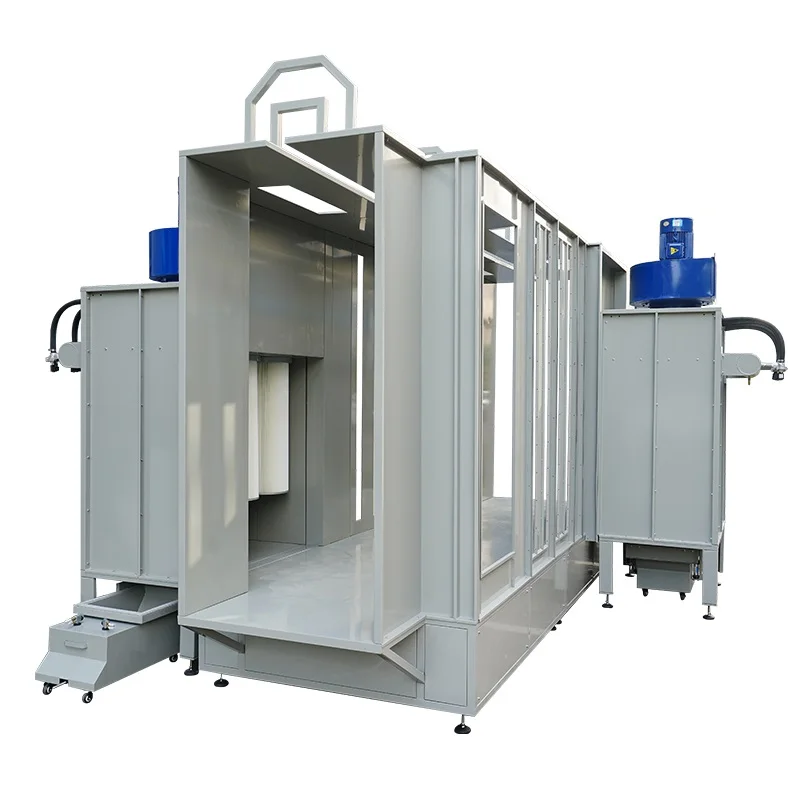

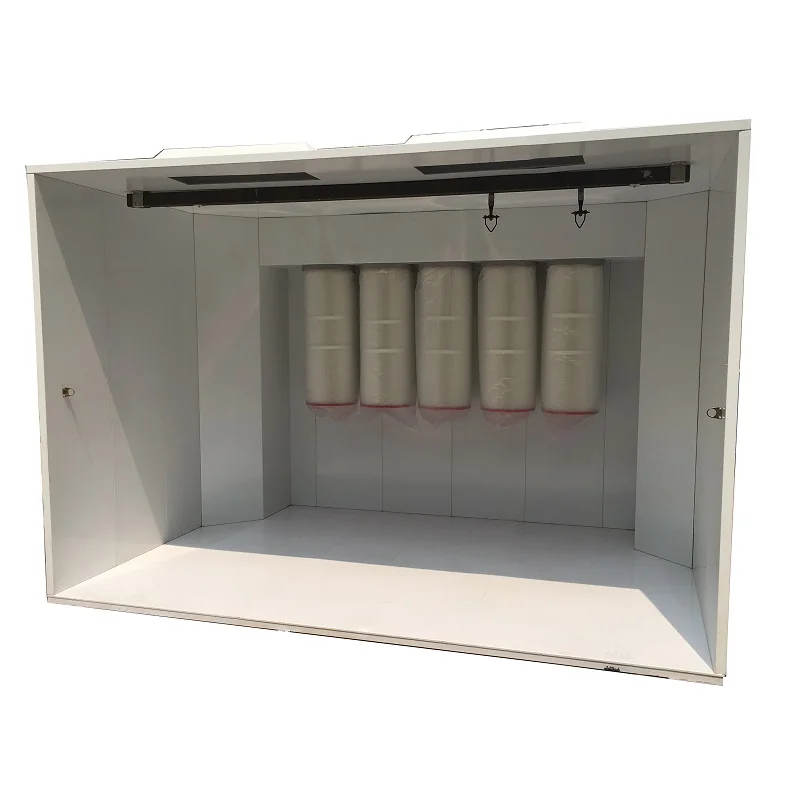

Powder Coating Booth with Cartridge Filter Recovery System
Spray booth with filter system, the filter system could make according to spray booth size

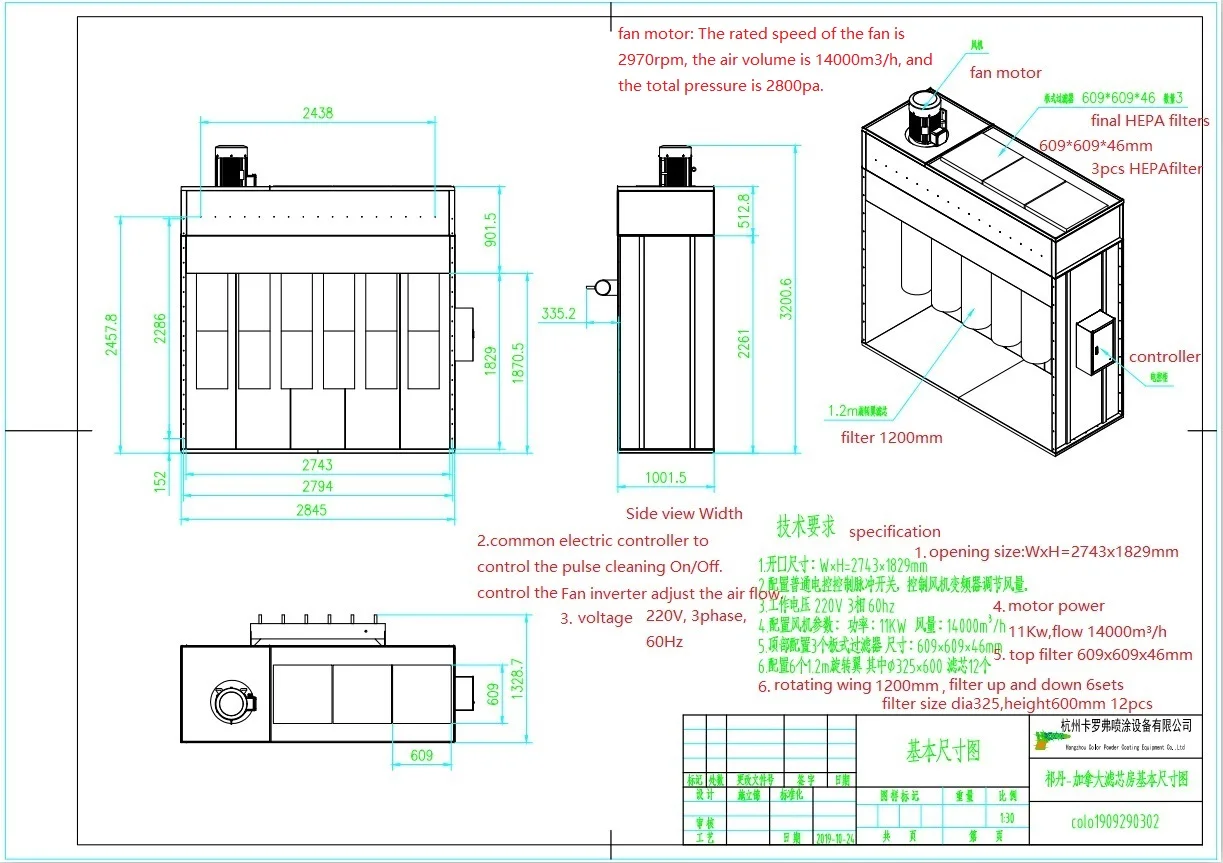

Product Paramenters
Specification for Powder Coating Booth | ||
Model | COLO-S-Filter system | |
Booth Type | filter type | |
COnncetor dimensions | 2700width x 1800 height | |
For Spray Booth size | powder booth with 8x9 opening，25feet long (deep) | |
Weight | 500kg | |
Power supply | Electric | |
Nominal power | 15HP | |
Voltage | 220-415V | |
Frequency | 50-60Hz | |
Filters | Polyester | |
Filters count | 12 | |
Filters hang type | easy for change | |
Filter cleaning system | Pneumatic | |
Warranty | 12 months | |
Material: | Steel (powder coated) | |
How it works

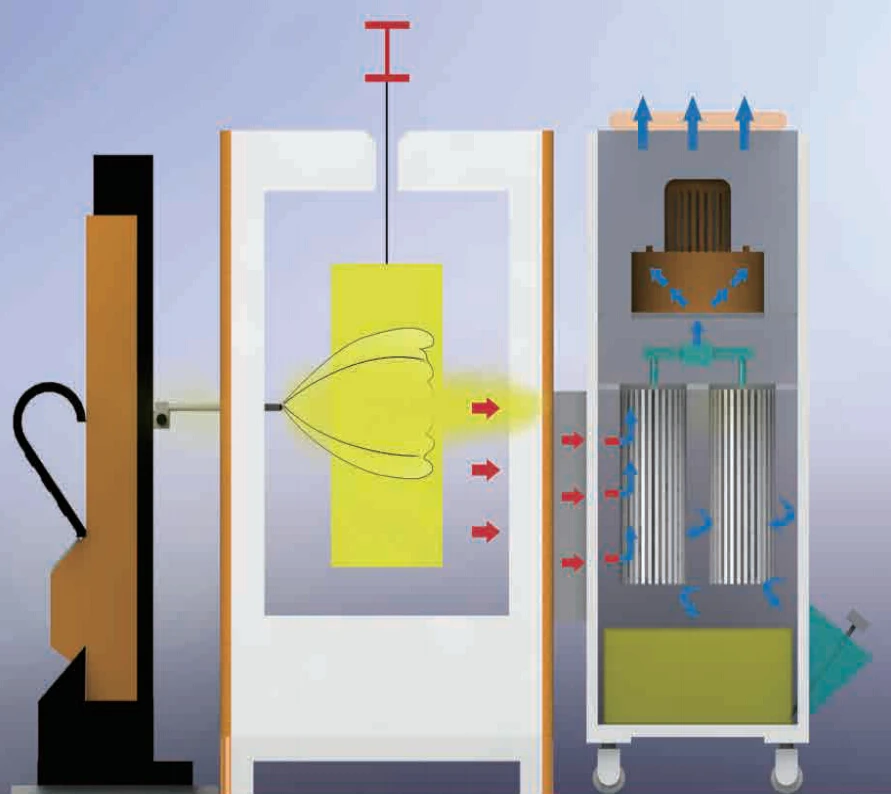

How does this powder spray booth work
The powder which is sprayed past the work-pieces is carried by air stream extracted from the booth and separated out at the filter. The cleaned air flows through the filter and then fed back into the workshop.
During operation of the equipment, the filter are individually cleaned and regenerated one after the other.
The separated powder is sieved on sieving machine and returns into circulation via the spray system.
During operation of the equipment, the filter are individually cleaned and regenerated one after the other.
The separated powder is sieved on sieving machine and returns into circulation via the spray system.
Recommend Products
Product packaging

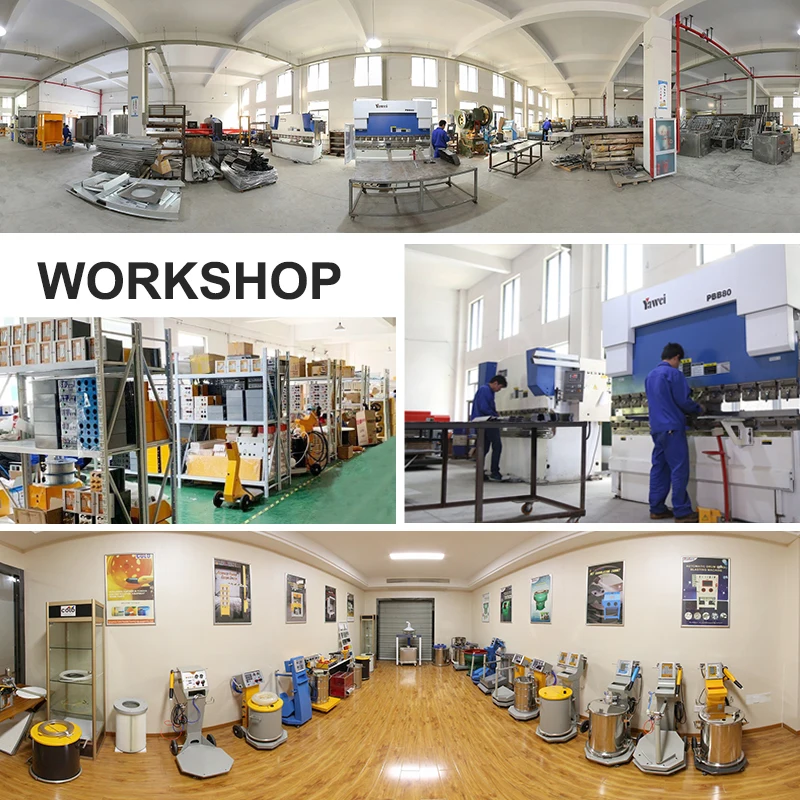

Company Profile
