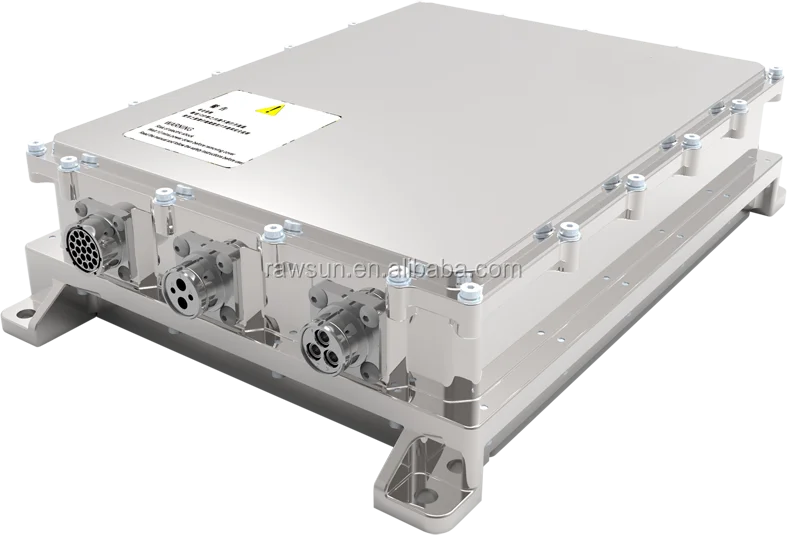

RMC60 60kw Motor Controller for Electric Cars/Trucks/Vehicles for EV high speed CAN2.0B interface
- Category: >>>
- Supplier: Rawsun Technology (shantou) Co. Ltd.
Share on (62545589366):
Product Overview
Description
Product Description
Product Description
Rawsun motor controller is mainly used in the control of permanent magnet synchronous motor for new energy vehicles. The main technical characteristics are as follows:
* Using 32-bit DSP as the main control chip.
* Using automobile IGBT module, it has the characteristics of low temperature rise and low EMI.
* Compact, robust and unique waterway design based on vehicle reliability.
* Efficient energy recovery control.
* With perfect protection of under-voltage, over-voltage, over-current, over-temperature, over-speed, etc.
* Precise motor torque control, low speed anti-jitter processing.
* Standing on the slope function, starting on the slope without hand brake can start smoothly, the distance of the car is less than 20 cm (Note: Selected for the use of motor controller).
* Efficient Energy Recovery Control Strategy.
* Intelligent Variable Carrier Control to Further Improve the Reliability of Controller at Low Speed.
* Intelligent identification of motor parameters.
* Support electronic throttle, fault display, gear control and other functions.
* Support CAN2.0 communication protocol, data monitoring and parameter modification through CAN bus.
* Precise motor torque control, low speed anti-jitter processing.
* Standing on the slope function, starting on the slope without hand brake can start smoothly, the distance of the car is less than 20 cm (Note: Selected for the use of motor controller).
* Efficient Energy Recovery Control Strategy.
* Intelligent Variable Carrier Control to Further Improve the Reliability of Controller at Low Speed.
* Intelligent identification of motor parameters.
* Support electronic throttle, fault display, gear control and other functions.
* Support CAN2.0 communication protocol, data monitoring and parameter modification through CAN bus.

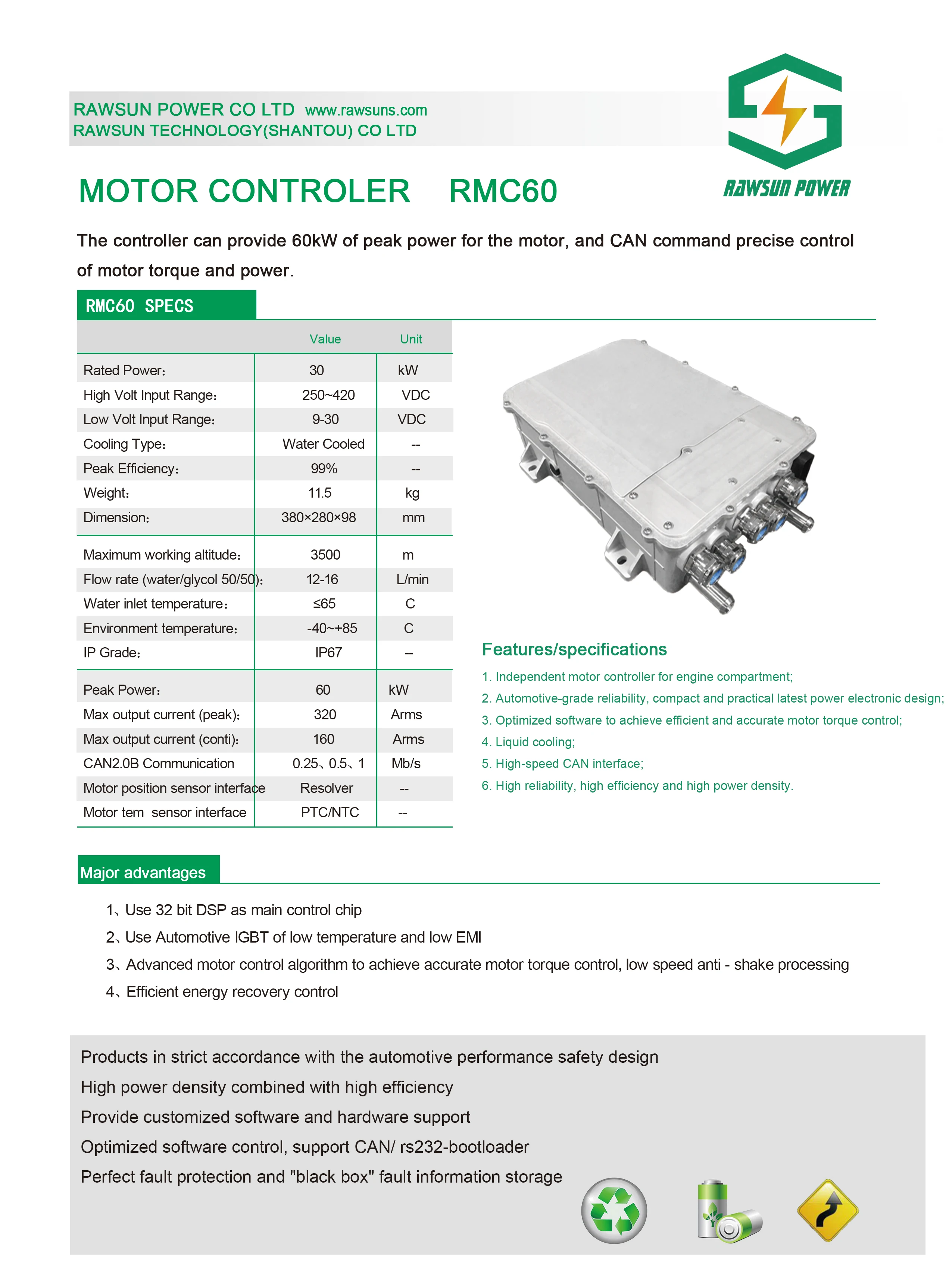

Product Parameters
Product Parameters
Maximum working altitude (M) | 3500 |
Flow rate (L/min) | 12-16 |
Water inlet temprature (℃) | ≤65 |
| Working environment temperature (℃) | -40- 85 |
CAN2.0B Communication (Mb/s) | 0.25, 0.5, 1 |
Motor position sensor interface | Resolver |
Motor temprature sensor interface | PTC/NTC |
| IP grade | IP67 |
Rawsun EV motor
Rawsun EV motor
Rawsun ev motors are high efficiency designed for electric vehicles and electric boats as drive engines with output peak power 50 kw to 200 kw, peak torque 180 Nm to 2800 Nm.
| Model | Applications | Battery Voltage | Motor Rated KW | Motor Peak KW | Tmin /N.m | Tmax /N.m | Speedmin /rpm | Speedmax /rpm | Imin /A | Imax /A |
| RSTM260-J | 2T Truck | 380 | 25 | 50 | 80 | 180 | 3000 | 6000 | 82 | 190 |
| RSTM261-J | 2.5T Truck | 380 | 34 | 68 | 110 | 270 | 3000 | 6000 | 127 | 320 |
| RSTM262-J | 4.5T Truck / 6M AMT Bus | 380 | 50 | 90 | 160 | 350 | 3000 | 6000 | 140 | 300 |
| RSTM262D1 | 5T Truck | 380 | 50 | 80 | 170 | 380 | 3000 | 6000 | 171 | 385 |
| RSTM262D1-H | 5T Truck | 540 | 50 | 80 | 170 | 380 | 3000 | 6000 | 129 | 288 |
| RSTM423 | 8M AMT Bus | 540 | 70 | 120 | 335 | 600 | 2000 | 4500 | 165 | 295 |
| RSTM424 | 8M AMT Bus | 380 | 70 | 120 | 335 | 600 | 2000 | 4500 | 210 | 370 |
| RSTM424A | 10 AMT Bus | 540 | 90 | 130 | 285 | 500 | 3000 | 4500 | 170 | 300 |
| RSTM420 | 6.6-7M Direct-drive Bus/ 7.5T Truck | 540 | 115 | 150 | 550 | 1000 | 2000 | 4500 | 200 | 340 |
| RSTM421 | 6M Direct-drive | 380 | 70 | 120 | 335 | 800 | 2000 | 4500 | 163 | 374 |
| RSTM422 | 10-12M AMT Bus | 540 | 115 | 150 | 550 | 1000 | 2000 | 4500 | 200 | 340 |
| RSTM430 | 8M Direct-drive Bus | 540 | 92 | 140 | 764 | 1700 | 1150 | 3000 | 160 | 350 |
| RSTM460A-2500 | 12M Direct -drive | 576 | 100 | 200 | 1000 | 2500 | 955 | 2700 | 210 | 500 |
| RSTM460A-2800 | 12M Direct -drive | 576 | 120 | 200 | 1200 | 2800 | 955 | 2700 | 240 | 543 |
