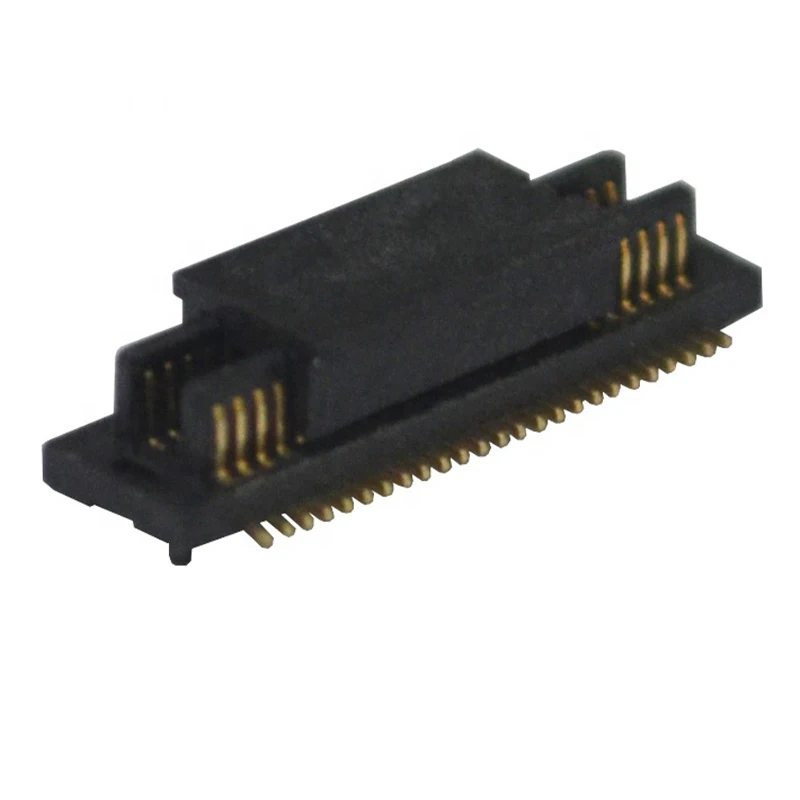

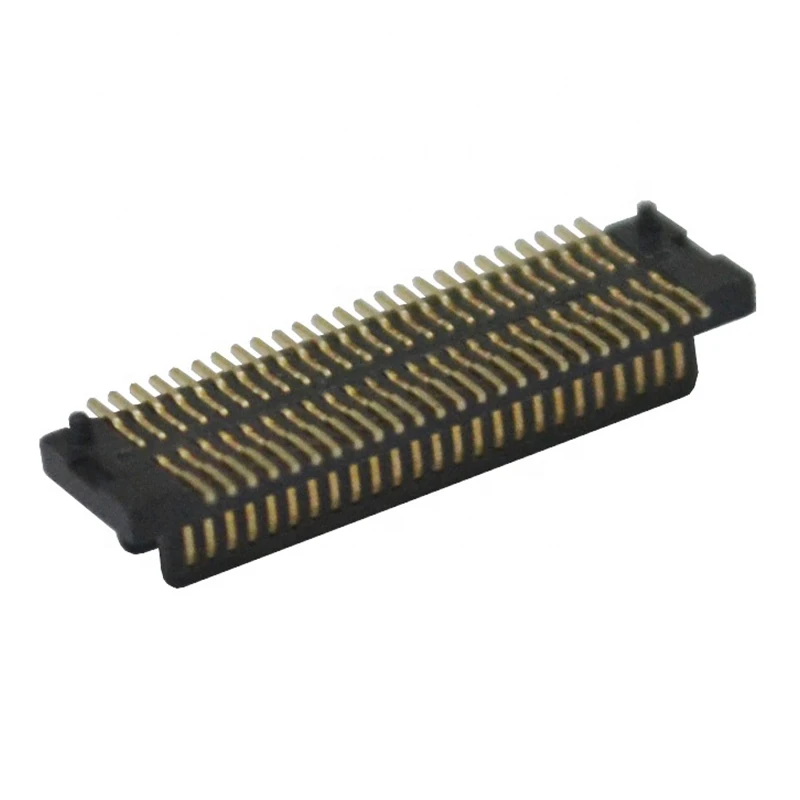

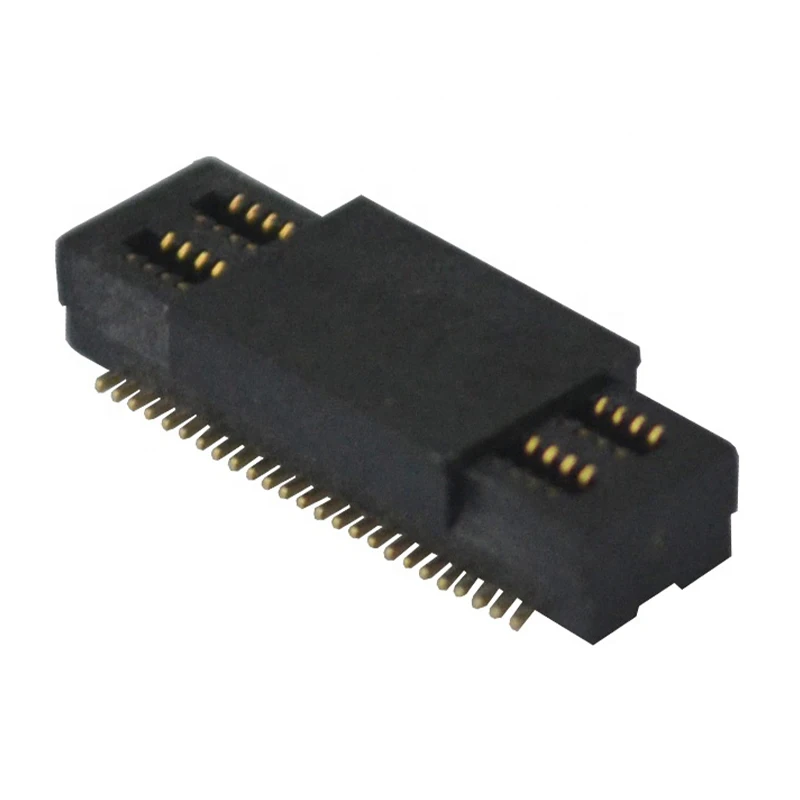

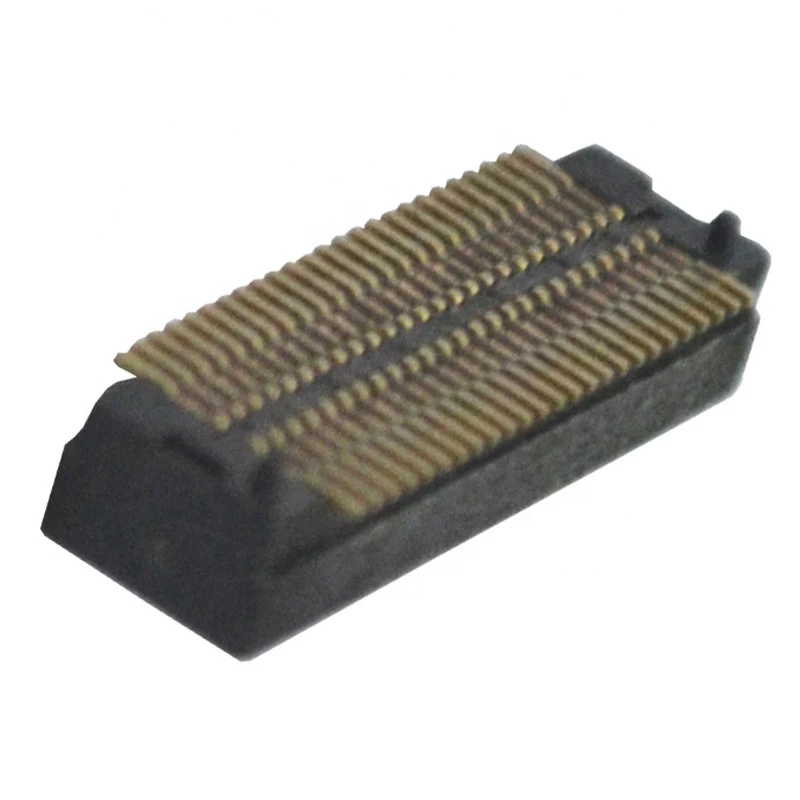

0,5 мм Шаг BTB штекер/гнездо 50P SMT плата коннектор
- Category: >>>
- Supplier: Dongguan Yili Electronic Technology Co. Ltd.
Share on (62545642082):
Product Overview
Description
Product Description

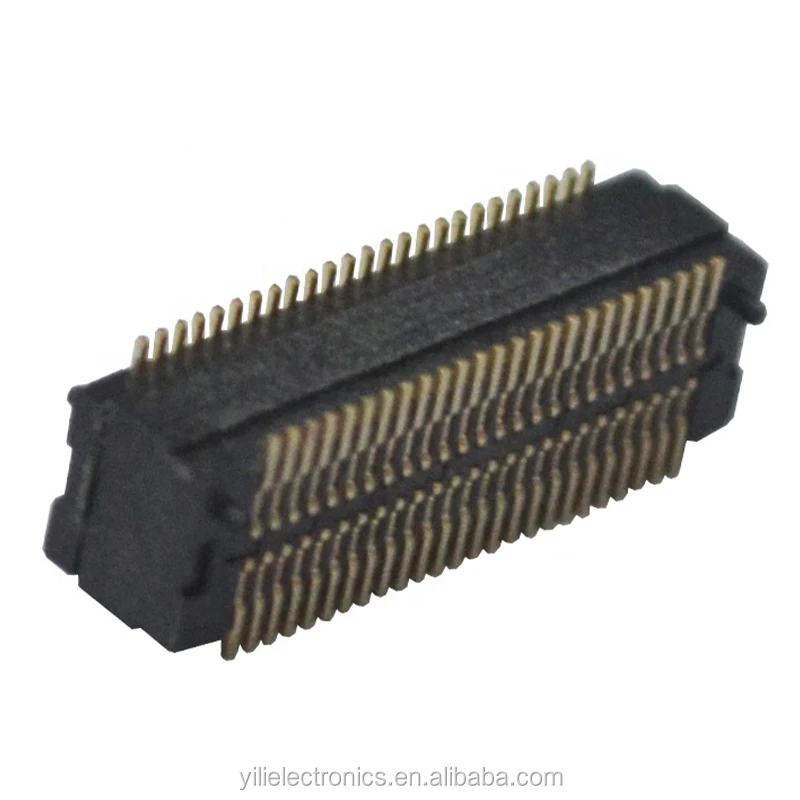

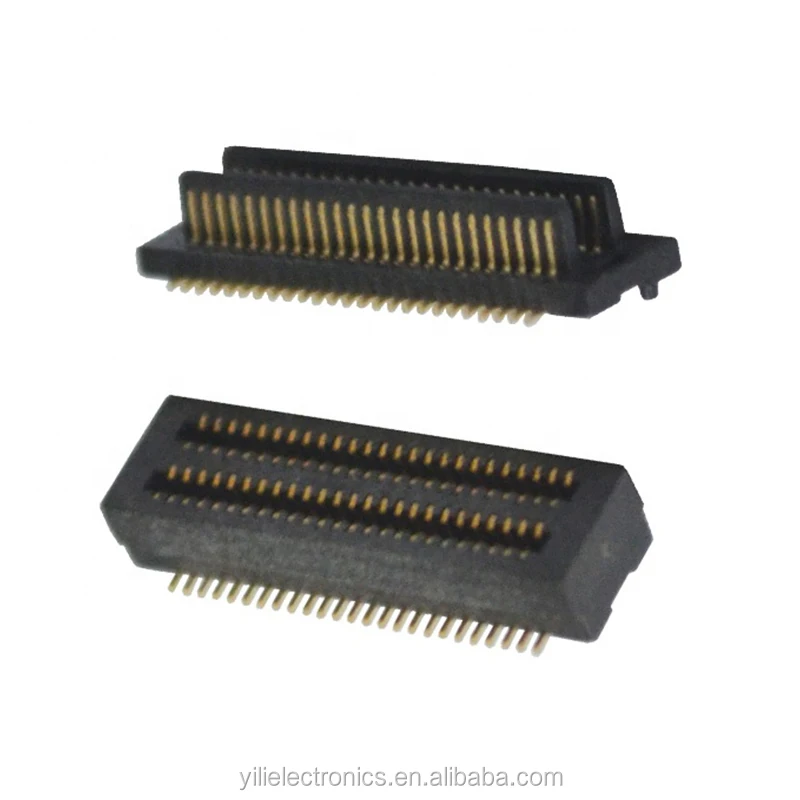

0.5mm Pitch male/female 50pin smt board to board connector
1.MATERIAL: | |
1-1.SHELL: | BRASS |
1-2.HOUSING: | lcp+30%G.F. UL94 V-0 BLACK |
1-3.TEMINARL: | Phosphor Bronze |
2.PLATING SPECIFICATION | |
2-1.TERMINAL: | GOLD PLATED/3U"/6U"/15U"/30U" |
2-2.SHELL: | NICKEL PLATED |
3.MECHANICAL PERFORMANCE | |
3-1.INSERTION FORCE: | 5N~20N. |
3-2.WITHDRAWAL FORCE: | INITIAL 8N~20N , AFTER 1000 MATING CYCLES 6N~20N. |
3-3.DURABILITY: | 750 Cycles MIN. |
4.ELECTRICAL PERFORMANCE | |
4-1.CURRENT RATING: | 1.5A. |
4-2.CONTACT RESISTANCE: | 30milliohm Max |
4-3.INSULATION RESISTANCE: | 500 MΩ MIN @ 500V DC. |
4-4.DIELECTRIC WITHSTAND VOLTAGE: | 100V/AC. |
5.OPERATING TEMPERATURE RANGE: | -40℃ to +85℃ |
6.RoHS COMPLIANT OR HALOGEN FREE COMPLIANT. | |
