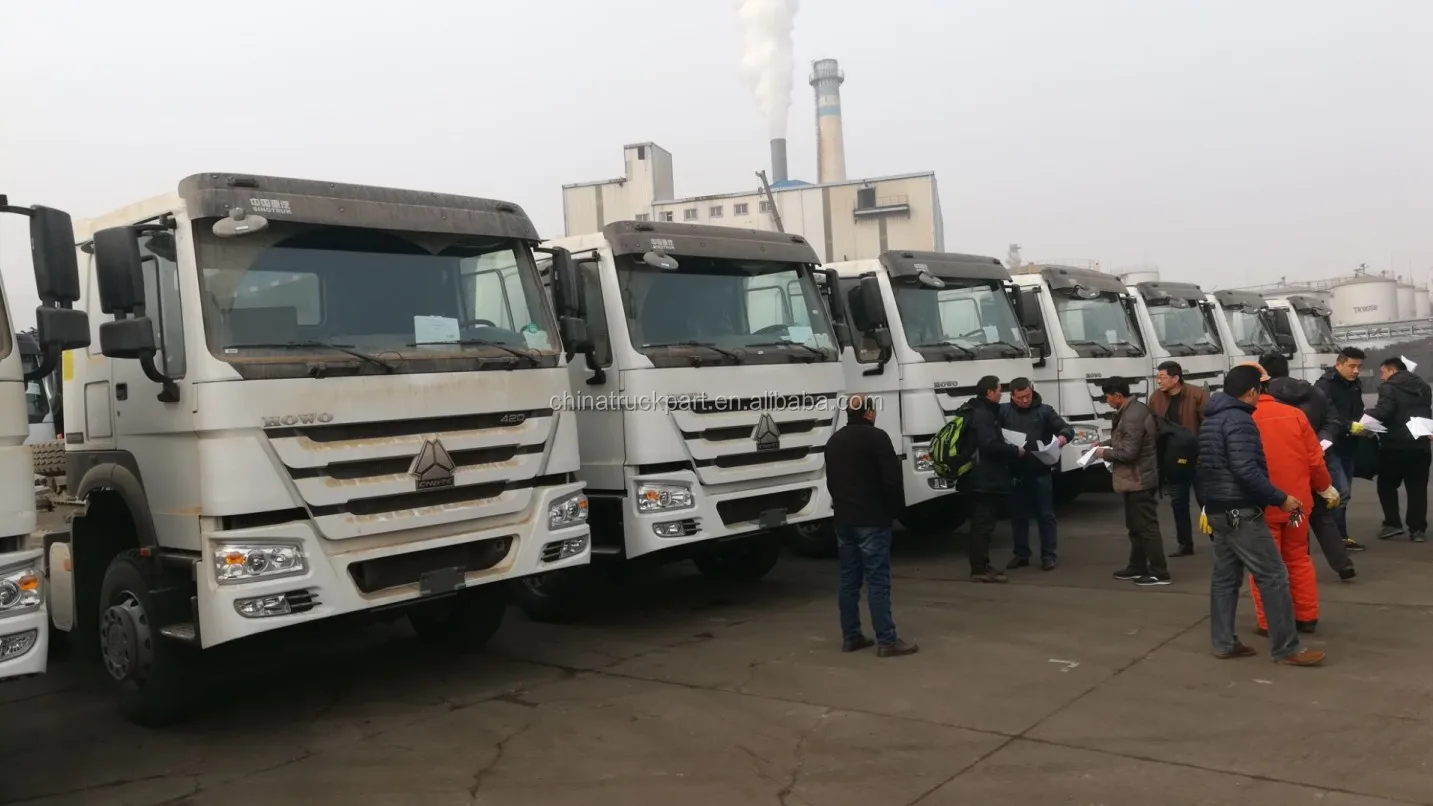

Africa HOWO 6*4 logistic Tractor head truck 336HP/371HP/ 420HP Prime mover Euro 2

Item

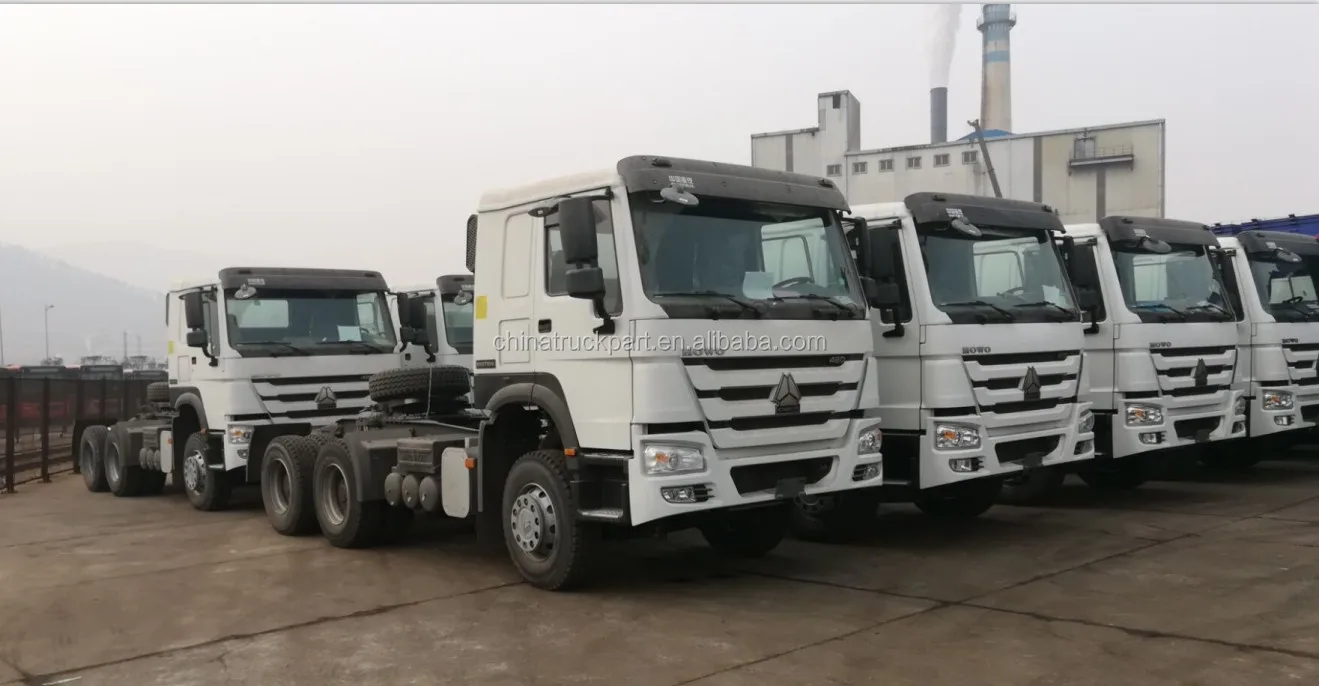

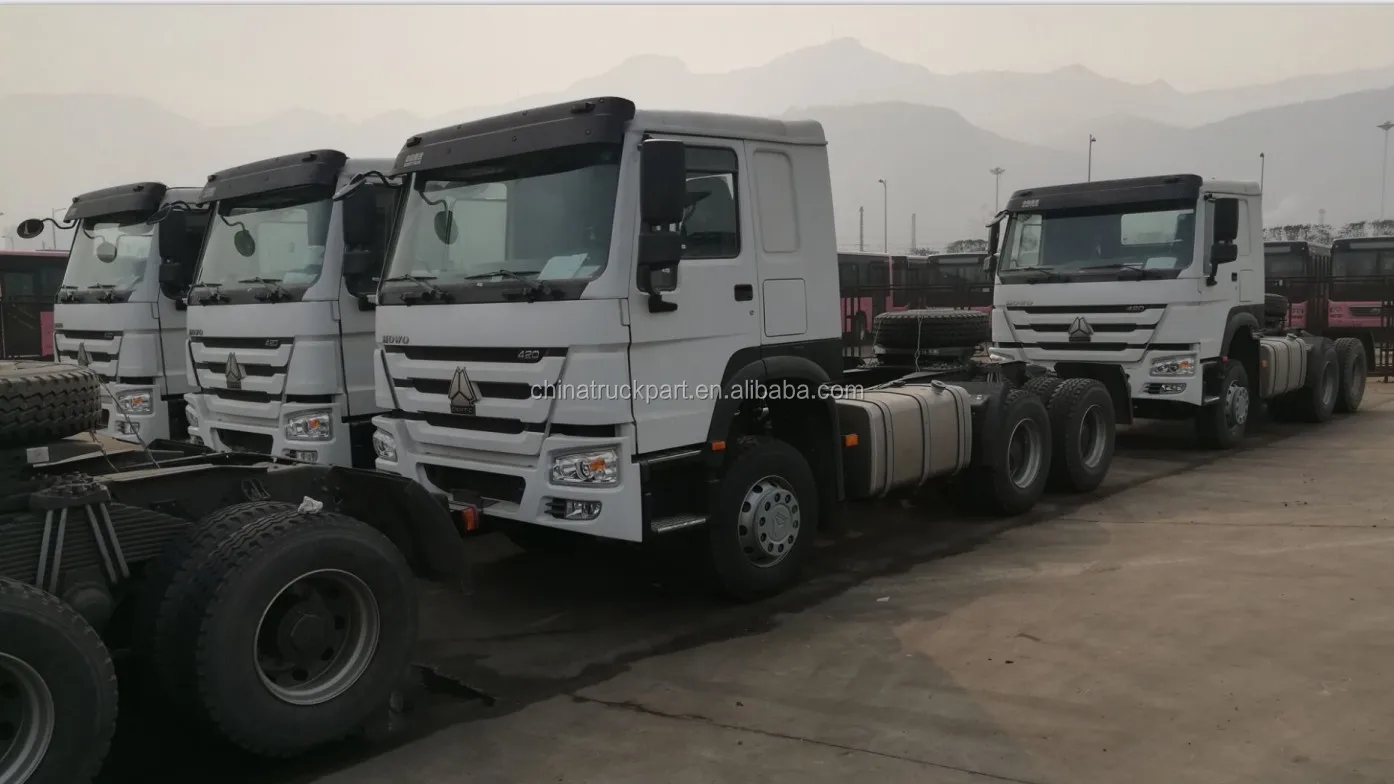

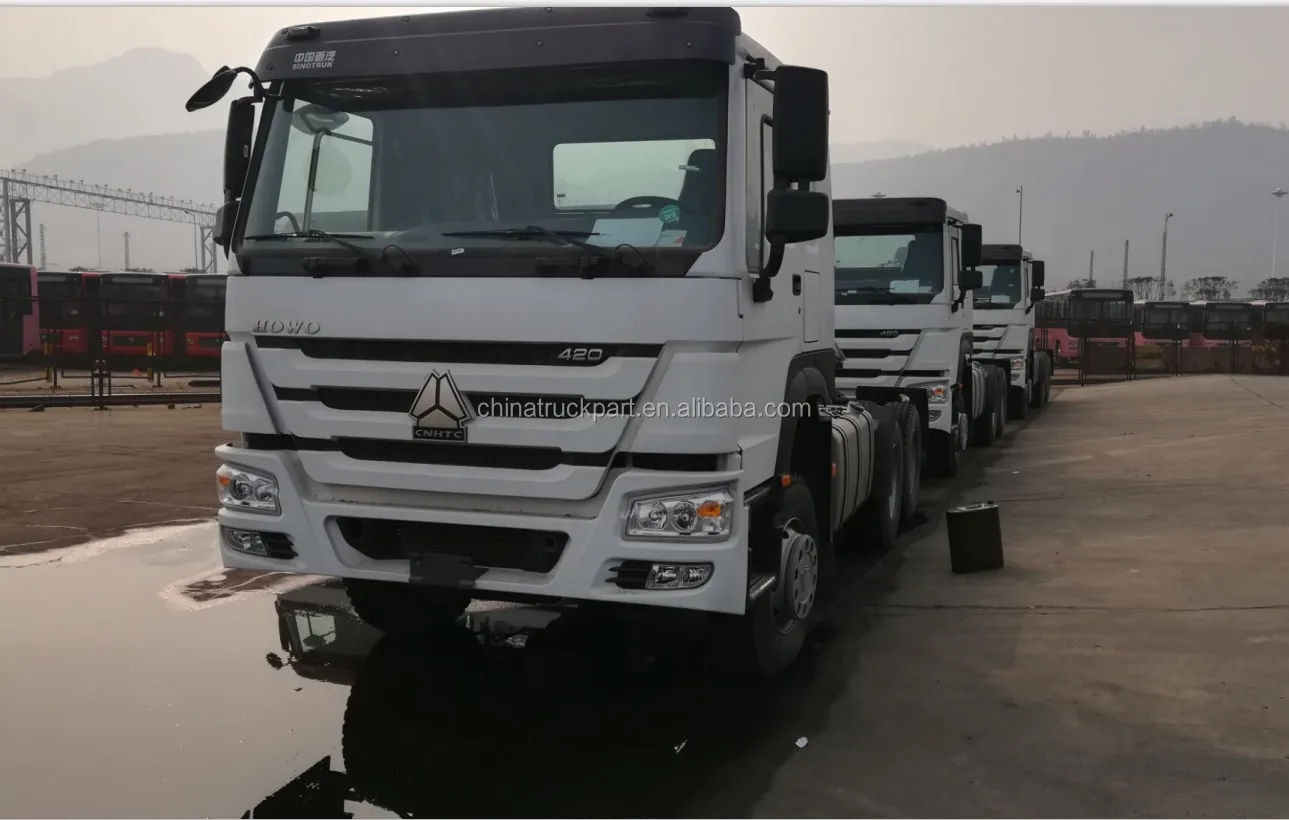

SINOTRUK HOWO 6X4 420HP TRACTOR TRUCK

Chassis model

ZZ4257V3241W

Driving type

Left hand drive (LHD); Right hand drive (RHD)

Color

Optional (yellow, red, black, white, blue, grey, green)

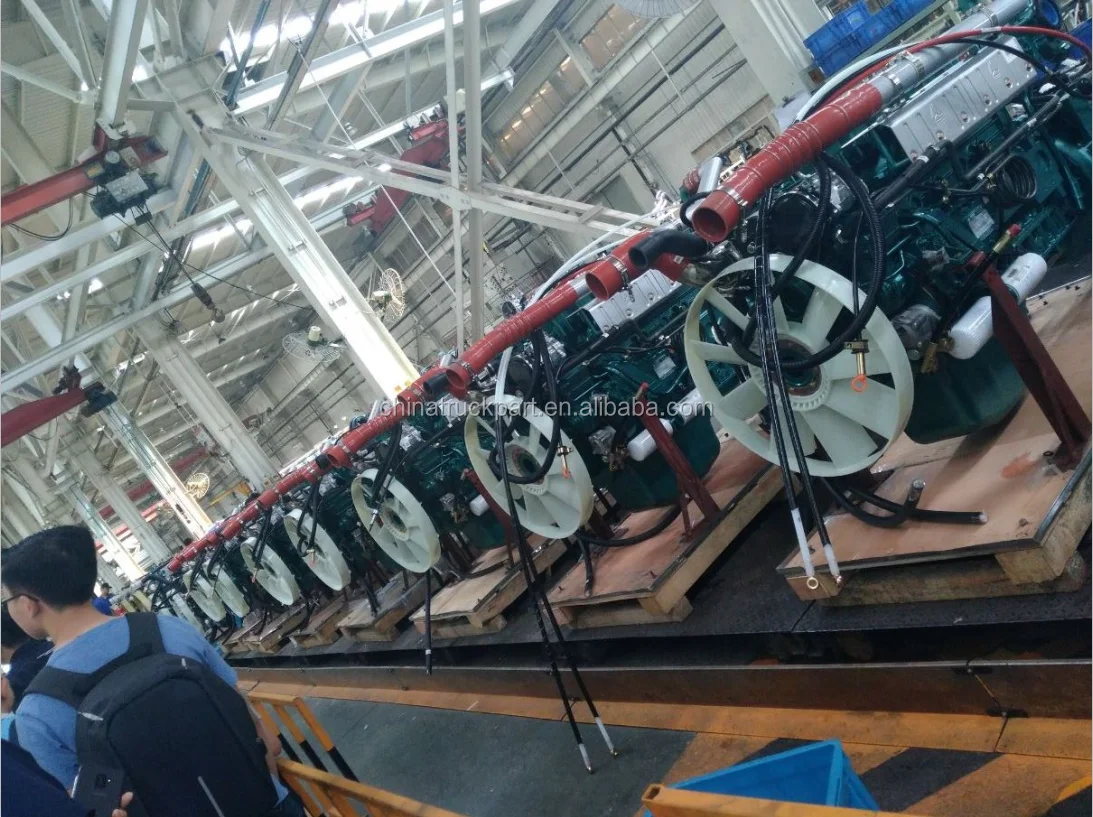

Engine

Model

SINOTRUK brand, D12.42, 420hp, Euro II, Diesel.

Type

Six cylinders inline, water cooling, 4 stroke, supercharge intercooler

Engine net weight (kg)

850

Rated Power (kw/rpm)

309/2200

Maximum Torque (Nm)

1820N.m

Maximum Torque speed

1100~2000RPM

Compression ratio

17:1

Bore X Stroke

126x155mm

Displacement  L

9.726

Cabin

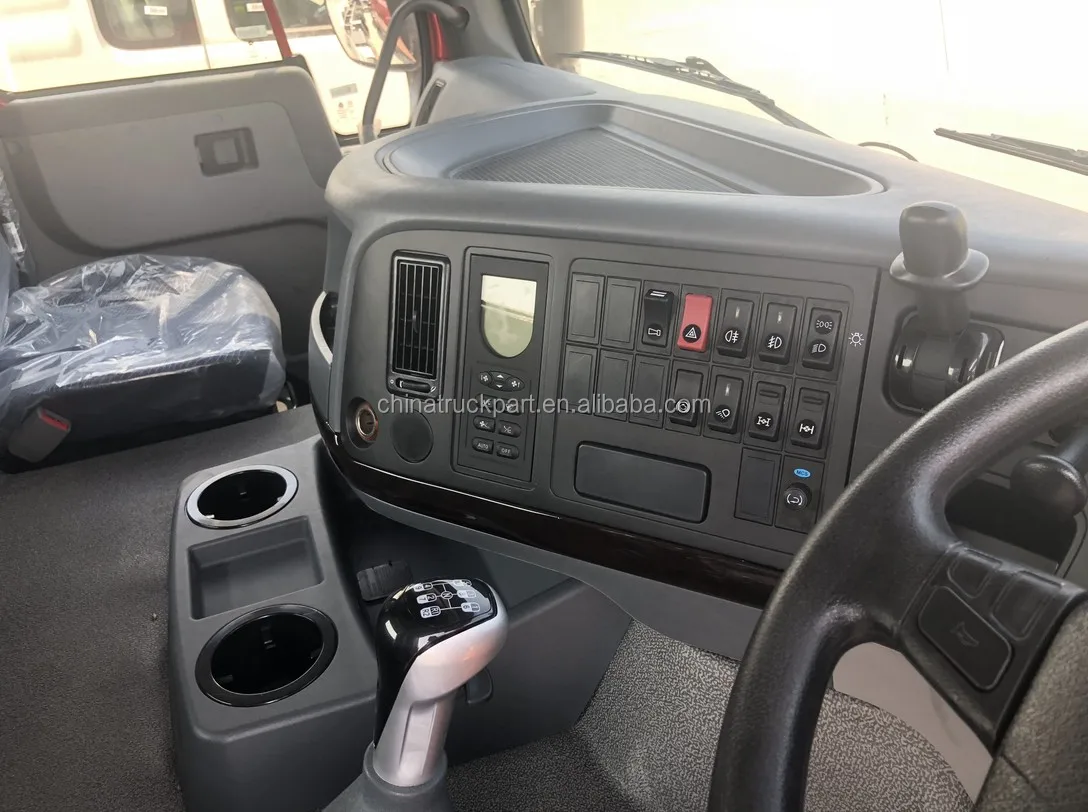

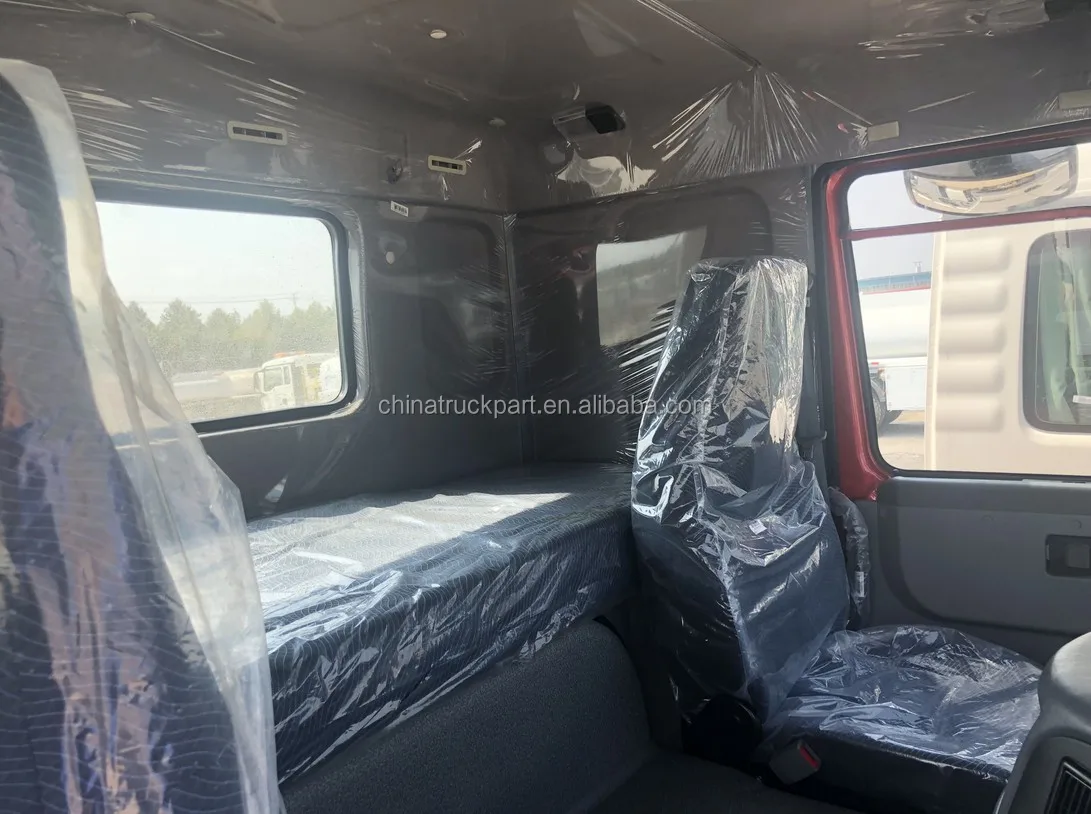

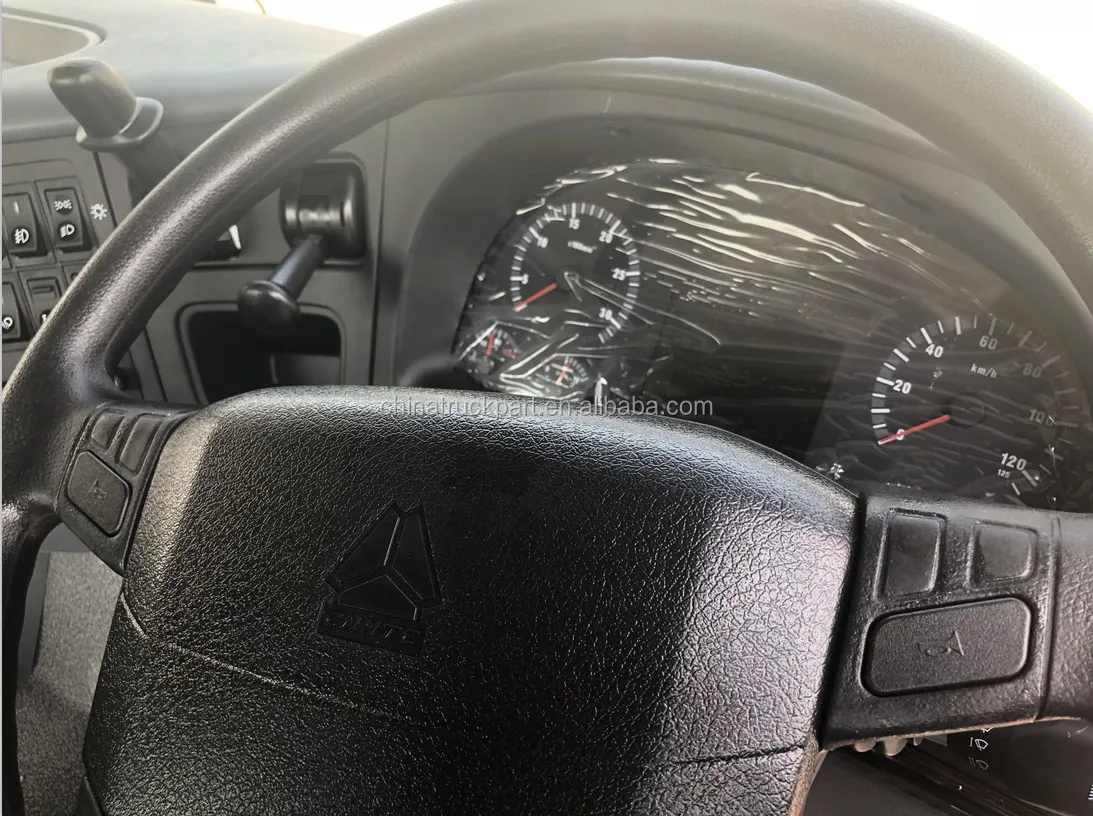

HW76 extended cabin with one sleeper (berth), Air-conditioner, MP3, safety belts, curtain. Adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers etc.

Transmission

HW19710, 10 F and 2 R, manual.

Transmission with main and auxiliary transmission structure, main transmission with double counter shaft, auxiliary transmission with planetary reduction.

Front Axle

HF9, rated load 9000kg, drum brake.

Rear Axles

HC16, rated load 16000x2, drum brake.

Steering

ZF power steering with hydraulic system.

Brake system

Service brake: dual circuit compressed air brake

Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels

Auxiliary brake: engine exhaust brake

Electrical system

Operating voltage: 24 V, negative grounded

Starter: 24 V, 5.4 Kw

Alternator: 3-phase, 28 V, 1500 W

Batteries: 2 x 12 V, 165 Ah

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Tires

12.00R20 steel radial tires, plus one spare tire (totally 11 units)

Fifth wheel (towing pin)

90#

Fuel tank

400L volume

Towing Capacity

100T

External dimension

6800x 2500x3050 mm
