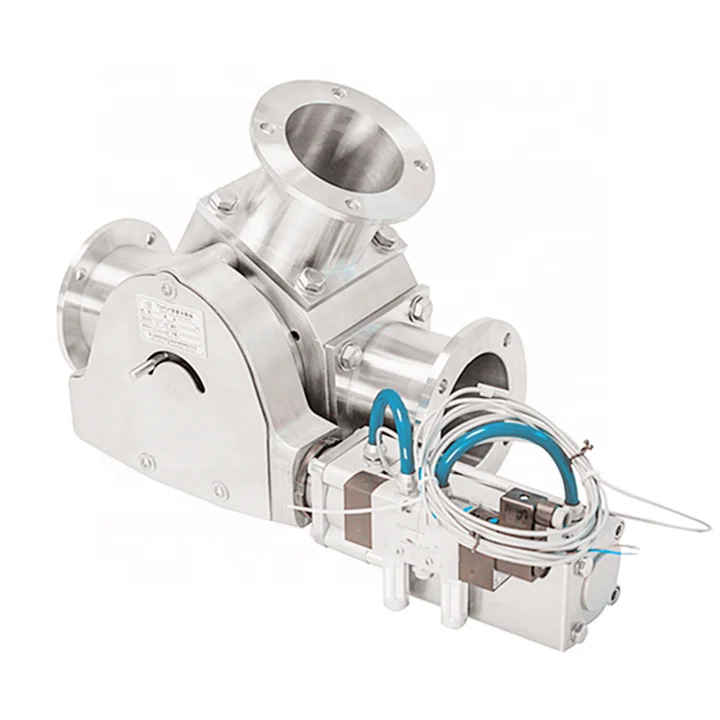

easy slide rotary valve 3 way diverter valve vacuum pneumatic conveying system
- Category: >>>
- Supplier: Sichuan Zili Machinery Co. Ltd.
Share on (62545718847):
Product Overview
Description
Product Description
Hot selling pneumatic diverter valve of zili for your material
in an efficient way
material | can be used for a long times of QT600 |
connector | Three connectors facilitate material switching |
use | Easier operation |
cylinder | high efficiency and low abrasion |
service | Improved repair and maintenance performance after changing the structure of the housing |
innovation | light weight and improve mechanical wear resistance |
- Product applications
Pneumatic diverter valves are widely used in many substances, such as sugar, salt, flour, minerals, etc. The innovative third-generation valve can effectively and gently protect the integrity of the material.
Detailed Images

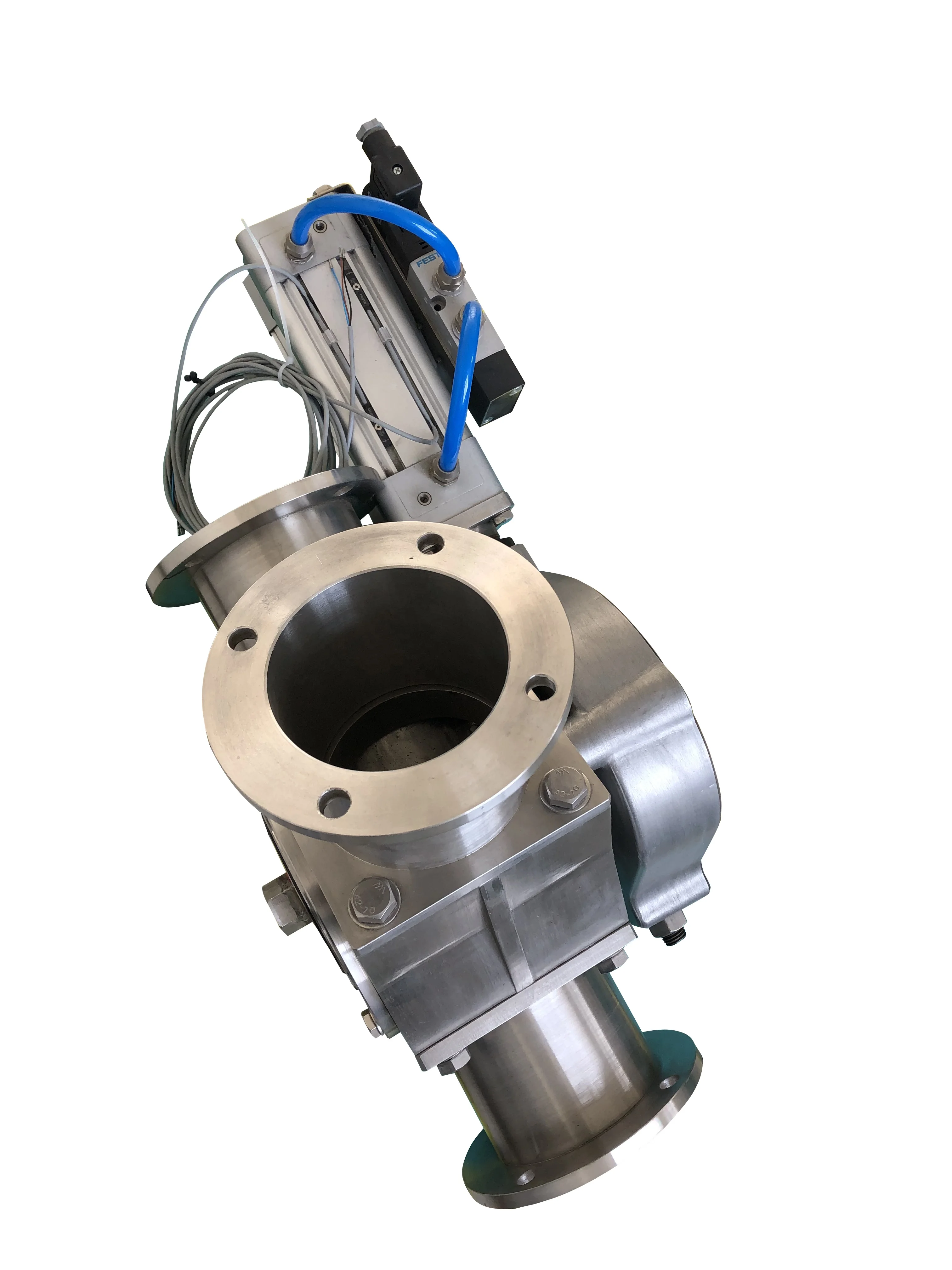

Main Features:
1.Plug Diverters are heavy-duty alternatives to the flap type conveying diverter.
2.They have an internal plug that rotates 150 degrees to reroute product from one leg to the other. The round hole in the plug matches the round blow through ports, making for a very smooth transition.
3.The units work well on applications with large particles that may get caught in a flap type diverter, causing leakage to the dead leg.
4.As there is no rubber seal, the plug diverter is well suited to more abrasive products.
5.A pneumatic rotary actuator is used to rotate the plug as standard, but can also be supplied with an electric actuator or hand crank.
6.The units come standard with spigots as specified by the customer: flangd, OD tube or nominal pipe.
7.Sizes available are: 2, 3, 4, 5, 6, 8 and 10 inch.
8.Work pressure (MPa) medium temperature (℃) for 0.05 200 or less pulverized coal, raw materials.
8.Such as cement works: powder and granular materials delivery valve is mainly composed of left and right body, rotary valve tray, adjusting device, sealing surface and locating the CAM and other parts.
1.Plug Diverters are heavy-duty alternatives to the flap type conveying diverter.
2.They have an internal plug that rotates 150 degrees to reroute product from one leg to the other. The round hole in the plug matches the round blow through ports, making for a very smooth transition.
3.The units work well on applications with large particles that may get caught in a flap type diverter, causing leakage to the dead leg.
4.As there is no rubber seal, the plug diverter is well suited to more abrasive products.
5.A pneumatic rotary actuator is used to rotate the plug as standard, but can also be supplied with an electric actuator or hand crank.
6.The units come standard with spigots as specified by the customer: flangd, OD tube or nominal pipe.
7.Sizes available are: 2, 3, 4, 5, 6, 8 and 10 inch.
8.Work pressure (MPa) medium temperature (℃) for 0.05 200 or less pulverized coal, raw materials.
8.Such as cement works: powder and granular materials delivery valve is mainly composed of left and right body, rotary valve tray, adjusting device, sealing surface and locating the CAM and other parts.
Related Products
Packing&Shipping
1. The wooden box with high thickness, high hardness and high toughness can effectively prevent cracking and deformation.
2. The location of the factory is convenient and the geographical location is superior. It belongs to the local transportation hub and is closely connected with sea, land and air transportation modes.
After Sales Service
We are caring and attentive
1. The engineer is responsible for training the installation method, usage method and precautions.
2. If you encounter any problems during use, there is one-on-one consulting service.
Company Introduction
Sichuan Ziyang Self-reliance Grain Oil Machinery Co., LTD. specializes in designing, manufacturing, and distributing high-quality Rotary Airlock valves used in pneumatic conveying systems for application in bulk solids handling in the Plastics, Chemical, Food, Pharmaceutical and Detergent industries, since 1957, located in Ziyang city, Sichuan province, China.
Long-term supplied to Buhler China and COFCO, our Rotary Airlock valves achieved more than 70% market in same products in China.
At the same time, our TXFLF series Plug Diverter praised by users also.
Please contact us with all of your bulk material handling applications, and let us put our expertise to work for you.
Long-term supplied to Buhler China and COFCO, our Rotary Airlock valves achieved more than 70% market in same products in China.
At the same time, our TXFLF series Plug Diverter praised by users also.
Please contact us with all of your bulk material handling applications, and let us put our expertise to work for you.
Our Services & Strength
1. The factory covers an area of more than 40,000 acres and has more than 10 production lines.
2. Our annual supply can reach 5,000 units, and the supply capacity is strong.
3. There are several senior engineers, many patents are obtained, and the innovation ability ranks high in the industry.
4. The wind shut-off series is complete in various specifications from 1 to 140 liters.
5. Excellent quality, in strict accordance with the ISO9001 quality system standards for total quality management;
6. Service worry-free, experienced professionals to provide you with value of pre-sale, sale, after-sale service, to help you reasonable selection, optimize the process, to solve your worries.
...
Our Customer:
Delivery time:
We used the restocking -sell method,if the warehouse have,we may delivery it in several days,or 15-30 days after receiving the deposit.It depends on the quantity ordered.
