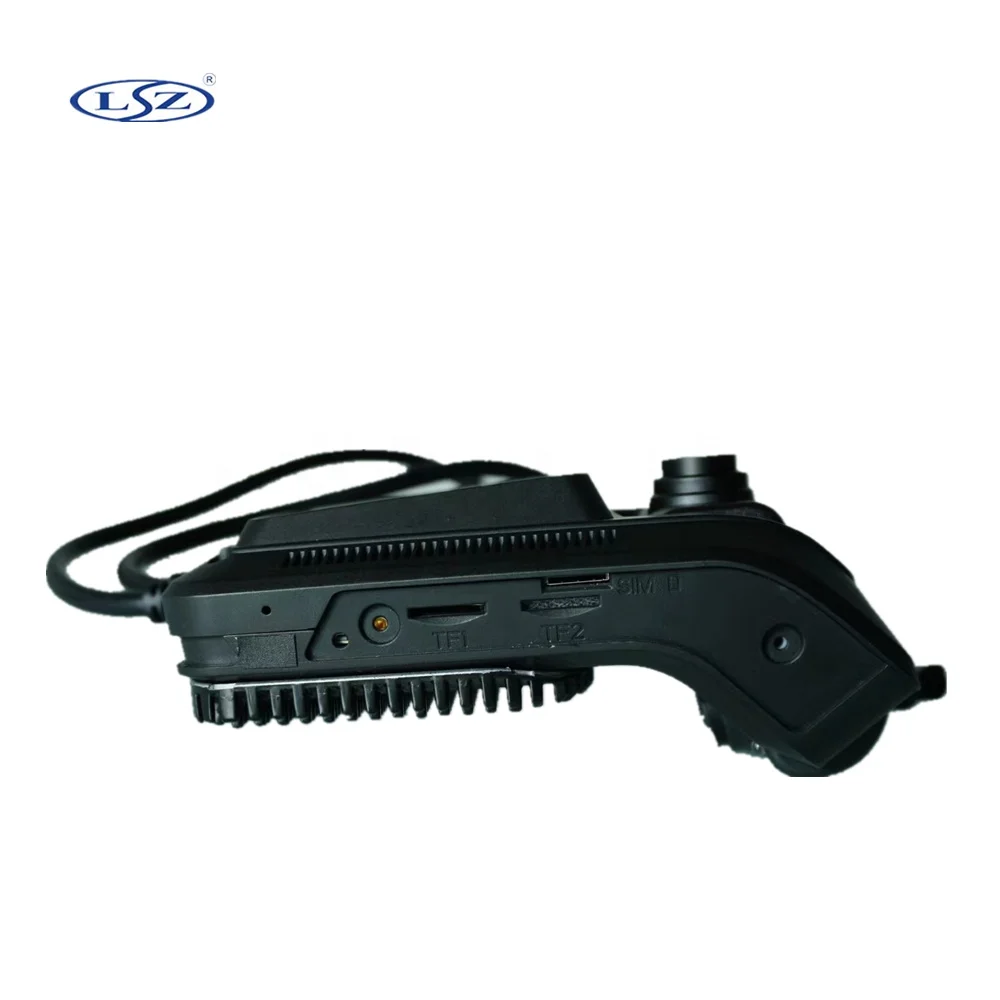

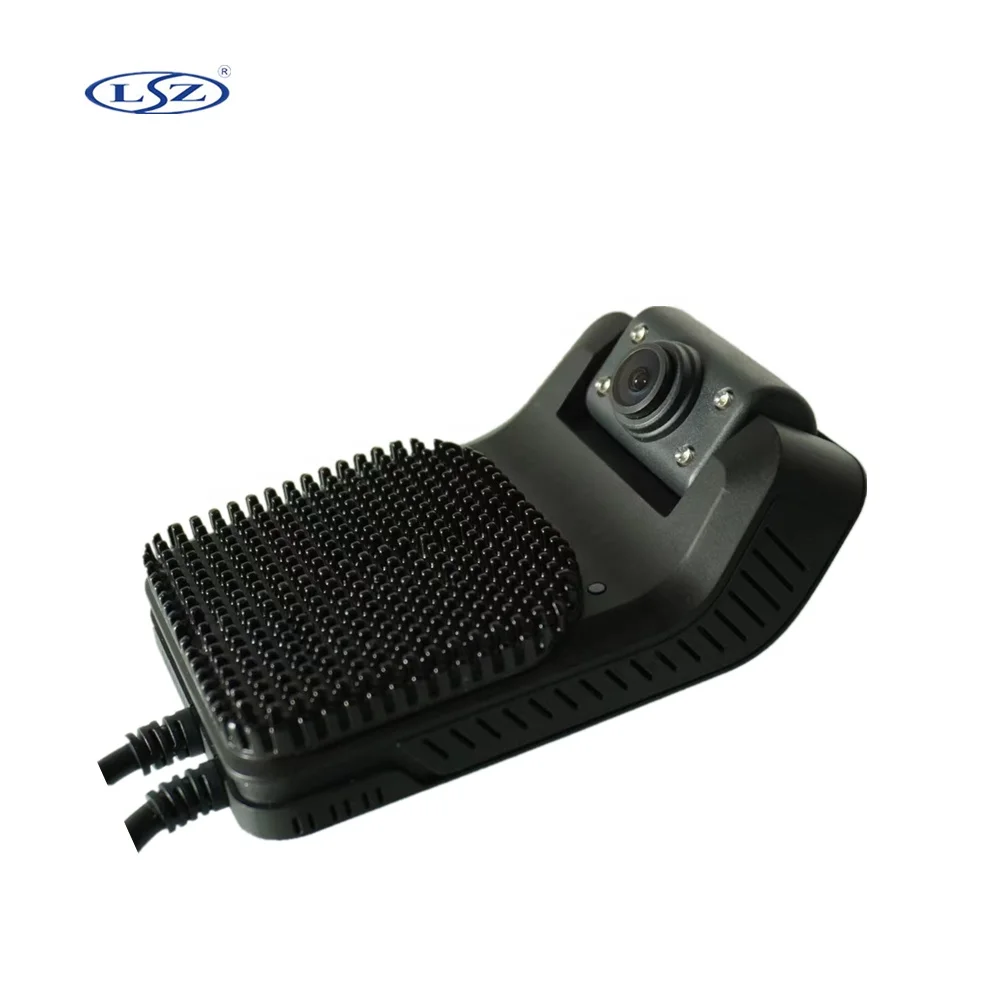

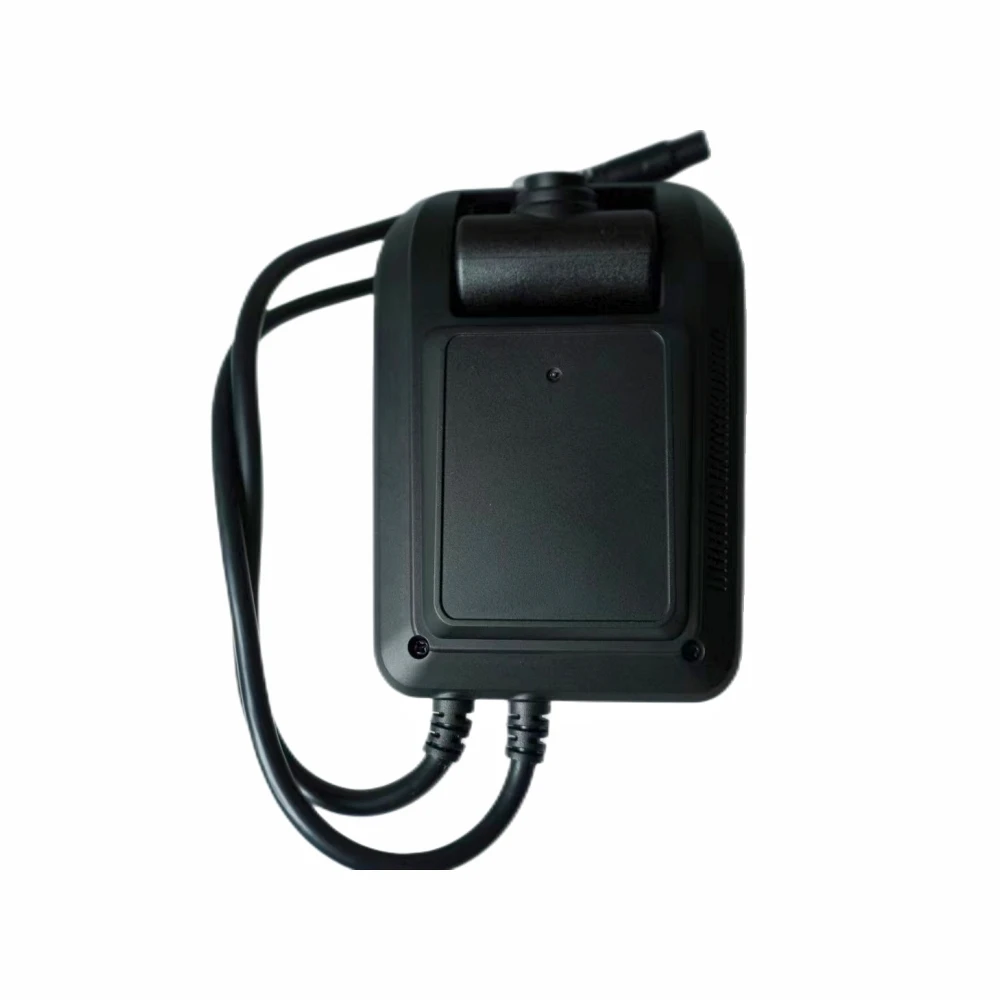

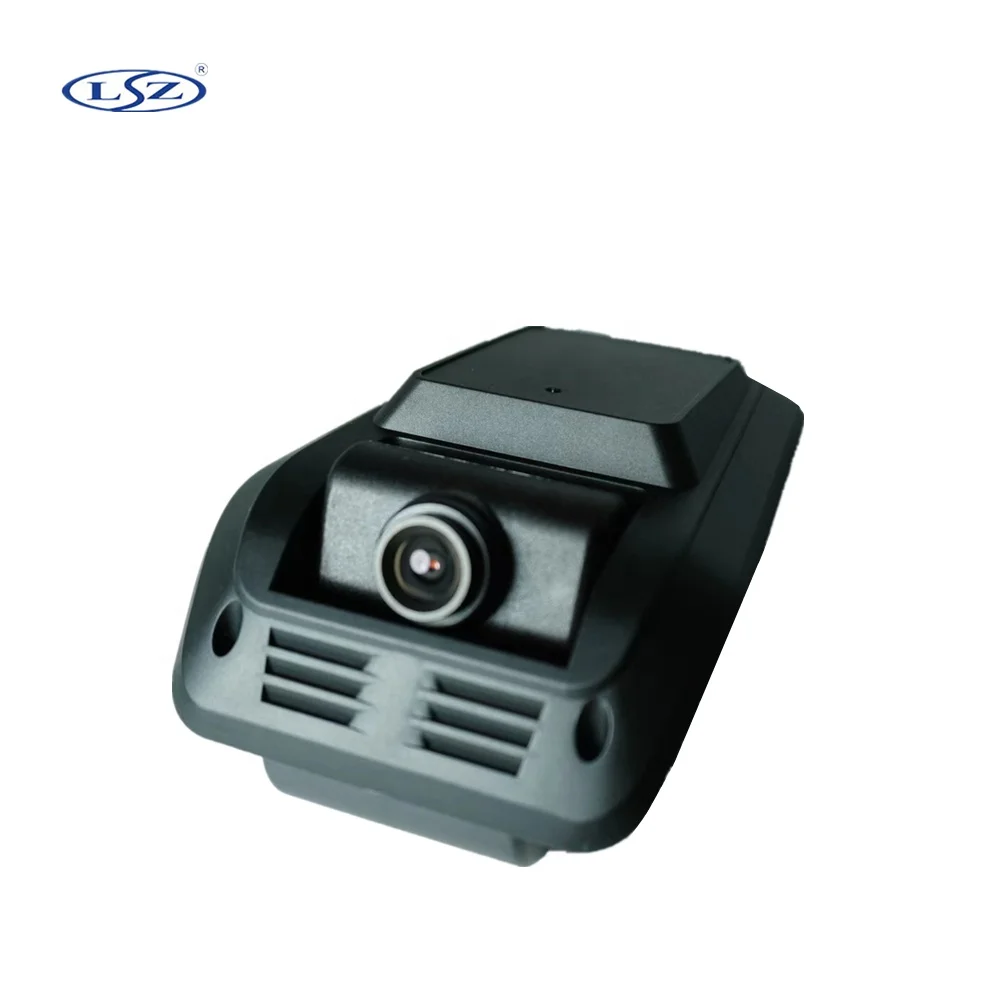

hd 1080p 4g live dash cam gps tracking front and rear android dash cam
- Category: >>>
- Supplier: Shenzhen Tianyou Security Technology Co. Ltd.
Share on (62545762374):
Product Overview
Description
Basic configuration | ||
CPU | ARM Cortex-A7 1.0GHZ | |
Memory | 2GB | |
Outside camera | 2MP sensor,95 Degree.F4.3 Support wide dynamic WDR | |
In-car camera | 1MP sensor,115 Degree Wide angle.F2.16 With infrared night vision, the video is clearly visible in the dark environment in the car | |
Dual memory card | Support TF cards，32GB/64GB/128G/256G | |
Positioning | Beidou/GPS dual-mode high-precision positioning module | |
Gyro | Collision alarm, vibration alarm | |
Speaker and Mic | Build in | |
ADAS algorithm (optional) | Advanced driving assistance system: lane deviation alarm, forward collision alarm, and vehicle distance too close alarm | |
DSM algorithm + DSM camera (optional) | Driver behavior analysis: head down, call, smoke, look around, yawn, close eyes, no face detected, cover the camera | |
Face recognition algorithm (optional) | Identify the driver and report | |
Recording parameters | ||
Video resolution | 1080P/720P/D1 | |
Video format | H264 Compression format | |
file format | Special file system, can export asf file | |
Network parameters | ||
4G | All domestic Netcom supports China Mobile, China Unicom, telecommunications cards, and IoT cards; Overseas support for global frequency bands； | |
WIFI | 2.4G frequency, support WIFI STA/AP mode, support mobile preview | |

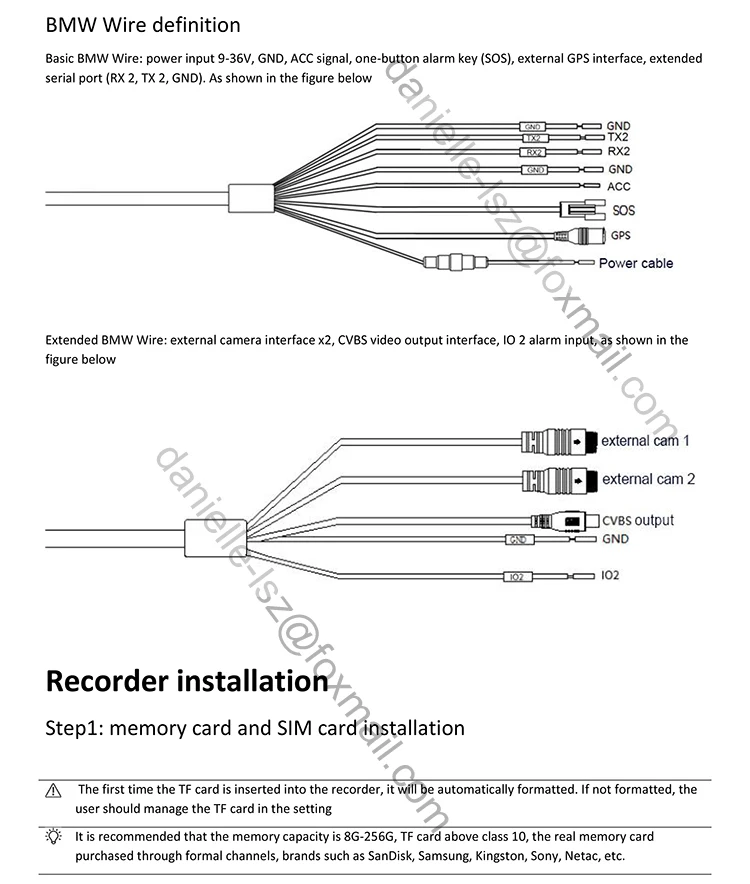

External Interface | ||
VCC | powered by 9V-36V | |
GND | Ground | |
ACC | Ignition detection, control switch | |
SOS button | Emergency button, video upload before and after the police | |
External display(optional) | CVBS Interface, video output | |
Serial port | 1xRS232, support extended functions | |
external cameras | 1xAHD interface camera | |
One-key restore settings | Support one-key factory reset function | |
structure | ||

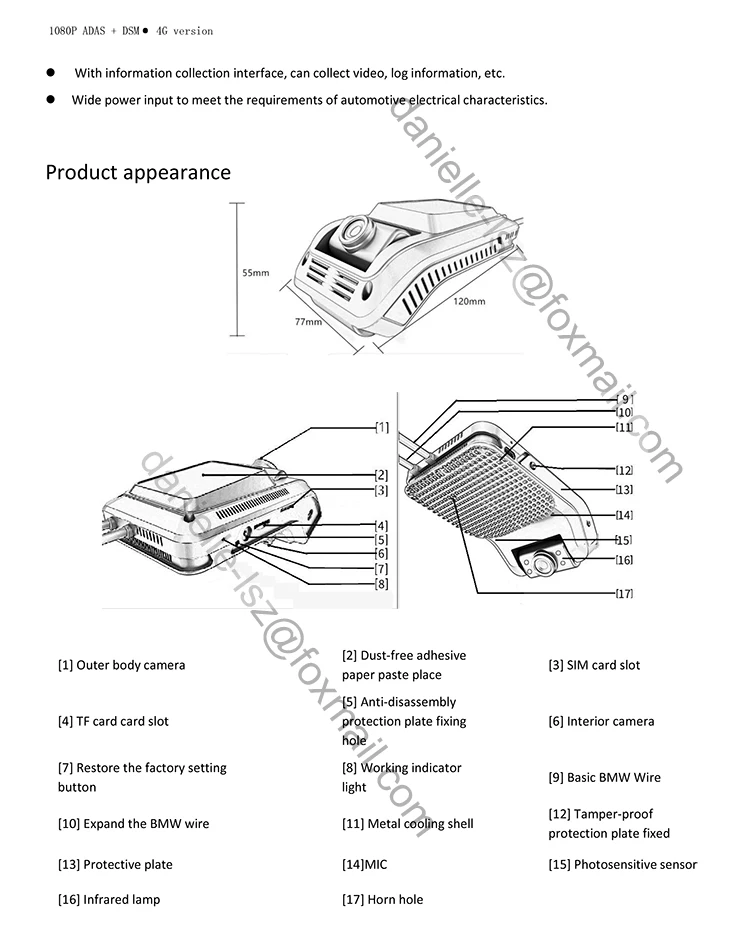

volume（mm） | 120*77*55mm | |
weight | Around 240g±10g | |
working environment | ||
Operating temperature | -20℃～+70℃ | |
Relative humidity | ≤93% | |
Product Description

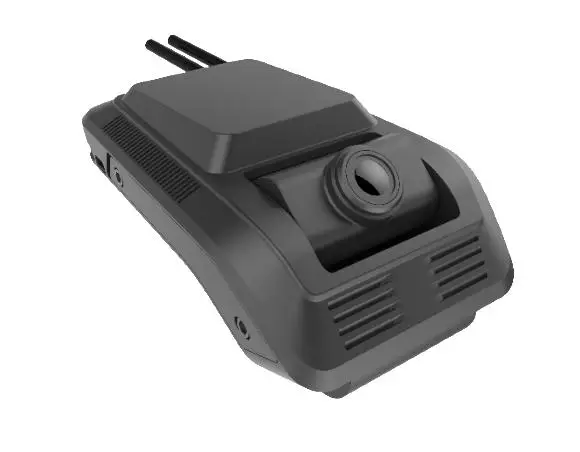

1080P ADAS+DSM Dash Camera
Features：
1.Front high-definition 1080P cameras and Rear 720P cameras, plus extended 2-channel 720P cameras, simultaneous recording inside and outside the car；
2.Infrared night vision, the video is clearly visible in the dark environment in the car；
3.Support TF card recording, support 32G/64G/128G/256G/512G high speed；
4.Special file system, loop recording, to ensure the safety and stability of video files；
5.Built-in super capacitor, when the device is abnormally powered off, it can work continuously for 3 seconds and complete the video file；
6.4G Full Netcom, supports global frequency bands；
7.BD/GPS Dual-mode positioning, AGPS positioning and other positioning methods, support driving track playback；
8.One-click picture capture, automatic picture upload platform；
9.One-click SOS emergency alarm, video upload before and after alarm；
10.Support multiple alarm types: low pressure alarm, overspeed alarm, parking overtime alarm, fatigue driving alarm, SOS alarm, collision alarm, video occlusion alarm, etc.；
11.Support platform real-time monitoring, monitoring, intercom, track playback, remote capture, remote playback and other functions；
12.Support multiple network protocol platforms，CMSV6，JT/T 794-2011，JT/T 808-2011，JT/T 1078 ，JT/T 905.2 2014，GB28181 etc；
13.Equipment automatic detection function, active discovery of equipment failures, easy operation and maintenance；
14.Support driver face recognition (optional)；
Support advanced driver assistance system (ADAS) (optional): lane deviation alarm, forward collision alarm, and vehicle distance too close alarm； Driver Behavior Analysis (DSM) (optional): lower your head, call, smoke, look around, yawn, close your eyes, face not detected, cover camera, etc.
1.Front high-definition 1080P cameras and Rear 720P cameras, plus extended 2-channel 720P cameras, simultaneous recording inside and outside the car；
2.Infrared night vision, the video is clearly visible in the dark environment in the car；
3.Support TF card recording, support 32G/64G/128G/256G/512G high speed；
4.Special file system, loop recording, to ensure the safety and stability of video files；
5.Built-in super capacitor, when the device is abnormally powered off, it can work continuously for 3 seconds and complete the video file；
6.4G Full Netcom, supports global frequency bands；
7.BD/GPS Dual-mode positioning, AGPS positioning and other positioning methods, support driving track playback；
8.One-click picture capture, automatic picture upload platform；
9.One-click SOS emergency alarm, video upload before and after alarm；
10.Support multiple alarm types: low pressure alarm, overspeed alarm, parking overtime alarm, fatigue driving alarm, SOS alarm, collision alarm, video occlusion alarm, etc.；
11.Support platform real-time monitoring, monitoring, intercom, track playback, remote capture, remote playback and other functions；
12.Support multiple network protocol platforms，CMSV6，JT/T 794-2011，JT/T 808-2011，JT/T 1078 ，JT/T 905.2 2014，GB28181 etc；
13.Equipment automatic detection function, active discovery of equipment failures, easy operation and maintenance；
14.Support driver face recognition (optional)；
Support advanced driver assistance system (ADAS) (optional): lane deviation alarm, forward collision alarm, and vehicle distance too close alarm； Driver Behavior Analysis (DSM) (optional): lower your head, call, smoke, look around, yawn, close your eyes, face not detected, cover camera, etc.

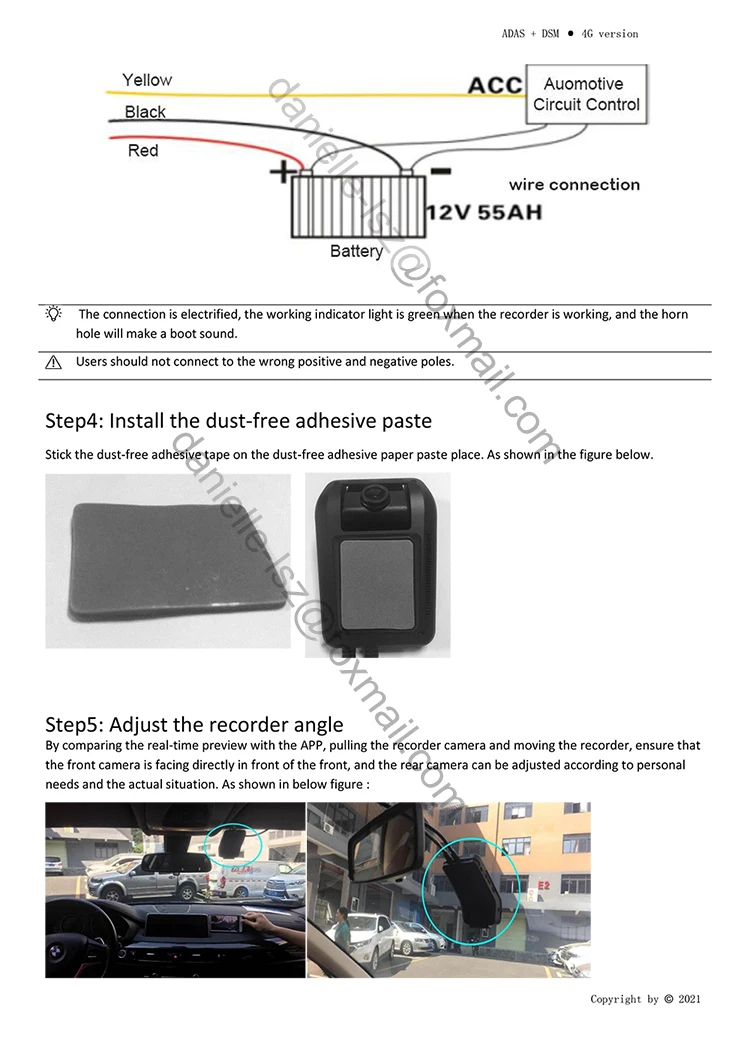

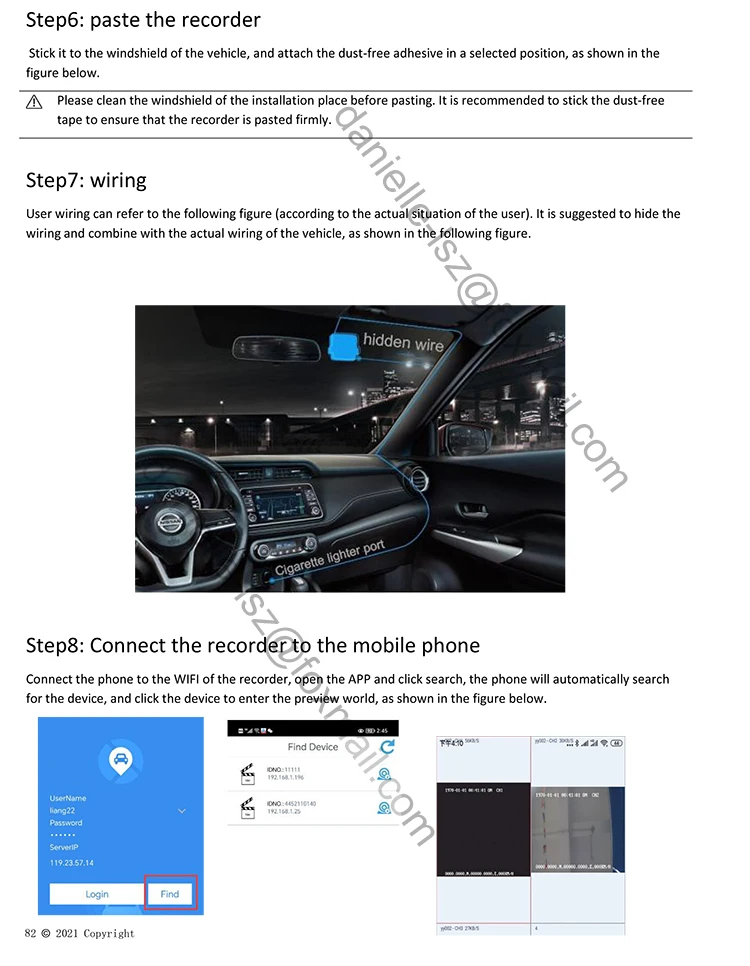

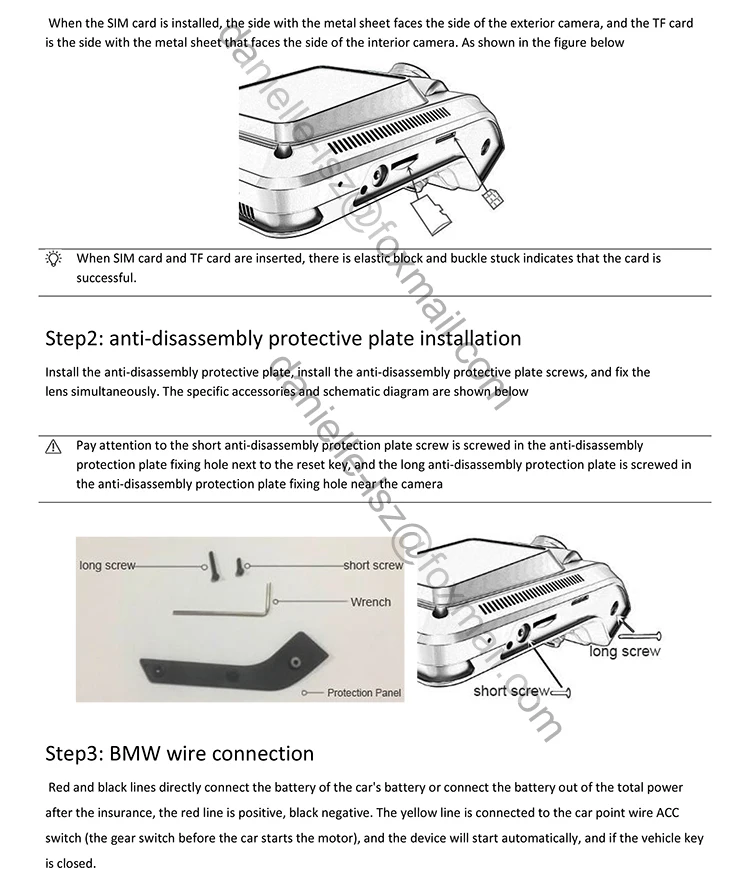

Details Images
Product Usage
Shenzhen Tianyou Security Technology Co., Ltd. ,a leading manufacturer of vehicle mobile video surveillance solutions,was established in 2010, mainly engaged in R & D, production of high-definition hybrid vehicle mobile digital video recorder (MDVR),vehicle camera, IPC network camera and various vehicle monitoring peripheral accessories.
