Низкая стоимость обслуживания электрическая автоматическая загрузка барабанная машина для дробеструйной обработки

Please contact us freely, we always online!

Welcome you visit factory and talk face to face!

Feature:

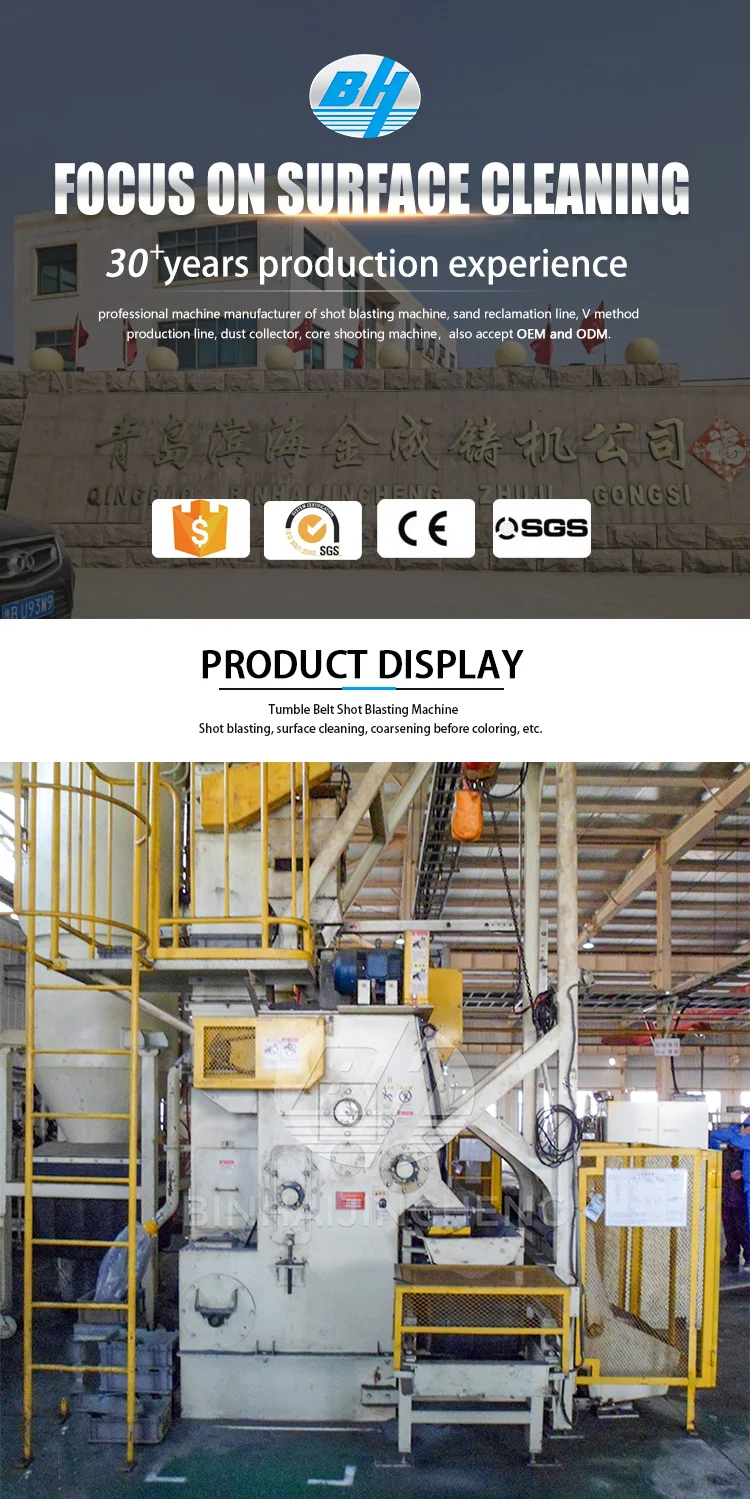

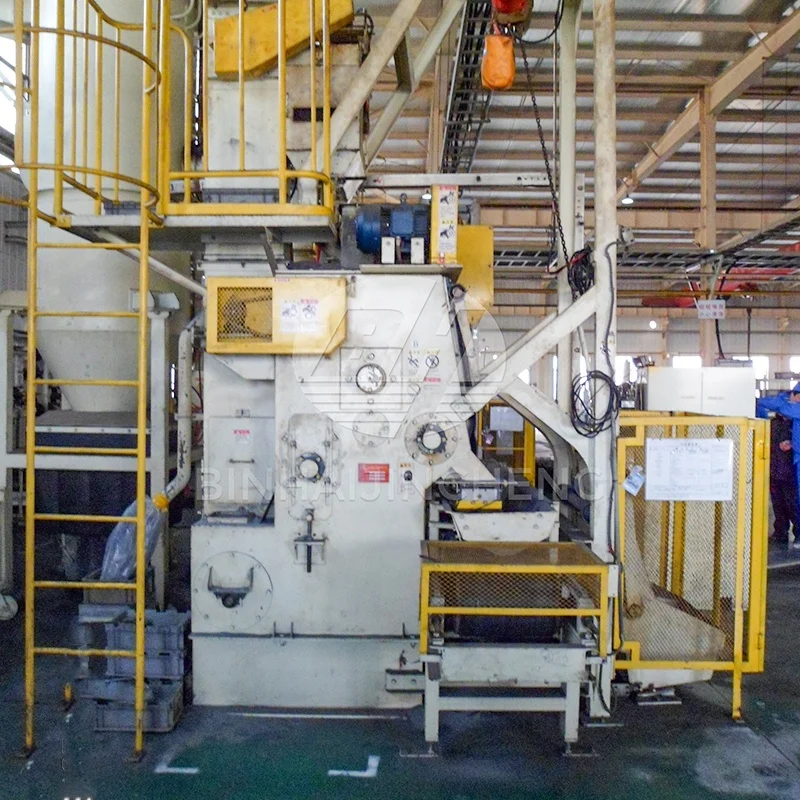

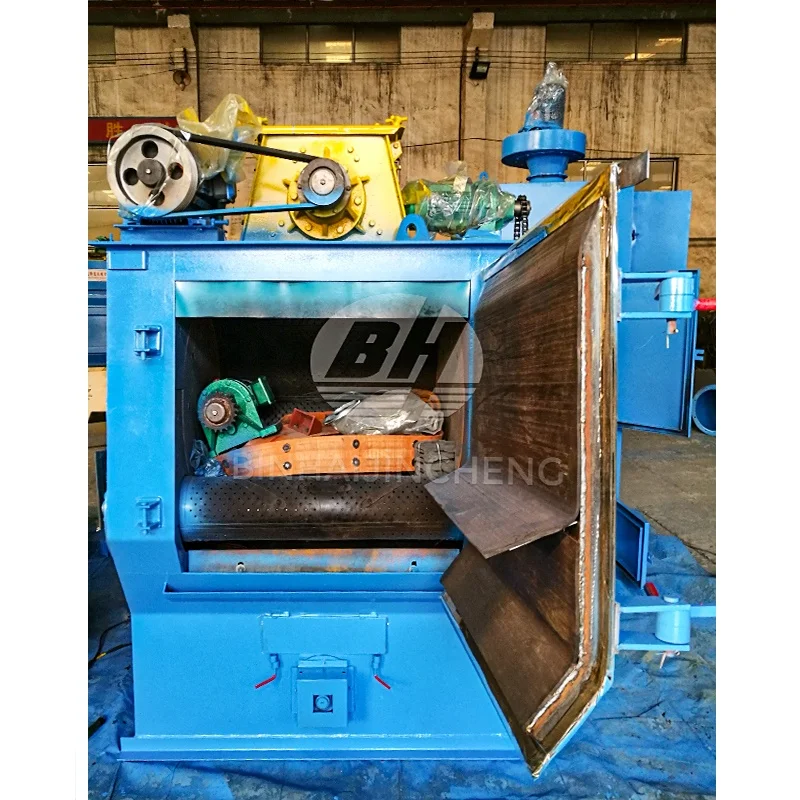

Tumble shot blasting machine with rubber belt

Shot blasting of casts, forged and pressed parts, remodelled cold or hot, of various complicated forms, springs, etc. (load capacities ranging up to 1000 kg or 500L), cleaning surface, removing casting sand and filings and consolidating the surface (microhandling), roughing the surface before colouring, etc.

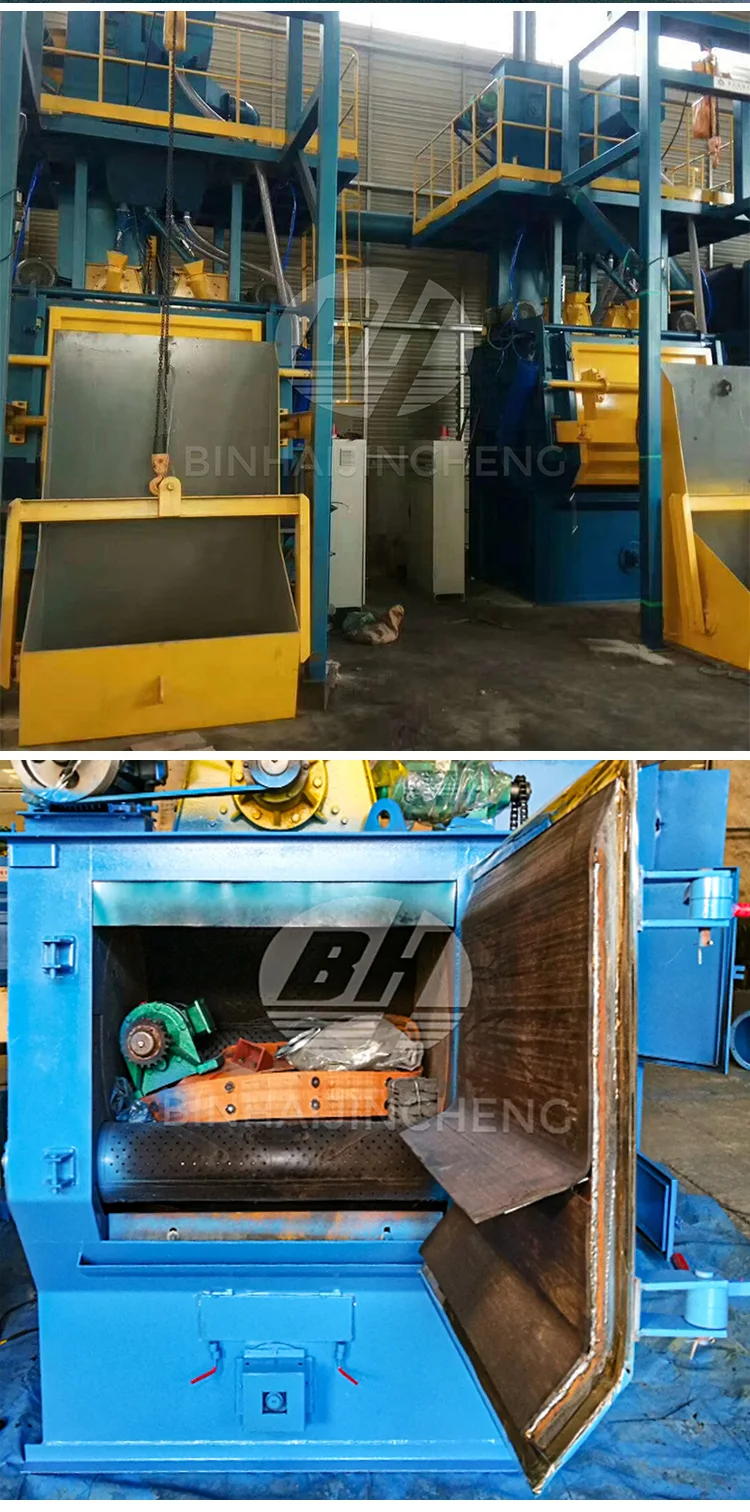

Machines have a perpetual caterpillar made from perforated rubber belt. Treated objects are put by a special filling contraction to caterpillar. When caterpillar moves its special shape causes treated objects to turn and roll, which causes the whole surface of the treated object to be quality blasted in a jet of abrasive. For emptying, caterpillar is started-up in the opposite direction turning mode.

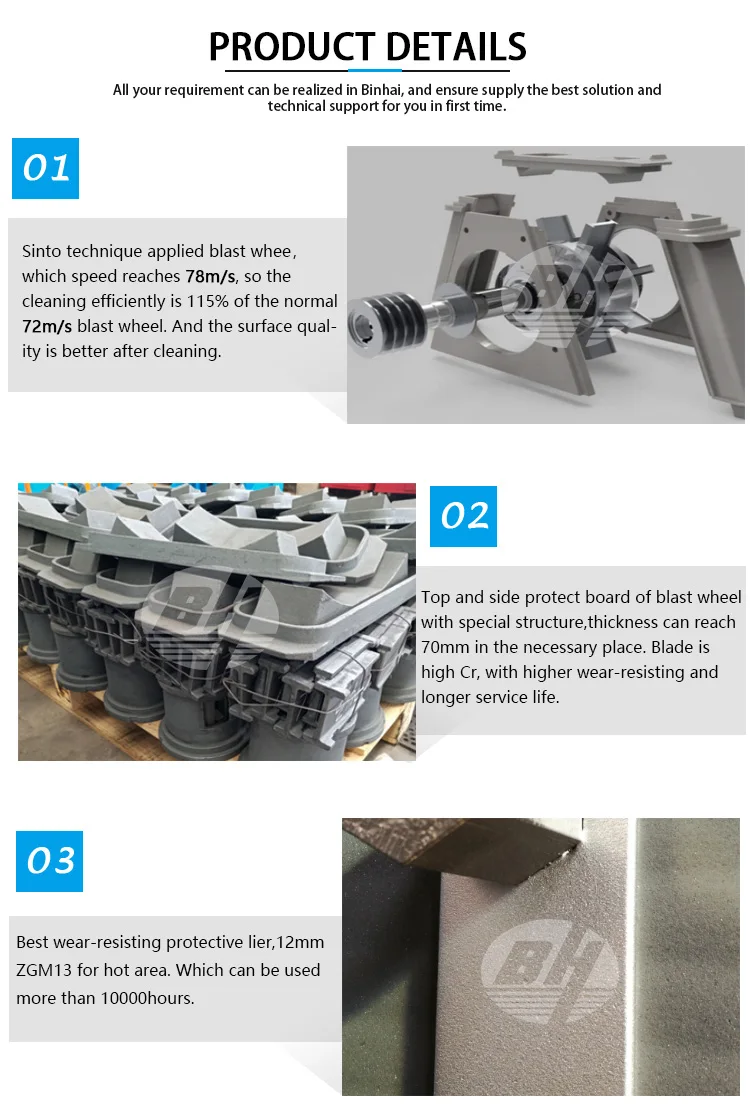

The machine's housing is protected by wear-resistant manganese steel. High efficiency of the machine is provided by the system for continued returning and cleaning of the abrasive, along with efficient turbines made from wear-resistant materials.

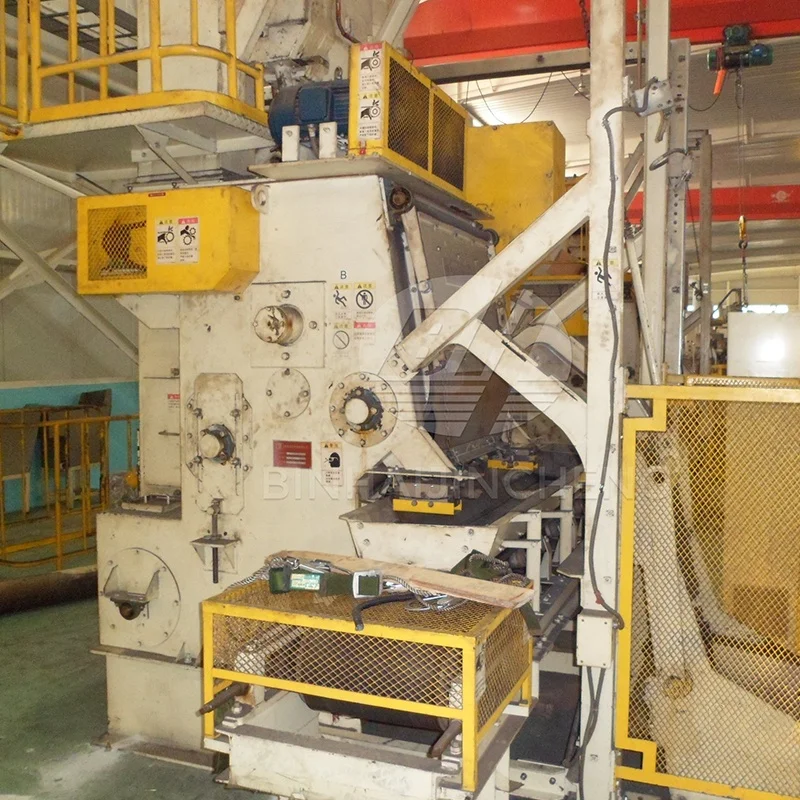

Tumble shot blasting machine with manganese steel belt

Shot blasting of casts, forged and pressed, parts, remodelled cold or hot and of various and complicated forms, springs, etc. (weighing up to 1,000 kg and manufactured in smaller and large series, the volume of a particular filling may be up to 2,000 L, mass up to 5,000 Kg), Cleaning surface, removing casting sand and filings and consolidating the surface (microhandling), roughing the surface before the colouring, etc.

Machines have a perpetual caterpillar made from steel flaps. Treated objects are put by a special filling contraction to caterpillar. When caterpillar moves its special shape causes treated objects to turn and roll, which causes the whole surface of the treated objects to be quality blasted in a jet of abrasive. For emptying, caterpillar is started-up in the opposite direction turning mode.

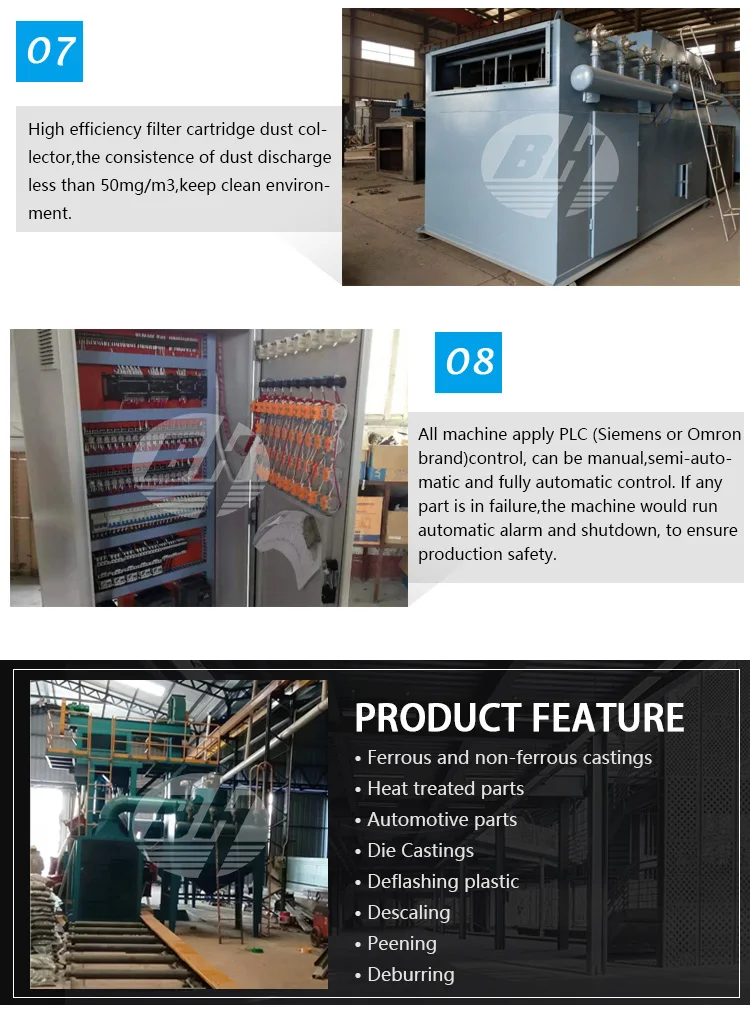

Application:

• Ferrous and non-ferrous castings

• Heat treated parts

• Automotive parts

• Die Castings

• Deflashing plastic

• Descaling

• Peening

• Deburring
