15ml dropper bottle filling capping machine eyedrops monoblock liquid filler capper labeler machine

Eyedrop Aseptic Filling Production Line

XLP600 Box Type Bottle Unscrambler

XLP series Box Type Bottle Unscrambler is a special unscrambler which is newly developed by the company. It boasts strengths of HLP series and also the following advantages:

1.      This equipment has two large areas, namely storage area for empty bottles and area for bottle unscrambling. A large number of bottles can be stored in the empty bottle area and bottles in such area can be automatically supplied to the bottle unscrambling area according to the unscrambling speed, which greatly reduces frequency of placing bottles by operators, thus reducing labor intensity.

2.      This equipment has unique door mechanism, which can control noise of equipment running below 60 db and also has aesthetic property.

3.      This equipment has unique rotary bottle separating and bottle shifting and turning mechanism, which greatly improves capacity of bottle unscrambling and also overcomes wear and tear of bottles.

Technical Parameters

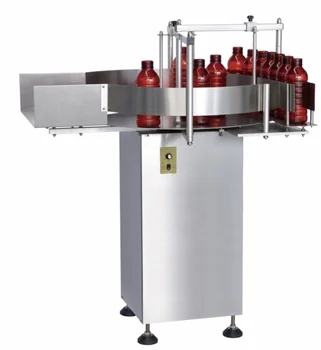

 ZP600 Turntable

ZP series bottle turntable is designed to supply oriented bottles to the special equipment continuously. The turntable boasts step-less speed regulation as per the production capacity of the special equipment so as to match the production capacity. This equipment is reliable with elegant appearance and stable operation.

Technical Parameters

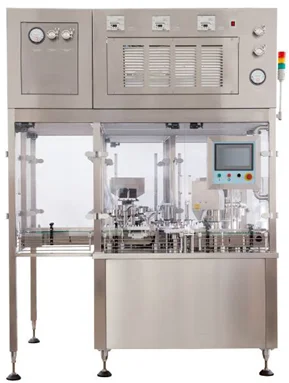

HG100C eye drop filling, plugging and capping machine which adopts full-servo system

Machine working process Introduction:

The machine is auto-liquid filling equipment combined with filling, plug inserting and cap screwing in one unit.

This machine include filling, plug inserting and cap screwing, and defected bottle rejection functions:

--the bottle feeding into bottle unscrambler, and rotate and output into filling machine;

--Sensor will inspect the feeding bottle, and if the number of bottles is less than fixed amount, the filling machine will stop filling;

--Within rotating disc, sensor will inspect if there is a bottle, no bottle, no filling;

--finished filling, automatic plug inserting will be achieved;

--Plugs should be inspected, otherwise, no plugging, no cap placing;

--the last step will be screwing the cap;

-- Finished filling and capping, the bottles will go through image sensor to detect if there is any defect, and the defected bottles will be rejected to rejection bin and the qualified bottles will be sent out to downstream machines through output conveyor belt. (Note: defected bottles including 3 kinds: no insert and no cap; with insert, no cap; crooked capping;)

Technical Parameters

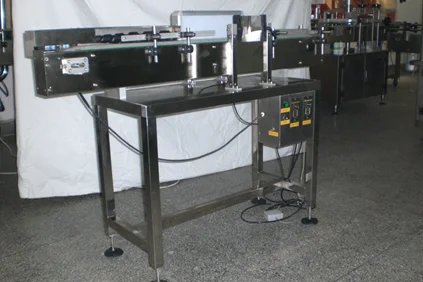

DJ-250 Lamp Inspection Machine

The magnifying glass inspection machine is mainly used for manual inspection of various containers such as vials, ampoules and oral liquid bottles. The main frame of the machine, stainless steel cover, and magnifying glass, conveyor belt and so on.

Technical Parameters

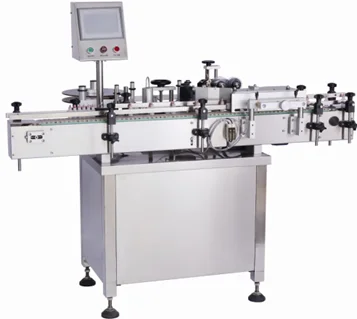

TB90 Round Bottle Labeler

- Simple and compact in design.

- With PLC control System with touch screen

- Can store up to 16 different programs for setting of different type of bottles.

- Label release and fixing mechanism to release the label.

- On Line Batch coding (Optional)

- As the use of optical control devices, power protection devices and other advanced systems of Autonics & Leuze company's, which with a start buffer function, the overall high sensitivity, low-speed torque, speed and stability, voltage stability, the strong ability of anti-interference and strong technical characteristics. Ensure labeling accuracy, stable, reliable and efficient.

 Technical Parameters
