AFGSM300 4G smart gateway wireless communication module with server MODBUS or LORA transmission
- Category: >>>
- Supplier: Acrel Electric Co. Ltd.
Share on (62545944795):
Product Overview
Description
Product Description

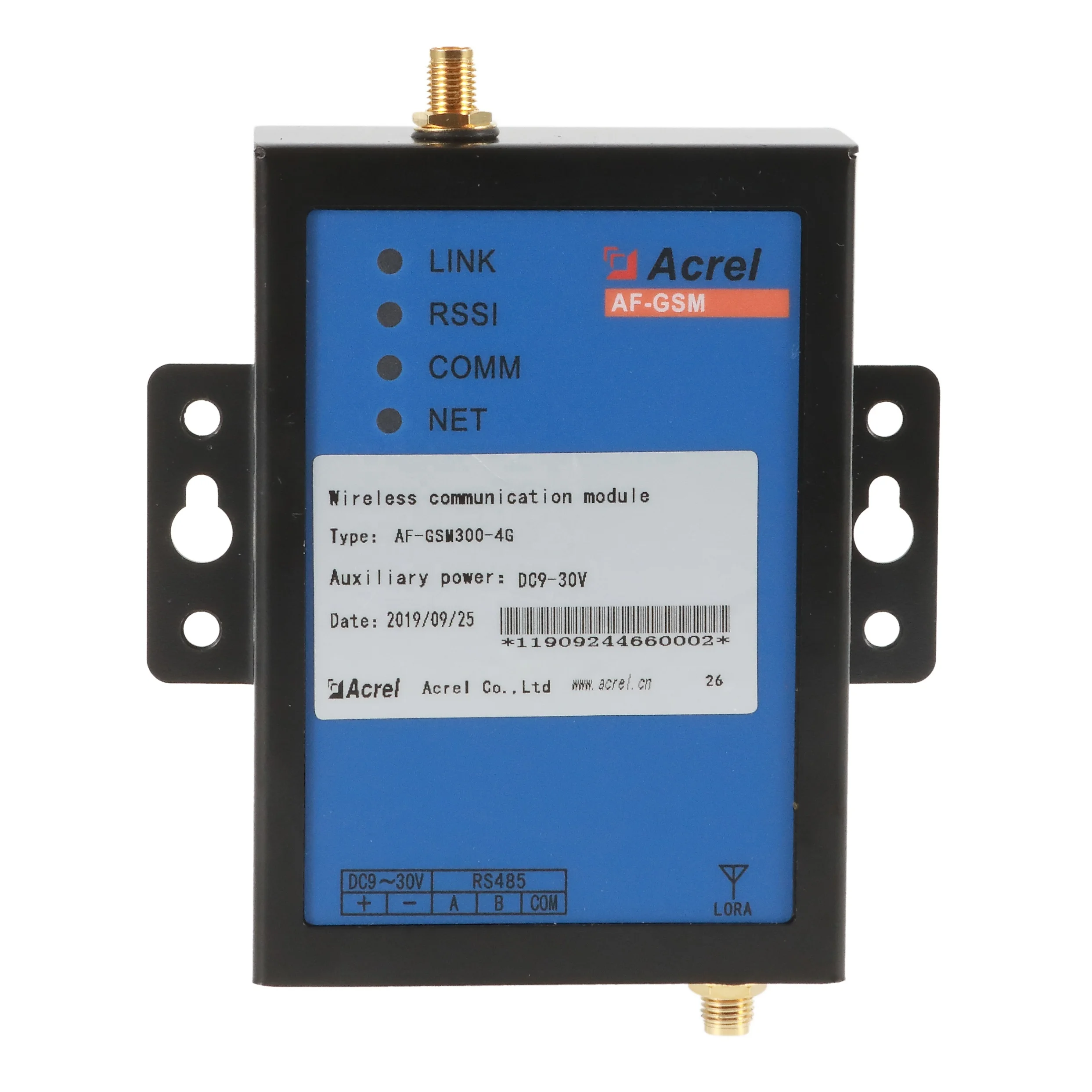

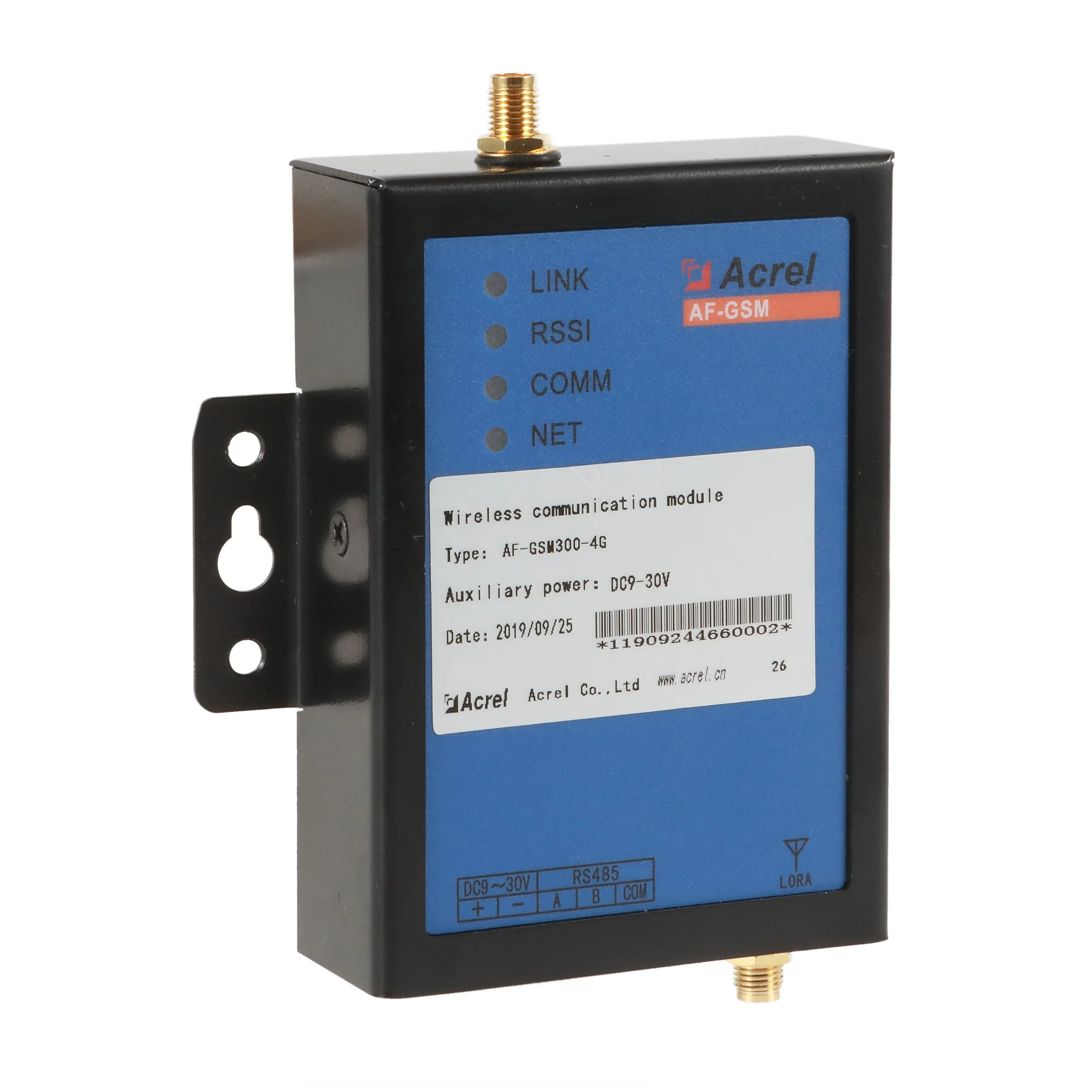

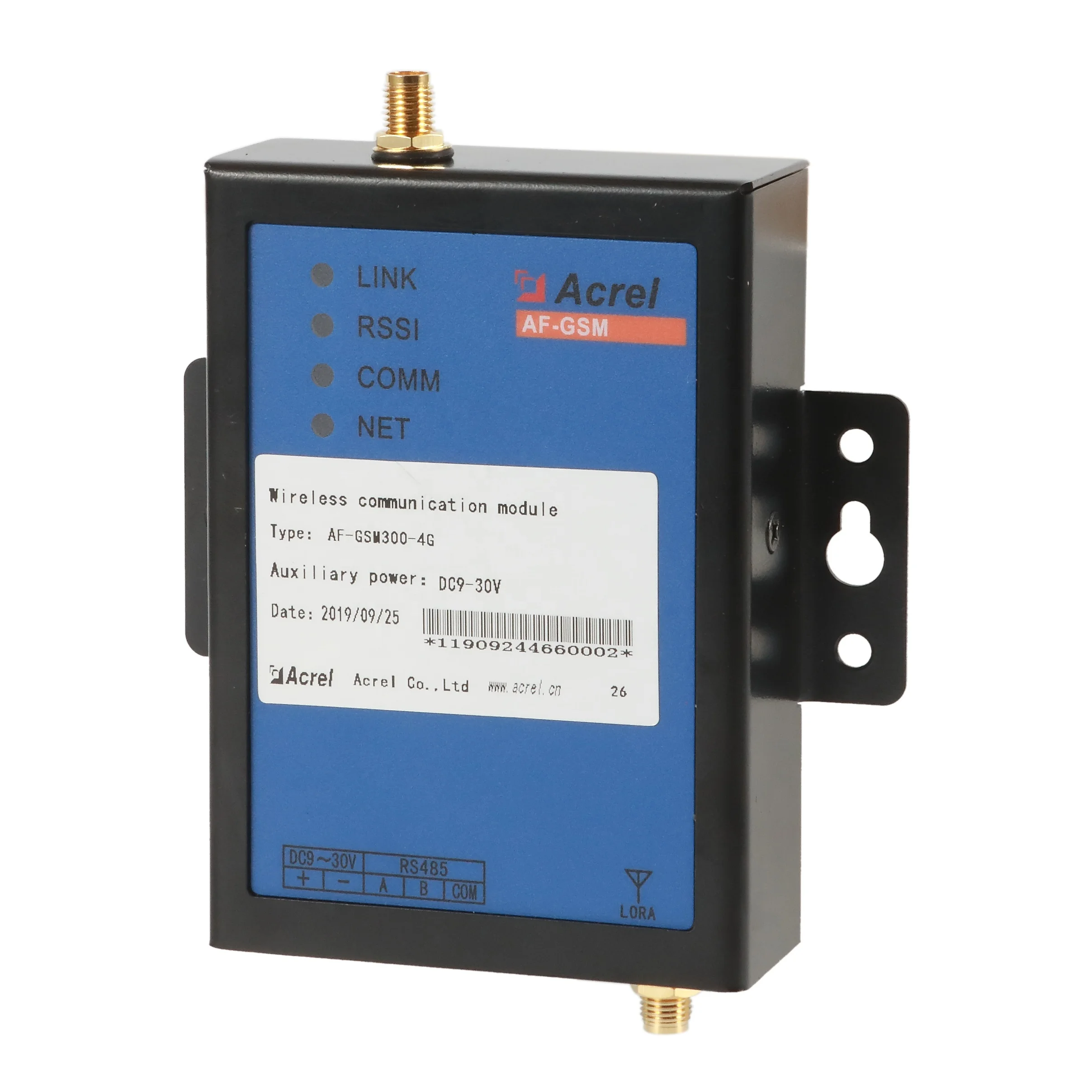

AF-GSM300-4G Smart Gateway
● It supports data acquisition of the serial port MODBUS RTU protocol and communicates with the Acrel server through the Acrel
platform protocol.
● It supports for data acquisition of up to 30 MODBUS RTU devices.
● It supports the acquisition of 5 register address fields for each MODBUS device, with each register address range not exceeding
64.
● It supports triggering alarms by presetting alarm addresses and alarm values for each MODBUS address range. There are currently
up to 14 alarm addresses for each address field.
● It supports server MODBUS or LORA unvarnished transmission communication.
● It supports to connect the data center by fixed IP and dynamic domain name resolution.
● It supports data acquisition of the serial port MODBUS RTU protocol and communicates with the Acrel server through the Acrel
platform protocol.
● It supports for data acquisition of up to 30 MODBUS RTU devices.
● It supports the acquisition of 5 register address fields for each MODBUS device, with each register address range not exceeding
64.
● It supports triggering alarms by presetting alarm addresses and alarm values for each MODBUS address range. There are currently
up to 14 alarm addresses for each address field.
● It supports server MODBUS or LORA unvarnished transmission communication.
● It supports to connect the data center by fixed IP and dynamic domain name resolution.
Detailed Images

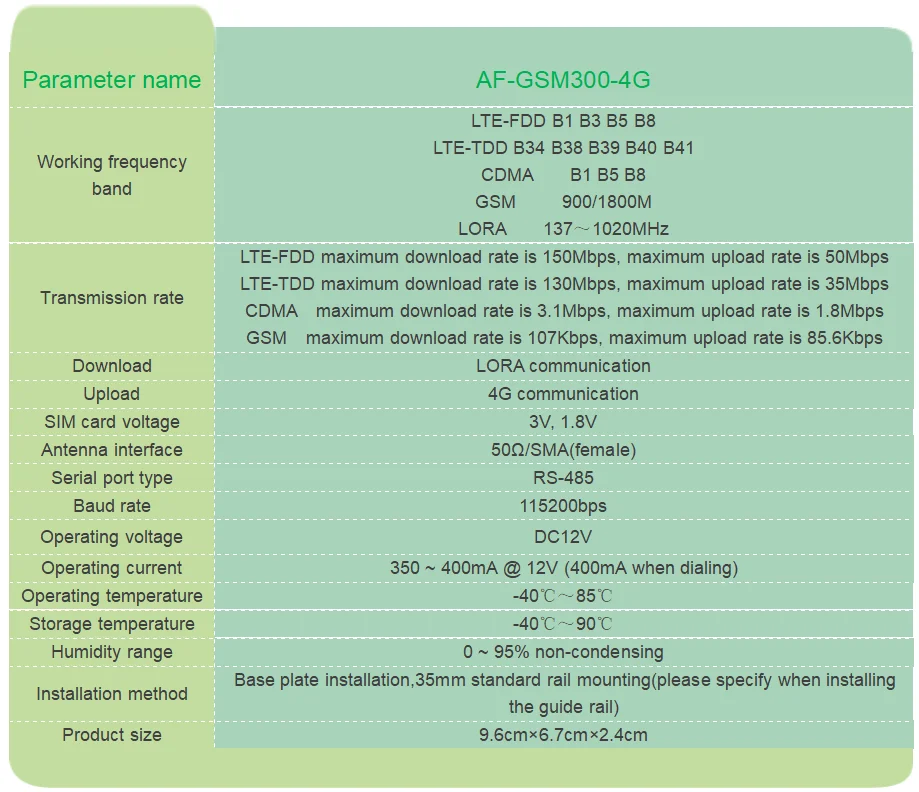

Working frequency band
LTE-FDD B1 B3 B5 B8 LTE-TDD B34 B38 B39 B40 B41 CDMA B1 B5 B8 GSM 900/1800M LORA 137～1020MHz
Auxiliary power supply
DC12V
Auxiliary power supply
DC12V
Dimension(L*W*H)：
9.6cm×6.7cm×2.4cm
Starting Current
350～400mA@12V(400mA when dialing)
9.6cm×6.7cm×2.4cm
Starting Current
350～400mA@12V(400mA when dialing)
