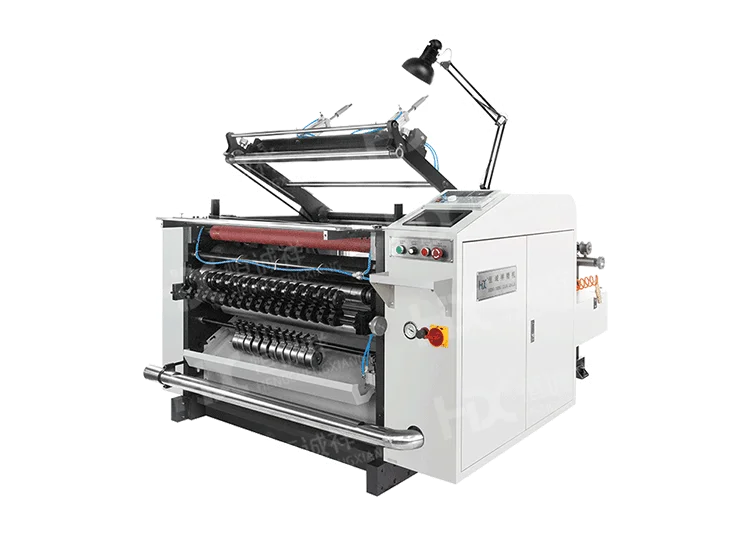

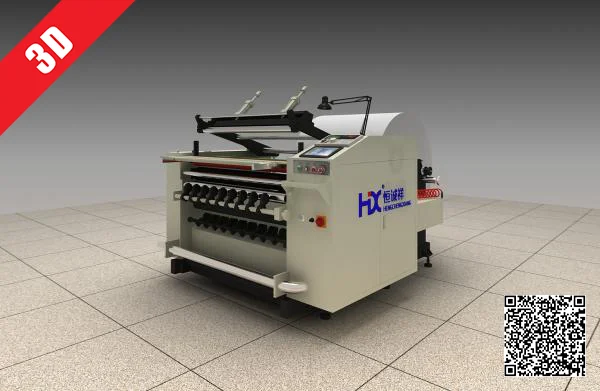

Thermal Paper Slitting Machine Cash Register Paper POS Paper Slitter Rewinding Machine
- Category: >>>
- Supplier: Weifang Hengchengxiang Precision Machinery Technology Co. Ltd.
Share on (62546018828):
Product Overview
Description
Application

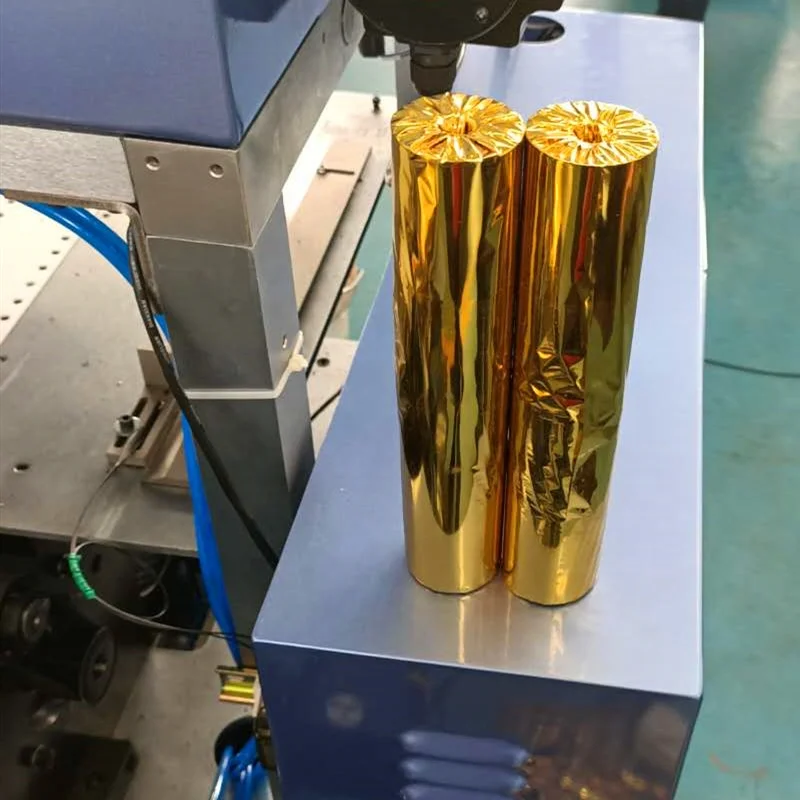

Our machine is used for making the small paper rolls from jumbo paper rolls, Slitting thermal paper rolls like cash register rolls, POS rolls,Lotery rolls,Medical record paper rolls,Plotter rolls etc. Plastic core paper rolls and coreless paper rolls are available.

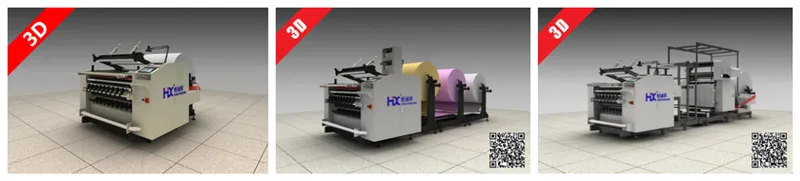

Models of our slitting machine: one layer thermal paper slitting machine, multi-layer NCR paper slitting machine, colors flexo printing slitting machine.
Technical Feature
1. Accurate slitting, fast speed, high efficiency and smooth cutting edge
2. Adjustable tension of the paper-roll.
3. Automatic paper feeding,equipped with air shafe.
4. Automatic tension controlling system.
5. Automatic coding.
6. Automatic metering, pneumatic conveying waste discharge.
7. PLC control, stepless variable frequency regulator.
Specifications
| Type | HX650FQ(G) | HX900FQ(G) |
| Max. width of paper-roll | 650mm | 900mm |
| Max. unreeling diameter | 1200mm | 1200mm |
| Max. reeling diameter | 250mm | 250mm |
| Slitting width | >20mm | >20mm |
| Production speed | 180m/min | 180m/min |
| Reeling spindle diameter | 8-50mm | 8-50mm |
| Power | 3PH/380V/50Hz/2.2kw | 3PH/380V/50Hz/2.2KW |
| Size(L*W*G) | 1800*1400*1450mm | 1800*1700*1450mm |
| Weight | 1300Kg | 1500kg |

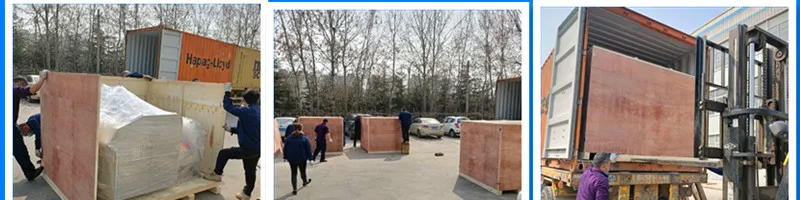

Packaging & Shipping

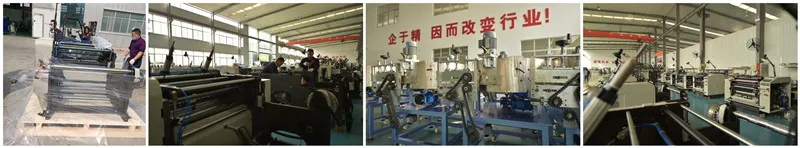

Factory Show
FAQ
1. Q: Are you a factory or trading company?
A: We are a factory, professional manufacturer.
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Weifang City, Shandong Province, China, near Qingdao.
You can fly to Qingdao airport directly.
All our clients are warmly welcomed to visit us!
3. Q: Which industries are widely used in of your machine?
A: These are mainly used in industries of adhesive labels paper products,printing factory,cash register, fax paper,.
4. Q: Could you send samples?
A: We are honored to receive your samples for Slitting Test.
5. Q: How does your factory do regarding quality control?
A: Quality is our culture.
We always attach great importance to quality controlling from the very beginning to the very end.
Our factory has gained CE certification.
6. Q: How can I find the most appropriated machine for my material?
You can tell us the parameters of your material, then we can recommend you the most suitable machine for you.
Material Name:
Raw width of the material:
Thickness of the material:
Slitting width of the material:
Rewinding diameter:
Unwinding diamater:
Inner core diameter:
By the way, if you need videos of the machines, welcome to contact me
