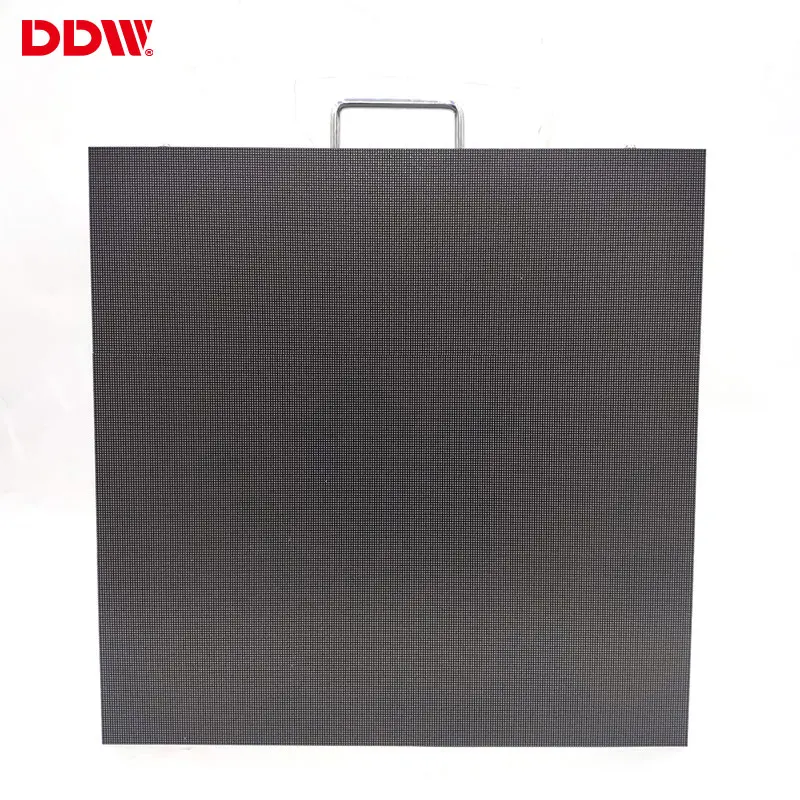

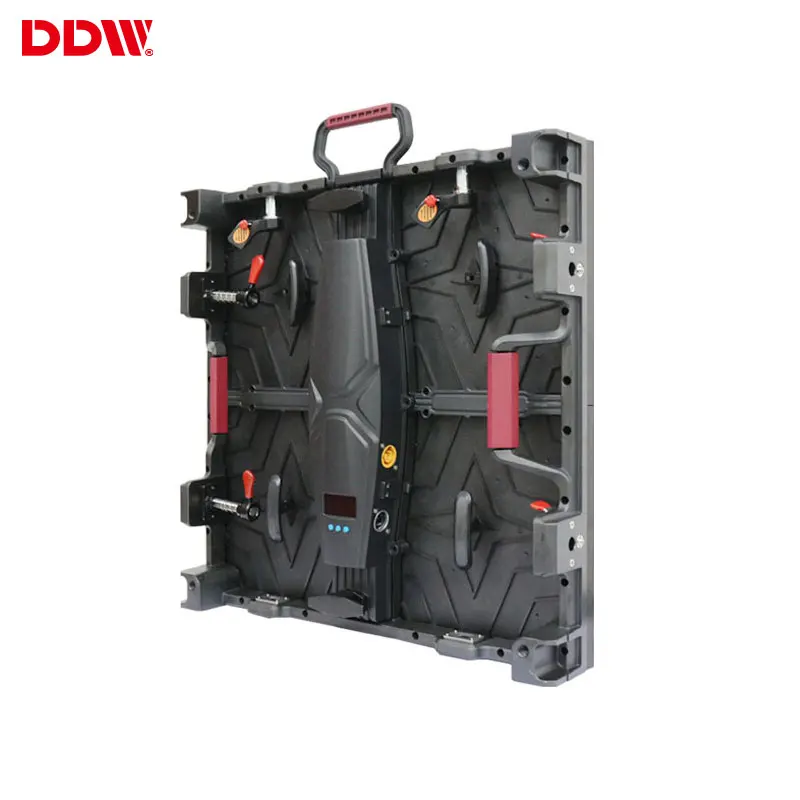

Factory direct sale outdoor rental led screen tv panel price p4 p481 p5 die casting advertising 500*500 led display for stage

Outdoor rental screen 500*500 series

Model NO.

P3.91

P4.81

Pixel Pitch

3.91mm

4.81mm

LED type

SMD1921

SMD1921

Flatness between modules

≤ 0.1mm

≤ 0.1mm

Pixel configuration

1R1G1B

1R1G1B

Module size (W*H)

250*250mm

250*250mm

Module resolution (W*H)

64*64mm

52*52mm

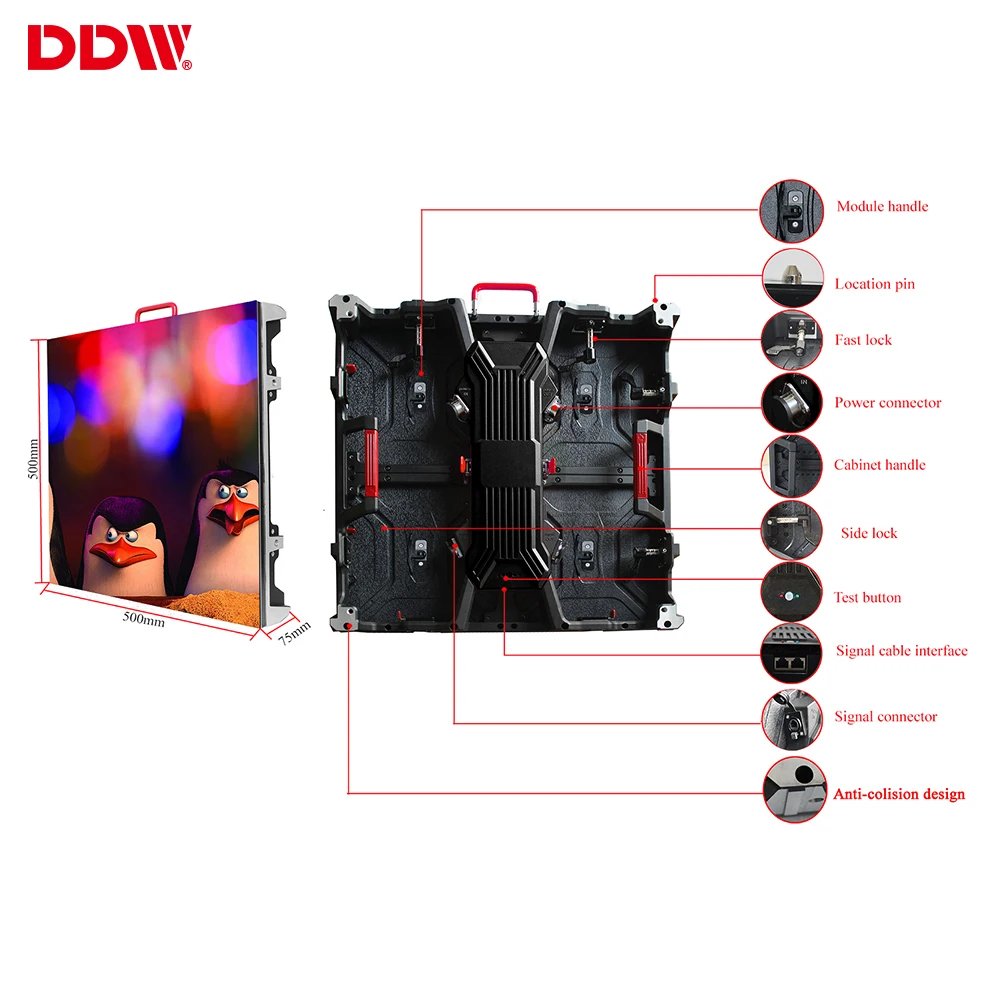

Cabinet size(W*H*D)

500mm×500mm×75mm

500mm×500mm×75mm

Cabinet resolution (W*H)

128*128mm

104*104mm

Cabinet weight

7.8kg/pc

7.8kg/pc

Density

65400dots/m²

44320dots/m²

IC

2038

2038

Scan

16S

13S

Best viewing distance

>4m

>5m

Best viewing angle

110°/ 110°

110°/ 110°

Brightness

3000-5000cd/m²

3000-5000cd/m²

Working voltage

AC:110-240V  50~60Hz

AC:110-240V  50~60Hz

Maximum power

≤600W/ m²

≤600W/ m²

Average power consumption

200W/m²
~300W / m²

200W/m²
~300W / m²
