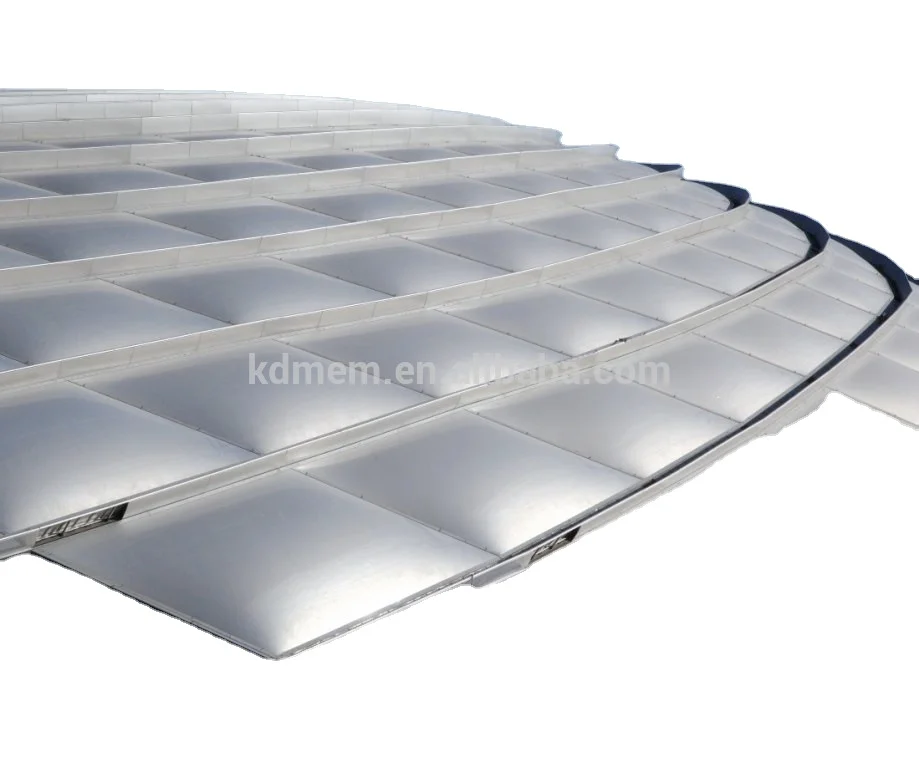

ETFE membrane is often made into double layer or multilayer air cushion in application of membrane structure. That is, according to the designed shape and layer quantity, to cut and joint, then inflating interlayer's space and make it be an air cushion. The shape of air cushion can be round, oval, triangle, rectangle, hexagon or any else shapes. It can form a huge covered space through jointing many air cushions with aluminum alloy frame or cable net.

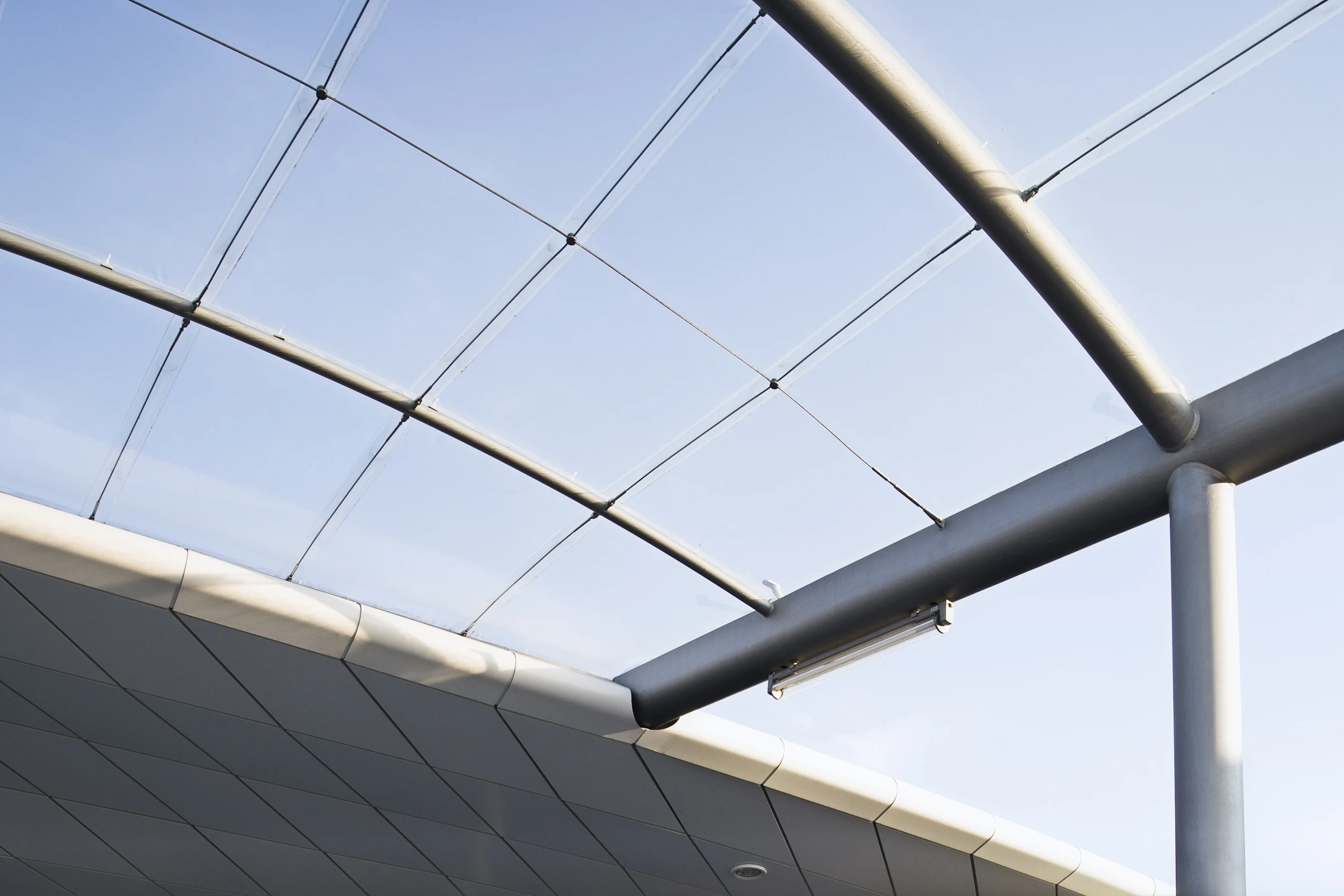

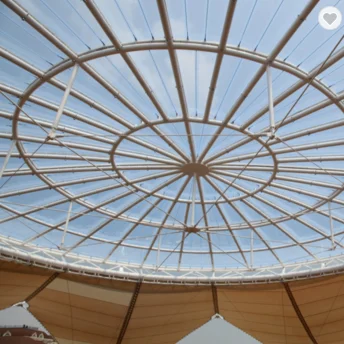

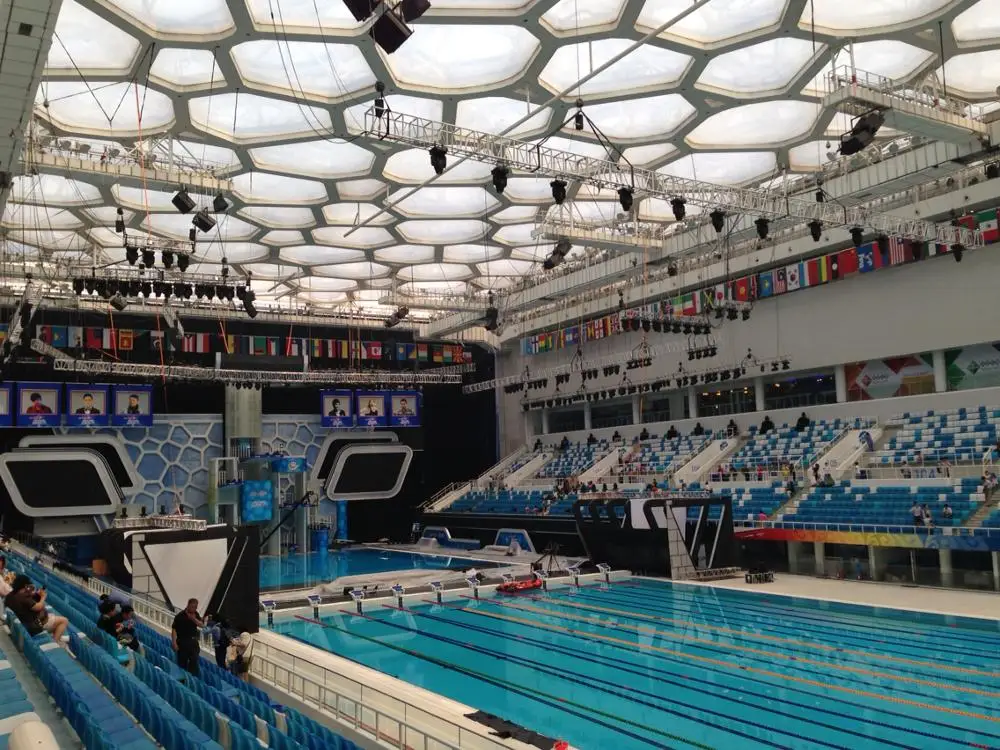

The above picture is project cases at home and abroad
Main Features
1)Durability: more than 25 years with good aging resistance. 2)Color and light transmission The ETFE membrane is usually colorless & transparent, or made in white color. We can adjust the light strength which coming into the construction by printing the different color or pattern on white or transparent membrane. 3)Fire-proof ETFE is a material of anti-flaming. Even in the flame, ETFE membrane will only be melt and shrink but without falling drops. Because the ETFE membrane is very light, it has low danger when there is fire risk. 4)Self-cleaning The surface of ETFE is very glossy with good performance of self-cleaning. Dust and dirty covered ETFE membrane will be washed off by rain. 5)Adaptability of climate Range of working temperature of ETFE membrane is -200~150℃; Melting point is around 275℃. It's of good stability and adaptability of climate. 6)Recyclable: ETFE membrane can be melted into particle and re-processed.
Material
Thickness(mm)
Tensile Intensity(N/5cm)
Tearing Intensity(N/5cm)
Fire Tetardance
Endurance
PVC
>0.5
4000
700
B1+
15yrs
PVDF
>0.5
5500
800
A2+
25yrs
PTFE
>0.5
6000
1100
SIS650082
40yrs+
ETFE
0.05-0.25
SIS650082
40yrs+
Certifications
Detailed Images

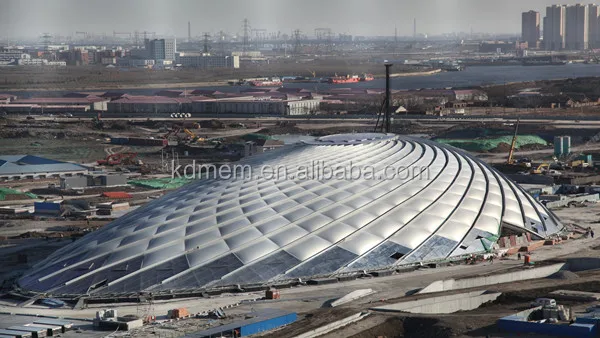

Name: Yujiapu Traffic Hub
A bidirectional spiral dome above the ground. Its architecture creation coming from the beautiful shell shape.
Main Features
The dome has tanke structural steel and membrane structure as design purpose, ulilizing the world's newest constructon material ------ETFE film, featured excellent characteristics in fire resistance, wind and water proof.
Yujiapu ETFE membrane cushions project is the world's largest single layer steel shell structure project, with 143m long 80m wide, consisting of totally 783 ETFE cushions.
This project can the first at home and abroad no matter the application of new technology, new material or structure stress analysis, and complicated connection construction.
