Biochar Production Equipment Biomass Carbonization Plant
- Category: Carbonization Stove >>>
- Supplier: Gongyi Xiaoyi Mingyang Machinery Plant
Share on (62546035212):
Product Overview
Description
Biochar Production Equipment Biomass Carbonization Plant
Product Description
Description:
The carbonization furnace is a horizontal rotating body, which adopts the method of indirect heating. The hot air furnace on the side of the furnace generates high temperature to heat the rotatable furnace body, and the material in the furnace body is thermally decomposed under low oxygen state, generating a large amount. The dry distillation gas and the dry distillation gas are introduced into the combustion chamber through the induced draft fan for secondary combustion; the material is discharged from the end of the furnace body through the furnace body, and the product has a product condensation and collection system at the output end, and the product is cooled and collected; the high temperature smoke discharged by the combustion The gas is pumped to the super dryer for drying the sludge. In the tail gas treatment, when the temperature in the combustion furnace reaches above 800 °C, the dry distillation gas can be completely burned to achieve harmless treatment. After the exhaust gas is cooled by the water-cooled heat exchanger, it is dedusted by a cyclone and discharged into the atmosphere.
Application:
Suitable for all kinds of agricultural and forestry biomass charring making. For example, sawdust, wood chip, wheat straw, rice straw, rice husk, cotton stalk, straw, etc.
Specifications:
| Model | capacity | Size Diameter* length | Machine Auxiliaries | |||||||||||
| THJ 800 | 400-500kg/h | Dia 0.8m *12m | gasifier, dry dust collector, air-lock valve, condenser, tar separator, draught fan, burner | |||||||||||
| THJ1000 | 600-800kg/h | Dia 1m * 12m | ||||||||||||
| THJ1200 | 800-1000kg/h | Dia 1.2m * 12m | ||||||||||||
| THJ1500 | 1000-1200kg/h | Dia 1.5m *12m | ||||||||||||
Main Structure

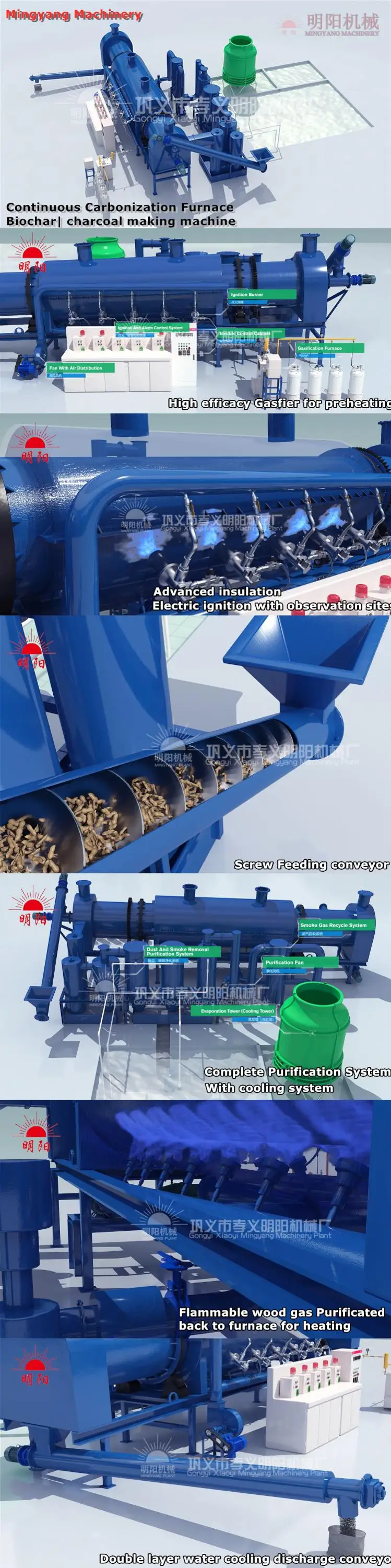

Continuous Type Rotary Drum Carbonization Furnace

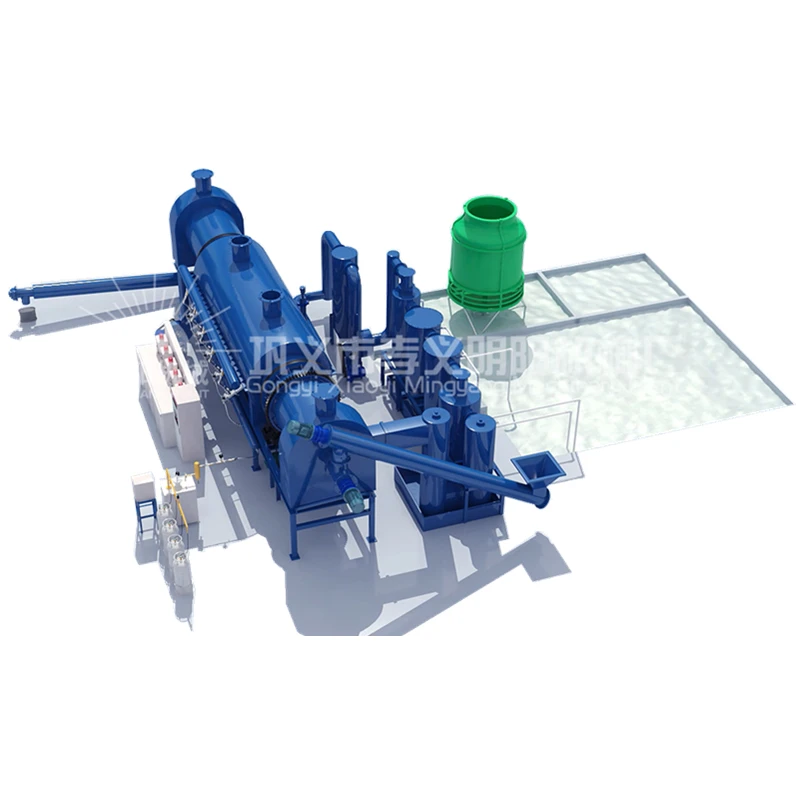

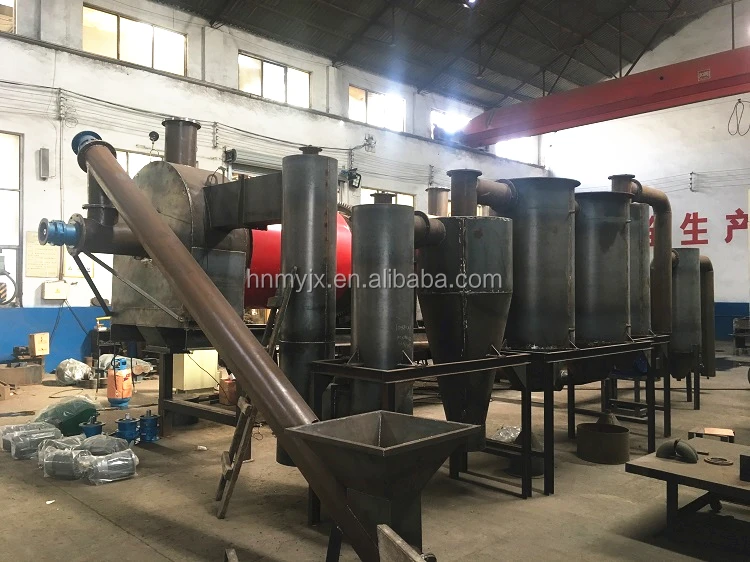

The carbonization system is composed of a quantitative feeder, a rotary cylinder carbonization furnace, a combustion furnace, a combustion blower, a water-cooled heat exchanger, a cyclone, a chimney, and the like.
Continuous carbonization furnace Features:
1.Configuration of the new type gasifier before gas generating.
2.Configuration of the flue gas purification, heat exchange system, and cooling system. The heating steam transforms into water. The flue gas can be converted combustible gas to recycling use.
3. Configuration the cooling discharging machine to cooling the final products, and output the final product.
Processing preview:
The dried biomass raw materials is feeding into the gasifier by the screw conveyor, gasification of carbon powder from the bottom of the conveyor to the carbon powder storage, centralized storage and sales
After spraying, cooling, cleaning,the flue gas produced by gasification furnace will be transfer to self combustion burner for carbon machine for heating furnace.
Start feeding the carbonization machine when internal temperature rose to a certain degree, the raw material inside the carbonization furnace began to produce fuel gas which will be transfer to the burner heating the carbonizer by the draft fan after collected and cleaning by the purification system.
Gasification furnace stop working until shut down, using spontaneous combustion flue gas only.
The finished product after cooling will be packaged,stored and sold.
Then the whole Continuous Type Carbonization Furnace system can keep feeding raw material and discharging final charcoal, enter the process of continuous carbonization stage; the spray water cooling water from purification system and cooling system can be recycled.
Related product
1, Horizontal Carbonization Furnace 2, Hoist Airflow Carbonization Stove

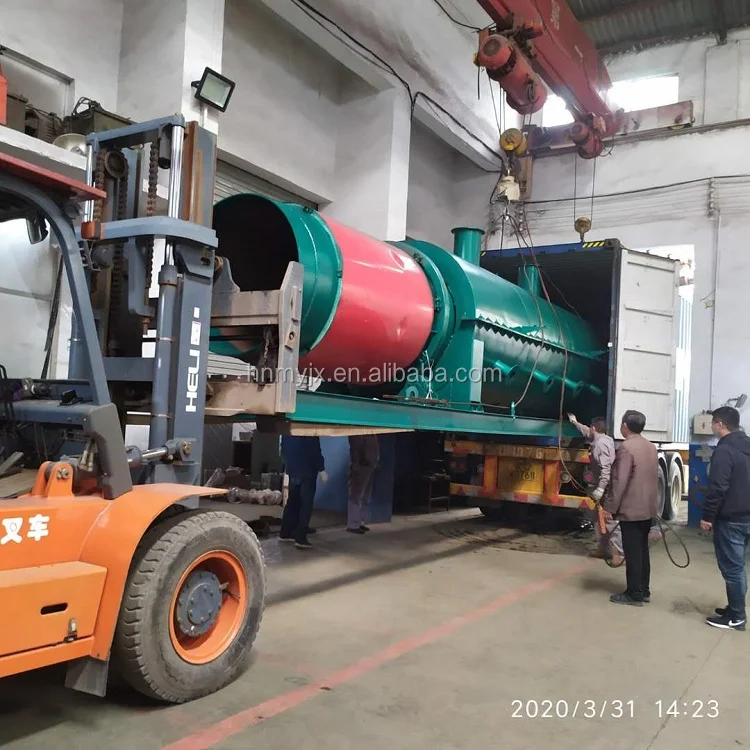

Packaging & Shipping
Total lenth: 12 meters. ( 40' ft container).
Our Services
1. Free technical solution providing--- No matter what materials do you use, will provide professioinal solution related very soon with details.
2. Testing using your materials available.
3, Certificate of Origin and other files are provided.
4. Video chat checking machines available-- there are in stock machines for testing.
5. After all confirmed, will be able to provide site guide service to assemble and training the operating overseas.
Company Information
Gongyi xiaoyi Mingyang Machinery Plant is located in Zhengzhou City, Henan province since year 1982. Our star machines: biomass processing production line includes crushing, drying, briquetting, carbonizing and related charcoal making machines.
Machines named wood crusher, hammer mill, wood drum chipper, rotary dryer for biomass, pipe drying equipment, sawdust briquette machine, horizontal carbonization stove, hoist charcoal kiln,continuous charcoal furnace, charcoal crusher, charcoal briquette machine, shisha charcoal making machine, conveyor, automatic cutter, wheel mill mixer etc.
Our products are widely accepted in both domestic and world markets, and also are exported to more than 30 countries. We have lots of experience to export and cooperate with all over the world. Sincerely welcome you to come for a visit and check our products.
FAQ
Q1:Are you manufacturer or trading company?
A1:We are earliest manufacturer in charcoal making field since 1982. ISO9001 listed. Our machines are factory direct with whole life service. Pls check company profile panoramic picture.
Q2: Do you provide full production line?
A2: Yes, we supply machines from crushing, drying, briquetting, carbonizing. And charcoal powder processing line( pillow, cube charcoal briquette). Conveyor related are provided too.
Q3: How about the quality of your machines?
A3: We offer 1 year warranty for main machine, free spare part if machine issue for product Defect. All of our machines made of special carbon steel, Galvanized steel to make sure high durable long working lifespan. Using boiler grade for core parts.
Q4: Is the price negotiable?
A4: Will provide suitable solution based on your demand and request. Final price pls contact sales to offer you best one!
Q5: What's the main feature of you?
A5: We are upgrading all the equipment, now the machines are with easy operating, long service time, high efficacy, environmental protective, and with lower reasonable price. It will be your first choice to work with!
Q2: Do you provide full production line?
A2: Yes, we supply machines from crushing, drying, briquetting, carbonizing. And charcoal powder processing line( pillow, cube charcoal briquette). Conveyor related are provided too.
Q3: How about the quality of your machines?
A3: We offer 1 year warranty for main machine, free spare part if machine issue for product Defect. All of our machines made of special carbon steel, Galvanized steel to make sure high durable long working lifespan. Using boiler grade for core parts.
Q4: Is the price negotiable?
A4: Will provide suitable solution based on your demand and request. Final price pls contact sales to offer you best one!
Q5: What's the main feature of you?
A5: We are upgrading all the equipment, now the machines are with easy operating, long service time, high efficacy, environmental protective, and with lower reasonable price. It will be your first choice to work with!
