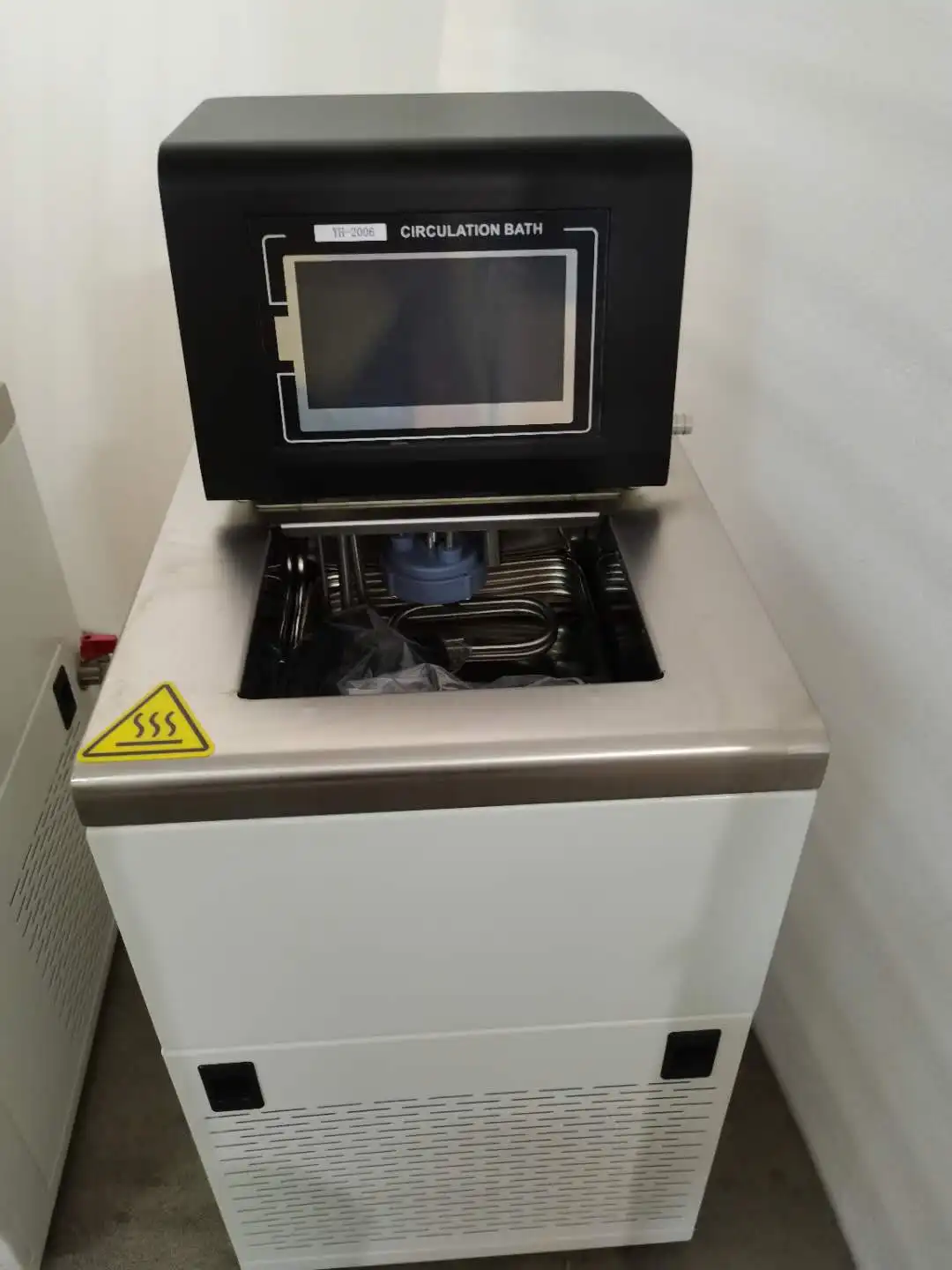

DC Series Thermostatic Water Bath. (heating and cooling bath)

Share on (62546045186):


Price:$638.00 - $658.00

Quantity:


Product Overview

Description



Product Description




Specification


Feature
1.Using enviromentally friendly CFC-free refrigeration technology to meet the requirements of enviromental protection.

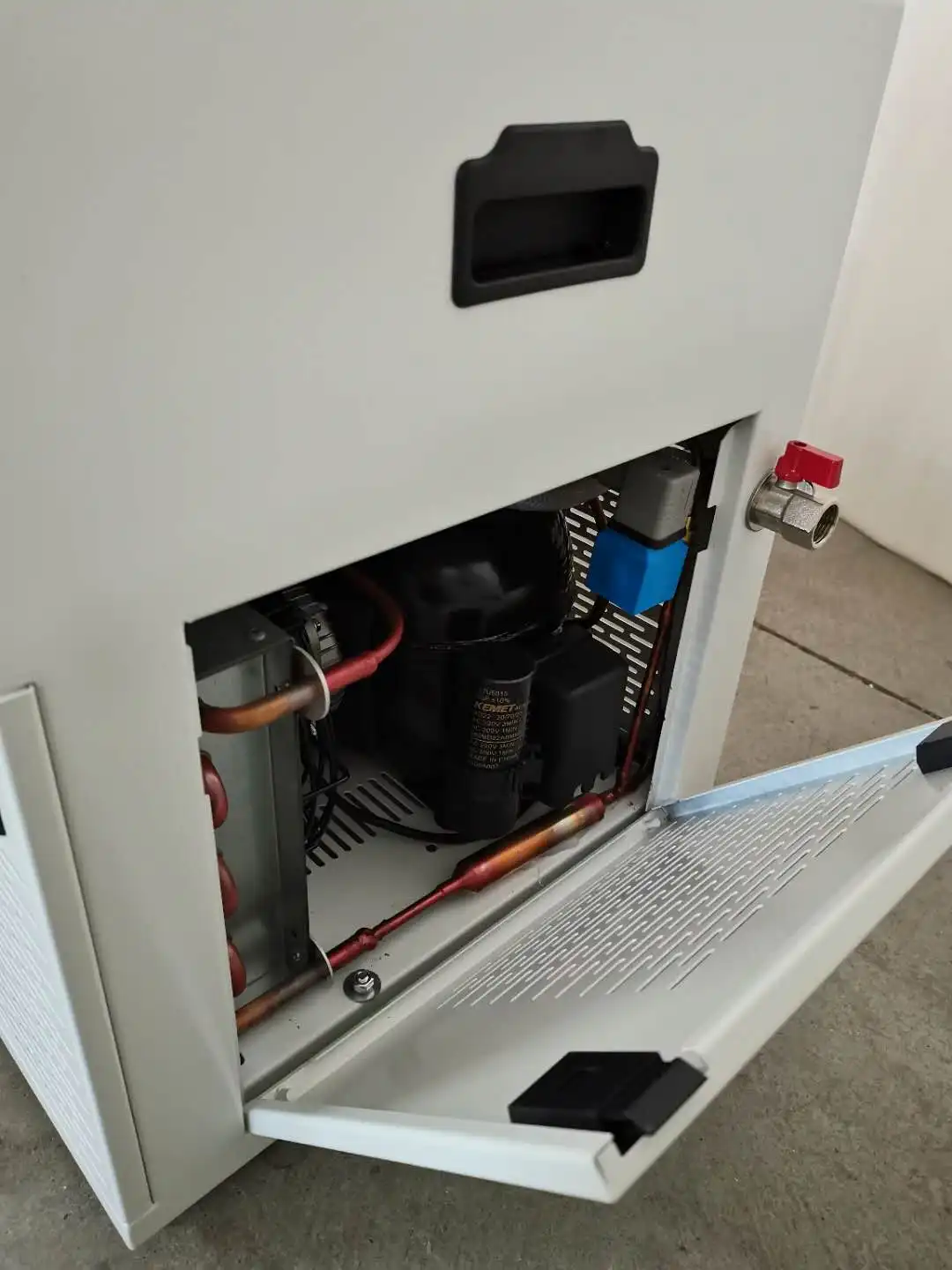

2.Using high-quality full-enclosed air-cooled compressor cooling system,low noise.
3.Full-enclosed air-cooled compressor cooling system with thermal overload protection automatically.
4.With a power-off protection function,automatically delayed for three minutes.

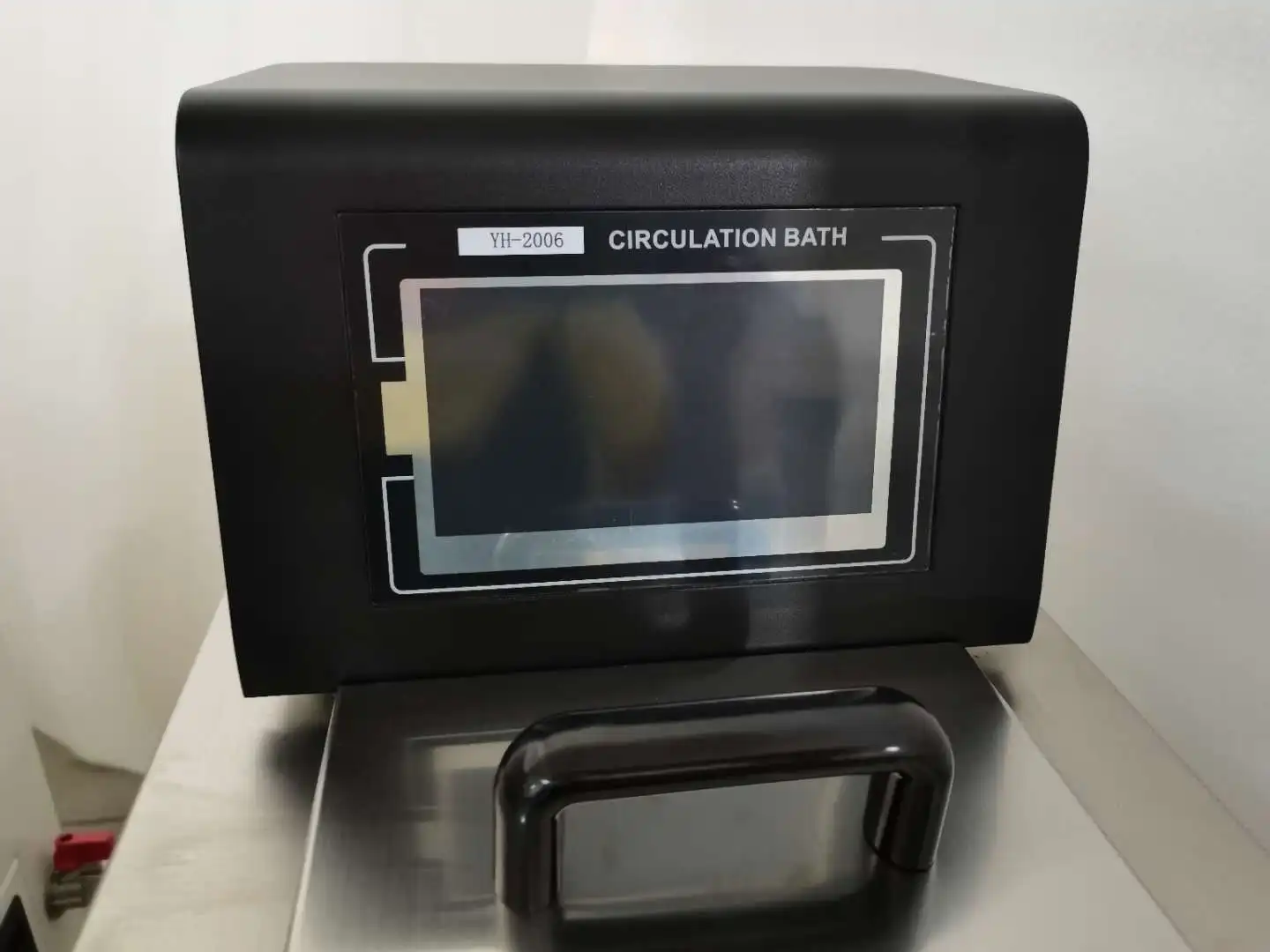

5.Using 7" touch display,easy to understand working condition.
6.Easy to operate,can set the temperature quickly with soft button.
7.Intelligent PID automatically adjust control function.
8.Upper and lower temperature alarm canbe set.
9.With over heat alarm system to ensure the safety apparatus.
10.Inner high-quality stainless steel material.
11.With external circulating pump,can be established the second constant temperature field outside the bath.
12.Cold liquid can be cited outside the tank,cooling the experimental container outside the bath.
13.Using analogue theory,automatic identify the difference between set temperature and the ambient temperature,to confirm whether a single heating or cooling heating work simultaneously to achieve the energy saving.
14.Using DC speed pump,0-15L/min adjustable flow,head for 5 meters.


Model
Temp.
Range(℃)
Temp.
accuracy(℃)
Tank size
(mm3)
Capacity
(L)
Tank size
(mm2)
Cooling capacity(25℃)
Heating power(W)
SDC-6
-5~100
±0.1
260*200*140
6
180*140
420W
1000
DC-1006
-10~100
±0.1
260*200*140
6
180*140
320W
1000
DC-2006
-20~100
±0.1
260*200*140
6
180*140
420W
1000
DC-3006
-30~100
±0.1
260*200*140
6
180*140
420W
1000
DC-4006
-40~100
±0.1
260*200*140
6
180*140
480W
1000
DC-0510
-5~100
±0.1
260*200*200
10
180*140
520W
1000
DC-1010
-10~100
±0.1
260*200*200
10
180*140
420W
1000
DC-2010
-20~100
±0.1
260*200*200
10
180*140
620W
1000
DC-3010
-30~100
±0.1
260*200*200
10
180*140
540W
1000
DC-4010
-40~100
±0.1
260*200*200
10
180*140
460W
1000
DC-0515
-5~100
±0.1
300*250*200
15
235*160
760W
1550
DC-1015
-10~100
±0.1
300*250*200
15
235*160
760W
1550
DC-2015
-20~100
±0.1
300*250*200
15
235*160
760W
1550
DC-3015
-30~100
±0.1
300*250*200
15
235*160
730W
1550
DC-4015
-40~100
±0.1
300*250*200
15
235*160
1240W
1550
DC-2020
-20~100
±0.1
300*250*260
20
235*160
1550W
2500
DC-0530
-5~100
±0.1
440*325*200
30
310*280
1800W
2500
DC-1030
-10~100
±0.1
440*325*200
30
310*280
2000W
2500
DC-2030
-20~100
±0.1
440*325*200
30
310*280
2400W
2500
DC-3030
-30~100
±0.1
440*325*200
30
310*280
2500W
2500
DCW-1015
-10~100
±0.1
280*250*220
15
235*160
760W
1000
DCW-2008
-20~100
±0.1
280*250*140
10
235*160
620W
1000
DCW-3506
-35~100
±0.1
260*200*140
7
180*140
750W
1000
DCW-3510
-35~100
±0.1
250*200*200
10
180*140
750W
1000
DCW-0506
-5~100
±0.1
260*200*140
7
180*140
520W
1000
DCW-4006
-40~100
±0.1
260*200*140
7
180*140
750W
1000


FAQ


Our products provide one-year warranty service, within the warranty period, you can consult our customer service number if you have any questions.
