Tire workshop wheel alignment machine, accurate 3D measurement alignment machine

Product Overview

Description

Wheel alignment  3D





Technical features:

1. Accurate 3D measurement technology: The measurement scheme based on the car body is more precise and more stable;

2. High-speed camera measurement system, 2 sets of high-speed cameras combined with four target discs;

3. Target disk device: The target disk does not have electronic components, replace the traditional electronic sensor, eliminate possible circuit failures;

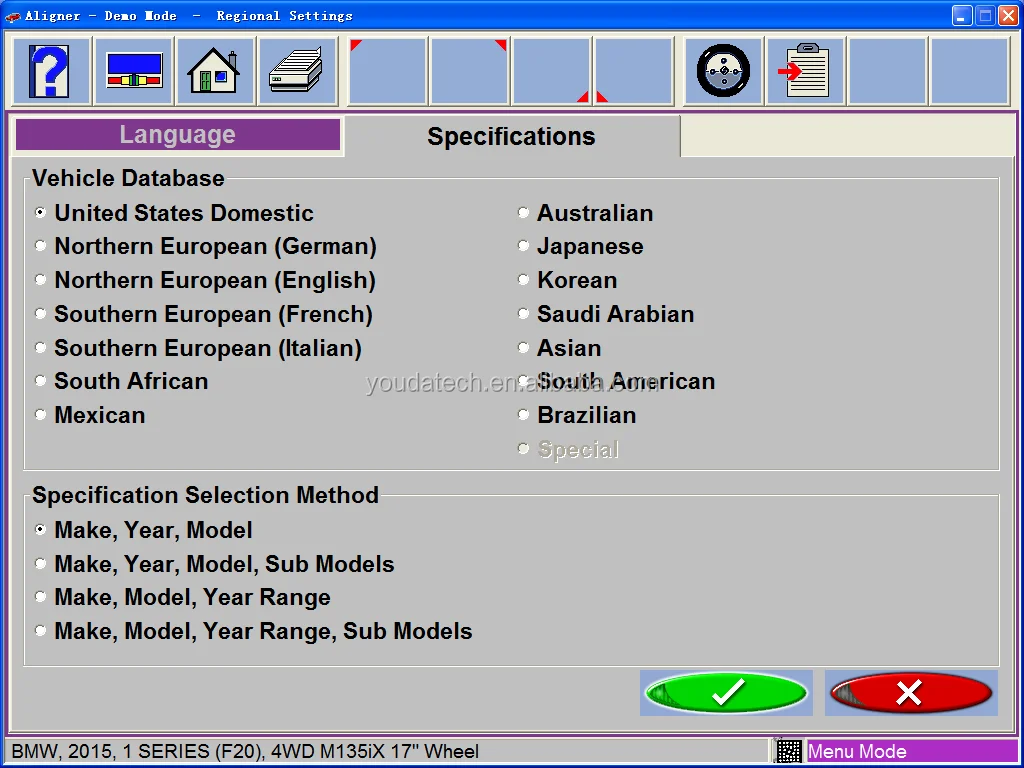

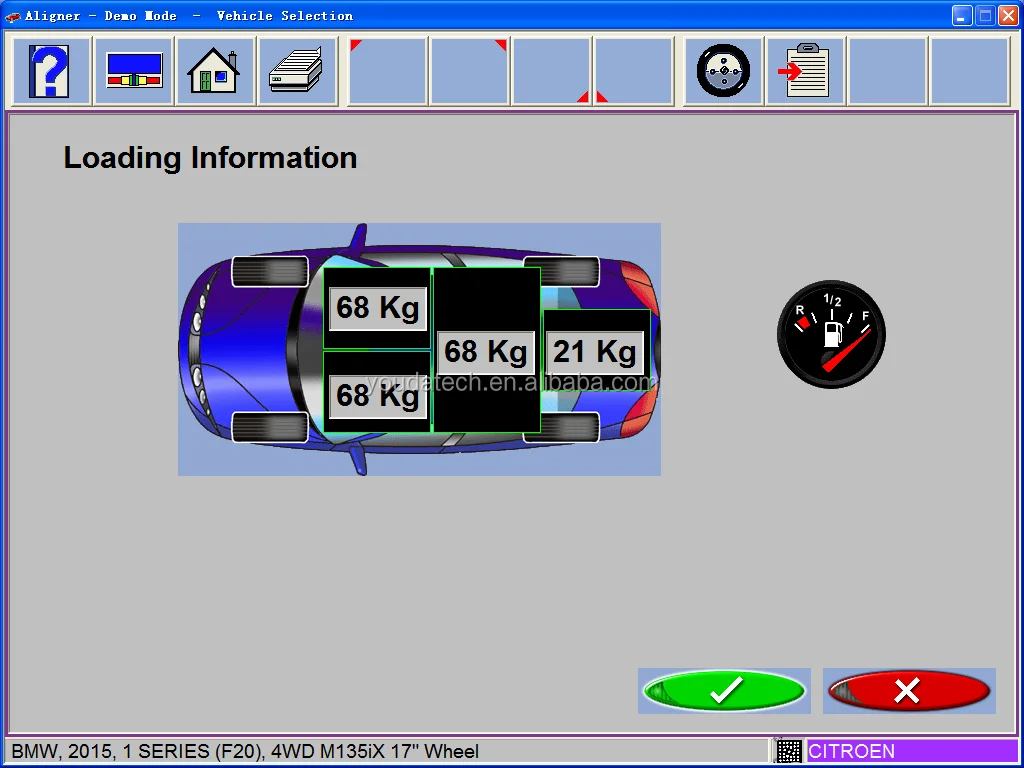

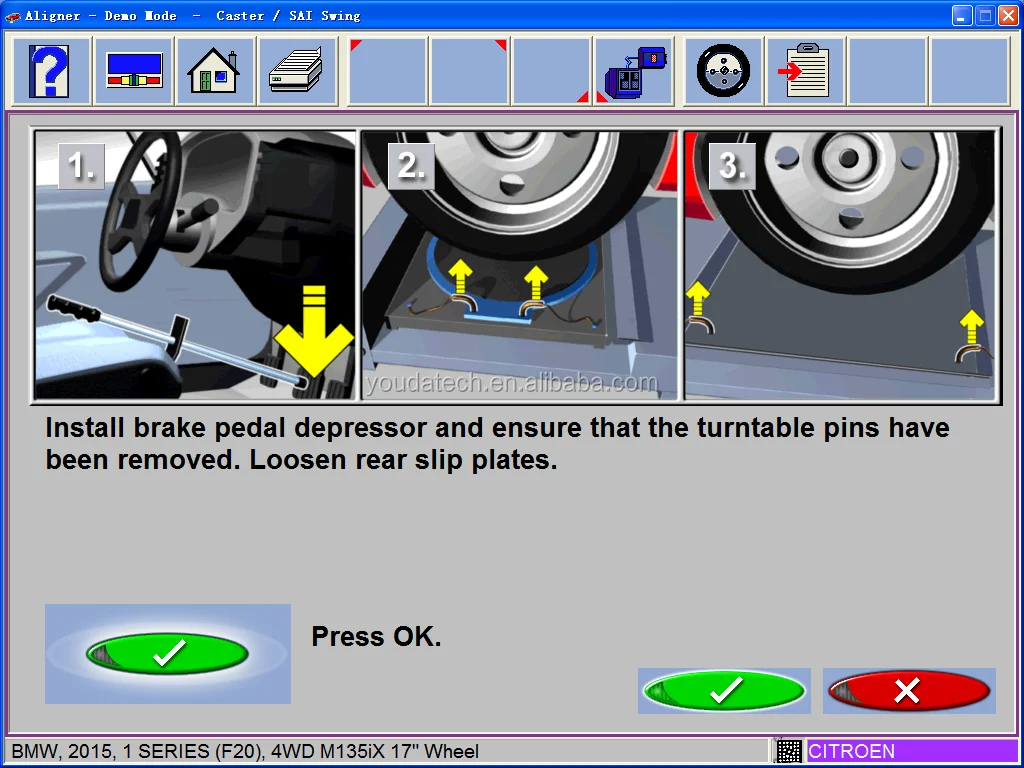

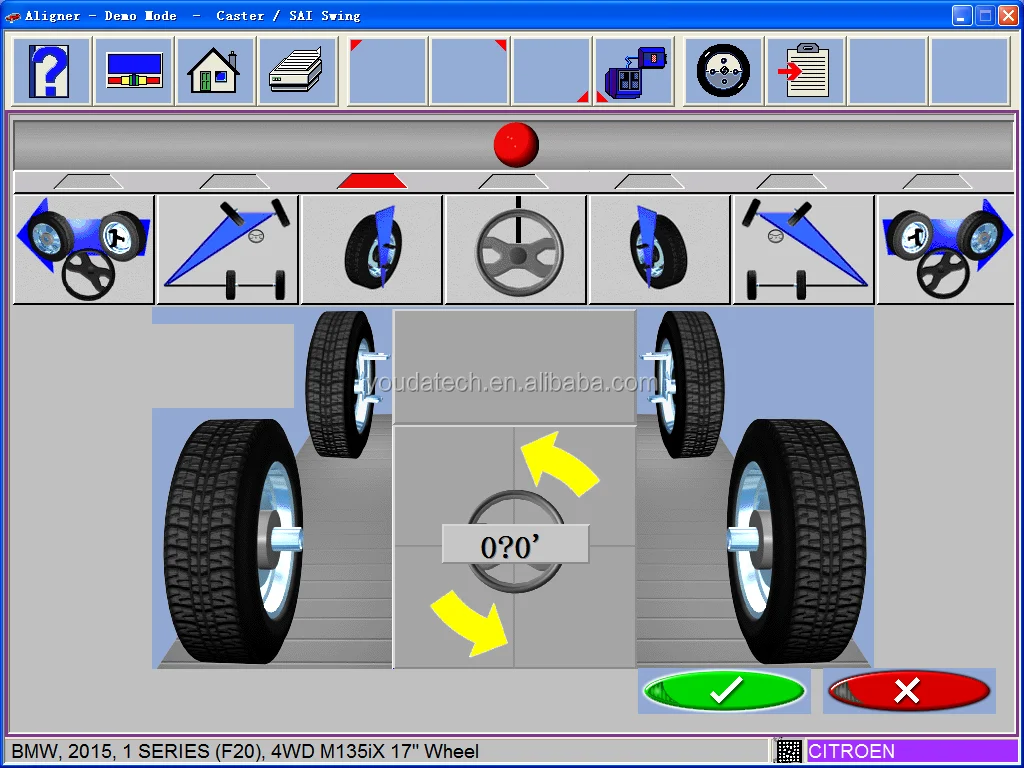

4. Software system: Easy operation, fast measurement, read the basic positioning data of wheel aligner within two minutes;



5. Support 26 language words; Support for remote upgrade and diagnosis;







Technical Parameters:

Measurement item	Measurement range	Measurement accuracy
Toe	±5°	±0.01°
Total Toe	±10°	±0.01°
Camber	±15°	±0.01°
kingpin Caster	±20°	±0.04°
Kingpin Inclination	±25°	±0.04°
Set Back	±10°	±0.01°
Thrust angle	±10°	±0.01°
Maximum steering angle	±45°
