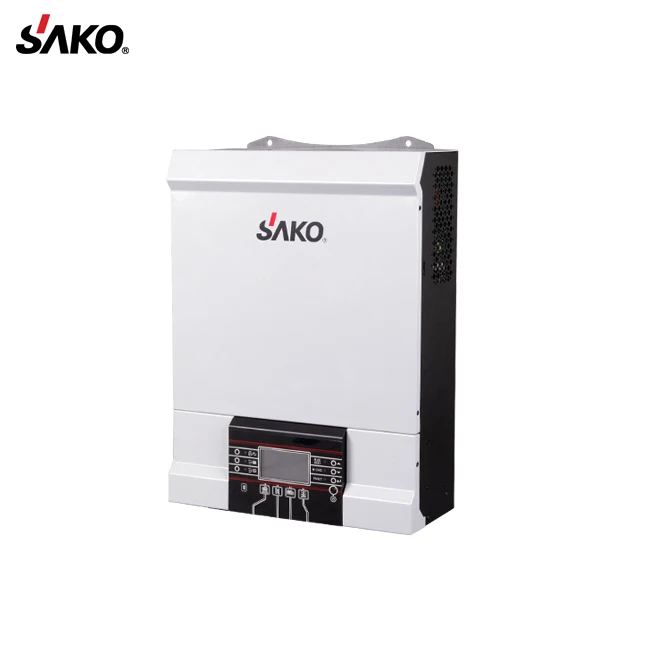

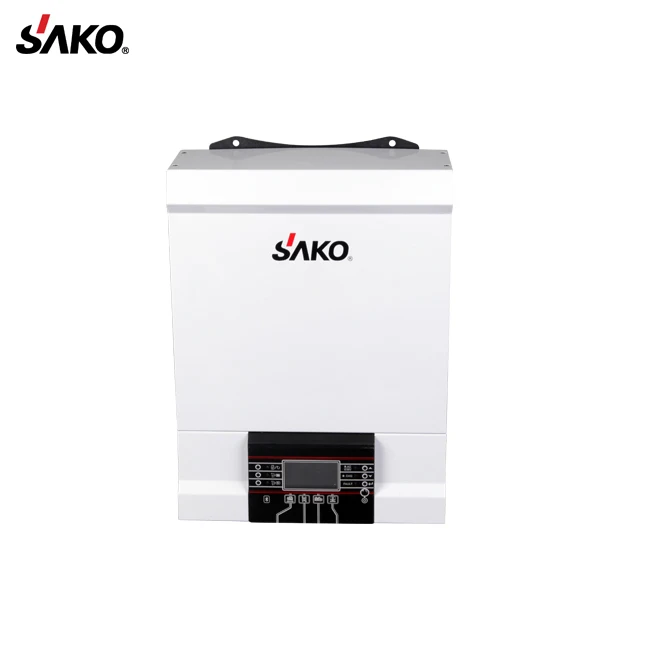

NEW DESIGN 3KW MPPT Solar Inverter ,LCD Display can be pull , supports No Battery Working and Wifi APP
- Category: >>>
- Supplier: Shenzhen King Sako Electronics Co. Ltd.
Share on (62546117327):
Product Overview
Description
SUNON PLUS 3KW Off Grid Mppt Solar Inverter, Supports No Battery Working And WIFI Remote Control
Features
1. With MPPT solar charger controller built inside.
2. Wide PV input range (Up to 600Vdc), can work without battery during the day time.
3. Various communication such as WIFI/RS485/RS232 optional.
4. Smart and intelligent pure sine wave, high frequency technology,wall amounted design,light weighted and easy to operate
5. Selectable charging current based on applications
6. Configurable AC/Solar input priority via LCD setting
7. Compitable with (LI Ion, LiFePo4 and ect.), batteries with BMS system and battery equalization
8. Auto restart while AC is recovering, auto charge and switch, unattended operation
9. Smart battery charger and management for optimized battery performance
10. High Efficient DC-To-AC Conversion.Minimizing Energy Loss and self power consumption
11. All around protection functions: Overload/short circuit protection/high voltage/low battery voltage/high temerature,etc.
Specification
SUNON PLUS Smart pure sine wave Solar inverter +MPPT solar charger+AC charger inside, high frequency technology, 100% power, Configurable AC/Solar input priority via LCD setting.Wall mounted design. AC Output: 230V. Support wifi and computer monitor withRS232 interface.Max PV input: 500Vdc. Can work without battery at daytime.
Product Description
| SUNPOLO TECHNICAL PARAMETER | ||
| Rated Power | SUNON PLUS 3.2KW | SUNON PLUS 5.2KW |
| INPUT | ||
| Voltage | 230VAC | |
| Voltage Range | 176-280 VAC at 100% load | |
| 110-280 VAC at 50% load | ||
| Frequency Range | 50Hz/60Hz(Auto sensing) | |
| OUTPUT | ||
| AC Voltage Regulation(Batt.Mode) | 230VAC±3% | |
| Surge Power | 6400VA for 5 sec | 10400VA for 5 sec |
| Efficiency(Peak) | >95% ( Rated R load, battery full charged | |
| Transfer Time | 10ms typical (UPS) | |
| 20ms typical (Appliances) | ||
| Waveform | Pure sine wave | |
| BATTERY | ||
| Battery Voltage | 24 VDC | 48 VDC |
| Floating Charge Voltage | 27 VDC | 54 VDC |
| Overcharge Protection | 32 VDC | 64 VDC |
| SOLAR CHARGER & AC CHARGER | ||
| Solar Charger Type | MPPT | |
| Maximum PV Array Open Circuit Voltage | 500VDC | |
| Maximum PV Array Power | 4000W | 4000W |
| MPP Range@ Operating Voltage | 120-450VDC | 120-450VDC |
| Maxmum Solar Charge Current | 80A | 80A |
| Maximum AC Charge Current | 60A | |
| PHYSICAL | ||
| Dimension,D X W X H (mm) | 492*300*130 | |
| Net Weight(kgs) | 9.45 | 10.6 |
| Communication Interface | Removable OTG USB/RS232/RS458/BLE/Dry-contact,BMS interface, | |
| OPERATING ENVIRONMENT | ||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
| Operating Temperature | -10℃ to 50℃ | |
| Storage Temperature | -15℃ to 60℃ | |
new products
other Products
Company Information
Certifications
Packaging & Shipping
FAQ
FAQ
Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: One year warranty on Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.,,
