12kw hybrid solar inverter 15kva 48v 80A mppt 230v/400v single or 3 phase output off grid parallel china inverter solar supplier

Product Overview

Description

12kw hybrid solar inverter 15kva 48v 80A mppt 230v/400v single or 3 phase output off grid parallel china inverter solar supplier

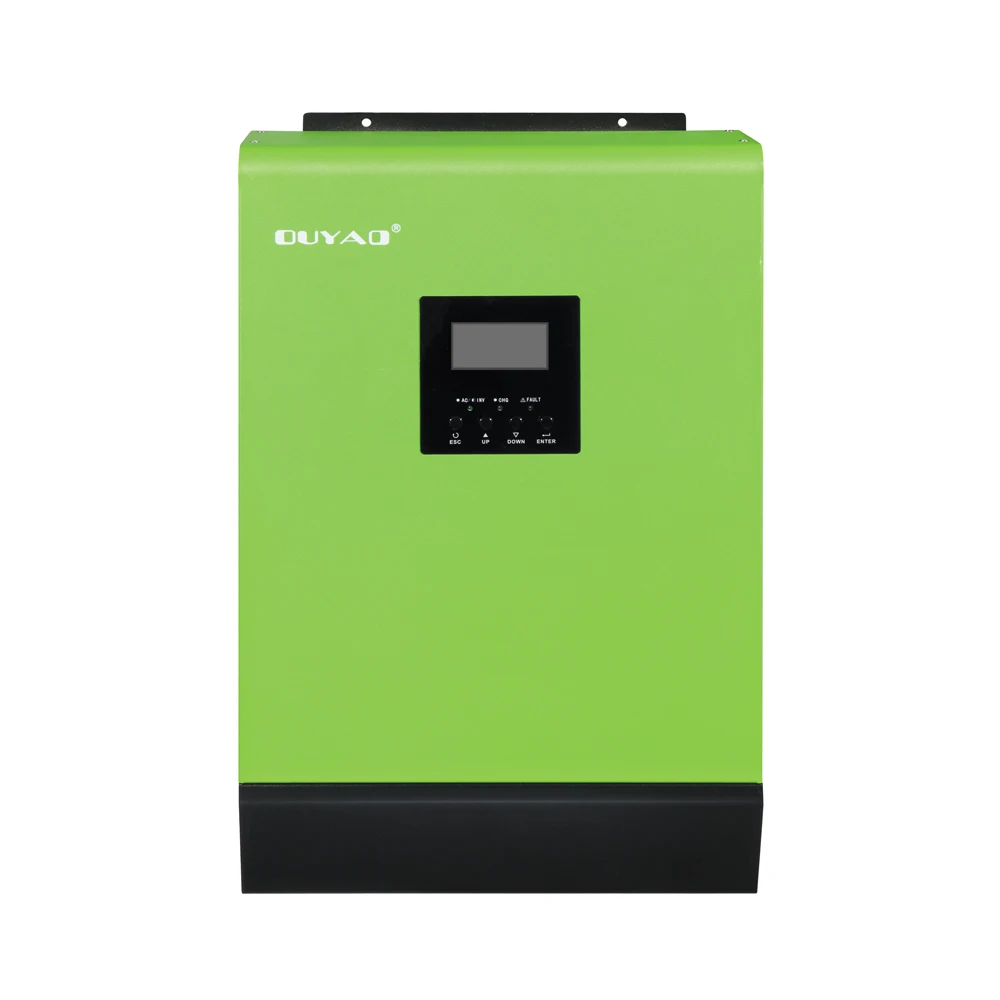

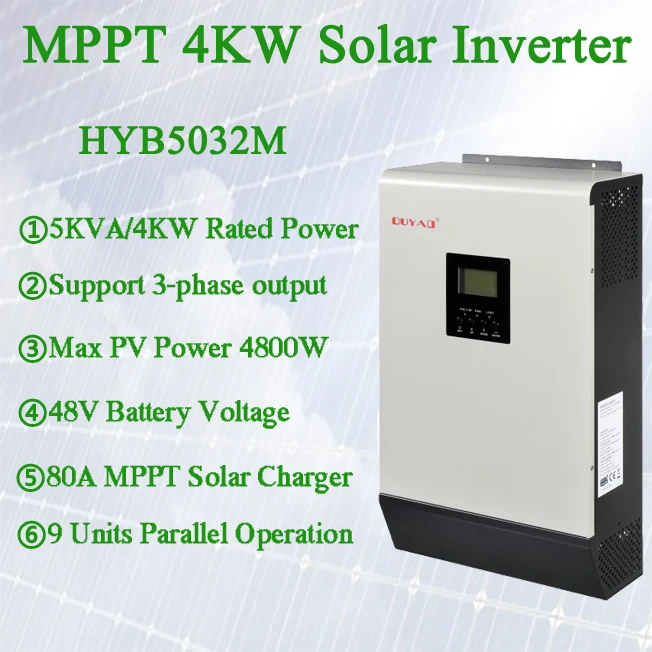

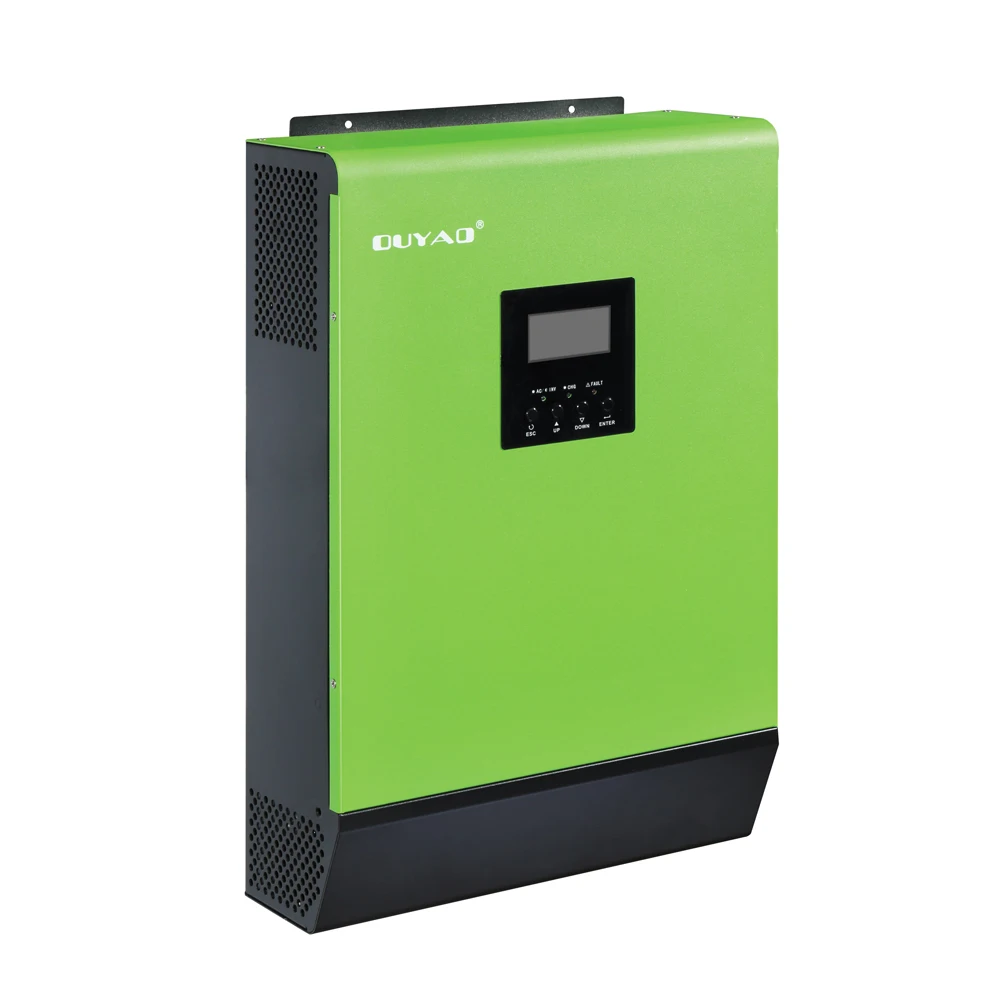

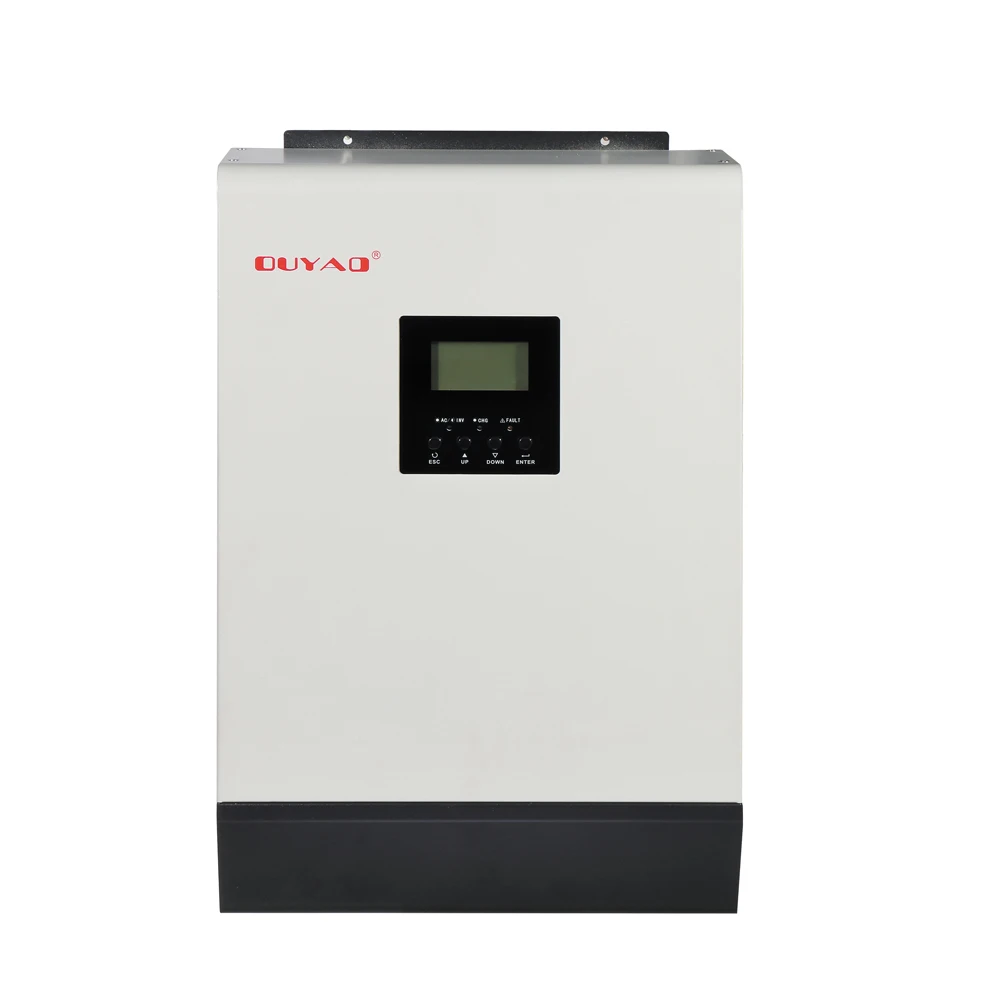

  Picture :

Notice:12KW solar inverter consists of 3pcs 5KVA/4KW inverters(3pcs 4KW inverters parallel operation with single phase 230Vac 50HZ/60HZ)



  Features:

* Pure sine wave inverter

* Built-in MPPT solar charge controller

* Selectable input voltage range for home appliances

* Selectable charging current based on applications

* Configurable AC/Solar input priority via LCD setting

* Compatible to mains voltage or generator power

* Auto restart while AC is recovering

* Overload and short circuit protection

* Battery equalization for optimized battery performance and lifecycle

* Cold start function

* Parallel operation with up to 9 units only available for 5KVA models



Specification:



Model No.		HYB3022Ms	HYB3022M	HYB5032M	HYB5032MN
Rated power		3000VA /2400W	3000VA /2400W	5000VA /4000W	5000VA/5000W
Input	voltage	230VAC
	selectable voltage range	170-280VAC (for personal computers) 90-280VAC (for home appliances)
	Frequency range	50Hz/60Hz (auto sensing)
Output	AC voltage regulation (Batt.mode)	230VAC±5%
	Surge power (5 seconds)	6000VA	6000VA	10000VA	10000VA
	efficiency (peak)	93%
	transfer time	10ms(for personal computers); 20ms (for home appliances)
	waveform	pure sine wave
Battery&AC charger	battery voltage	24VDC	24VDC	48VDC
	floating charge voltage	27VDC	27VDC	54VDC
	overcharge protection	31VDC	31VDC	62VDC
	maximum charge current	25A	60A	60A
	MAX PV array power	720W	1200W	4800W	5000W
	MPPT range@ operating voltage	30~66V	30~66V	60-115V
	maximum PV array open circuit voltage	75VDC	75VDC	145VDC
	MPPT charging current	25A	40A	80A
	maximum efficiency	98%

Drawing:

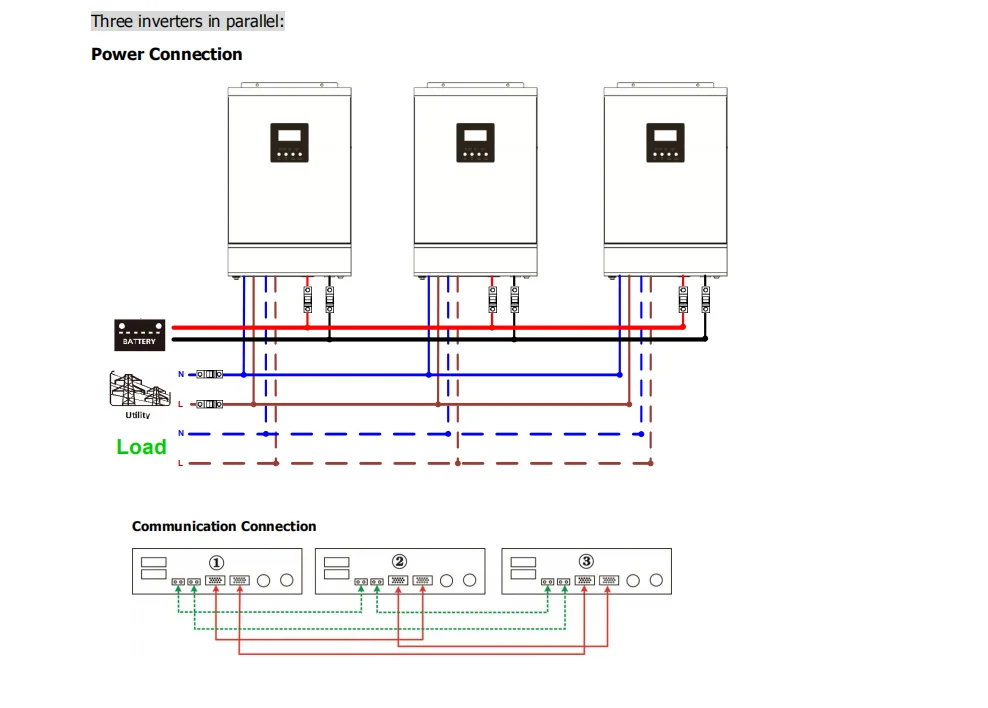

Single phase:

Three phase:

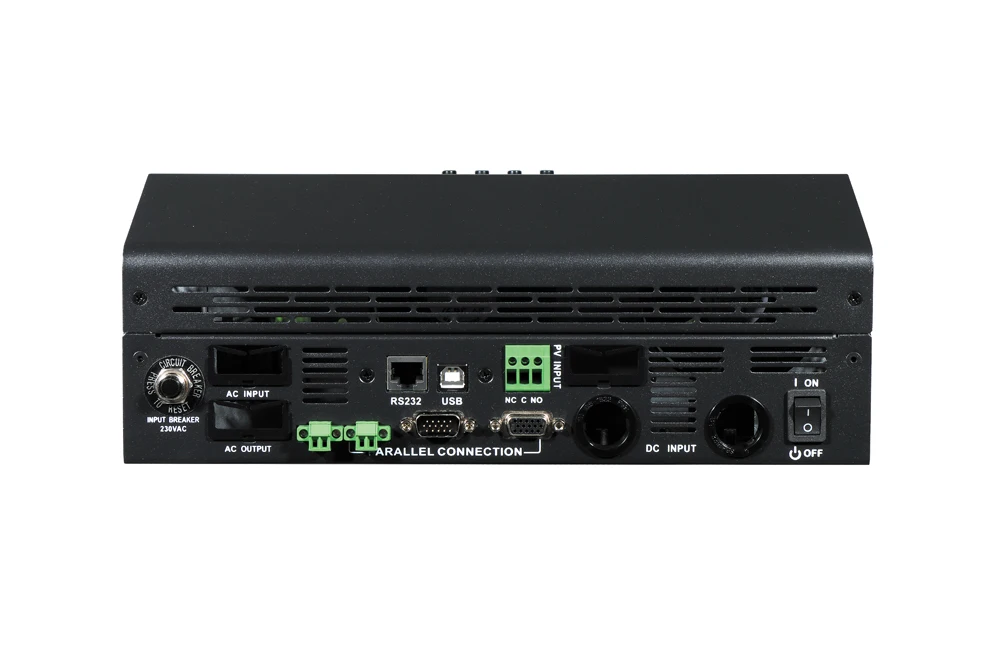

Products Detail:



Package:

Project Case:



Production line:



Factory power &Certifications:





FAQ:

Q1: How to choose a right inverter?

A1:Tell us your demand, then our sales will recommend a suitable inverter to you.



Q2: What's the different between inverter and solar inverter?

A2:  Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.



Q3: How about the delivery time?

A3:  3 days for sample; 25 days for bulk order.



Q4: What is the warranty of inverter?

A4: Two year warranty



Q5: How to solve the technical problem?

A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
