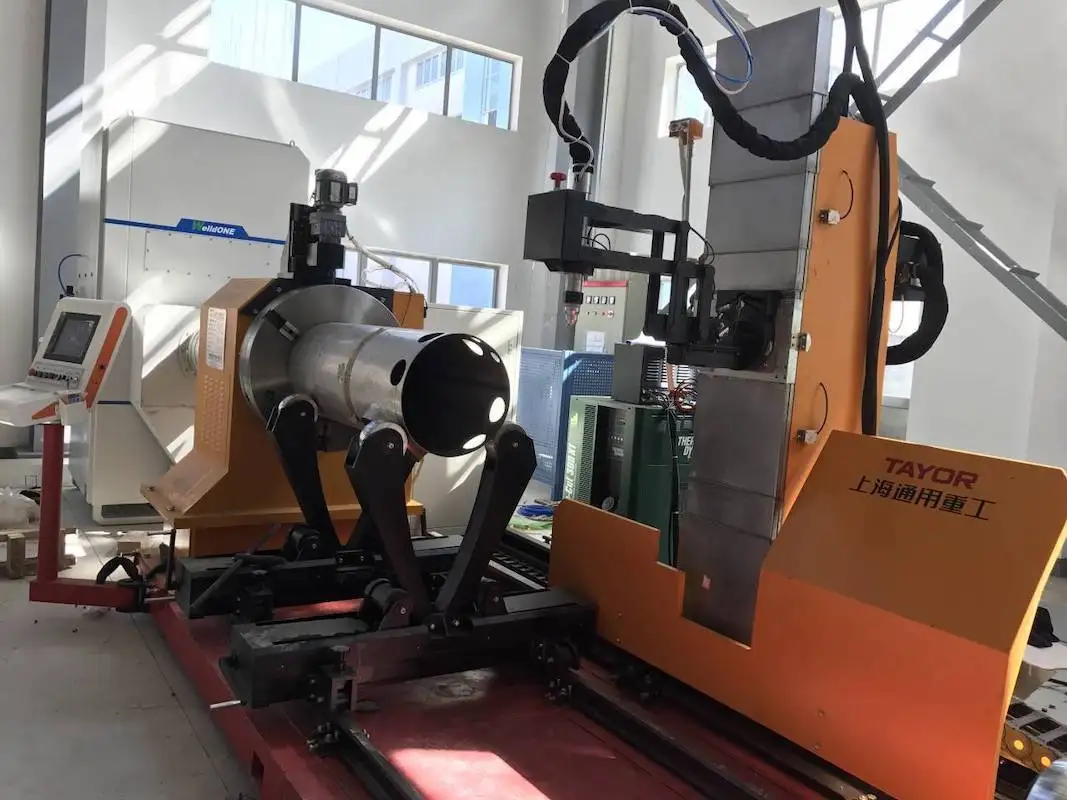

Plasma cutting machine for pipe from TAYOR

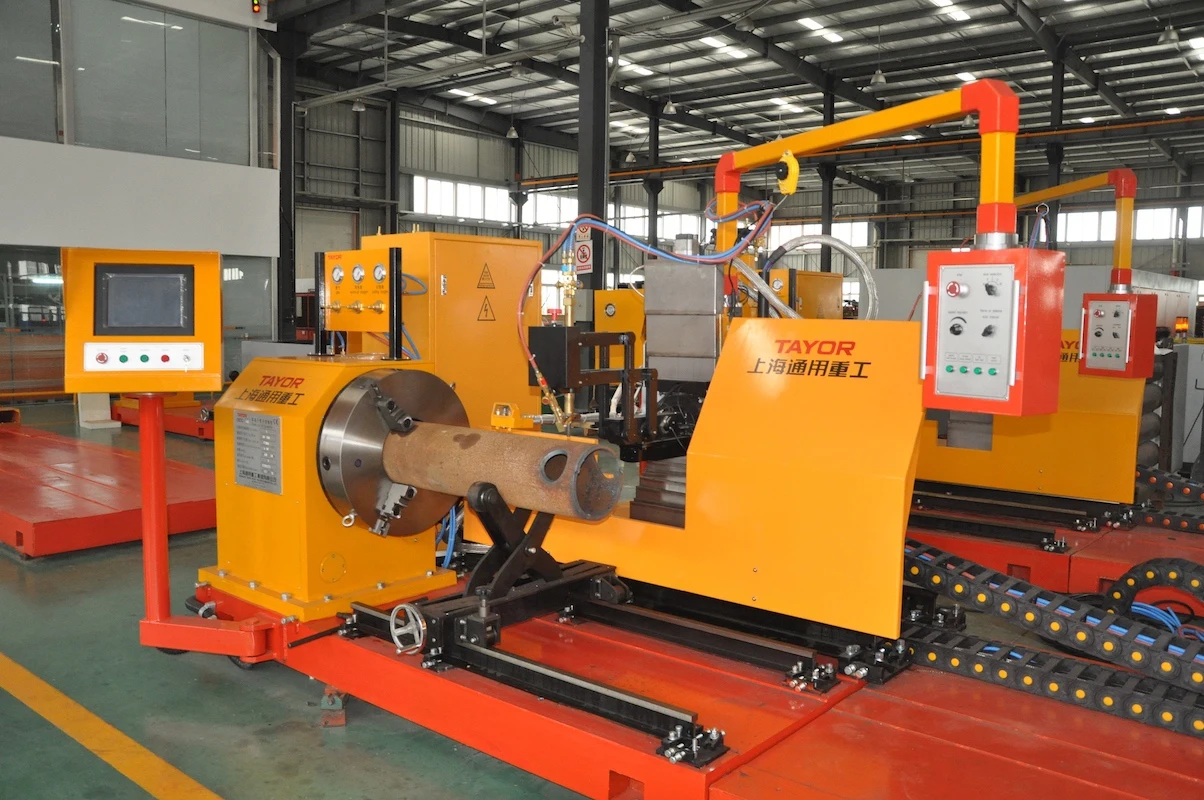

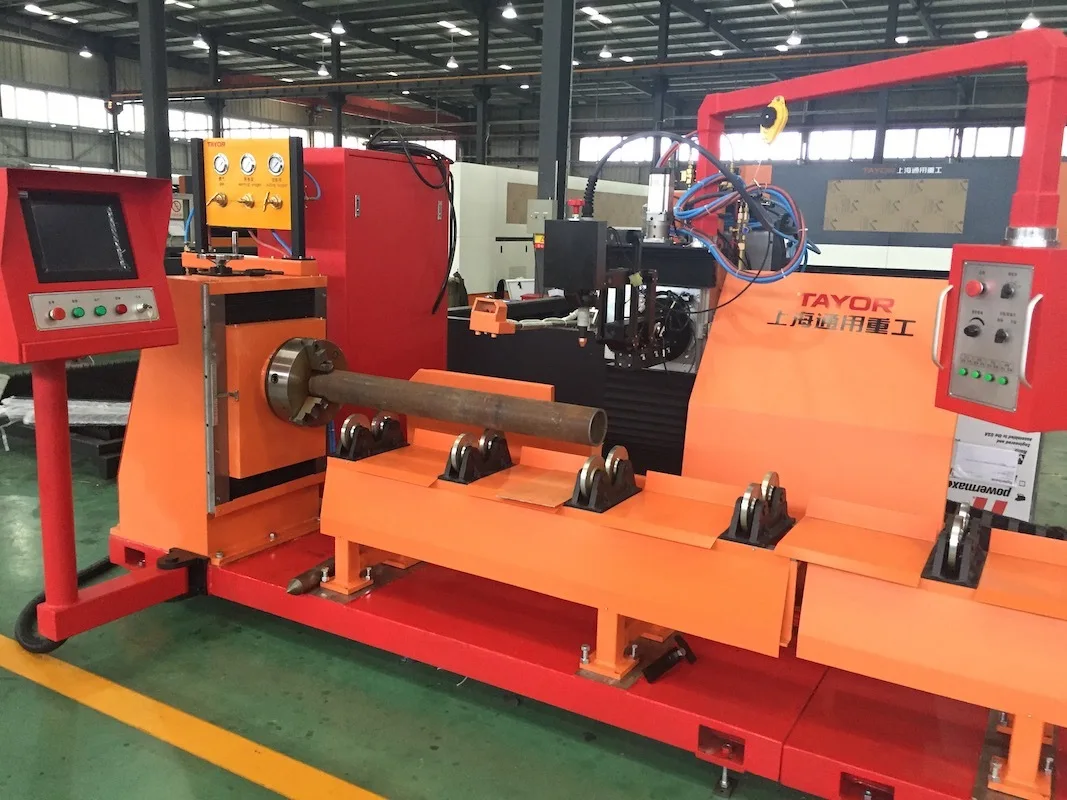

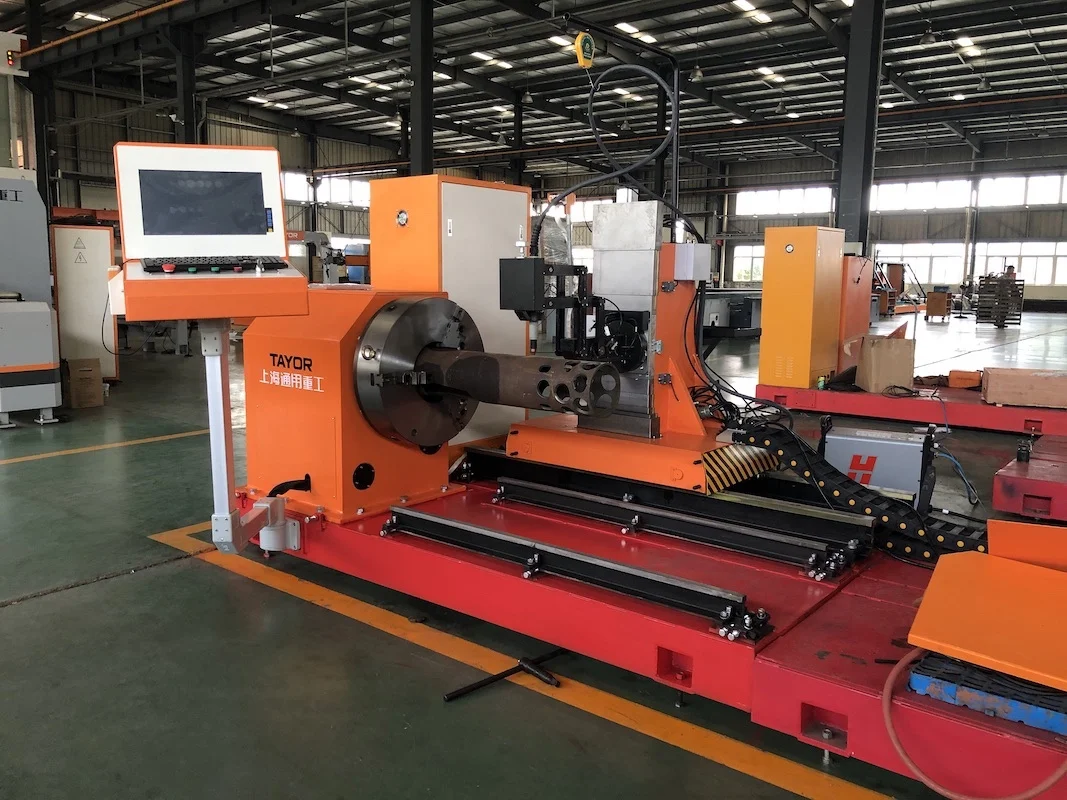

CNCXG series CNC pipe profile cutting machine

CNC pipe profile cutting machine is specially designed equipment for steel pipe 3-D automatic cutting. After input of basic data or leading proper format files, it is capable of automatically processing hole, beveling, grooving, multi-branch and shrimp sections.

Optional items:

5 jaws concentric chuck

Turning roll(cutting pipe diameter can be up to 2500)

Fast pipe/fastframe software

Electric jaw

Electric adjusting bracket

Photoelectric sensor

Technical Specification

Model CNCXG800

Cutting Pipe Diameter (mm)Φ60-800

Pipe Length(mm) 2000-12000

Cutting Thickness(mm) Flame:5-60mm Plasma:1-50mm

Plasma Max Beveling Angle ±45°

Flame Max Beveling Angle±60°

Basic Components

Pipe Chuck:3 jaws concentric chuck

Cutting Mode: Flame and Plasma

Number Of Control Axis:2-6

Driving Motor:Panasonic/Yaskawa

Available Plasma Power: Hypertherm, Kjellberg, Victor, ESAB

Other Data

Operation LanguageEnglish or Chinese

Input Power Voltage3×380V±10% 50Hz / according to the user's local condition

Machine Features

Oxy-fuel and plasma cutting and beveling

Maximum cutting pipe diameter 1600mm

3D Cutting
Touch screen panel, convenient and fast data inputting,

easy to use and learn


Saving cutting data any time, able to create the technical database by user


Compatible with Steel Structure designing software, expanding of the machine function

Main Application

CNC pipe profile cutting machines are widely used in steel structure, shipbuilding, bridge, and steel tower building, petrochemical piping and pressure vessel industry.

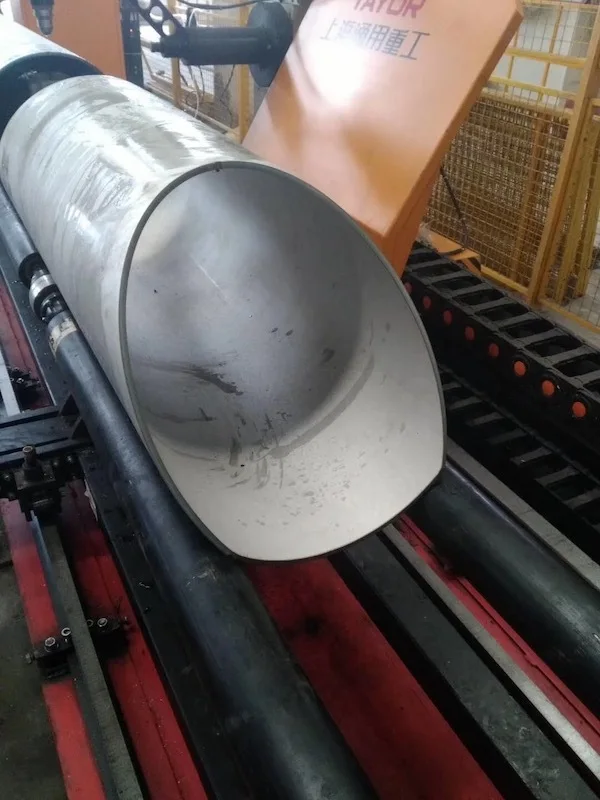

Pipe cutting samples

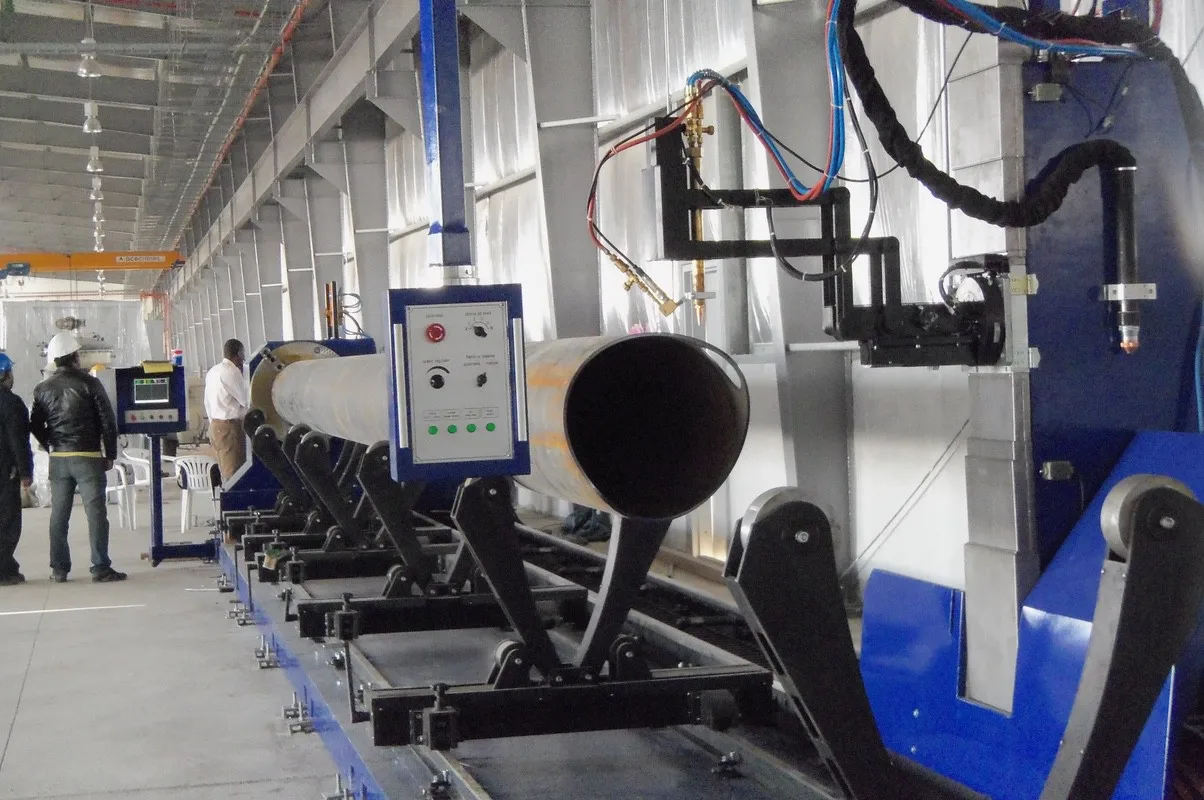

Users site

Packaging & Shipping
