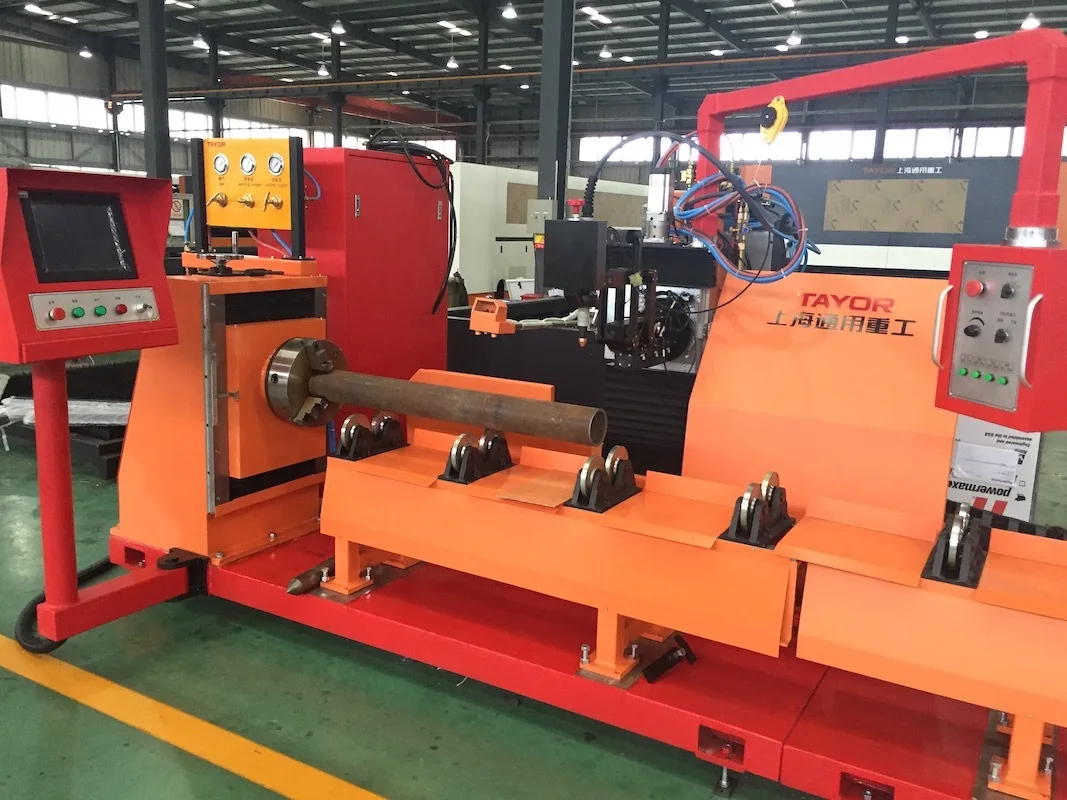

TAYOR heavy duty Cnc plasma pipe cutting machine
- Category: >>>
- Supplier: Shanghai TAYOR Welding Machine Co. Ltd.
Share on (62546289607):
Product Overview
Description
Product Description

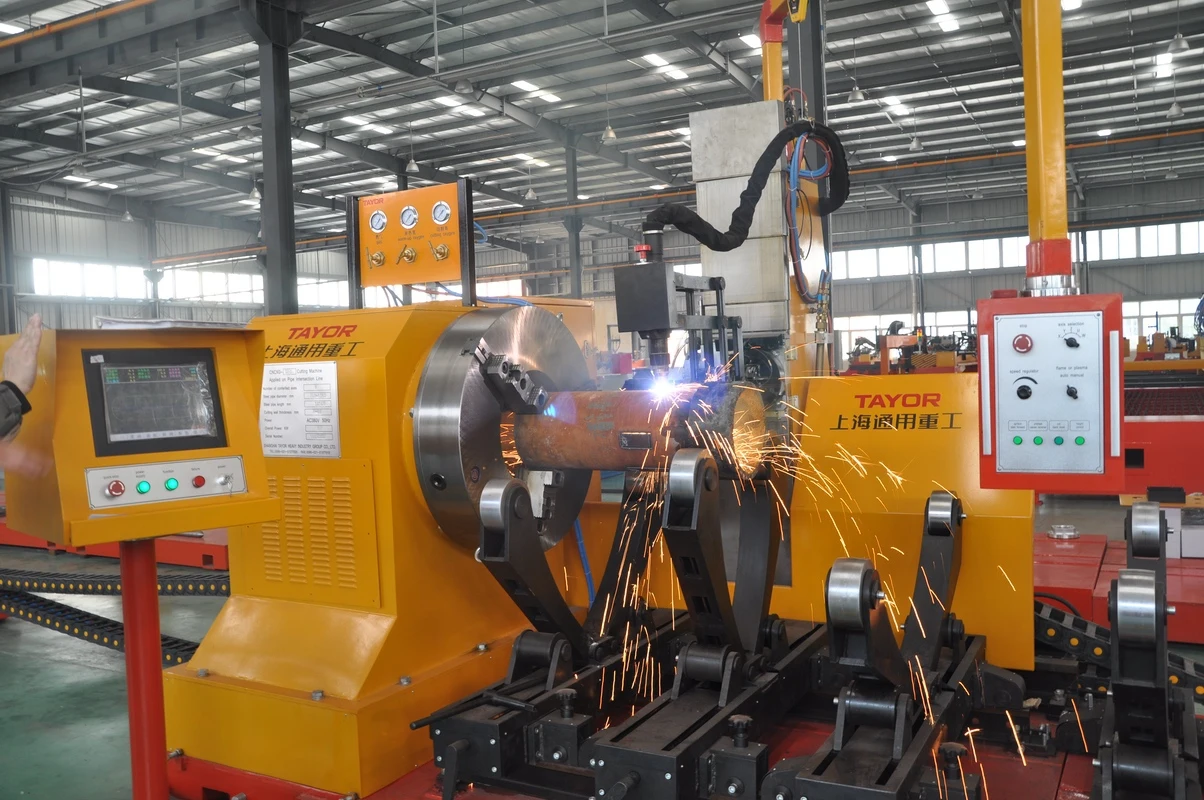

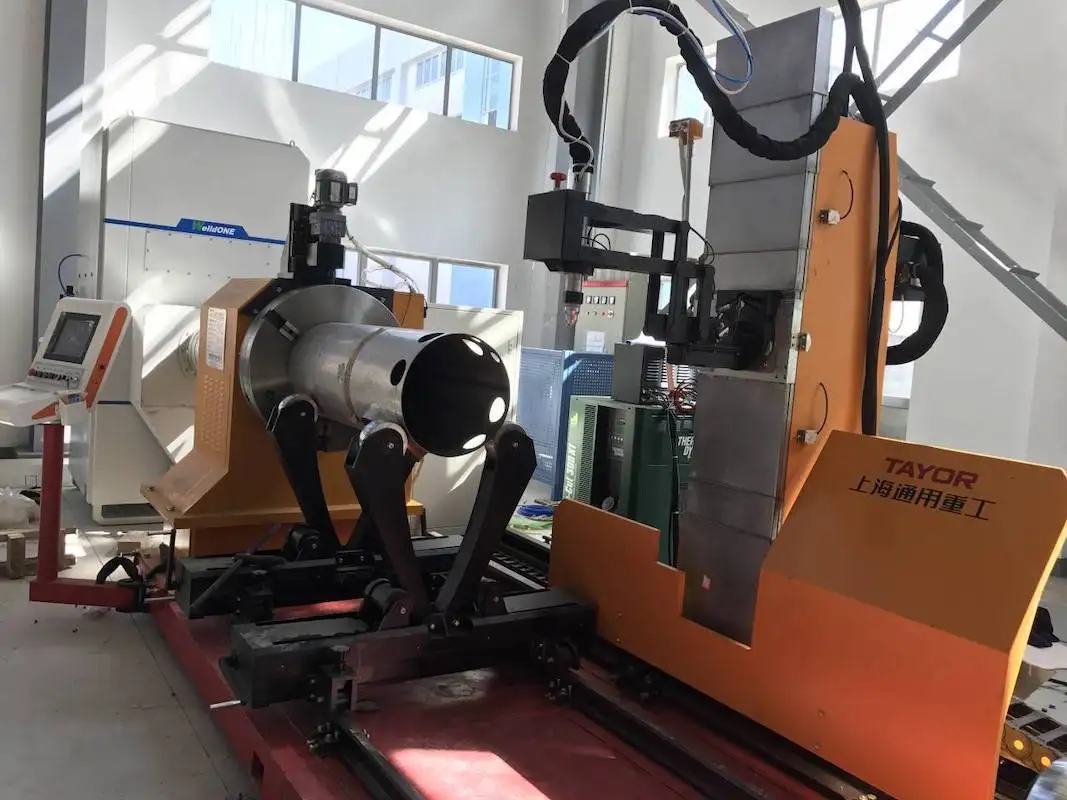

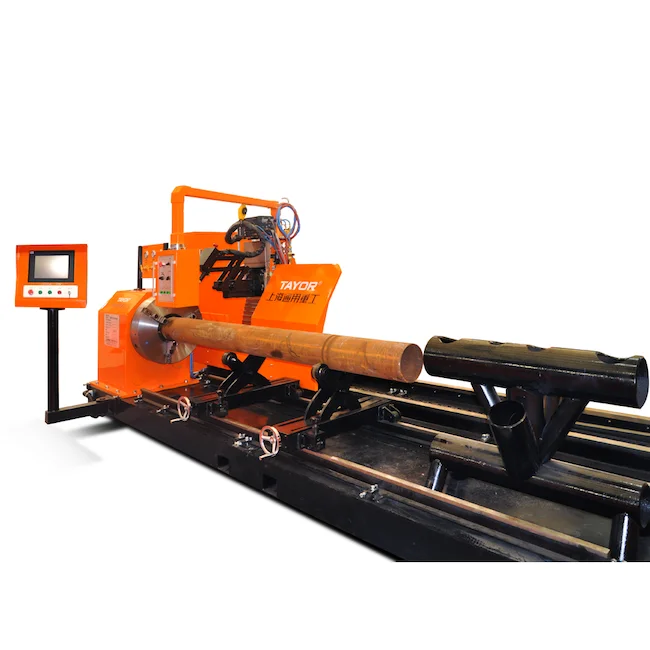

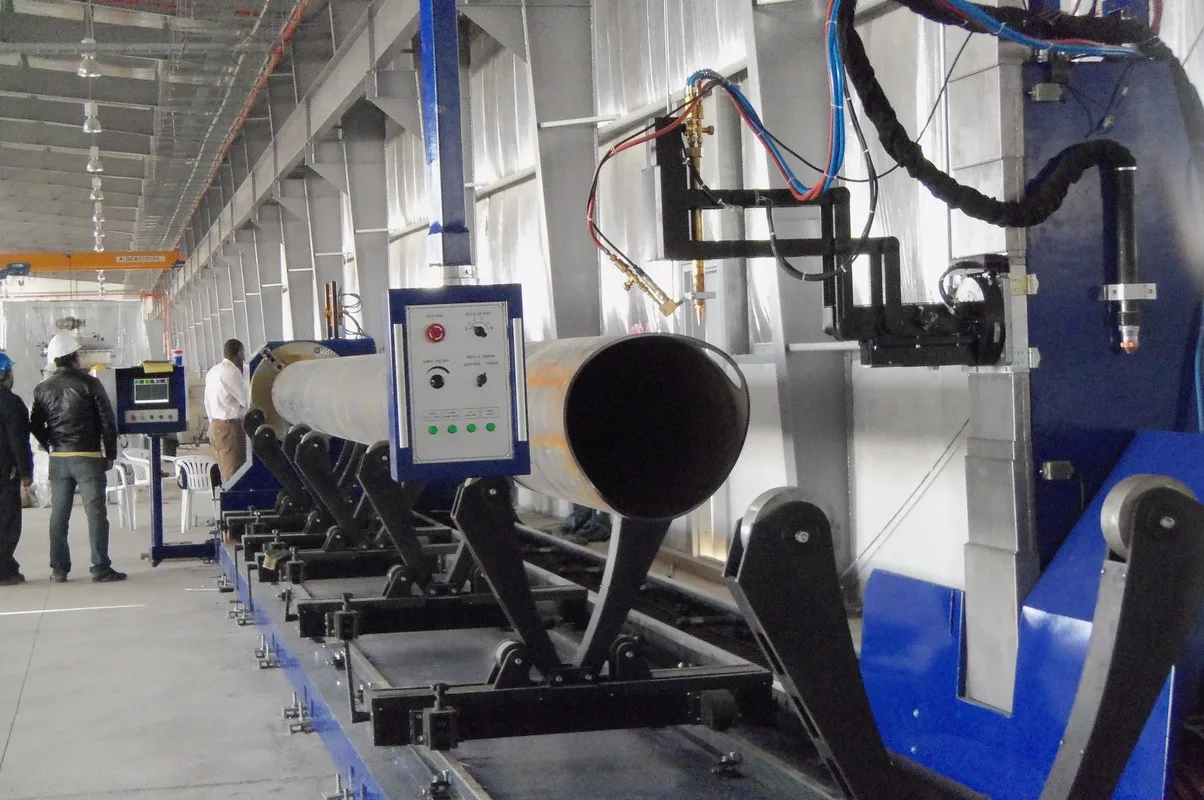

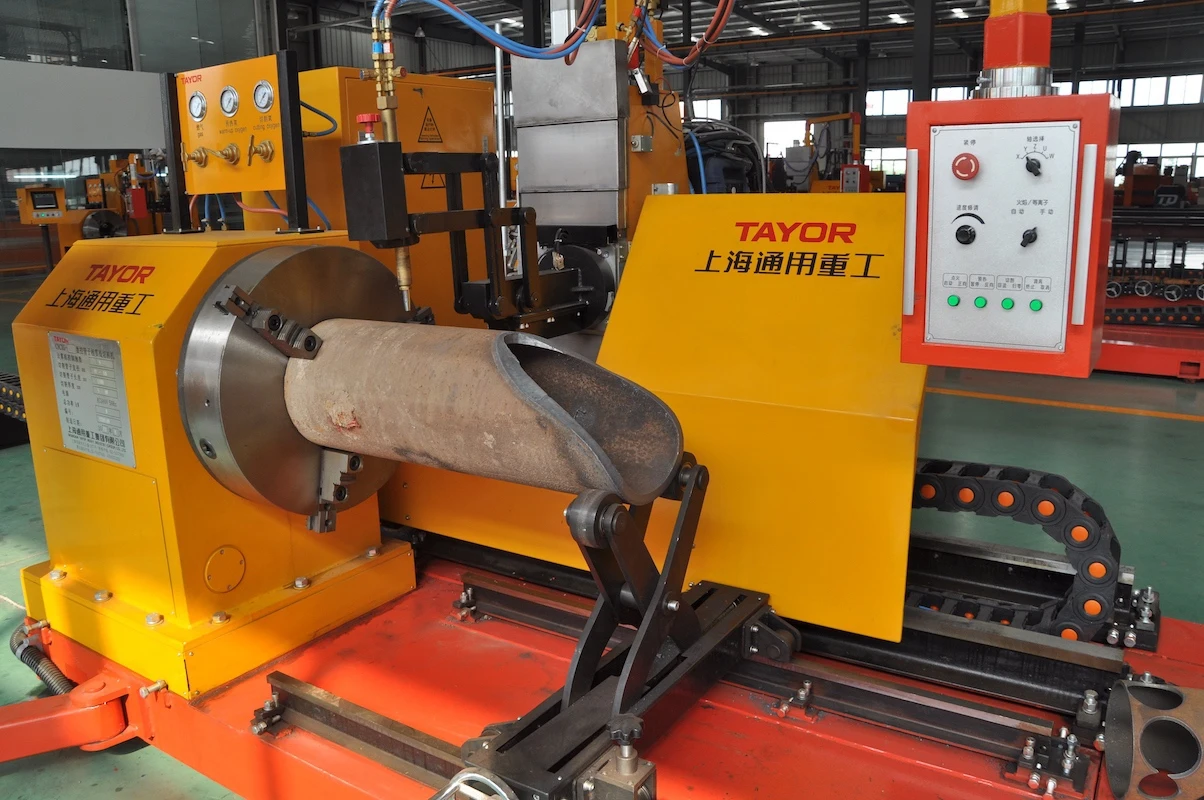

TAYOR heavy duty Cnc plasma pipe cutting machine
Heavy duty, precision machine, 3D pipe profile cutting machine
Product Detail
| Machine name | CNC pipe cutting machine |
| control model | CNC |
| Pipe diameter | 60-800mm |
| Pipe length | 3-50m |
| number of axis | 3-8 axis |
| Driving Motor | Panasonic |
| Nesting software | free pipe |
| software | Tubemast (solidworks) |
| Bevel angle | ≤±60° |
| Cutting Speed | 8000mm/min |
| Product Keywords | cnc plasma pipe cutting machine |
CNCXG series CNC pipe profile cutting machine
CNC pipe profile cutting machine is specially designed equipment for steel pipe 3-D automatic cutting. After input of basic data or leading proper format files, it is capable of automatically processing hole, beveling, grooving, multi-branch and shrimp sections.
Optional items:
5 jaws concentric chuck
Turning roll(cutting pipe diameter can be up to 2500)
Fast pipe/fastframe software
Electric jaw
Electric adjusting bracket
Photoelectric sensor
Technical Specification
Model CNCXG800
Cutting Pipe Diameter (mm)Φ60-800
Pipe Length(mm) 2000-12000
Cutting Thickness(mm) Flame:5-60mm Plasma:1-50mm
Plasma Max Beveling Angle ±45°
Flame Max Beveling Angle±60°
Basic Components
Pipe Chuck:3 jaws concentric chuck
Cutting Mode: Flame and Plasma
Number Of Control Axis:2-6
Driving Motor:Panasonic/Yaskawa
Available Plasma Power: Hypertherm, Kjellberg, Victor, ESAB
Other Data
Operation LanguageEnglish or Chinese
Input Power Voltage3×380V±10% 50Hz / according to the user's local condition
Machine Features
Oxy-fuel and plasma cutting and beveling
Maximum cutting pipe diameter 1600mm
3D CuttingTouch screen panel, convenient and fast data inputting,
easy to use and learn
Saving cutting data any time, able to create the technical database by user
Compatible with Steel Structure designing software, expanding of the machine function
Main Application
CNC pipe profile cutting machines are widely used in steel structure, shipbuilding, bridge, and steel tower building, petrochemical piping and pressure vessel industry.

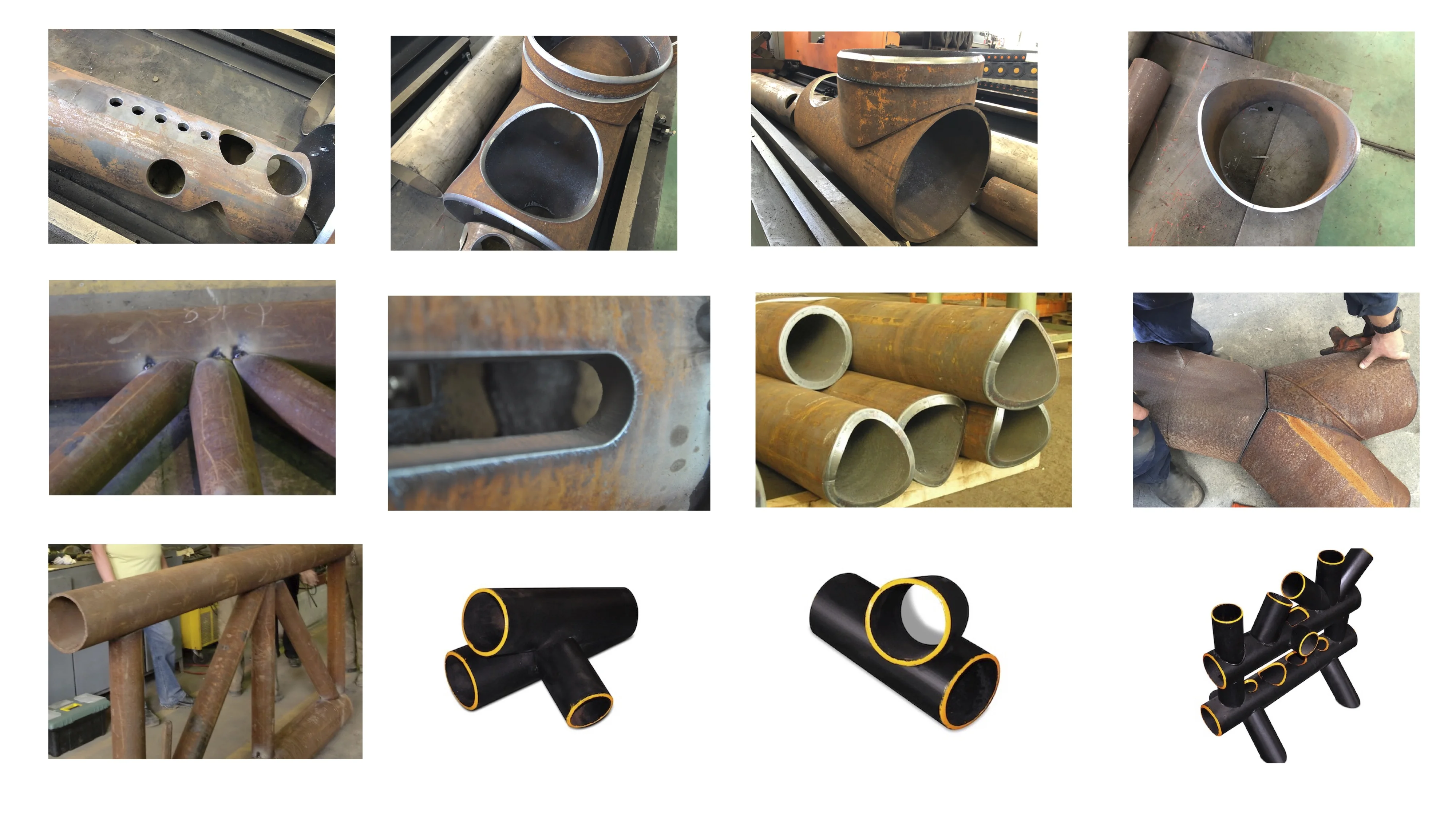

Pipe cutting samples

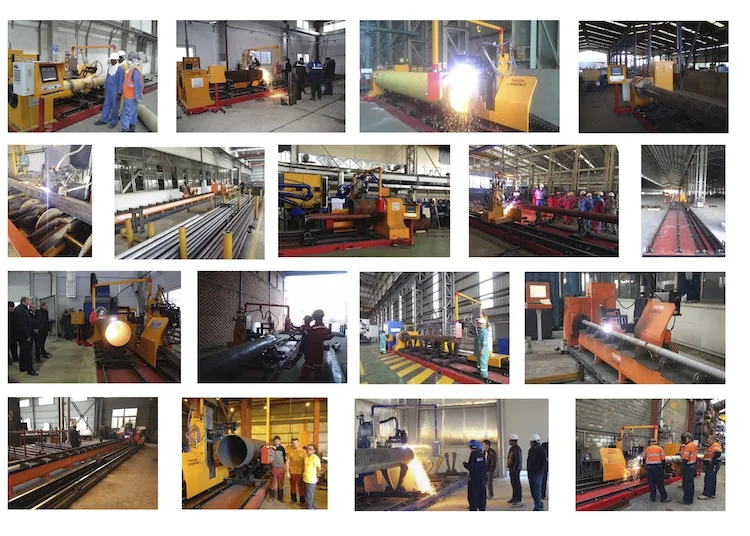

Users site
