China Manufacturer Hydraulic Torque Converter Mini Wheel Loader
- Category: >>>
- Supplier: Qingzhou Dongze Machinery Co. Ltd.
Share on (62546294591):
Product Overview
Description

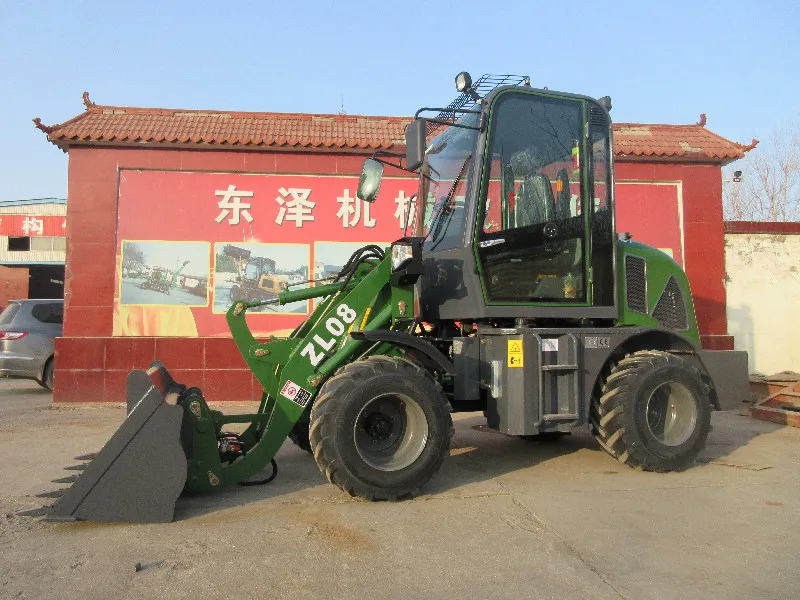

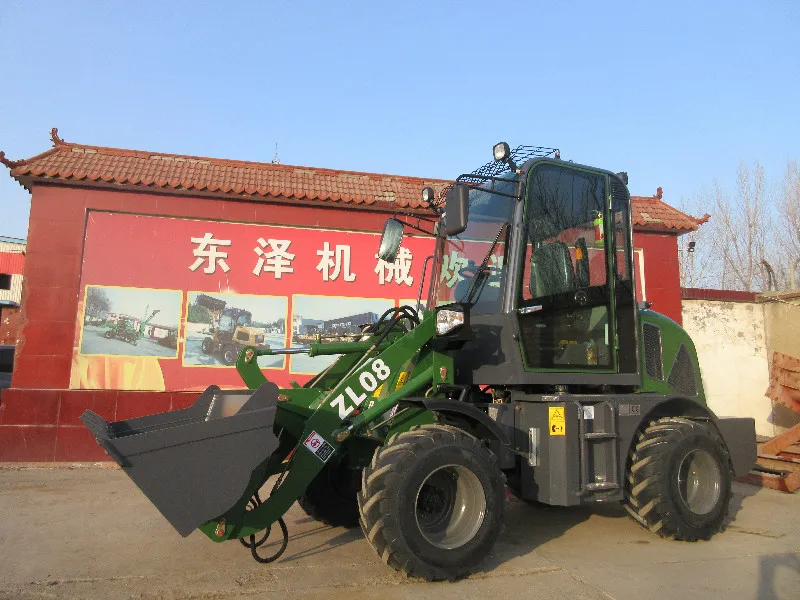

Dongze mini front end loader
Dongze mini wheel loaders lifting from 0.8 ton to 3 ton, lower fuel consumption higher efficiency and easy to operate.
Optimized design for cabin and structure is more safe and attractive.
The mini loaders are widely used in building field works,highway and railway construction and urban construction works etc.
Product Description
Main Parameters of ZL08 Mini Wheel Loader
ITEM | ZL08 |
Operating Weight (kg) | 2500 |
Dimension L×W×H (mm) | 5170×1400×2580 |
Loading Capacity (kg) | 800 |
Bucket Capacity (m3) | 0.4 |
Tires | 12-16.5/(31x15.5-15 for option) |
Engine | Changchai390 |
Rated Power (KW) | 25 |
Max Speed (Km/h) | 32 |
Wheel Base (mm) | 2080 |

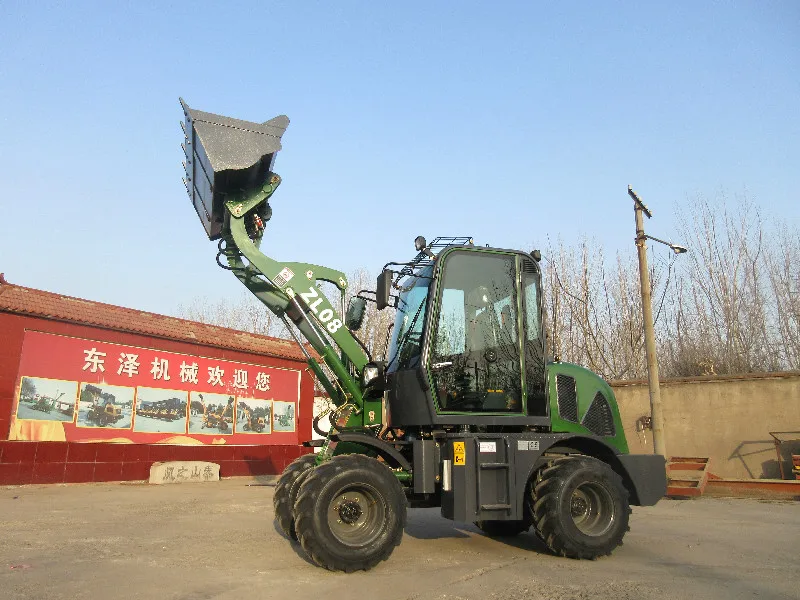

Max Lifting Height (mm) | 3800 |
Max Dumping Height (mm) | 2460 |
Min Turning Radius (mm) | 2800 |
Transmission | Hydraulic Torque Convertor |
Gear Shift | F2+R2 |
Brake System | Oil brake |
Standard Configuration
1). Changchai ZN390 engine 25KW
2). Mechanical joystick control
3). 12-16.5 size standard tires
4). 0.4m3 standard bucket

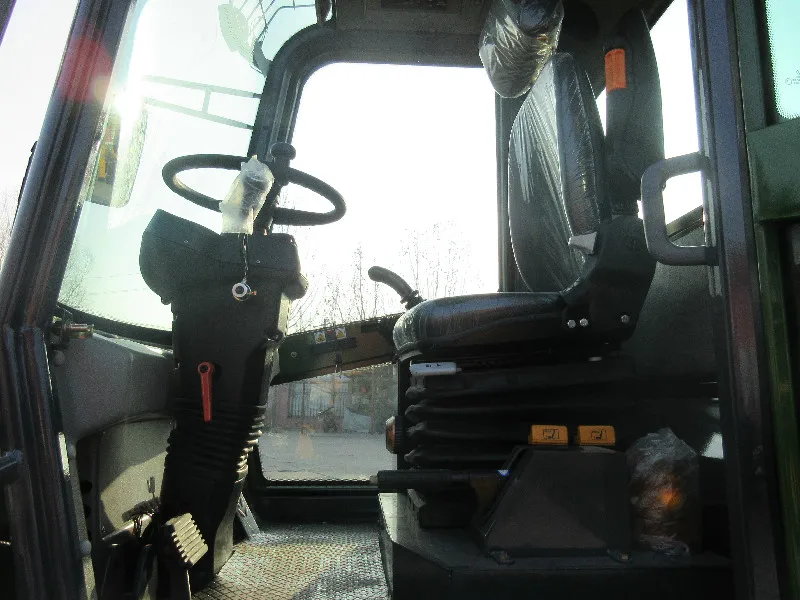

5). Luxury cabin with heater, adjustable seat
6). Radio,fans
7). LED lights
Optional Configuration
1). Hydraulic joystick control
2). Electrical joystick control
3). Wider size 31x15.5-15 tires for agriculture

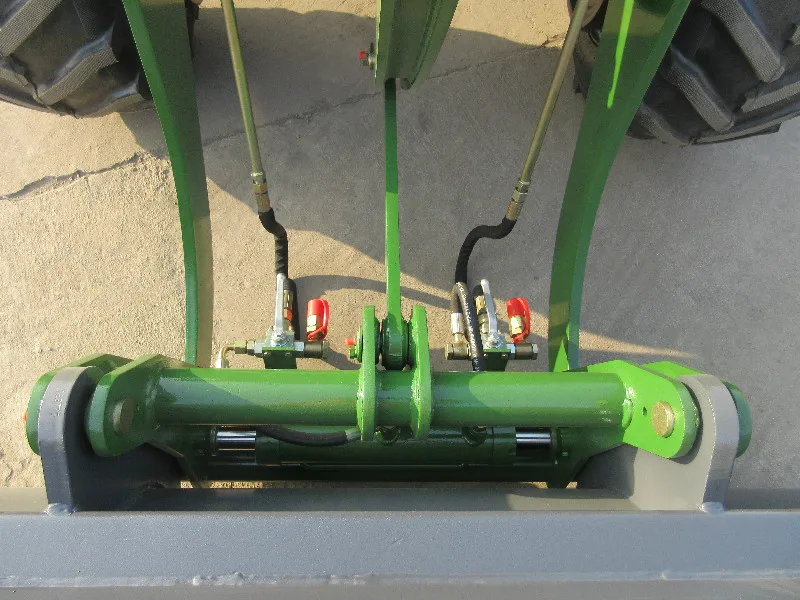

4). Quick hitch
5). Attachments
Attachments
Dongze small wheel loader can be equipped with various of attachments like Pallet fork,4 in 1 bucket,Grab bucket,Wood grapple,Snow blade, Road sweeper etc.
