ONNT Pneumatic AF2000 02 1/4' Compressed Air Filter Pneumatic Air Compressor SMC AF2000 02 Air Filter Regulator
- Category: >>>
- Supplier: Taizhou Chenming Automation Technology Co. Ltd.
Share on (62546328609):
Product Overview
Description

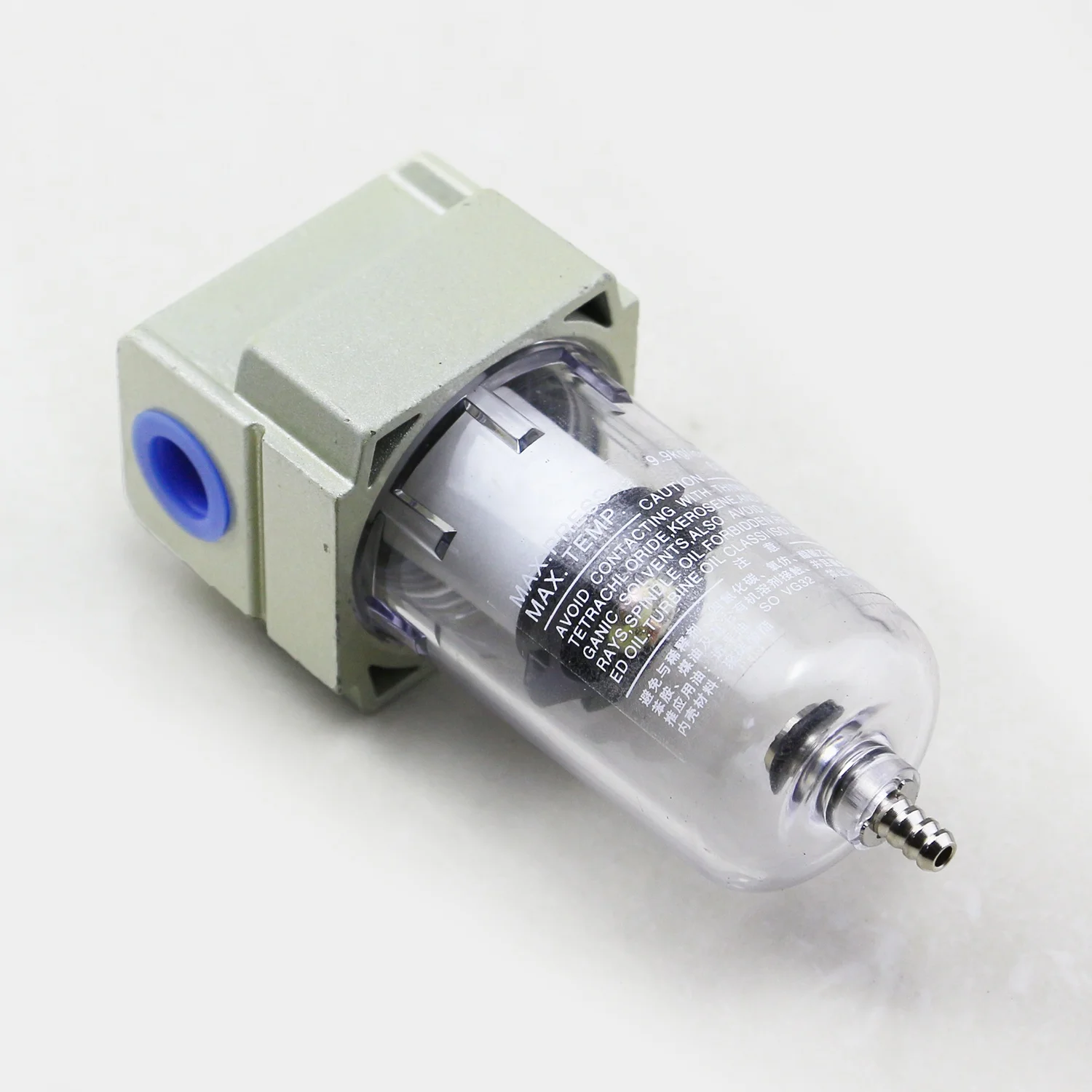

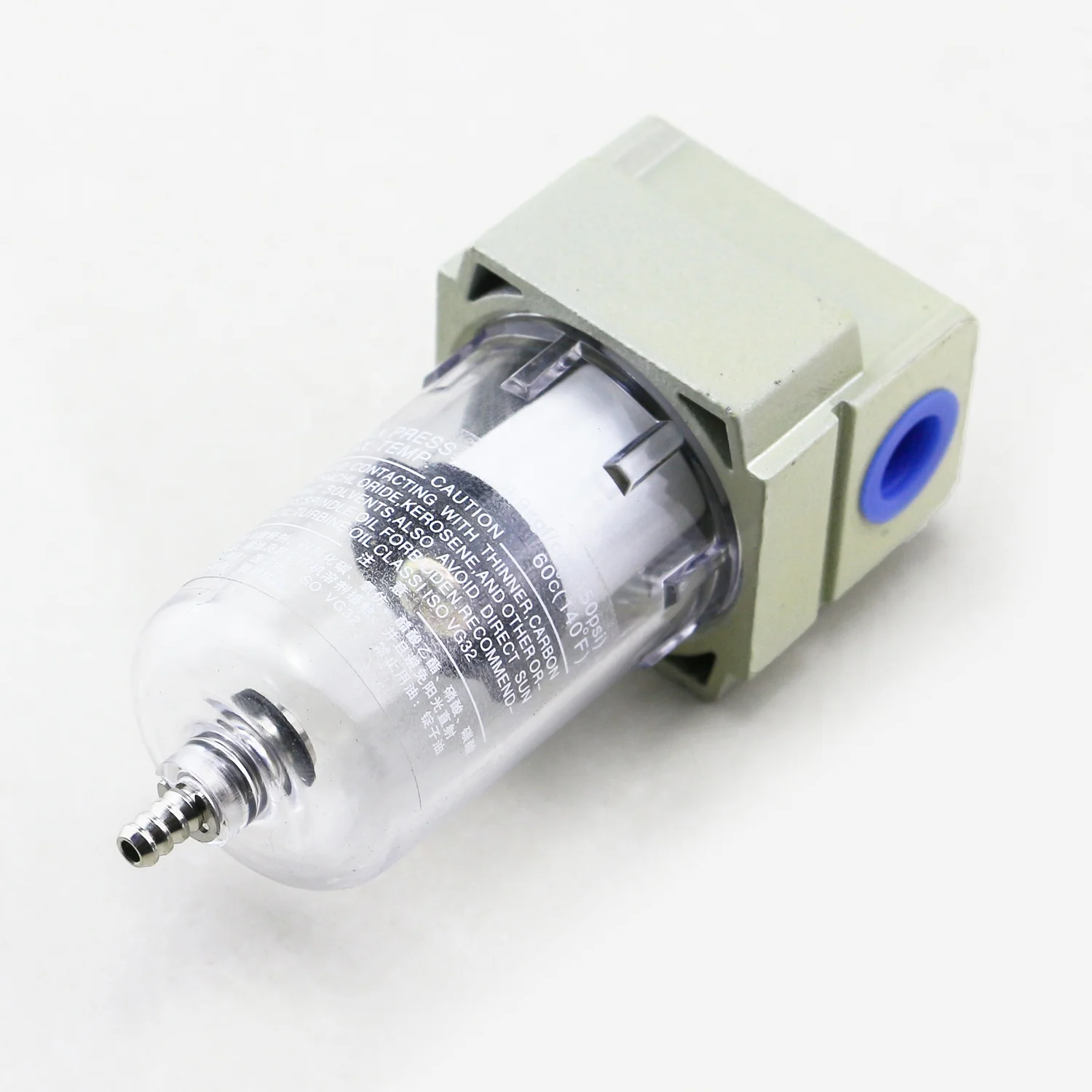

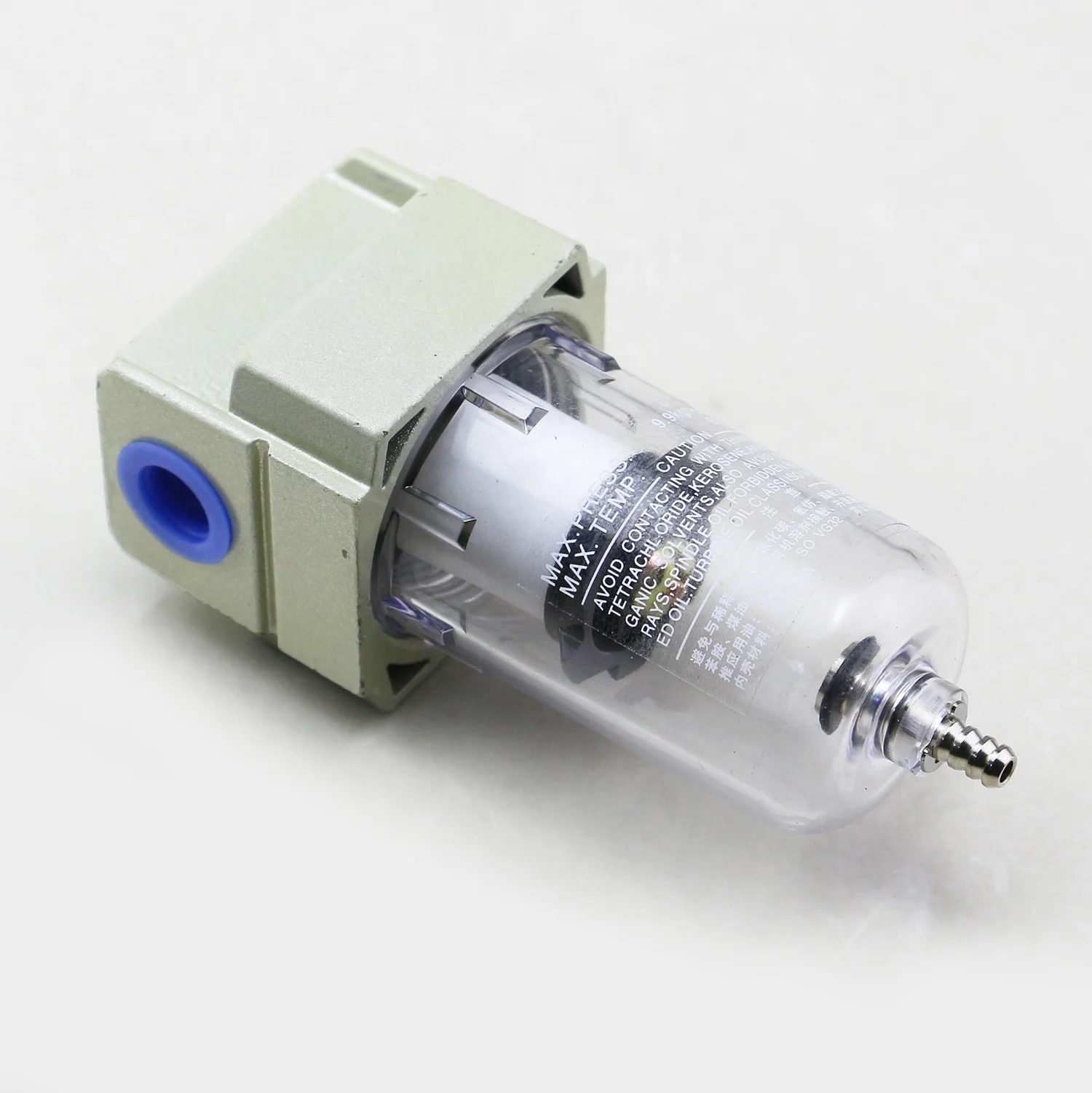

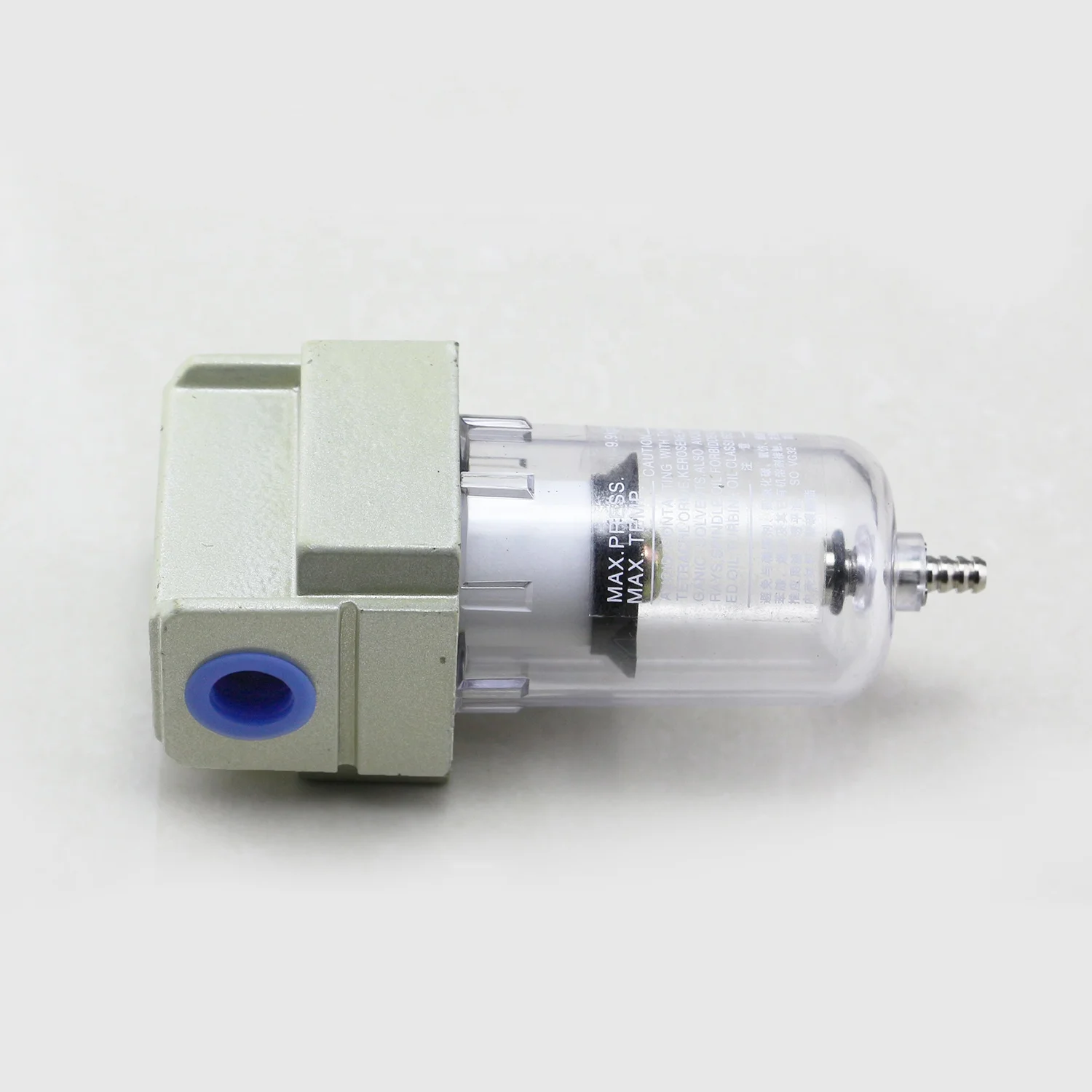

ONNT Pneumatic AF2000 1/4'' Compressed Air Filter Pneumatic Air Compressor SMC af2000-02 Air Filter Regulator
Product Description
Ordering Code
AF 2000 - 02 D
Model Size Port size Drain type
2000 01: 1/8'' Ni:Manual drain
3000 02: 1/4'' D:Automatic drain
4000 03: 3/8''
5000 04: 1/2''
06: 3/4''
10: 1''
Specification
| Model | AF2000-01(D) | AF2000- 02(D) | AF3000- 02(D) | AF3000- 03(D) | AF4000- 04(D) | AF4000- 06(D) | AF5000- 06(D) | AF5000- 10(D) | |
| Port size RC(PT) | 1/8'' | 1/4'' | 1/4'' | 3/8'' | 1/2'' | 3/4'' | 3/4'' | 1'' | |
| Capacity of bowl(cm²) | 15 | 15 | 20 | 20 | 45 | 45 | 130 | 130 | |
| Flow rate(L/Min) | 750 | 750 | 1500 | 1500 | 4000 | 6000 | 7000 | 7000 | |
| Fluid | Air | ||||||||
| Proof pressure | 1.5Mpa(15.3kgf/cm²) | ||||||||
| Max.operating pressure | 1.0Mpa(15.3kgf/cm²) | ||||||||
| Main parts material | Body | Aluminum alloy | |||||||
| Bowl | PC | ||||||||
| Bowl guard | AF2000:without AF3000~AF5000:with(lron) | ||||||||

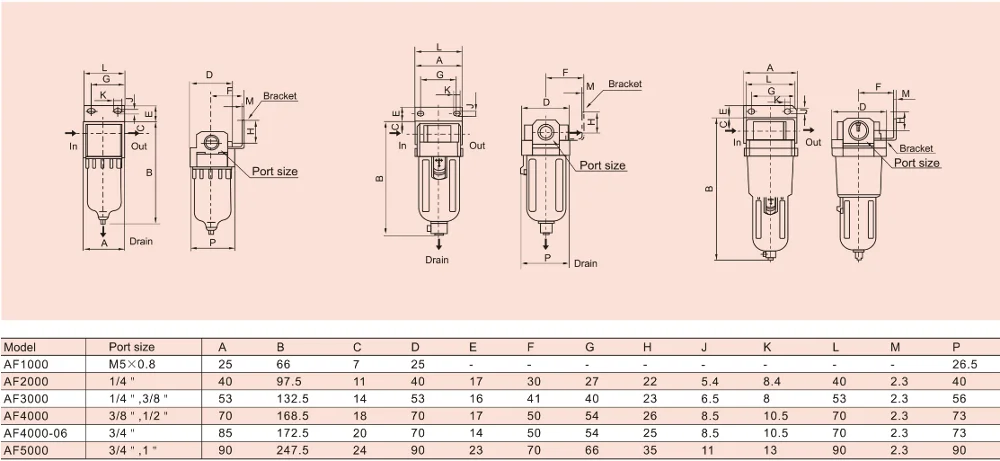

Dimension
Main Product
Company Information
Our Service
FAQ
Q: What is your MOQ?
A: 5pcs for MOQ.
Q: What is your packing?
A: Each F.R.L by one box packing with protection.
Q: What is your quality?
A: Sample will tell you what you want.
Q: What is your warranty?
A: One year under normally used.
Q: Can you do OEM?
A: Yes, we can.
