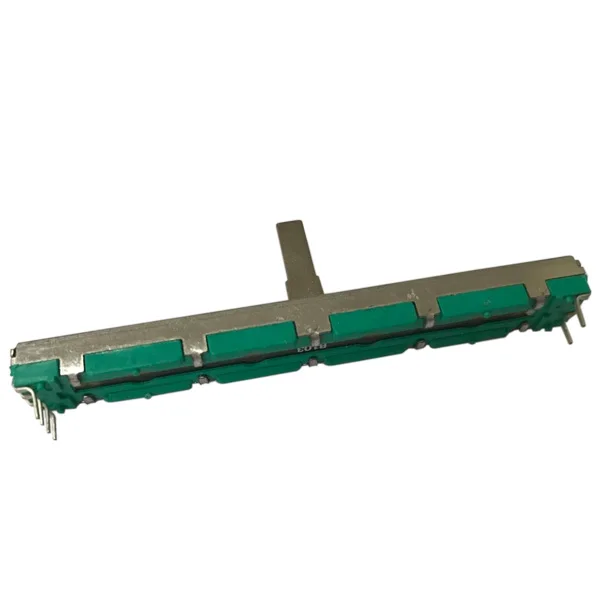

60mm Travel Slide Pitch Potentiometer B10K

Product Overview

Description

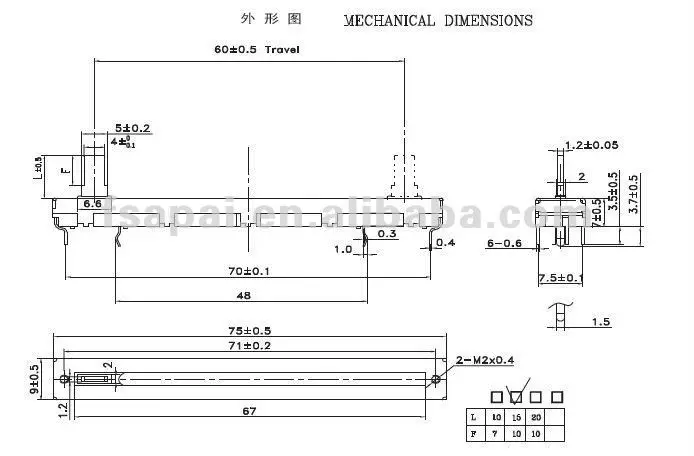

DRAWING:



APAI Pitch Potentiometer:



Travel:60mm

Dual-unit

Size: L=75MM, W=9MM

Solderable with auto dipping and available in a wide variety.







Various Option for you to chose!

1.Shape of Shaft: B/C/D shaft style

2.Length of Shaft:10/15/20mm

 3.Taper and Resistance:

A Taper:1K/2K/5K/10K/20K/50K/100K/250K/500K/1M

B Taper:1K/2K/5K/10K/20K/50K/100K/250K/500K/1M

C Taper:1K/2K/5K/10K/20K/50K/100K/250K/500K/1M

(Some taper&resistance maybe out of stock, pls comfirm with us before placing order)

4.Kind of Grease: light/comond/heavy handling feeling

5.Unit:Single-unit/Dual-unit

6.Click:with/without click(center detent)
