China Hight Quality Conventional Lathe Machine Price
US $3850-$4520

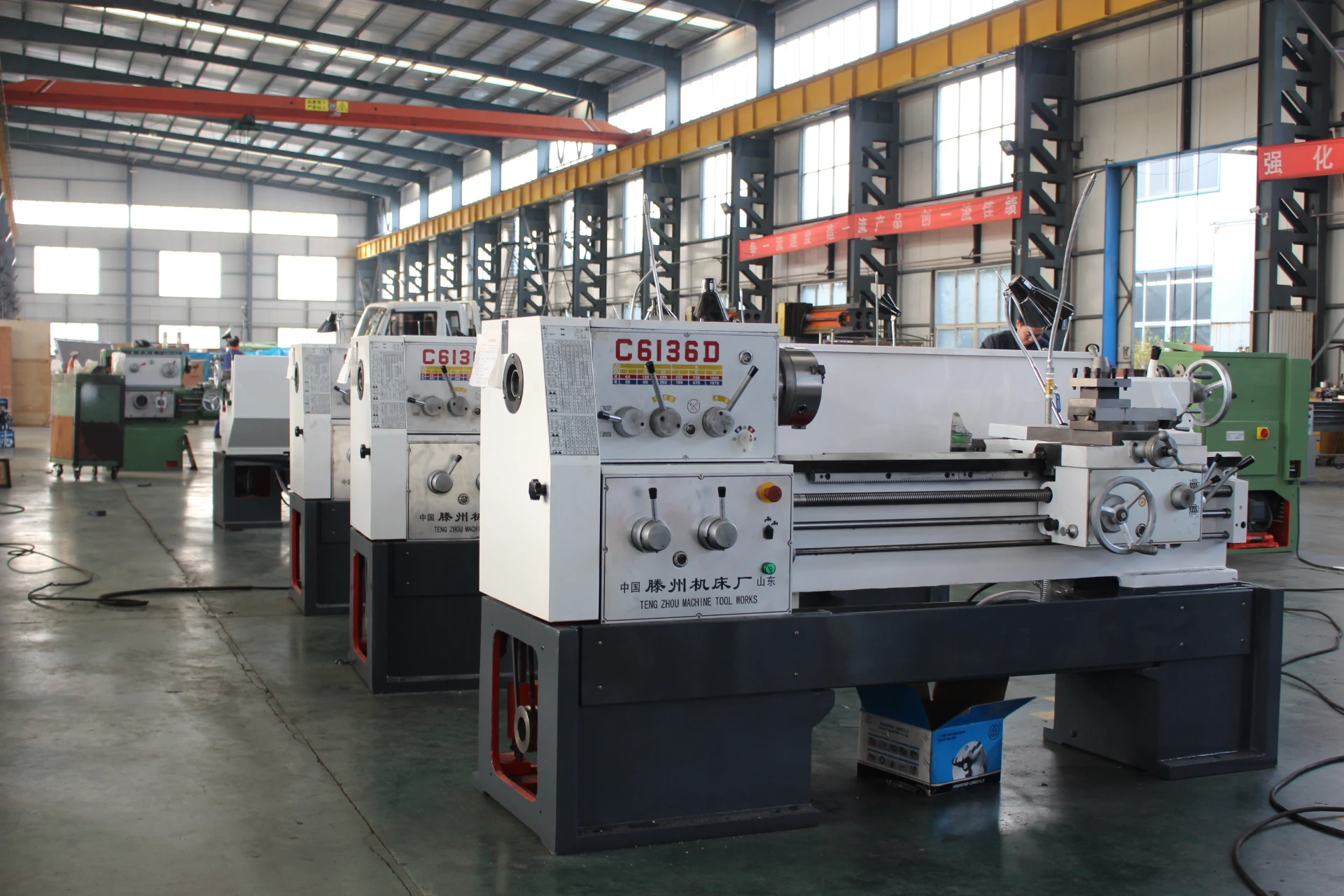

Горизонтальный токарный станок, металлический токарный станок CA6140 CA6160
- Category: Manual Lathe >>>
- Supplier: Nadun Machinery Manufacture Co. Ltd.
Share on (62546393541):
Product Overview
Description

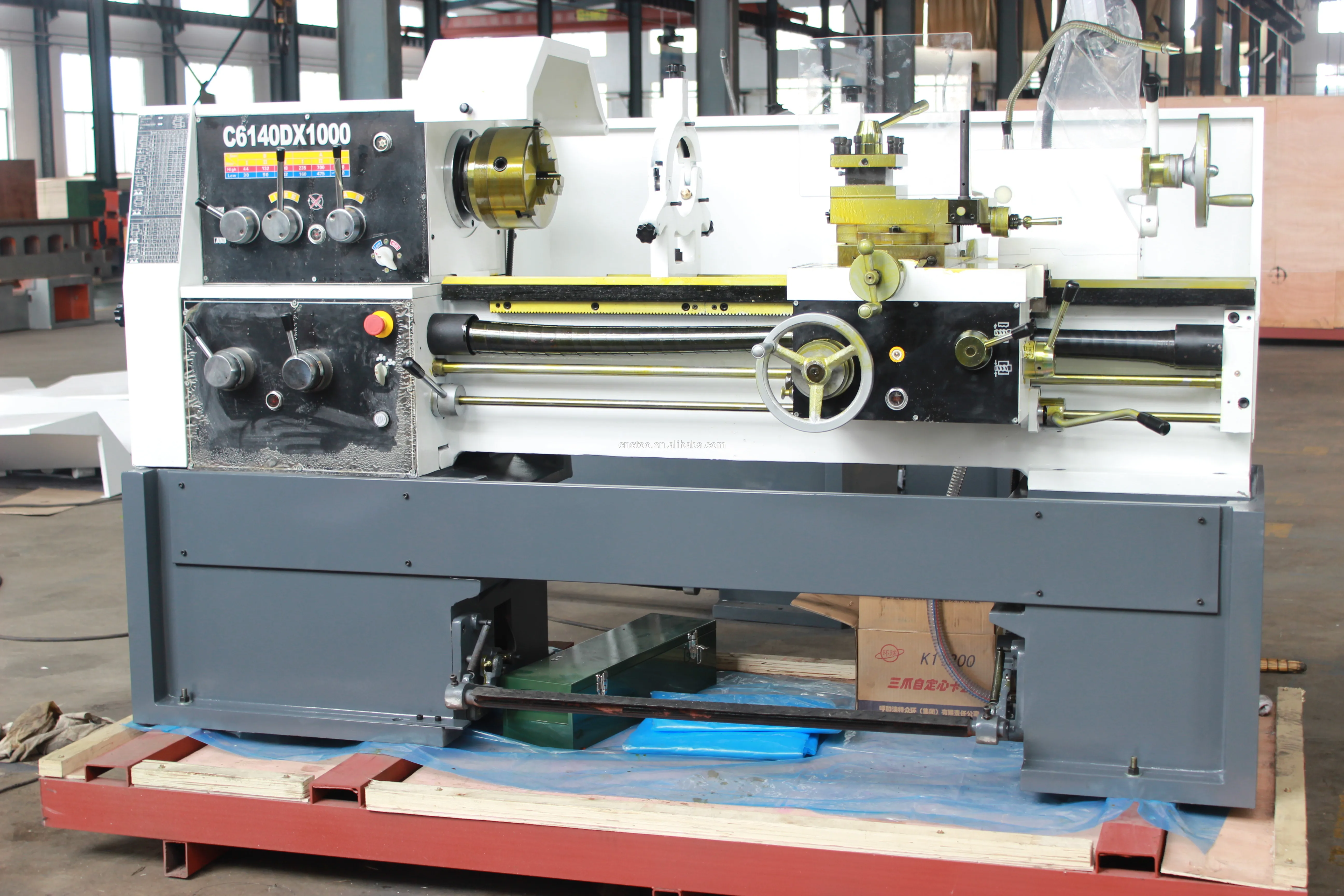

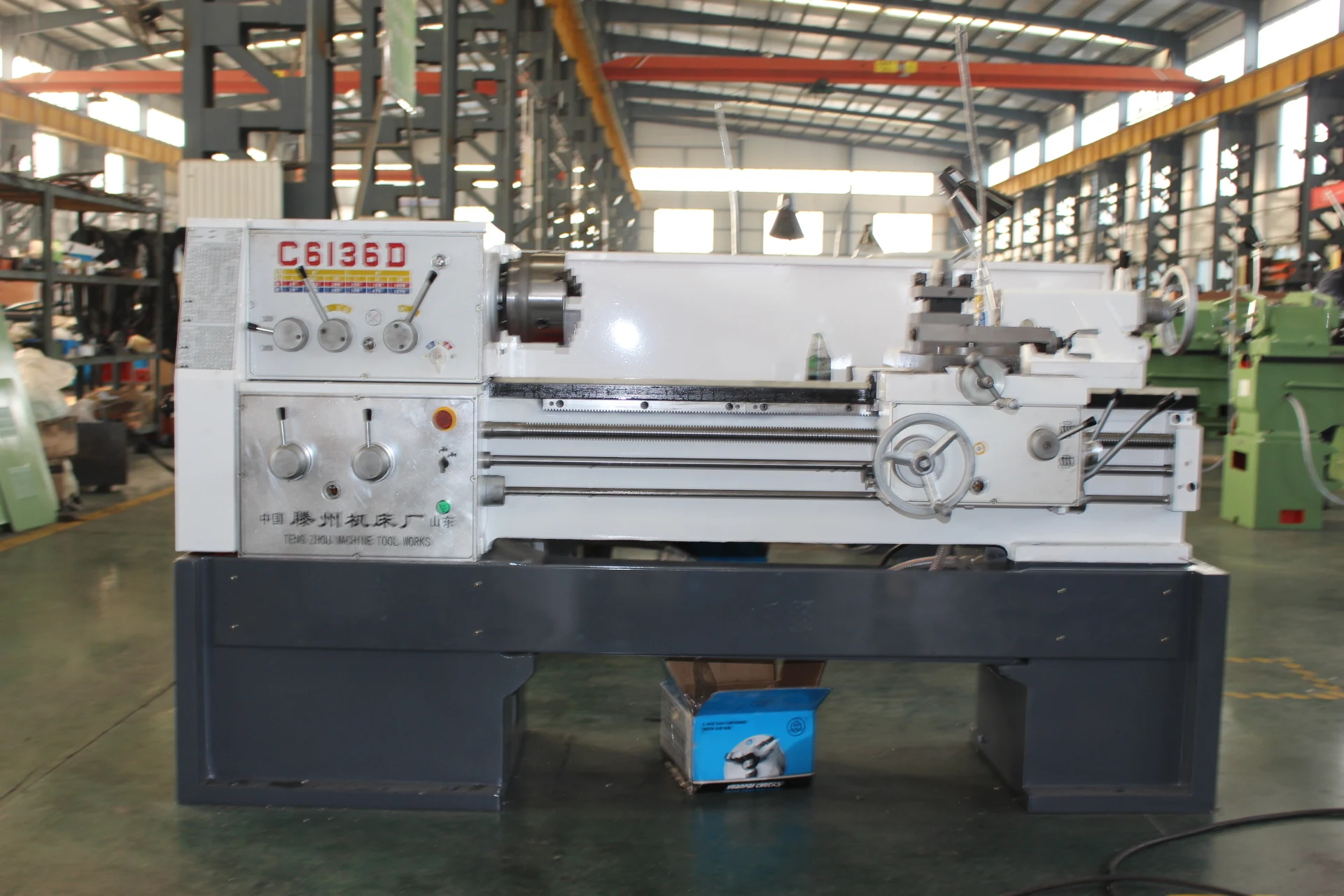

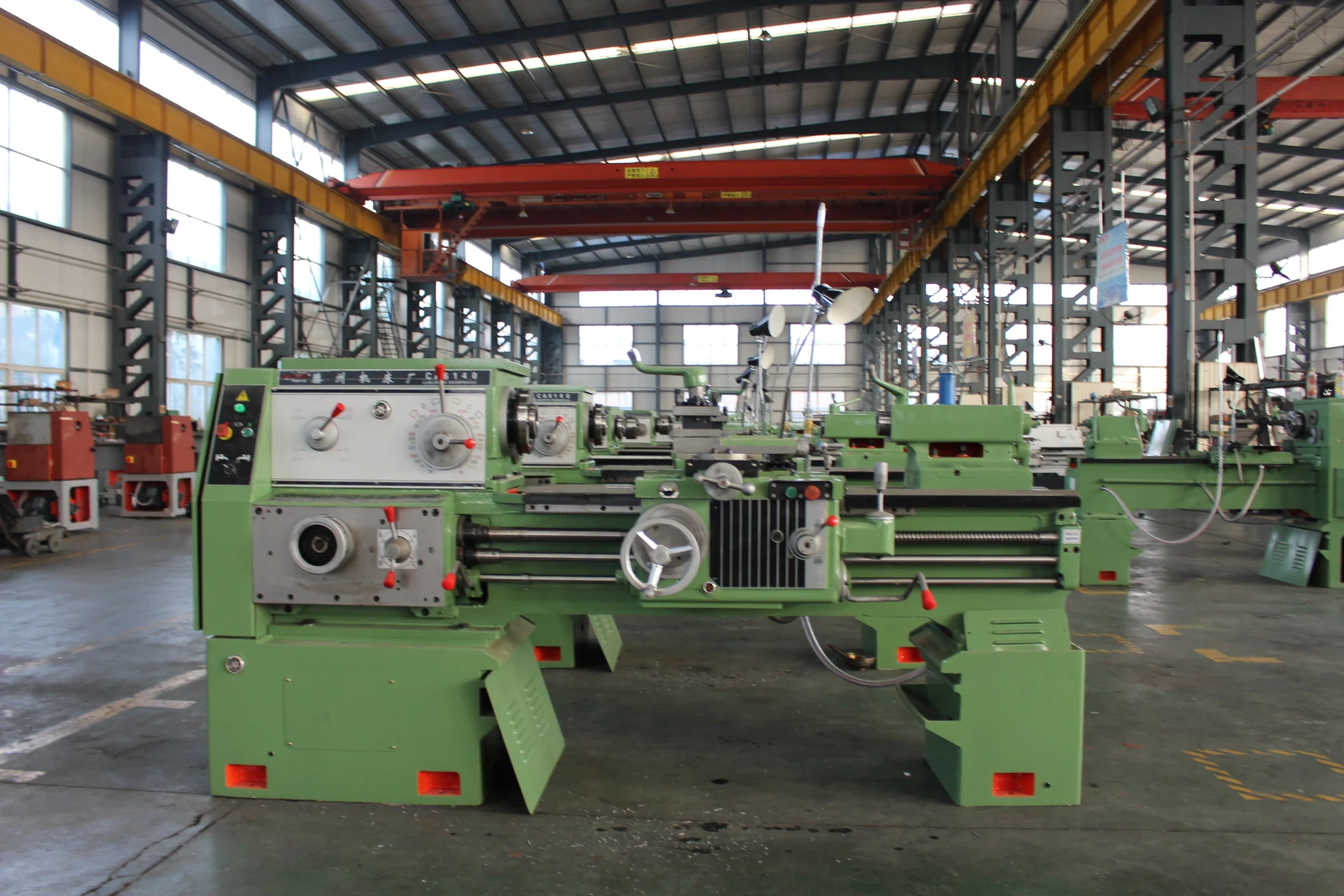

Horizontal Lathe metal lathe machine Tools CA6150 CA6160
Product Description
Application:
1 CA series ordinary horizontal lathe is used to turning internal and external cylindrical surface, conical surface, and other rotating surface, turning various metric and inch, modulus and pitch thread, and the pitch diameter of the thread and pull the drilling and oil tank etc., is general very strong horizontal lathe, Widely applicable batch processing of various shaft and disc parts.
2 The series lathe bed width in general lathe, 400mm rail width has higher stiffness, rail surface by intermediate frequency quenching, wear-resistant durable.

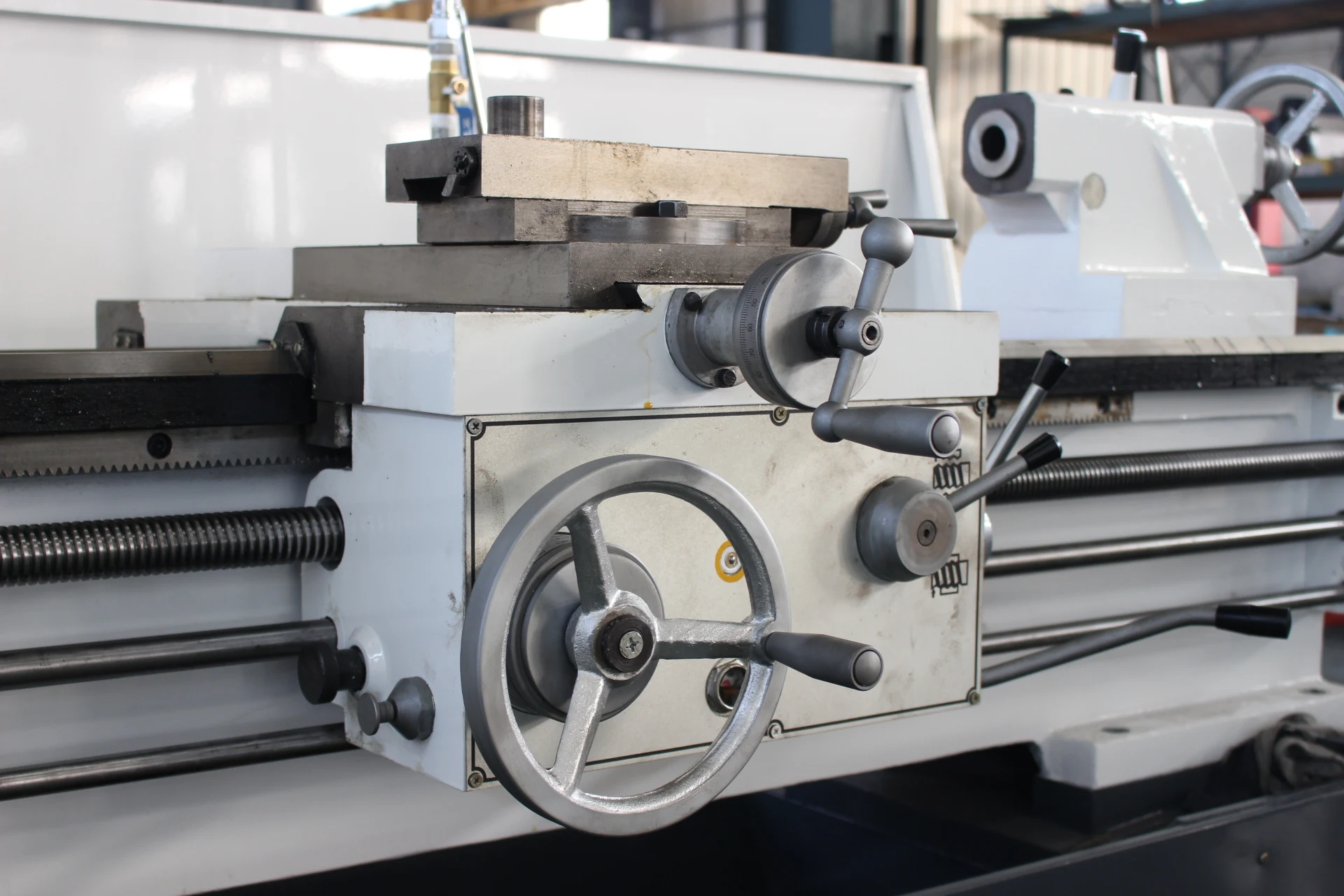

3 Handy machine operator concentration, slide plate is provided with a quick moving mechanism. Using single handle operation, humanization.
4 The rigidity of the machine tool structure and the transmission stiffness are higher than the general lathe, the power utilization rate is high, which is suitable for the strong cutting.
5 Before leaving the machine tool factory, the machine tool is tested strictly according to the inspection procedure, and the machine tool is tested to ensure that the machine tool has good stability and reliability.
Product main technical parameters:
Specifications | CA6150 CA6150B CA6150C | CA6250 CA6250B CA6250C | |
Max. Swing over bed | 500mm | ||
Max. Swing over carriage | 300mm | ||
Max. swing in gap | -- | 720mm | |
Effective gap length | -- | 210mm | |
Max. length of work piece | 750mm/1000mm/1500mm/2000mm/2200mm/3000mm/4000mm | ||
Width of bed | 400mm | ||
Section of turning tool | 25x25mm | ||
Spindle | Spindle speeds | 10-1400rpm/16-1400rpm(24steps) | |
Hole through spindle | 52mm. (80mm). [105mm] | ||
Spindle taper | NO.6(MT6)(Φ90 1:20)[Φ113 1:20] | ||
Feed | Number of feeds | 64(kinds)(for each) | |
Range of metric threads(kinds) | (1-192mm)44kinds | ||
Range of inch threads(kinds) | (2-24tpi)21kinds | ||
Range of module threads(kinds) | 0.25-48(Moduie39kinds) | ||
Range of pitch threads(kinds) | 1-96DP(37kinds) | ||
| Cross slide travel | 320mm | |
| Top slide travel | 140mm | |
Tailstock | Max. tail stock spindle travel | 150mm | |
Tail stock spindle diameter | 75mm | ||
Taper of tail stock spindle center hole | NO.5(MT5) | ||
Main motor | 7.5KW(10HP) | ||
Packing dimensions (L*W*Hmm) | Overall dimensions for750mm | 2550x1140x1750 | |
Overall dimensions for1000mm | 2700x1140x1750 | ||
Overall dimensions for1500mm | 3200x1140x1750 | ||
Overall dimensions for2000mm | 3700x1140x1750 | ||
Overall dimensions for2200mm | 4030x1140x1750 | ||
Overall dimensions for3000mm | 4850x1140x1750 | ||
Overall dimensions for4000mm | 5800x1140x1750 | ||
Weight (kg) | Length | G.W N.W. | |
Weight for 750mm | 2100 1990 | ||
Weight for 1000mm | 2190 2070 | ||
Weight for 1500mm | 2350 2220 | ||
Weight for 2000mm | 2720 2570 | ||
Weight for 2200mm | 2800 2600 | ||
Weight for 3000mm | 3300 3200 | ||
Weight for 4000mm | 3500 3400 | ||
Standard Accessories:
1. Centers;
2. Steady rest (750mm without this);
3. Follow rest (750mm without this);
4. Foot plate;

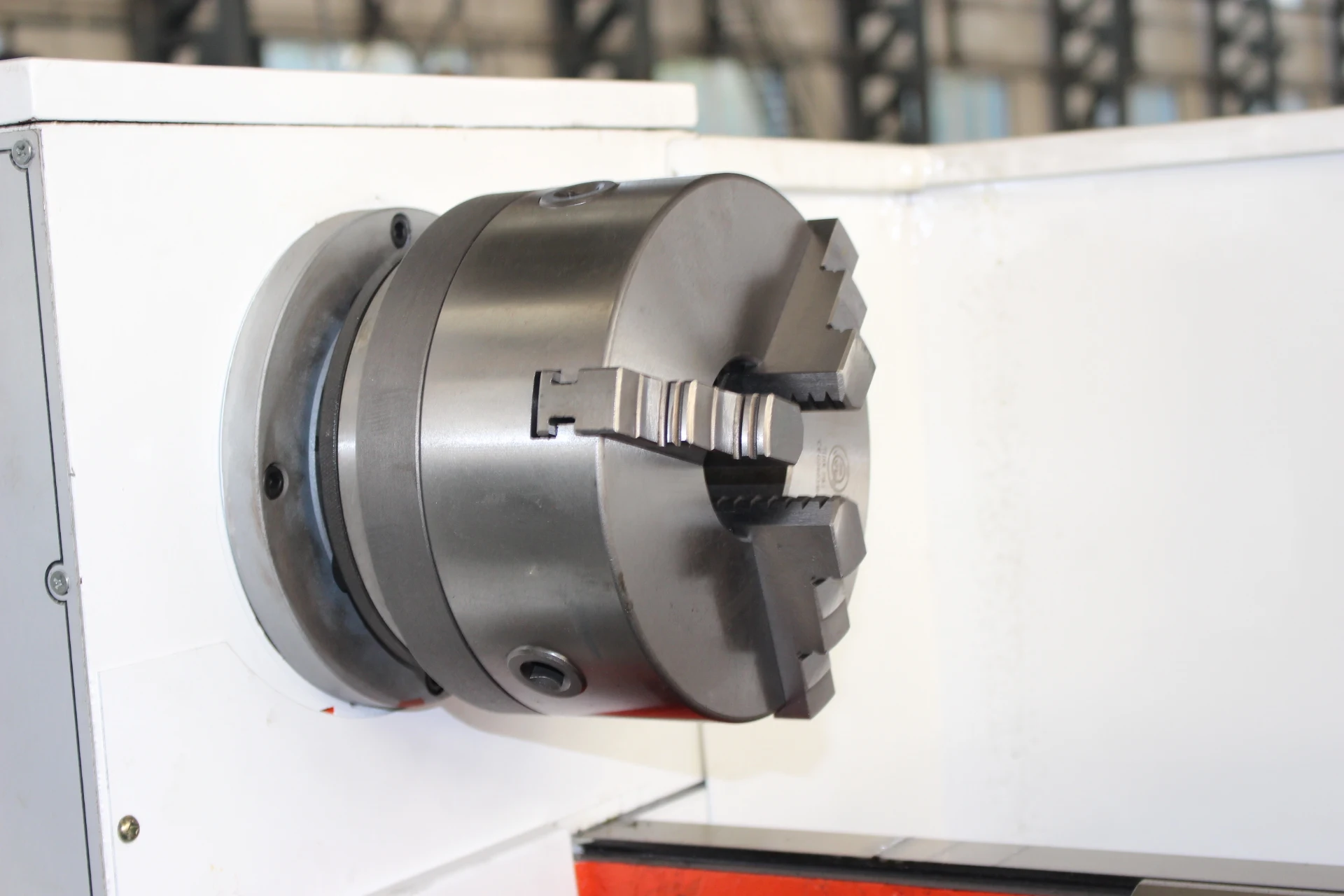

5. 3-jaw chuck;
6. Leading screw guard; (3000mm without this)
7. Toolpost protection;
8. Chuck protection;
9. Cooling system;
10. Work Lamp.
11. Back guard
Optional Accessories:
1. Quick change toolpost
2. 2-axis Digital readout
3. 4-jaw chuck
4. Tamping attachment
Company Information
Our company is located in Tengzhou City, Shandong Province, China.A domestic leading hydraulic machine production of the Holy Land.Completely dependent on first-class production process,stand out from a large number of hydraulic machine manufacturers .Over the years, widely praised by customers at home and abroad. We have a number of innovative patents,because more than ten years to concentrate on only hydraulic press forklift tire press machine,in the small and medium enterprises has been the leader of the brand
Our Services
Our services are divided into pre-sale, sales, after-sale three parts.
Pre-sale
to provide detailed advice, the program recommended to the factory inspection, as far as possible to meet your questions and needs.
Sales
can support samples, support diversified payment methods, the solid forklift tire press machine production process transparent, standardized and quickly stocking.
After-sales
support diversification guidance, training, voice and video images, and even solid forklift tire press machine overseas site installation, on-site training, home maintenance, continuous return visit customers concerned about the use

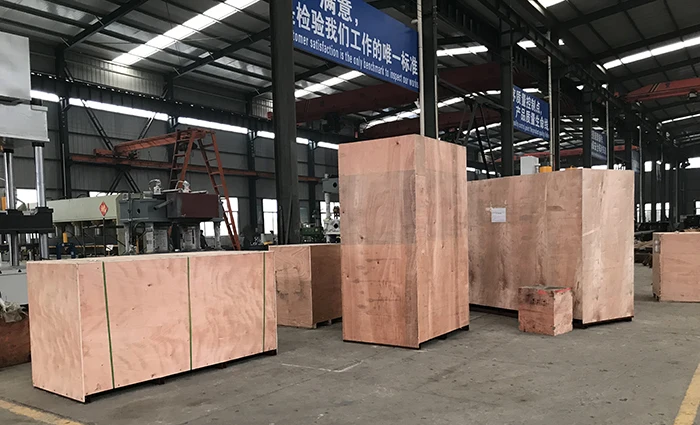

Packaging & Shipping
Packaging Details
Internal plastic moisture-proof anti-rust packaging,
External wooden packaging,
Exclusive container transport.
Delivery Time :Shipped in 30 days after payment
FAQ
Q1: How can i get the after-service?
A: We provide one year guarantee
We will send you the spare parts if the problems caused by us.
Any problem, you can call us directly.
Q2: Can I have a visit to your factory before the order?
A: Sure, welcome to inspect our factory.
Our factory address: No219 Xingye Road Tengzhou City Shandong Province
We can pick you up in the Tengzhou station
Hotel booking service is available .
Q3:Are you a factory or trade company?
A: We are manufacturer with own factory , export proportion 50~60%.
Q4:How can i trust your company?
A:We have professional design, we can provide you suitable suggestion and lowest price
1. Assessed by third party, national patents and CE, ISO for all equipment, .
2. Welcome to inspect anytime.
3. Trade Assurance is available
