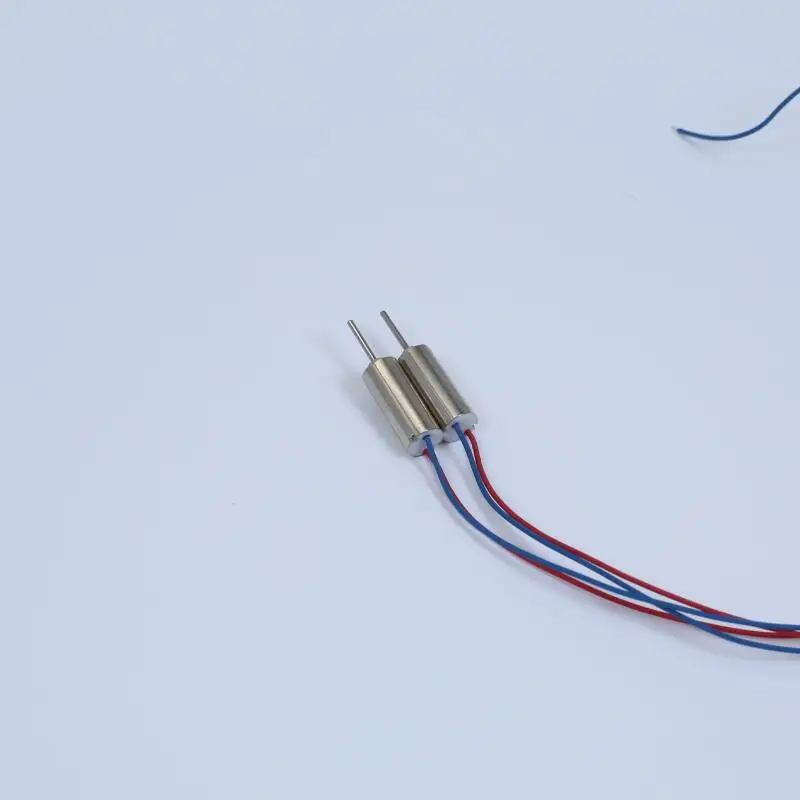

China DC Motor Manufacturer 4mm 1.3 V Micro Coreless Driving Motor for door lock
Technical parameter
1. Rated voltage: 1.3 V DC
2. No load current: 50 mA Max
3. No load speed: 21000±20% rpm
4. Stall current: 125 mA mAX
5. Terminal resistance: 13Ω±20%
6. Strating voltage: 1.0V DC Max

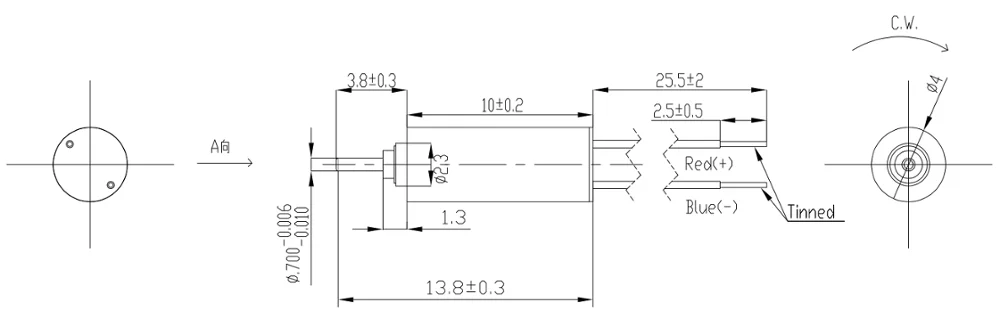

Product Drawing
You also could find the right haptic solution with our below various vibrators: 7-10mm diameter coin type brushed vibration motors. 3-4mm height reflow solderable SMD type vibration motors 4-7mm diameter cylinder type brushed vibration motors. 5-9 diameter coin type brushless vibration motors.These BLDC Motors have much longer lifetime than the normal brush type motors. At the test mode of 0.5s On 0.5s Off as one cycle, total lifetime can be 1 million cycles. 8-9 diameter coin type linear vibration motors. Vibrating in direction Z, vibration force at its peak acceleration value around 1.8G, much stronger than other normal brush type coin motors at 0.6-0.8G usually.
Main Application
This product is widely used in:
Medical equipment, smart medicine box, blood pressure monitor, blood glucose meter
Cosmetic & beauty industry product: electric cosmetic pen, facial cleansing brush, facial massager, eye care massager
Electric toy: aeromodelling, mini drone, quadcopter, aircraft
Vibrator: contact lens cleaner, electronic devices, sex product, mobile phone
Manufacturing all kinds of micro motor for over ten years. These motors are widely used in telecommunication devices and health-care products, medical devices and robotic products. Monthly capacity over 15 million motors.We have been making the best efforts to become one of the leading micro motor manufacturers in this industry. By investing ten percent of our annual revenue into R&D as well as advanced facilities, we continue to grow stably.Our mission is to produce cost effective products with good quality to satisfy ourcustomers worldwide. This is the target we aim at now and forever.......
Company Information
1) Competitive Advantages
Experienced Staff: average 7-year experience in R&D
Competitive Price
High Product Performance: Low noise, High efficiency, Long lifespan
Small Orders Accepted
Short Lead Time 2-3 Weeks
International Approvals: ROHS/ISO9001:2015, ISO14001:2015, OHSAS18001:2011
2) Production workshop (Part)
Worshop site 1 Worshop site 2
3) Testing equipments
4) Packing & Shipping
Packing Details
100pcs per tray, 12 trays per carton, 1200 pcs per carton Carton size: 34cm*34cm*21cm Gross weight: 8.5kgs/ carton Inner box bubble, then carton. And then reinforced with plastic pallet for outer packing. Or according to client's requirement.
Shipping Details
Samples Can be shipped within 10 days.
Mass production order leading time according to the actual situation.
