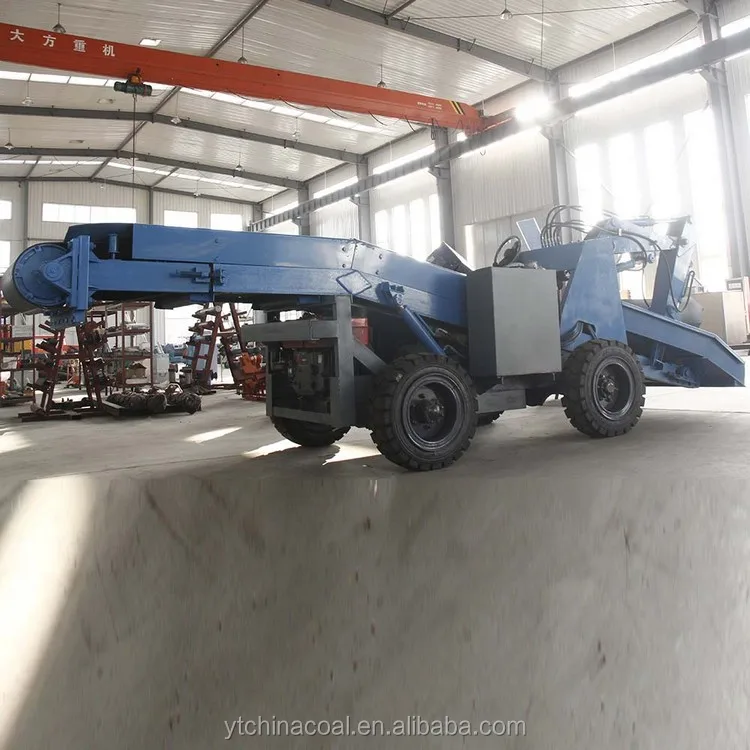

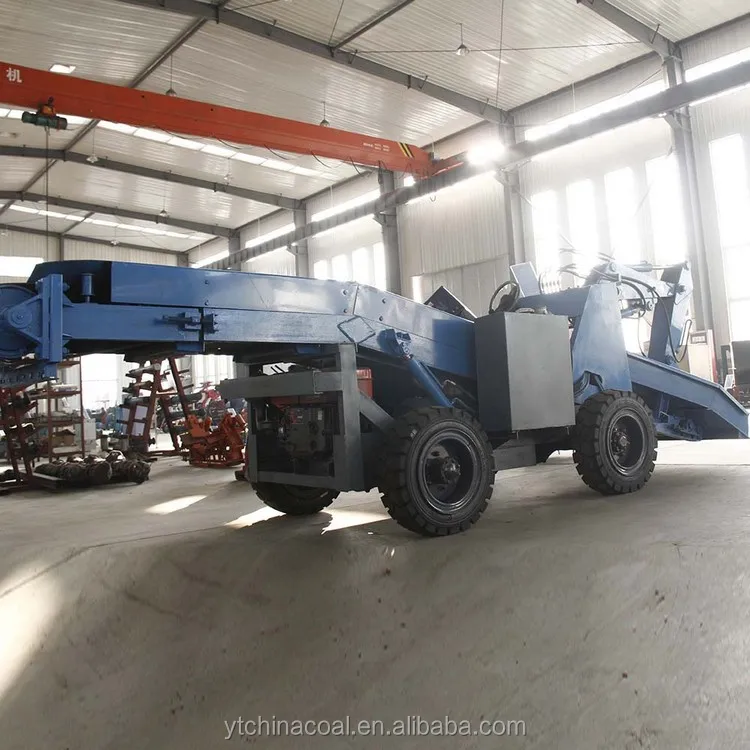

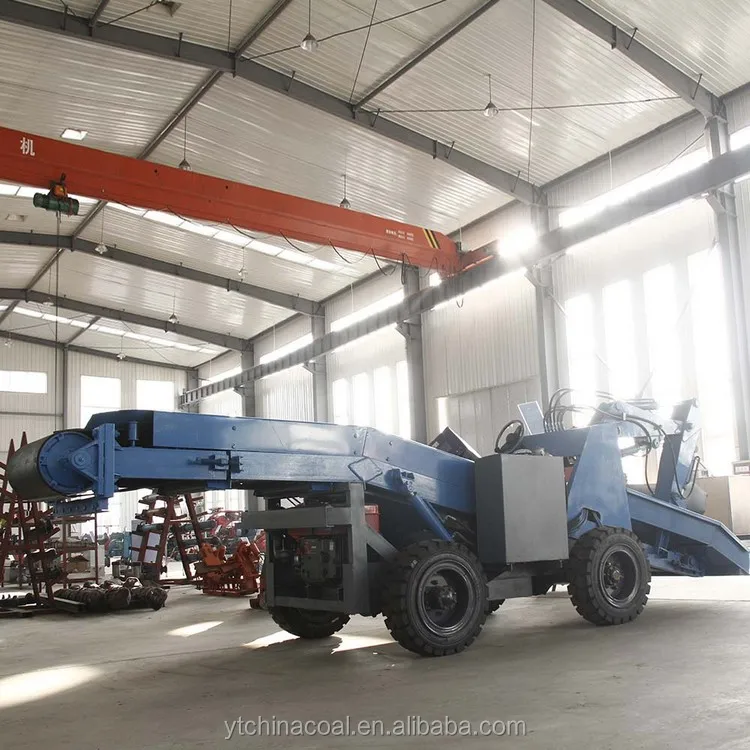

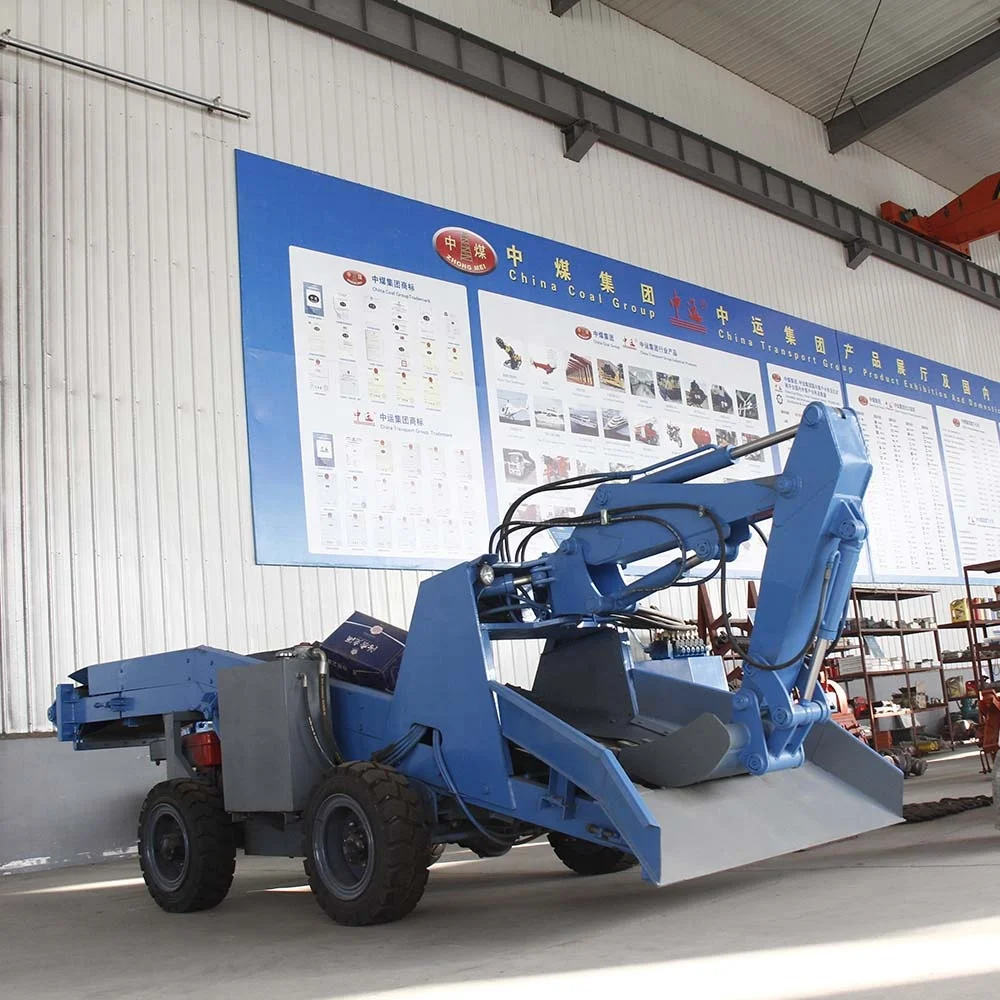

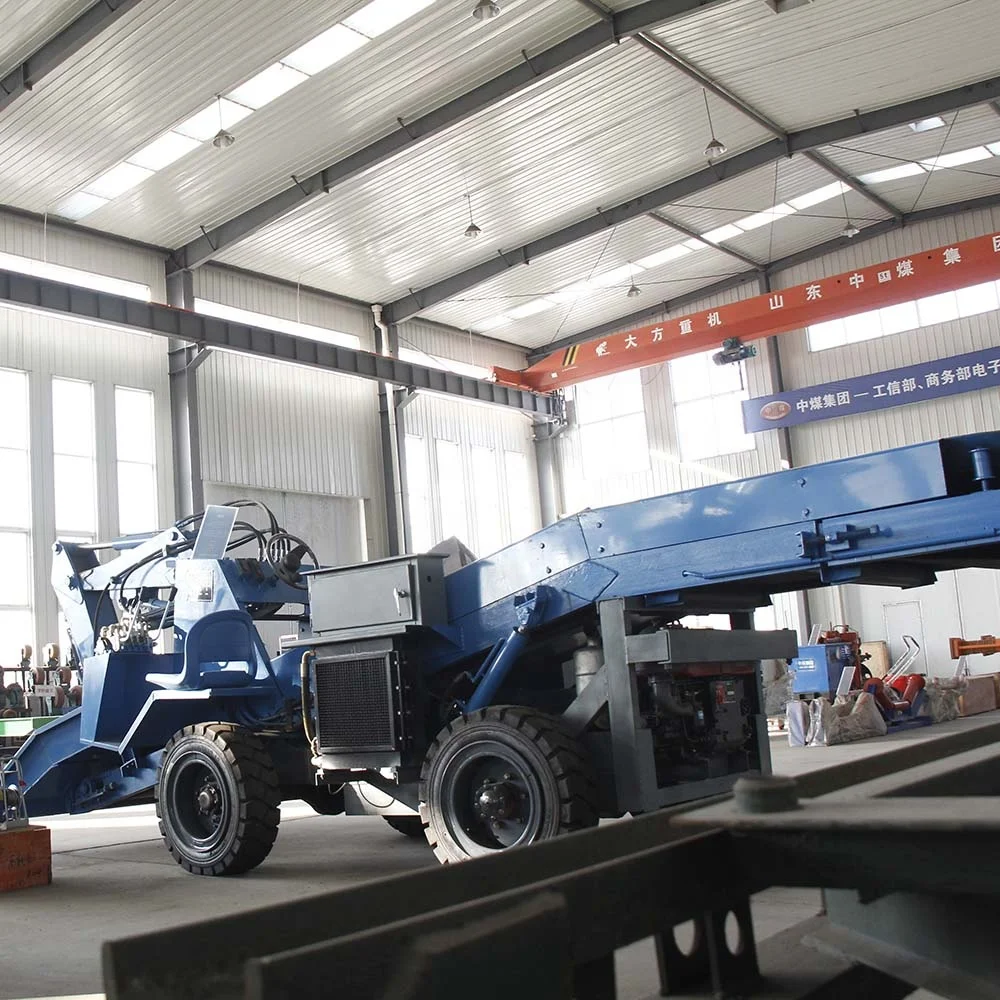

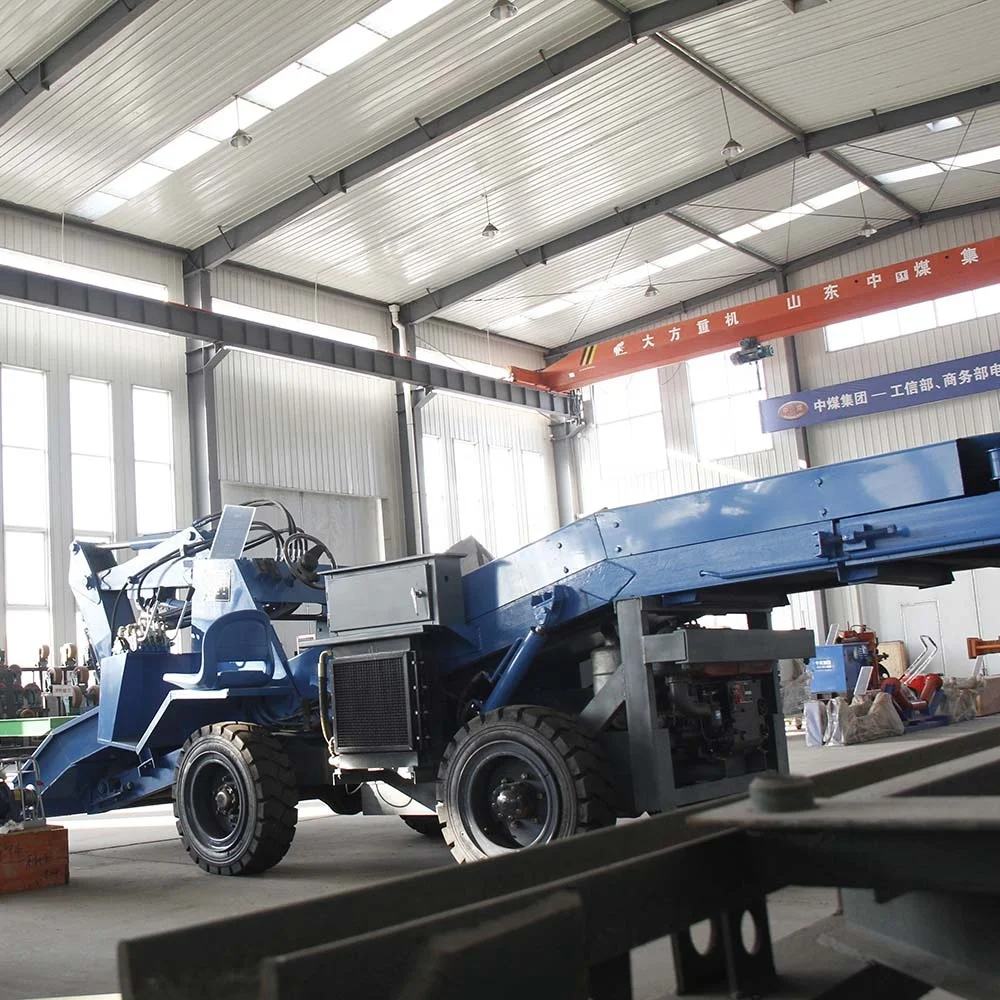

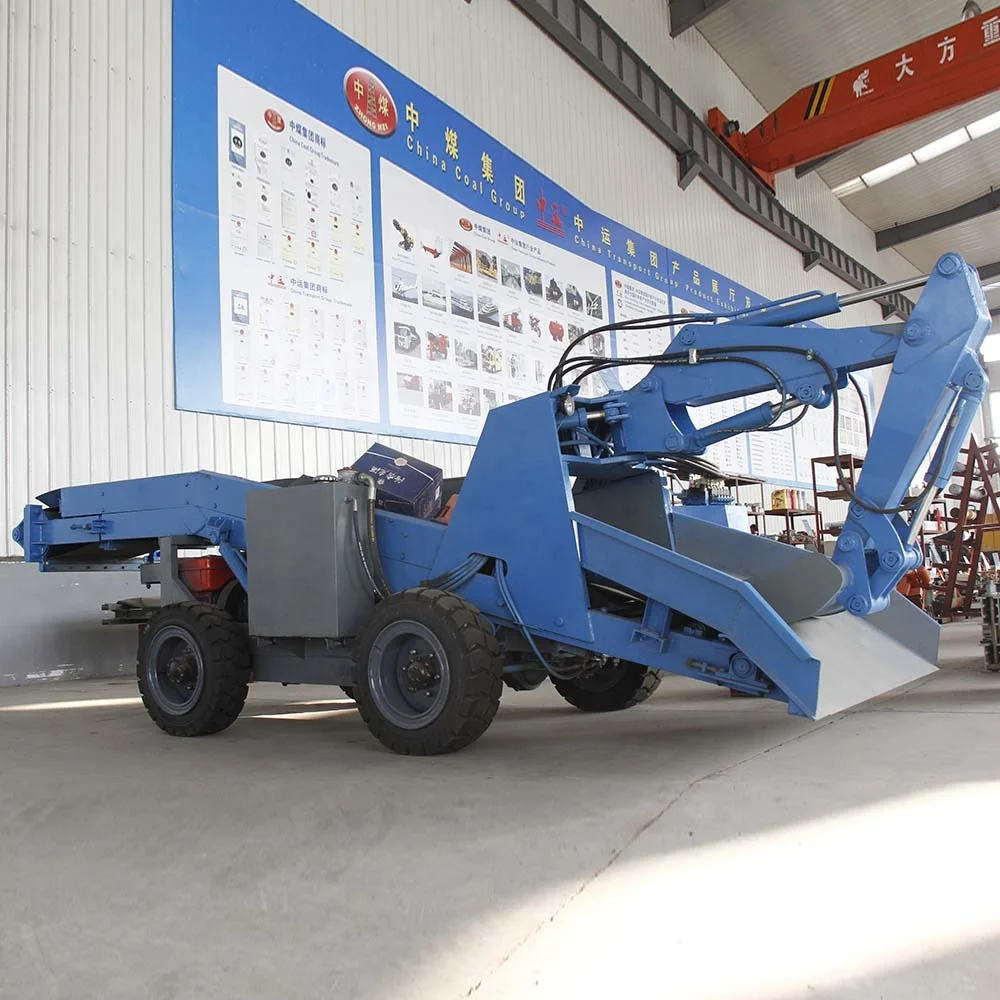

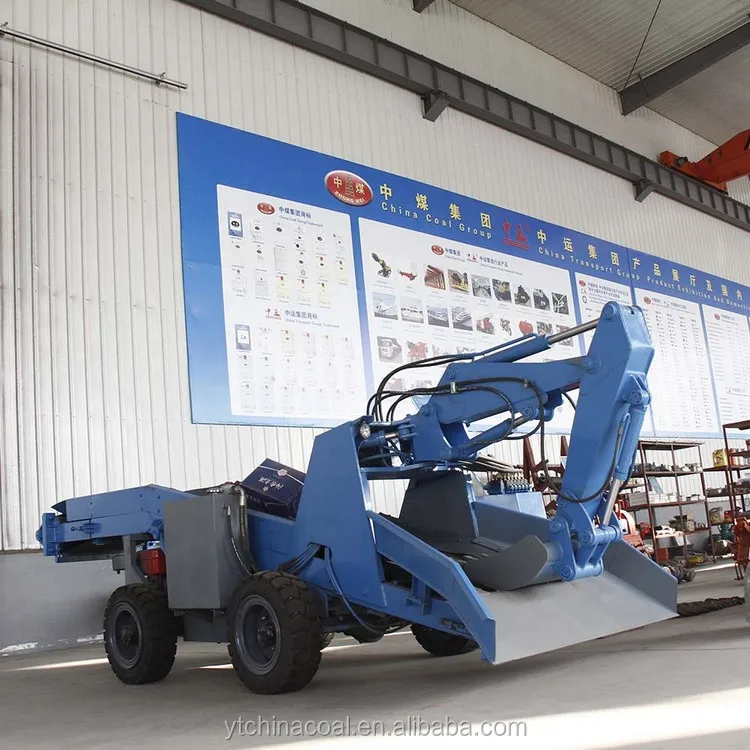

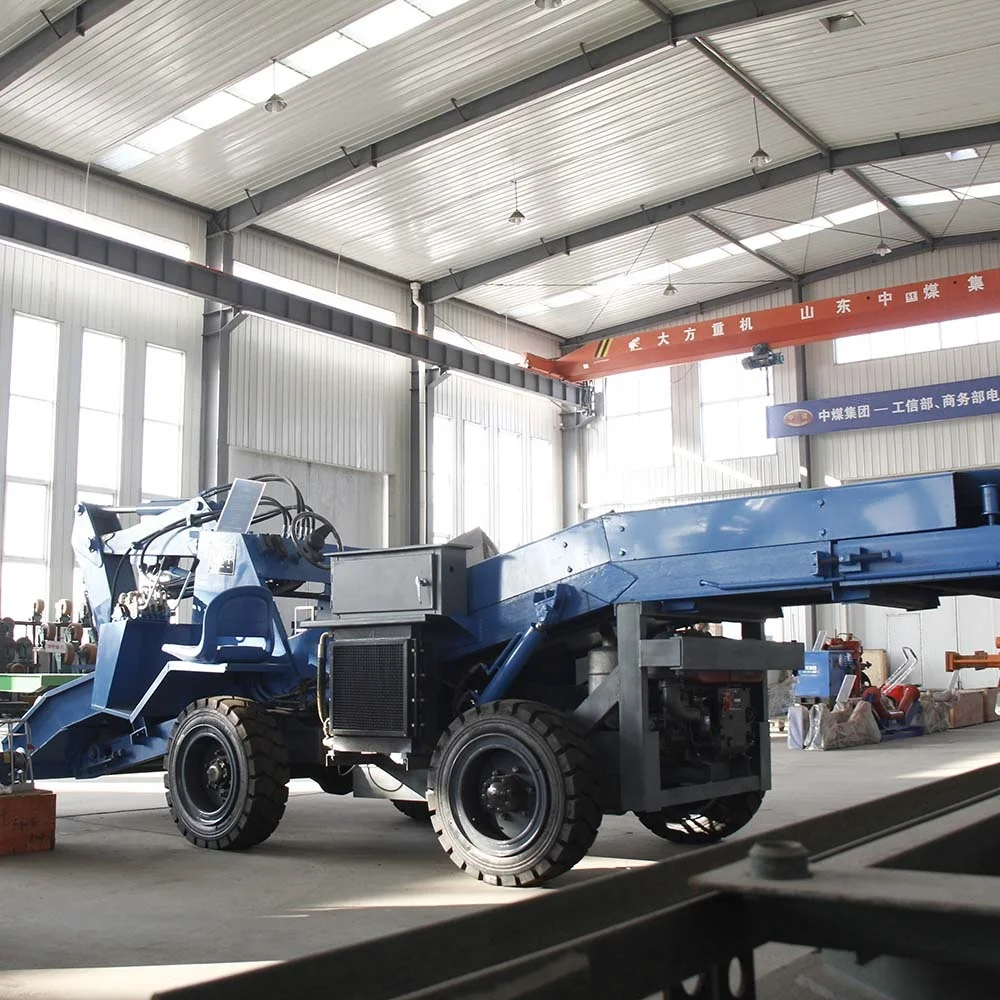

Wheeled Stone Mucking Loader Used In Gold Mine

Product Overview

Description





Introduction of Stone Mucking Loader Used In Gold Mine

Mucking loader is also called excavating loader, integrates multiple functions including excavation, conveying, loading, running, Because of its high working efficiency, strong ability to adapt the space, less polluting to the air inside of the tunnel, it becomes a very important mechanical equipment in tunnel construction.Wheeled slag machine wide range (from left to right range of up to 4.5 meters, up to 2.8 meters on the ground, the ground up to 0.8 meters) ,It can be full-face loading of gravel, leaving no dead ends, do not need to manually clean up Site, you can also digging on both sides of the roadway ditch.

Parameter of Stone Mucking Loader Used In Gold Mine

Specfication
loading capacity	≥50 m3/h
Excavating distance	1300mm
Mining width	2400 mm
loading width	≥2400mm
Digging height	1600mm
digging depth	210mm
discharge height	≥1350
ground clearance	180 mm
Loading length	1800mm
Axial distance	1200mm
Wheelbase(front/back wheel)	1100 mm
Tire minimum turning radius	≥5 m
gradeability	≤8°
Conveyor belt speed	0.80±5%
delivery capacity	≥50 m3/h
Loading mouth size	≤400×450 mm2
traveling speed	0.26±5% m/s
rated working pressure	12 Mpa
Main motor power	15 kw
weight	2450±5%
dimension	4750*1450*1450
