WDS 710 BGA наладочная станция для ремонта ноутбуков и настольных компьютеров, другое сварочное оборудование

Product Overview

Description

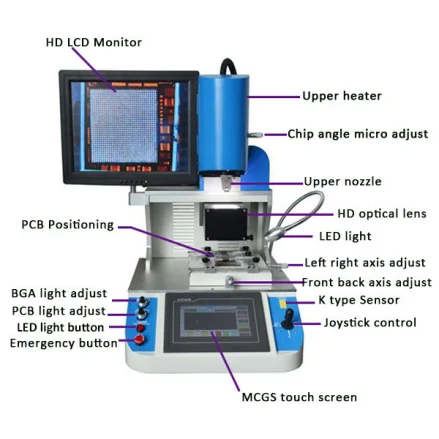

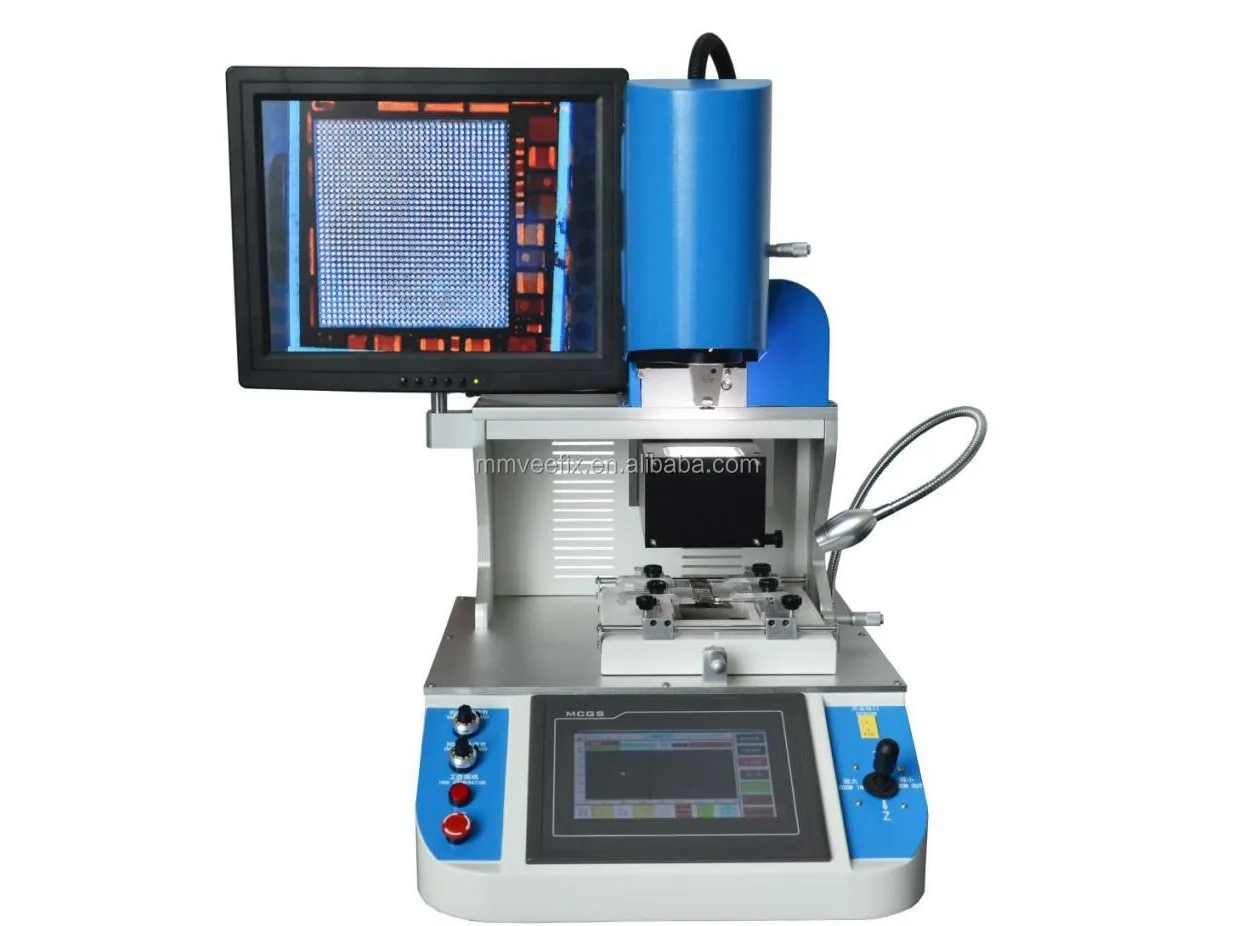

BVG rework station WDS-710 For laptop desktop repair





Independent 2 heating zones temperature control system

1.The upper and lower hot air heating,which can heat up at the same time from the top of he component to the bottom of the PCB;temperature precision control within ±1℃.8 segment temperature control independently.

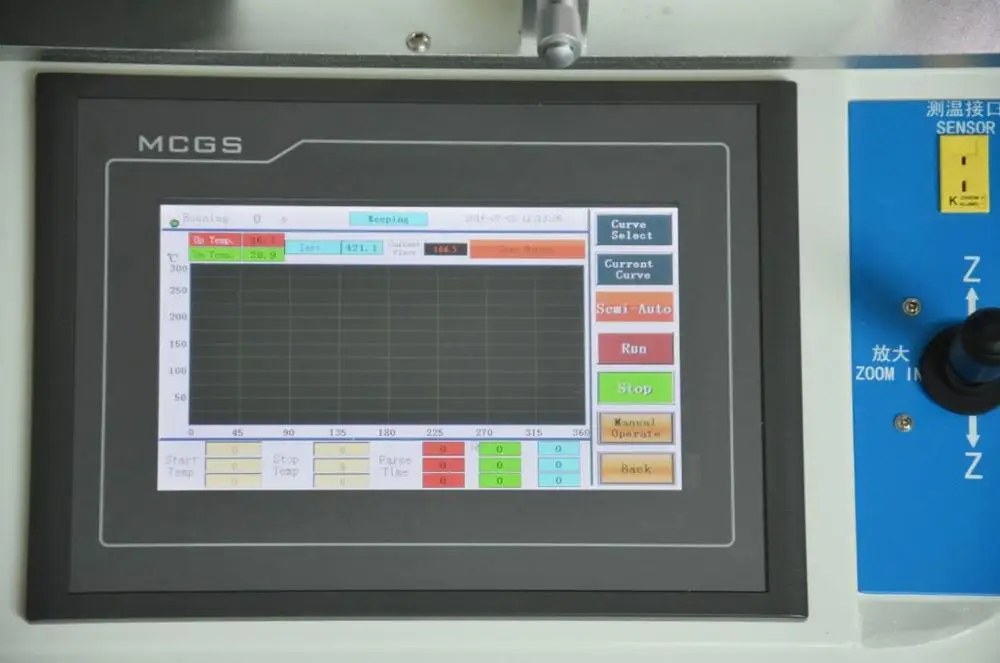

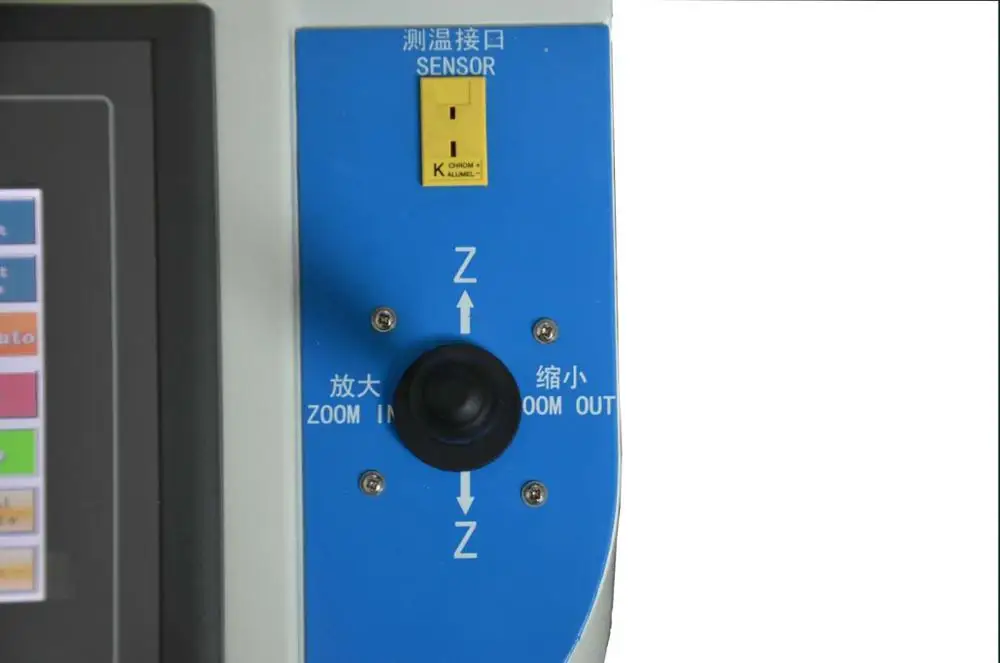

2.Adopted high precision K-type thermocouple close-loop control and PID parameter self-setting system;4 temperature curves can be displayed with instant curve analysis function and multi-group user data can be saved;temperature can be tested precisely through external measurement interface,curves can be analysed,set and correct on the touch screen at any time.



Precision optical alignment system

Using high definition and adjustable CCD color optical alignment system,beam split,amplification,lessening,fine adjustment and auto focus with the function that automatic color aberration resolution and brightness adjustment,adjustable image contrast;equipped with 15 ” high definition LCD monitor.



Multi-functional and humanized operation system

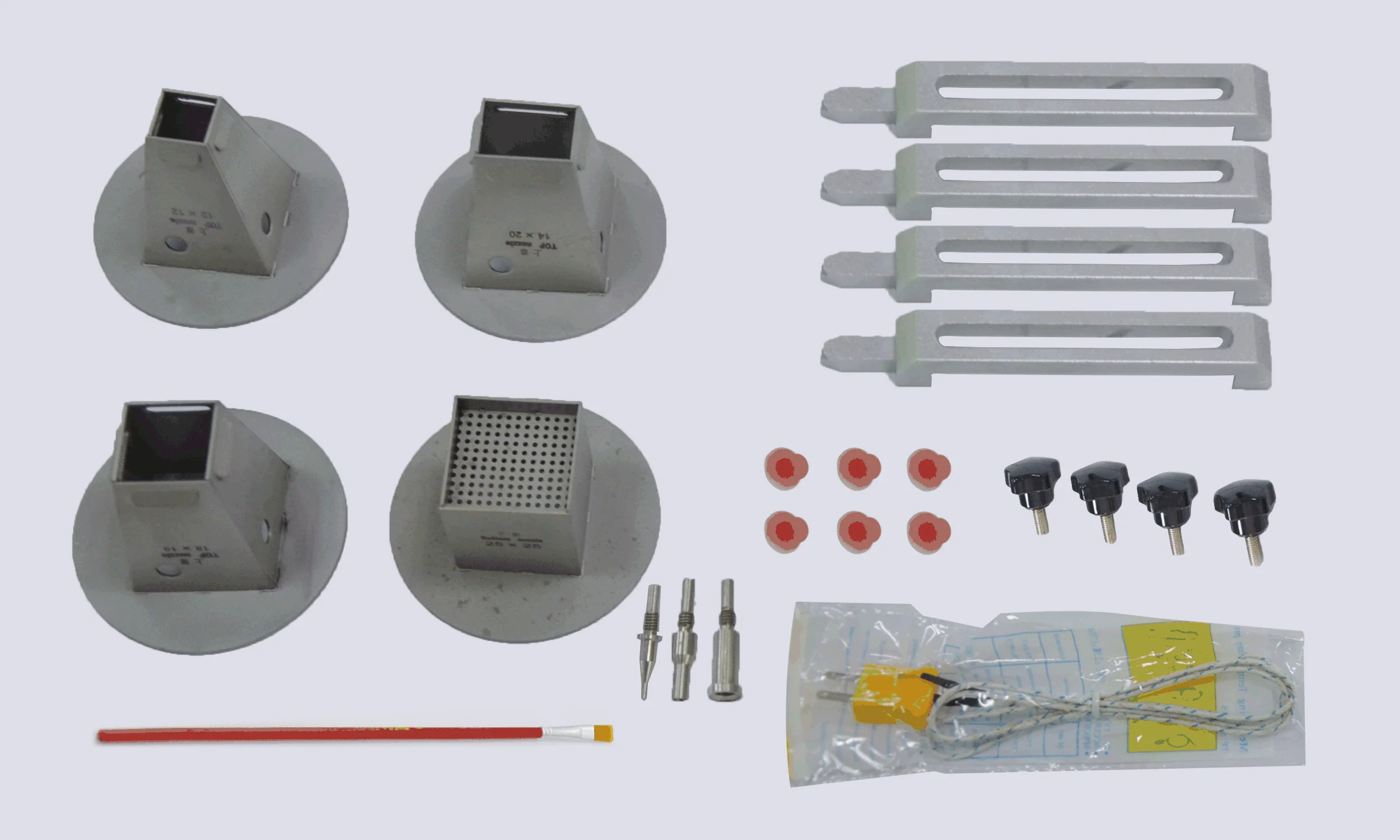

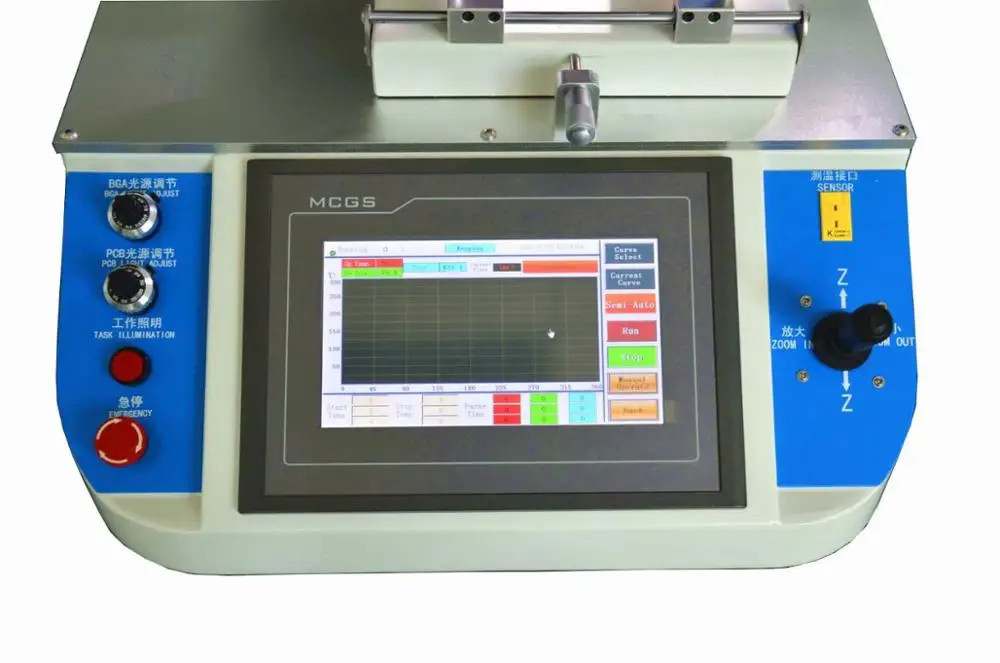

1.Adopting the HD touch human-machine interface;upper heating head and mounting head designed 2 in 1;providing many kinds of titanium alloy BGA tuyere can be rotated in 360 degree for easy installation and replacement.

2.X,Y and R angle adopted micrometer fine-tuning,accuracy locating,precision can reach ±0.01mm.

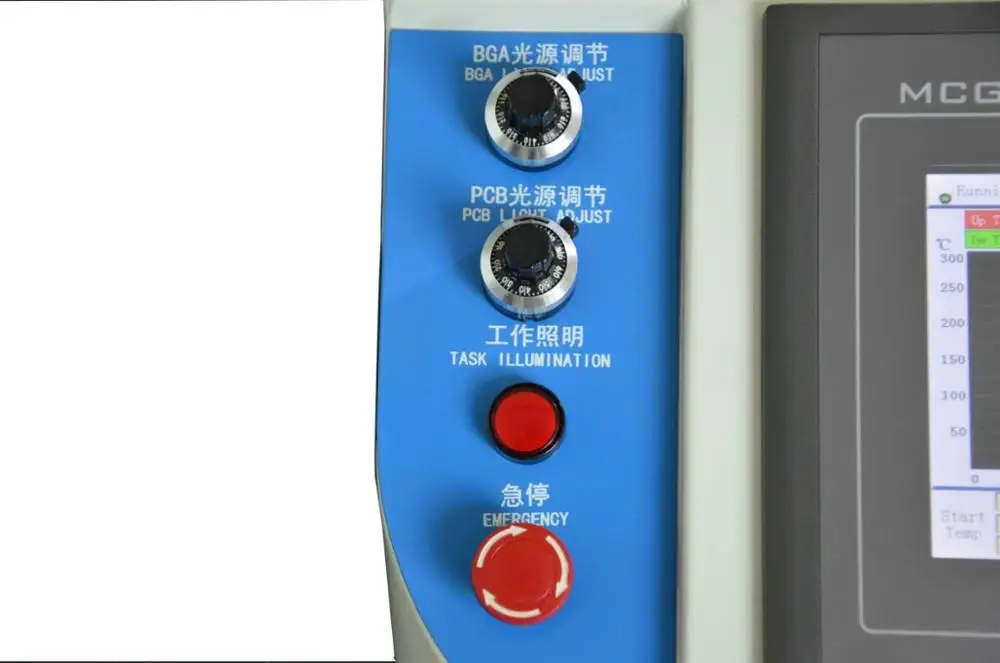

Superior safety protection function

With the alarm function, after the BGA welding the machine can alarm by itself.In the case of temperature abuse, the circuit can power off automatically with the double over-temperature protection.Temperature parameter having password protection to prevent any modification.

Product



WDS-800 BGA Rework Station

       1.5 work modes

2.15’’ HD LCD monitor

3.7’’ HD color touch screen

4.stepping motor

5.CCD color optical alignment system

6.Temperature accuracy within ±1℃

7.Mounting precision within ±0.01mm

8.Repair success rate: 99% +

9.Independent research and development of single-chip control



Total power	Max 2600W
Power supply power	AC 100V / 220V±10%  50/60Hz
Heater power	Top heater 1200W(Max), bottom heater 1200W(Max)
PCB size	140*160mm - 5*5 mm
BGA chip size	50*50mm - 1*1 mm
Applicable PCB thickness	0.3 - 5mm
Sensor	1pc
Mounting accuracy	±0.01mm
Dimension	L 450*W 470*H 670mm
Net Weight	30kg
Mount chip weight	150g
Alignment system	Optical lens + HD industrial camera
Electrical material	Driving motor + smart temp. controller + color touch screen
Locating way	V shape PCB support + external universal fixture + laser light for centering and positioning
Temperature control	high precision K-sensor+ closed loop control + independent temp.controller (the precision can reach ±1℃)
Working modes	Five: Semi-auto/Manual/Remove/Mount/Weld
