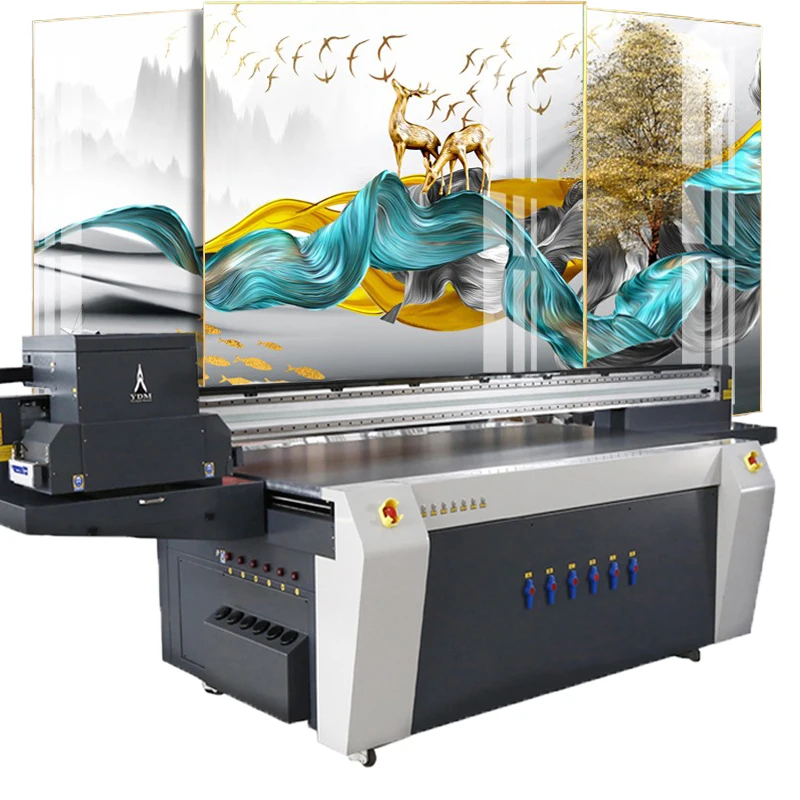

industrial Ceramic tiles printing machinery large format 2513 uv flatbed printer
- Category: >>>
- Supplier: Linyi Wanna Deyin Digital Products Co. Ltd.
Share on (62546628667):
Product Overview
Description
industrial Ceramic tiles printing machinery large format 2513 uv flatbed printer
Product Description
| Product name | industrial Ceramic tiles printing machinery large format 2513 uv flatbed printer |
| Print Direction | Unidirectional /Biodirectional |
| Print head cleaning | Postive presure cleaning |
| Print speed | Production mode: 20-30 m2/h Quality mode: 15-20 m2/h High resolution mode: 10-15 m2/h |
| Drying type | Imported LED lamp curing |
| Media type | Acrylic/ aluminum/ ceramic/ foam board/ glass/cardboard and others |
| Max.media thickness | 100mm, Larger size can be customized |
| Operation Environment | Temperature:20℃~28℃ Humidity:40% RH~60% RH |
| Computer configuration | System:XP,win7,win10,32/64 CPU:≥ Intel i5 RAM: ≥8GB Hard Disk: SATA 500G, NTFS CD Rom: DVD recordable Space for Disk C : ≥100 G |
| Noise | Standby < 32dB Working < 65dB |

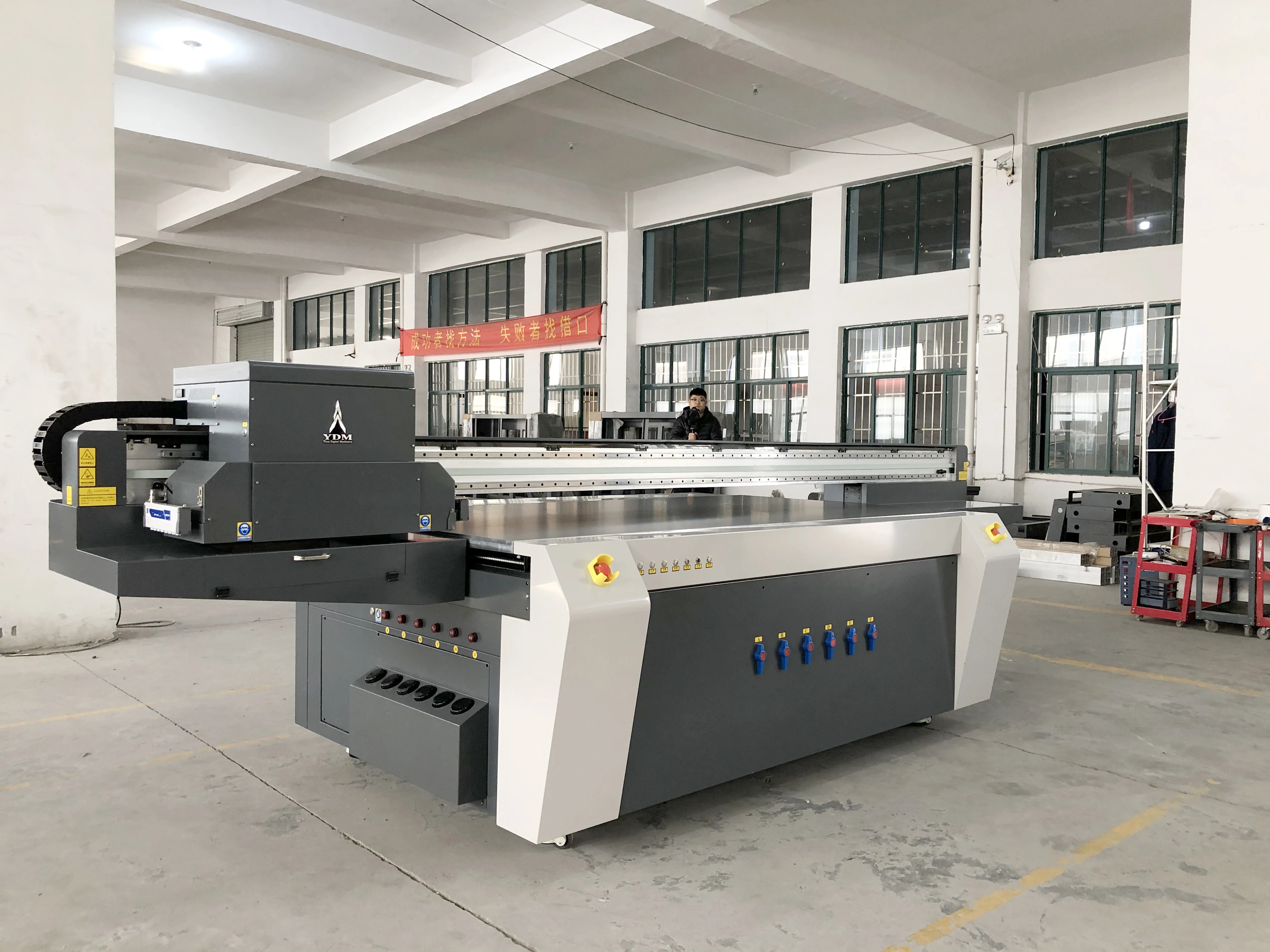

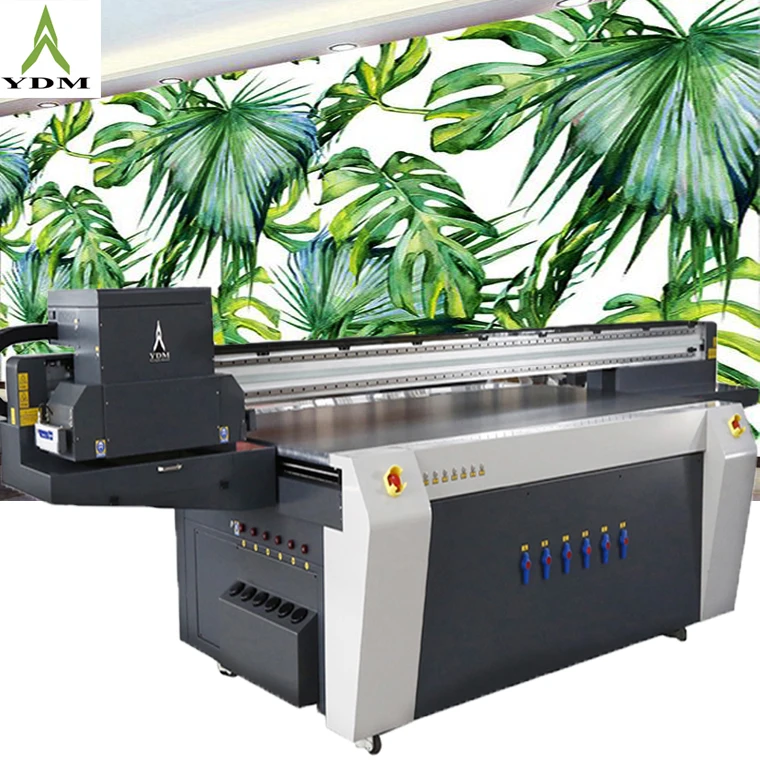

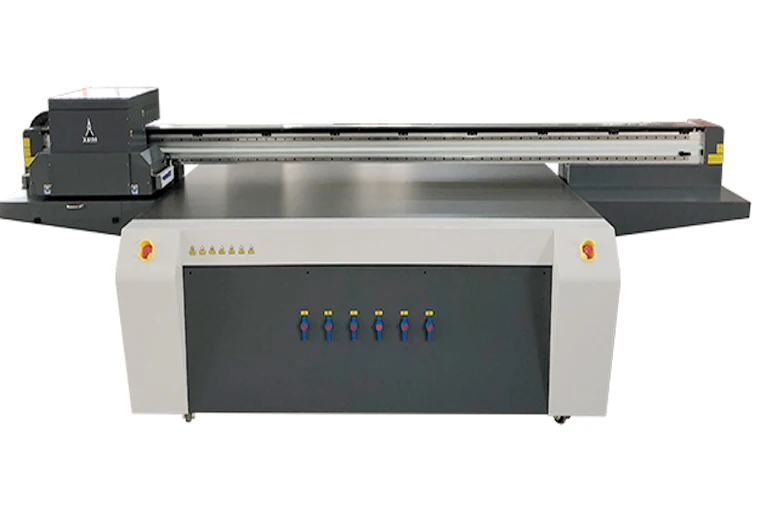

- YDM 2513 UV Printer with newest configuration
- 2513 uv printer equipped with 3500ml ink carriage with low ink warning system and white ink circuration&stiring system
- 2513 uv printer equipped with negative ink supply system,save your ink,and make printing work more frequently
- 2513 uv printer equipped with anti-collision device for printhead
- THKGuide Rail&ONK Belt for YDM 2513 UV Printer
- Higher printing accuracy
- Printing more stability
- YDM 2513 UV Printer equipped with double static eliminators and anti-collision device
- Printing on plastic material more frequency,avoid inks splashing when printing
- printing work more safe and easier
- YDM 2513 UV Printer equipped with double lead ball screw instead of belt
- Higher printing accuracy
- Printing more stability
- YDM 2513 UV Printer equipped with 4 pcs of rubber wheels
- Move printer work more easier
Printer Applications
- 2513 UV Printer is usually used in Advertising,decoration and other industry
- 2513 printing machine equipped with Ricoh G5/G6,or Toshiba CE4M printhead,12-15sqm/h,it can reach your mass production demand.
- 2513 inkjet printers is used to print on advertising signs,bill board,shoes,leather,acrylic,metal,glass,aluminum sheet,ceramic tiles,plywood,furniture and other materials.
Team&Certifications
- YDM as the leading manufacturer of Inkjet printers and uv printers with around 20's experience in China,we have a professional service team to fix the problem on time for our customers from all over the world.
- YDM uv printers and inkjet printers already were certificated by CE,SGS,TUV officially
- 24 hours*7,professional service
Related Products
YDM is the Professional manufacturer of Printing Machine,like A3 Printer,UV 6090 Printer,UV 1313 Printer,UV 2513 Industry Printing machine,UV 2030 Industry Printing Machine,UV 4030 Industry Printing Machine And roll to roll wallpaper printing machine,More information,Pls clik below items:
FAQ
Q:What materials can print on?
A:POP board, KT board, Acrylic, organic glass etc. The UV printing reduce much work and trouble like lamination, fading, blistering, and save much working hours. Rigid signs board, hard carton or corrugated paper box, special market(like customize and decoration market): glasses, ceramic tiles, wood, even furniture.
Q:What’s RIP installation interface supported language?
A:Korean, German, French, Finnish, Dutch, Portuguese, Japanese, Spanish, Italian, English, Chinese (Simplified), Chinese (traditional)
Q:How to do when the status of the printhead is not good?
A:1. Trun off power, move the printhead to the initial position, check if the printhead and cap top is in the same line
2. Do one time cleaning action, and print the test status.
3. If above operation still can’t solve this problem, then disassembly the printhead, cleaning the printhead manually or use cleaning machine to clean the printhead
4 If the status keep the same after above all operations, then check other parts or change a new printhead to test.
Q: What is Warranty Policy
A: During the 1 year warranty if any part is faulty, our company will give you replacing parts for free. When the warranty expired, our company will still provide free technician support. Especially, you will gain the lifelong Warranty for your large format digital inkjet printer with continuously ink order.
Q: What about the after-sales service ?
A: We have many experienced technician, Provide the technical support for all of our customers ,We will teach you how to operate the machines until you master it ,sometimes our technician team will go abroad to test and repair the machines.
