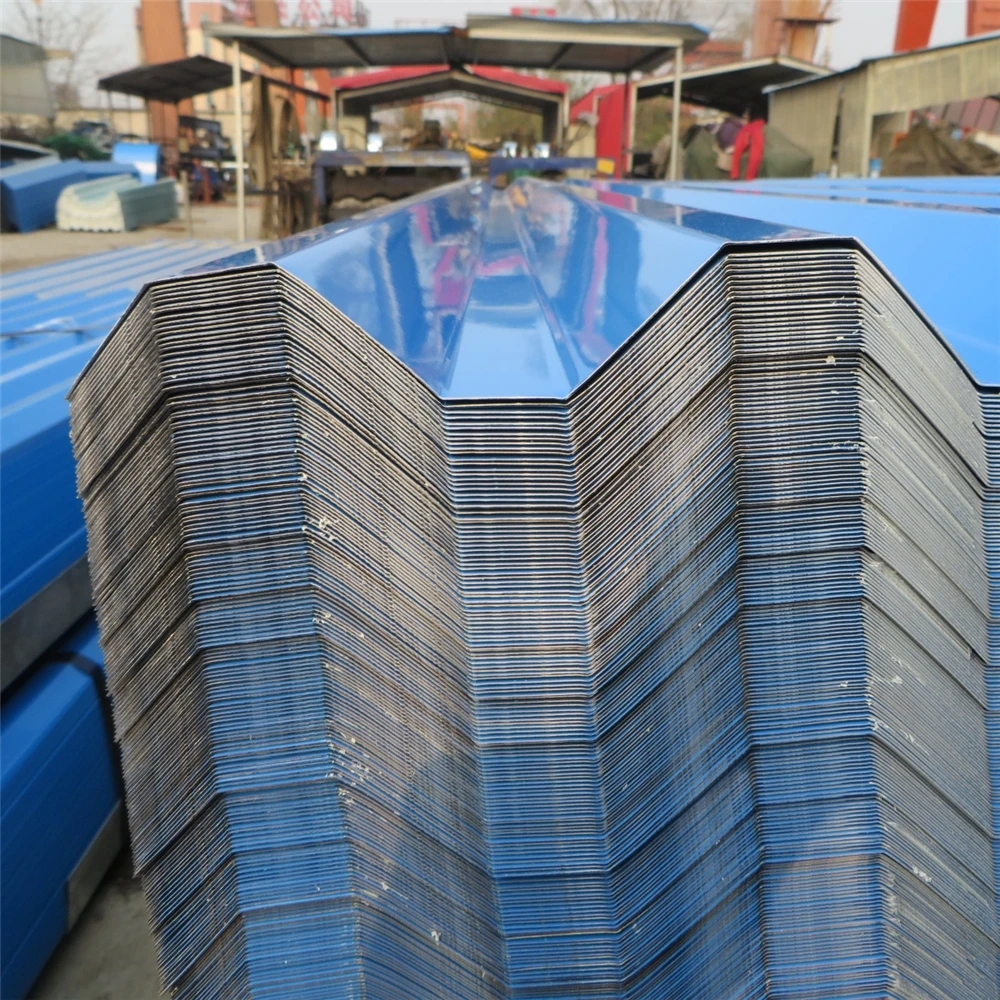

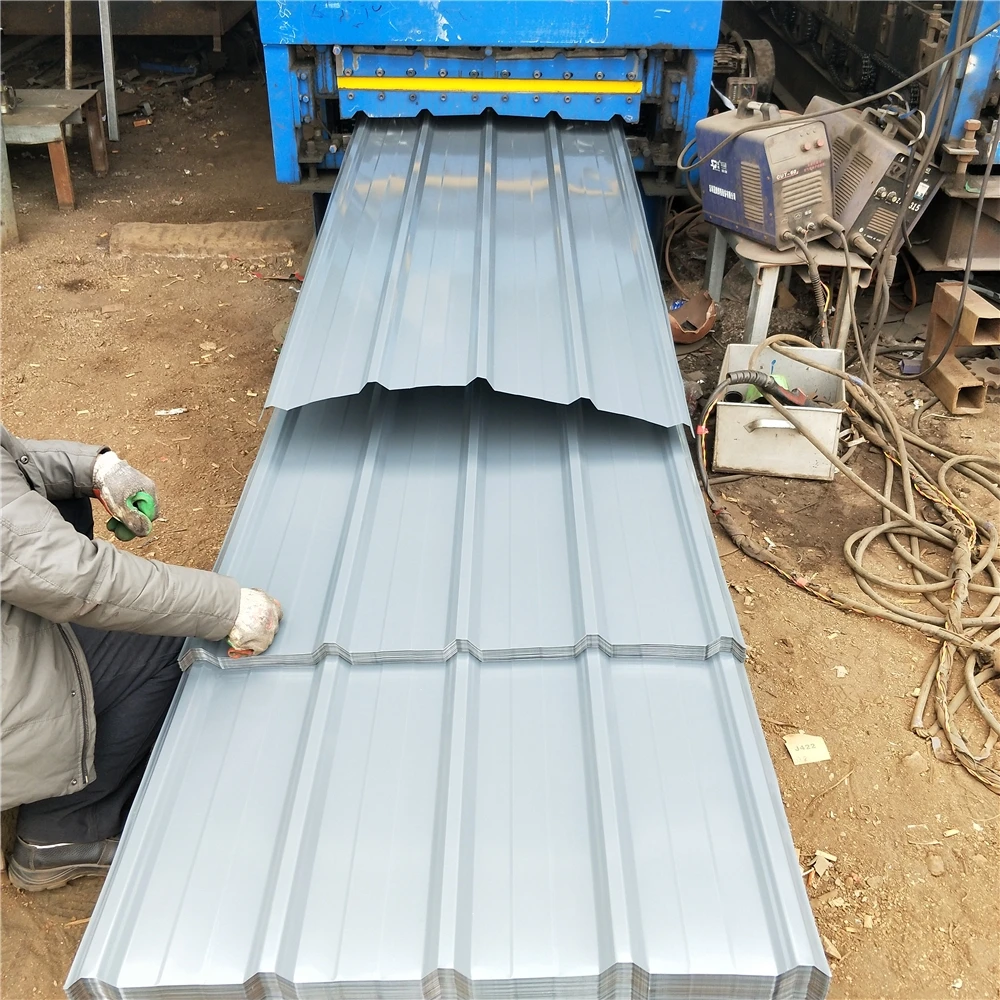

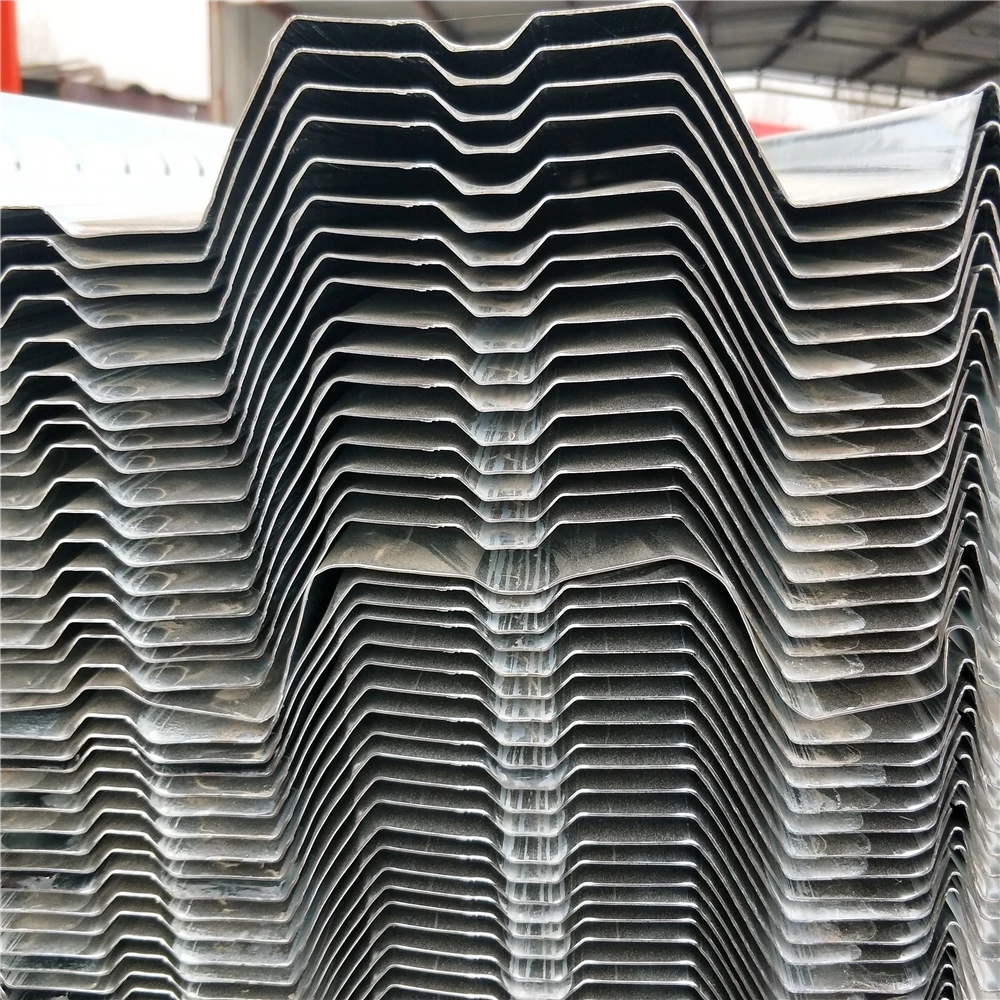

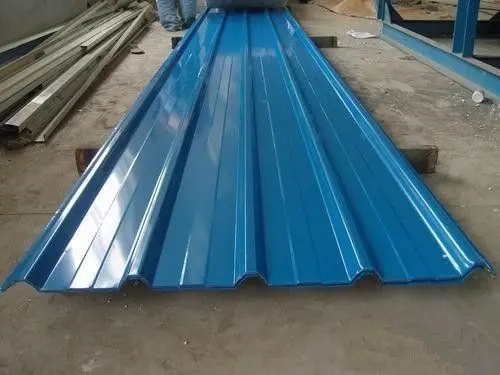

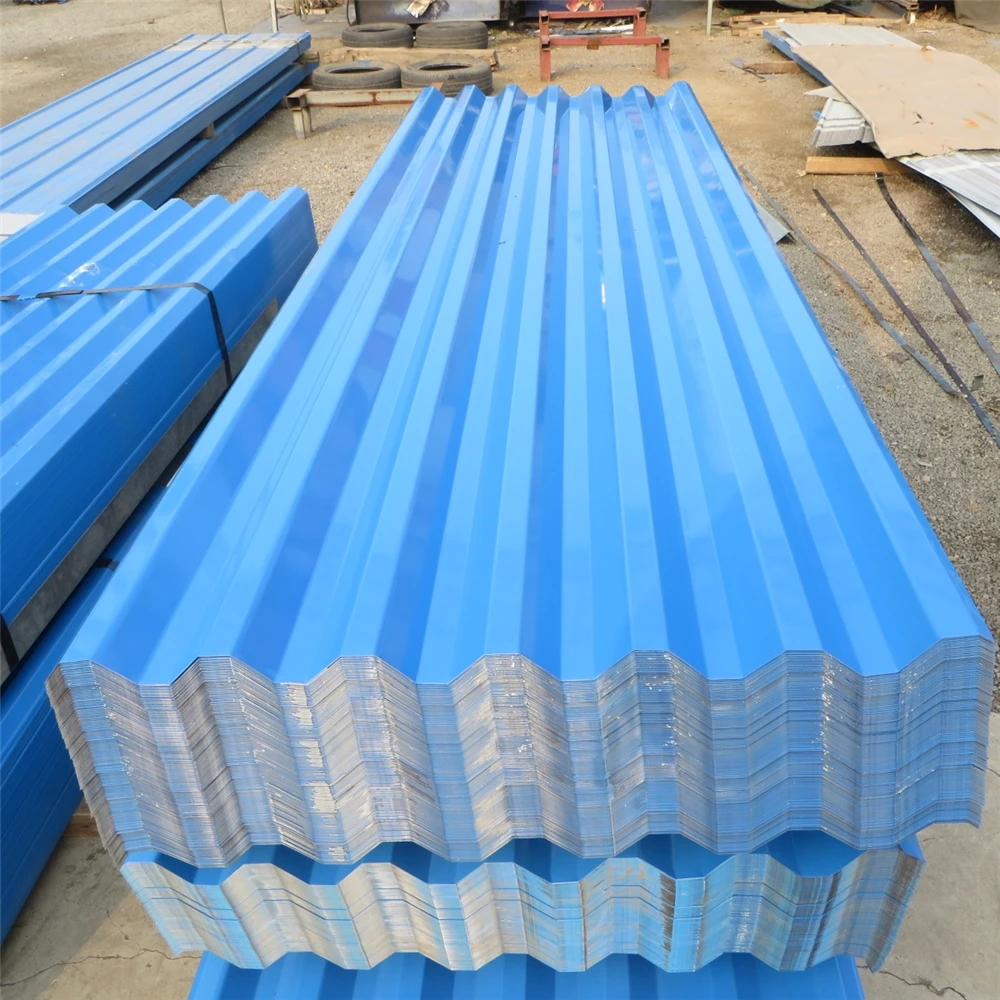

Finely Processed Cheap 600mm 1250mm Width Corrugated Steel Roofing Sheet

Share on (62546721655):


Price:RUB 64,037.22 - RUB 79,104.80

Quantity:


Product Overview

Description




Product Details
Material
SGCC,SGCH,JIS G3302,DX51D,DX52D,DX53D
Thickness
0.12 -1mm
Width
600-1100 mm
Length
2-6 meters
Tolerance
Thickness: +/-0.02mm
Width:+/-2mm
Color coating
Zinc Coating: 30g/m2-275g/m2
Color Coating: Top:15-25µm / Back: 5-8 µm
Surface treatment
unoil,dry,chromate passivated, non-chromate passivated
Certification
ISO 9001-2008,SGS,CE,BV
Technique
Cold rolled->hot dipped galvanizing->Color Coated -> corrugated
Weight of each package
3 mt

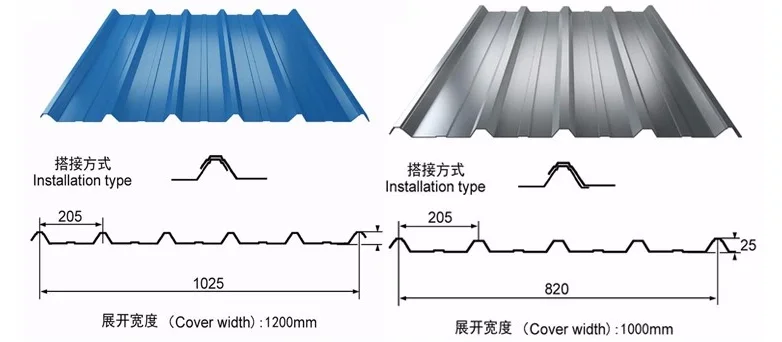

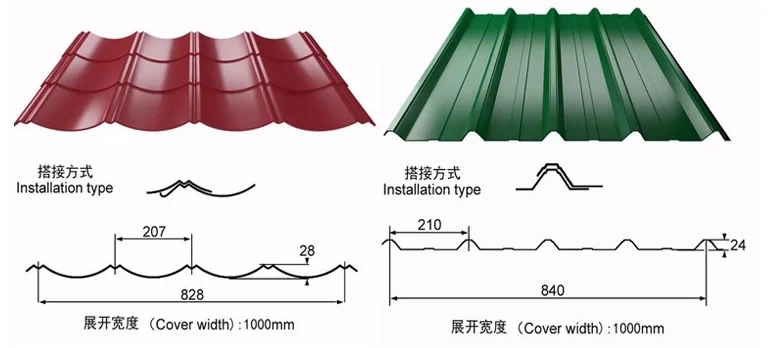

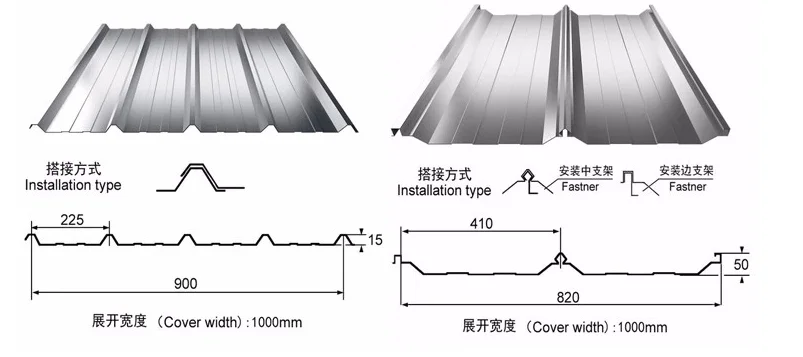

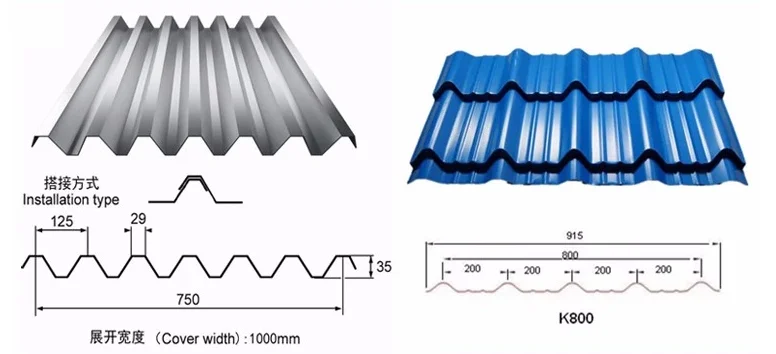

Depth of corrugated
from 15mm to 18mm
Pitch
from 75mm to 78mm
Colors
refer to RAL numbers or customer sample,common colors are sea blue, white grey and bright red.
Corrugated Sheet Raw Materials
Galvanized steel, Aluzinc Steel, Aluzinc Pre-painted sheet and Aluminium sheet.
Gloss
The gloss can changeable by Customers' Request.we can also do some High gloss.
Paint type
PE or PVDF
Standard
GB/T 12754-2006;ASTM A 755;EN 10169;JIS G 3312;AISI;BS;DIN
Grade
CGCC/SGCC/SGCH/SPCC
Yield strengh
550MPA/As required
Tensile strength
600MPA/As required
Hardness
Full hard/soft/As required

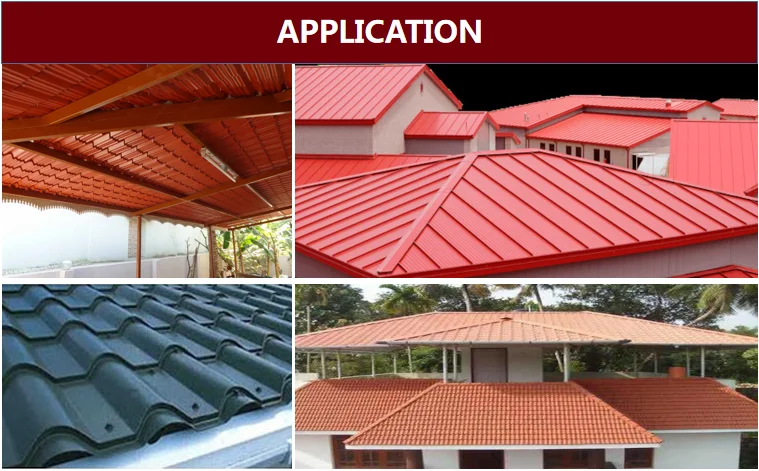

Application
various roofs or walls referring to the large size factory buildings, storages, exhibition halls, gymnasiums etc.
