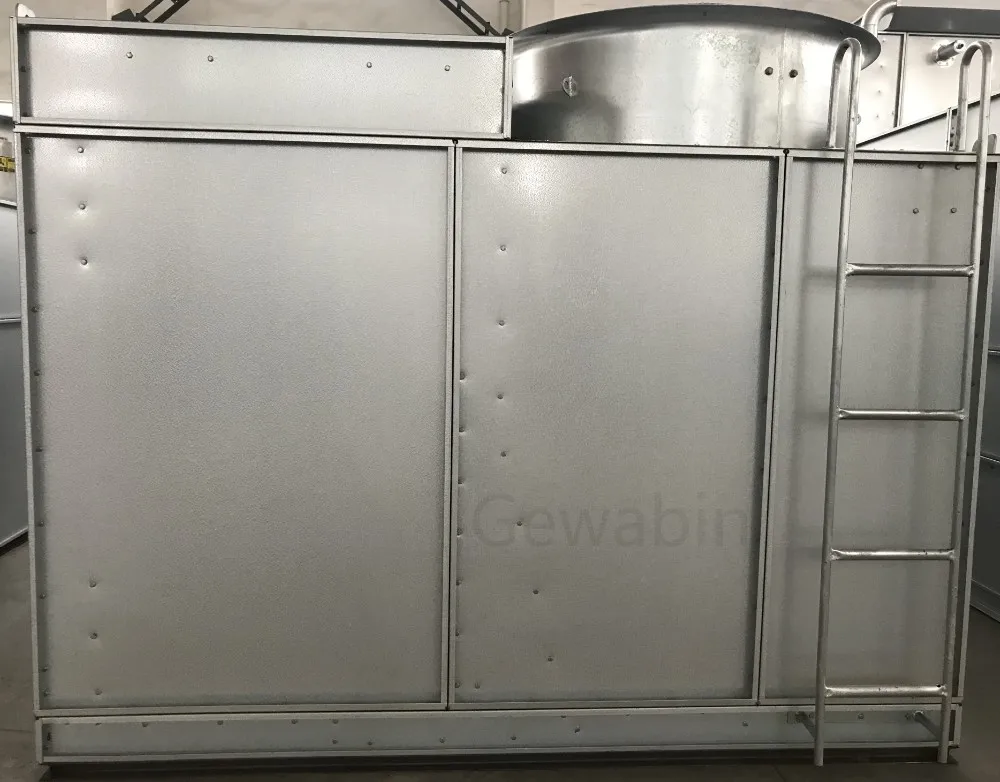

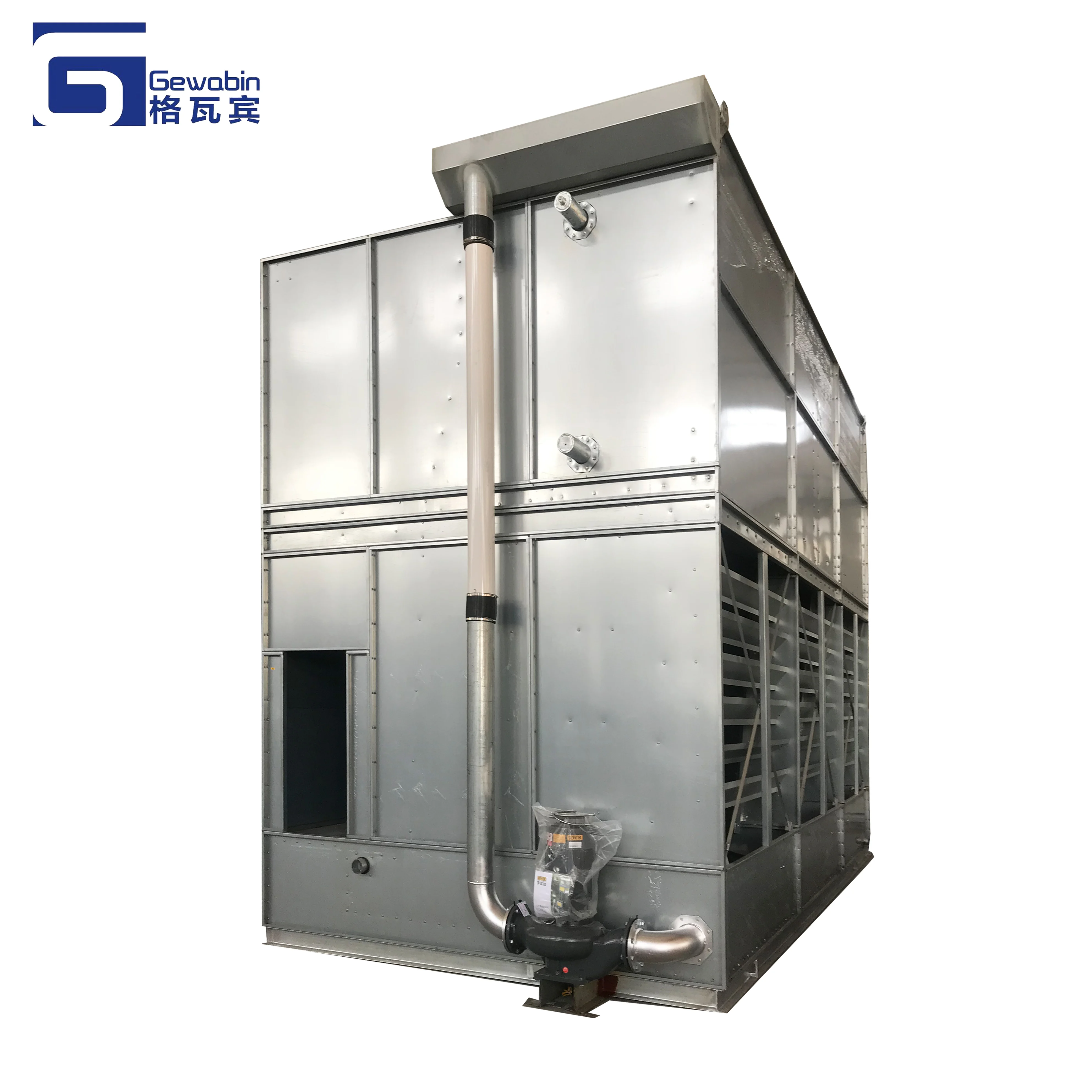

Specification of 495kw Ammonia Evaporative condenser for food industry
Heat refection under Nominal operating condition
kw
495
Propeller fan
Qty.
set
1
blowing rate
m3/h
60000
Power
kg
5.5
Water circulating pump
Water volume
m3/h
46
Power
kw
1.1
Weight
shipping
kg
2710
Operating
kg
4060
Ammonia charge
kg
49
Product working principe
The condenser uses water and air as cooling medium.And Heating exchange with high temperature gas cooling in the coil.Then the refrigerant gas condensed in to a liquid.
Product Details
Condensing coil
1.Material:high-quality seamless steel tube Φ25mm(GB/T8163) 2.The design pressure is 1.97Mpa and all the coils have been pneumatically tested 3 times at 2.5Mpa to avoid leakage. 3.Integrated hot dip galvanizing of condensing coil can enhanced corrosion resistance.
Propeller Fan
1.The ventilating system of GWBS adopts the aluminum alloy propeller fan for cooling tower.
2. Advantage:high blowing rate,low damping,low noises,good perormance and high efficiency.
3.motor:Fully closed and self-cooled ,low noise,reliable operation,etc.

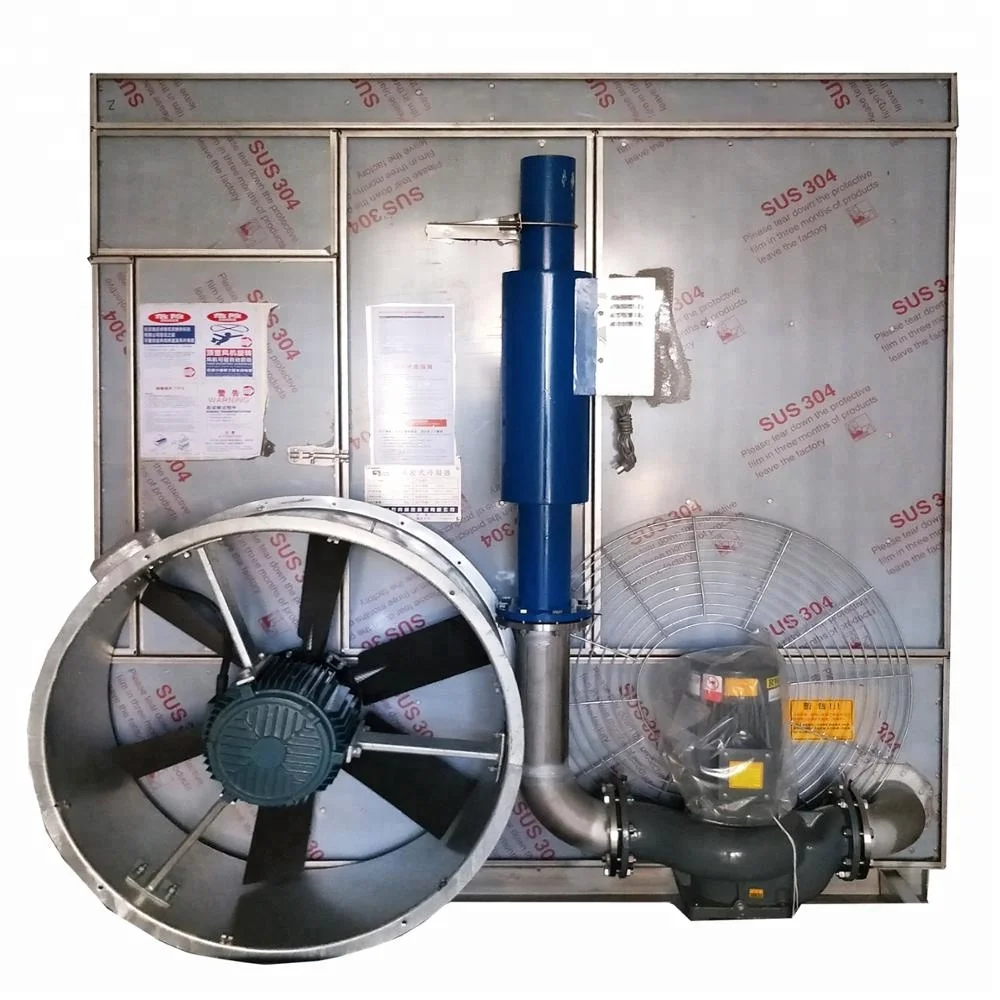

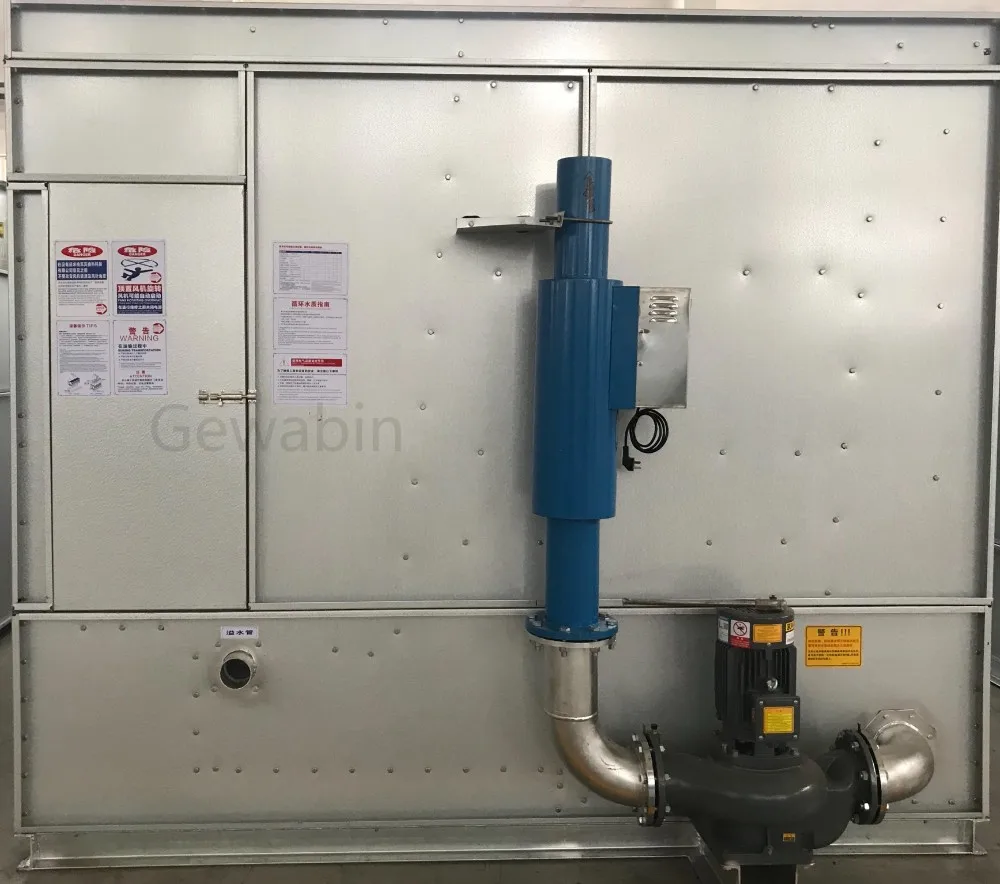

Water Circulating Pump
1.The Water pump uses a high-quality mechanical seal that is not limited by the steering
2.Motor:special outdoor type motor,the advantage of the motor is low power,high flow,low noise.

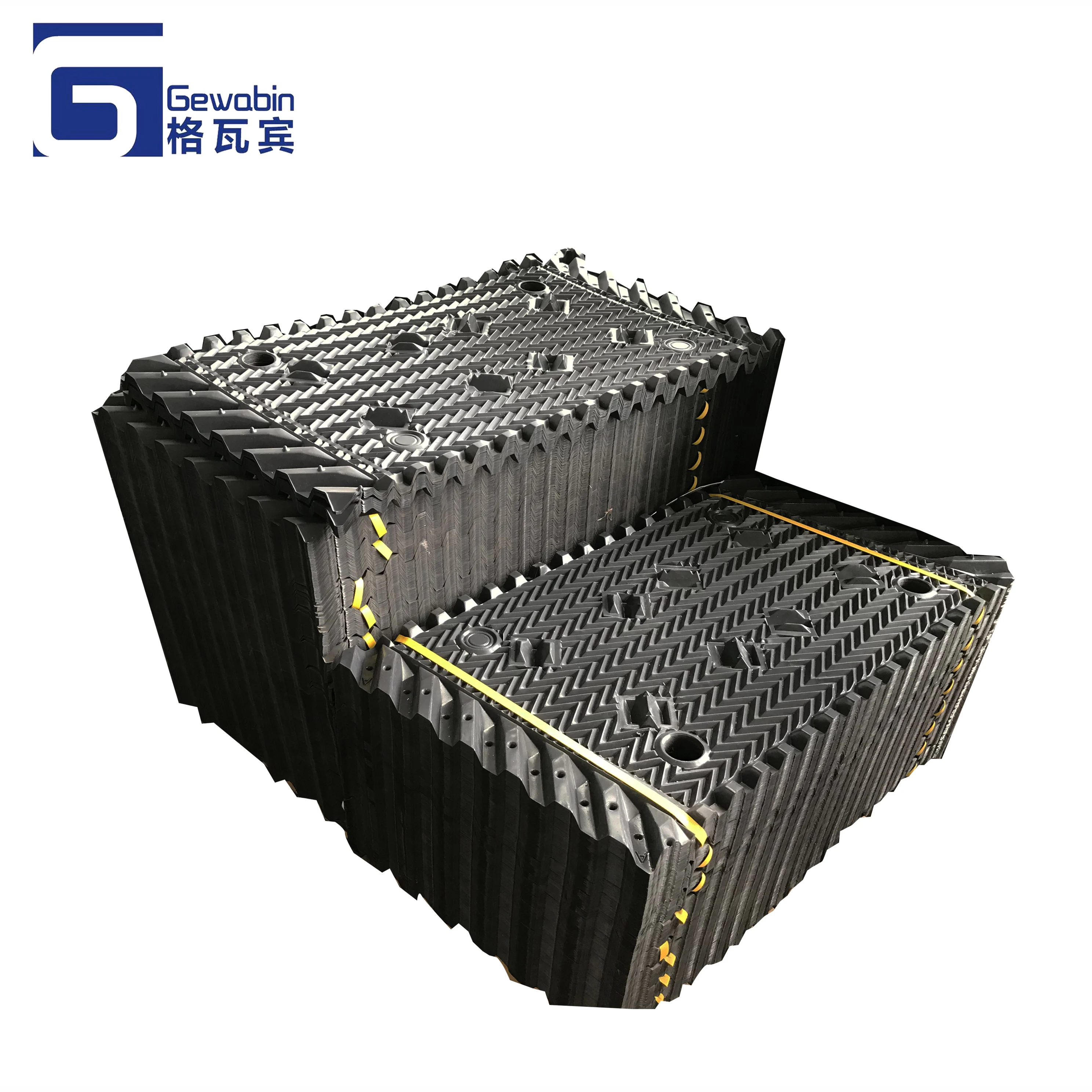

PVC Filler
1.Material:PVC honeycomb type stuffing . 2.Use:Extended water cooling time to improve the effect of cooling. 3.Adavantage:aging resistance,low wind resistance and deformation resistance.

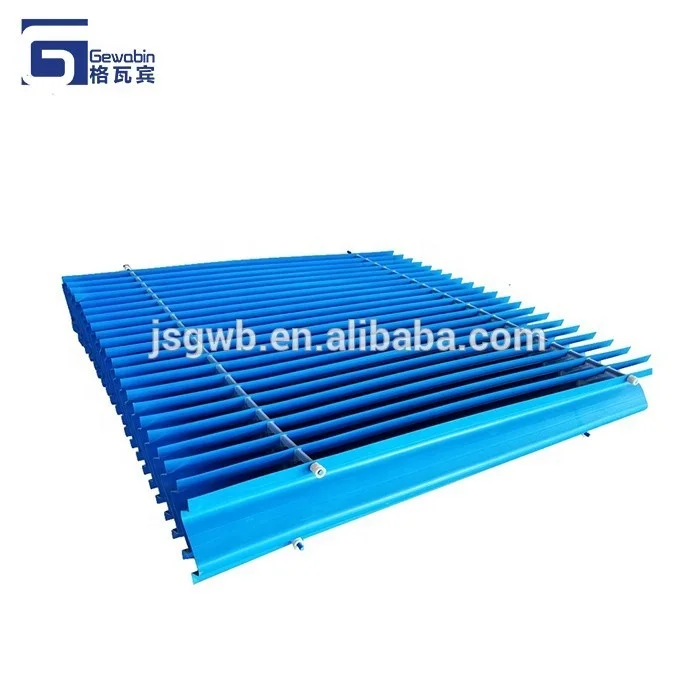

Removable Drift Eliminator
1.Material:specially designed non-corroding PVC
2.Advantage:remove moisture effectively from the moist air .It ia convenient to disassemble.
Main Characteristics of product (China ammonia SS stainless condenser coil evaporative condenser and evaporator for refrigeration)
1.Excellent heat exchange performance 2.Low operating cost and Energy saving,space saving 3.Convenient examine and repair 4.Reliable fixing element 5.low fault rate 6.Convenient trasportation and installation
Our Service
Pre-sales Service
1.Professional technical Team: Providing technnical proposal and Various CAD Drawings available.
2.High quality sales team:Helping customers to choose suitable products.
After-Sales Service
1.When the product is sent to the user, our company will assign relevant personnel to confirm with your company and sign the product acceptance form. 2.help customers to train install machine and use machine for free. 3.Acceping the customers' feedback and opinons.

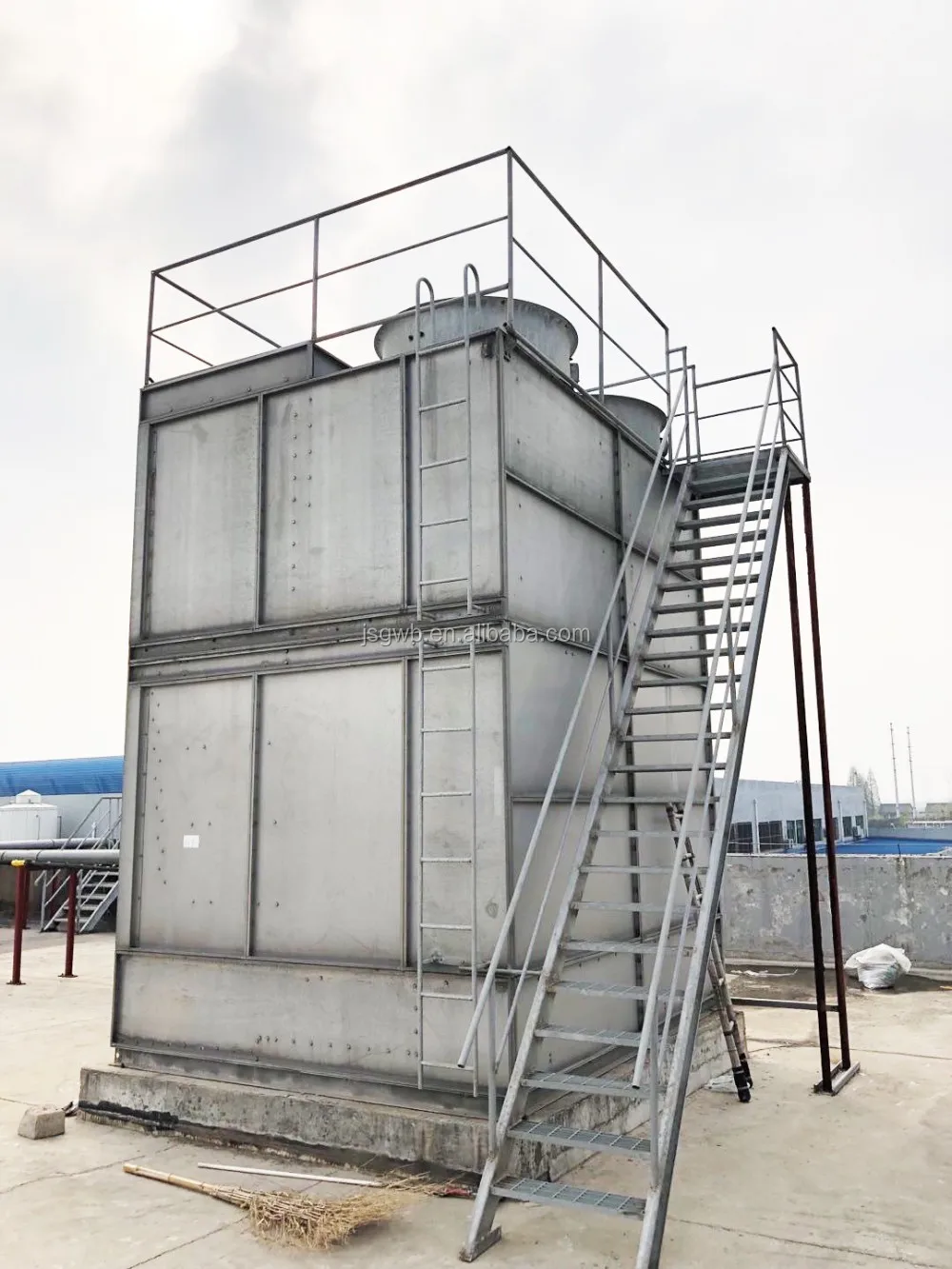

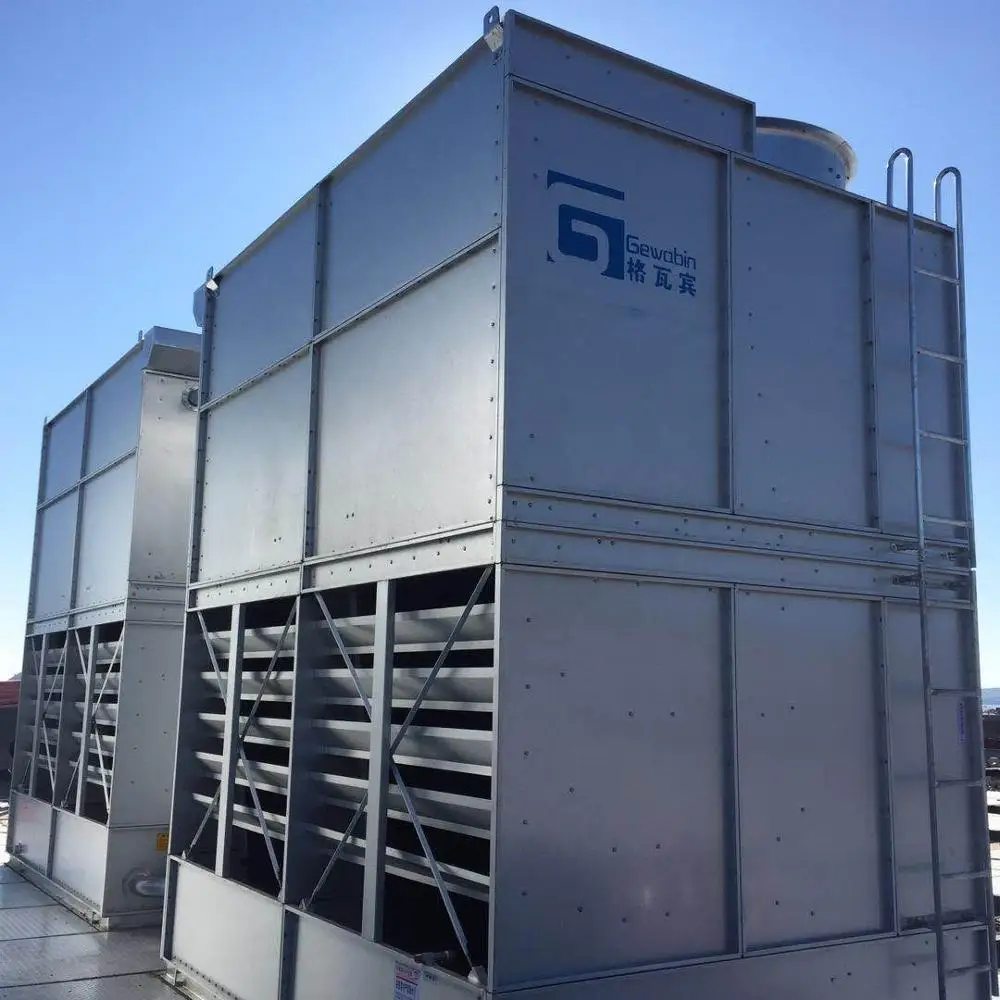

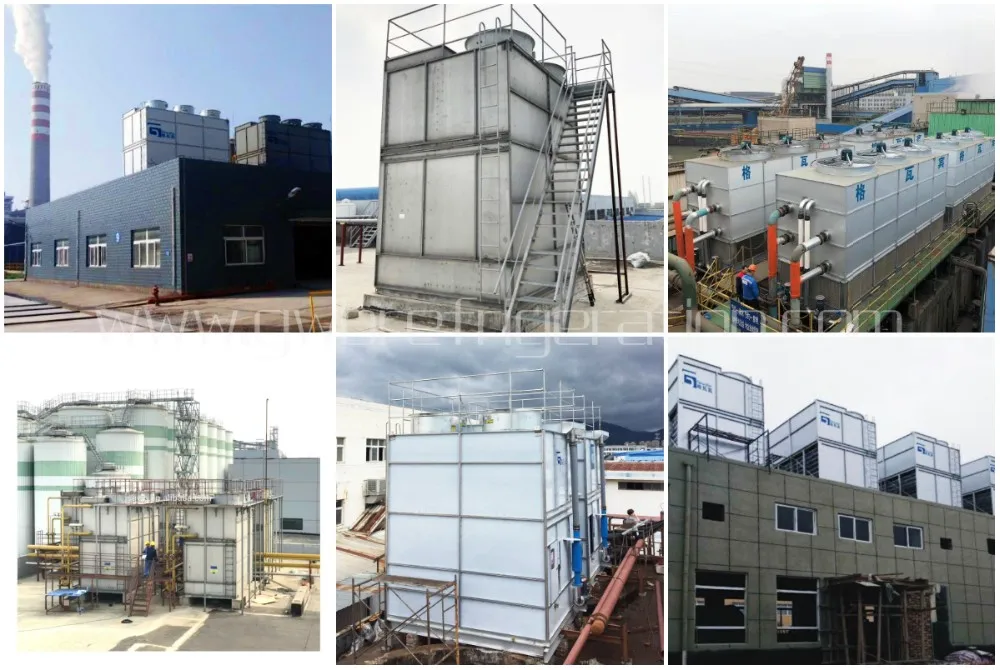

Pruducts case
Exhibition
Packing & Delivery
Packing
Size
1830*2350*4370
Packing Details
1.Two body parts: upper and bottom boxes.
2.Packing with plastic film
3.Shipped by one 40ft container.Upper and bottom body parts are separated in the same container.
Delivery time:
shipped in 25-30 days after payment
FAQ
1. Q: Are you trading company or manufacturer ? A: We are industrial and Trading Company.we have an own facory in yixing city,Jiangsu,China.Welcome to visit us!
2. Q: What is your price? A:Our FOB price is based on the quantity , material and size of the product you buy.
3.Q:When can I get the price? A:Usually within 24 hours after receiving your inquiry. And if you are very urgent, you can call us or send an e-mail to us that we can reply you in time.
4.Q: How long is your delivery time? A: If the goods we have in stock,the delivery time is 15~20 days after payment. or if the goods are not in stock, it is according to your quantity.
5.Q: What is your terms of payment ? A: When payment ≤2000USD, 100% in advance. Payment ≥2000USD, 30% T/T in advance ,balance before shippment.
