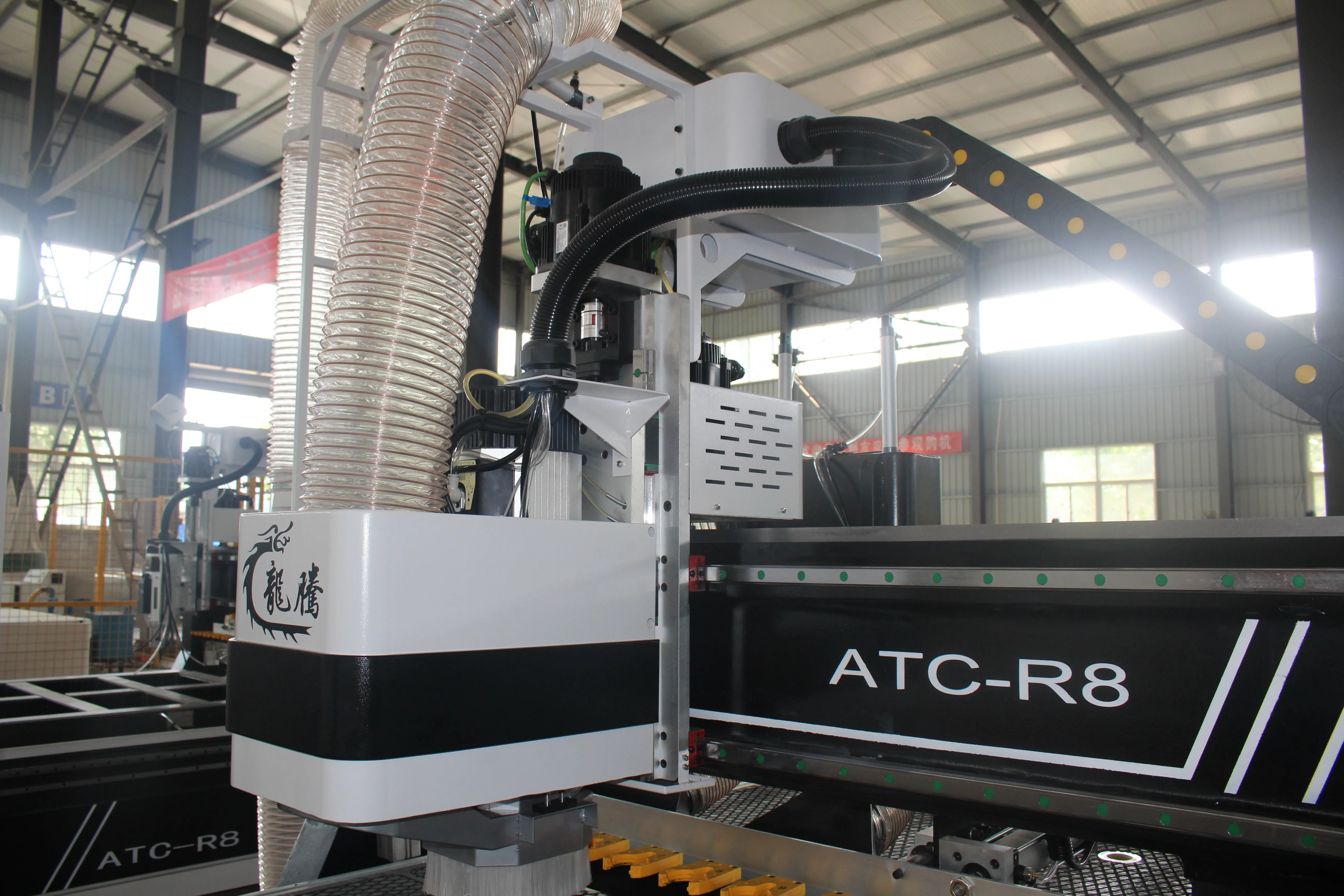

GDZ 9KW BIG POWER SPINDLE LINEAR TOOL MAGAZINE LONGTENG AUTO TOOL CHANGE WOODWORKING MACHINE FOR WOODEN PANEL

Product Overview

Description

R8 cnc router atc

Product Description

German Siemens controller Siemens servo motor 10 tools top quality ATC cnc router for wood aluminum mdf plastic cutting milling

Product Application

* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE, PEHD and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

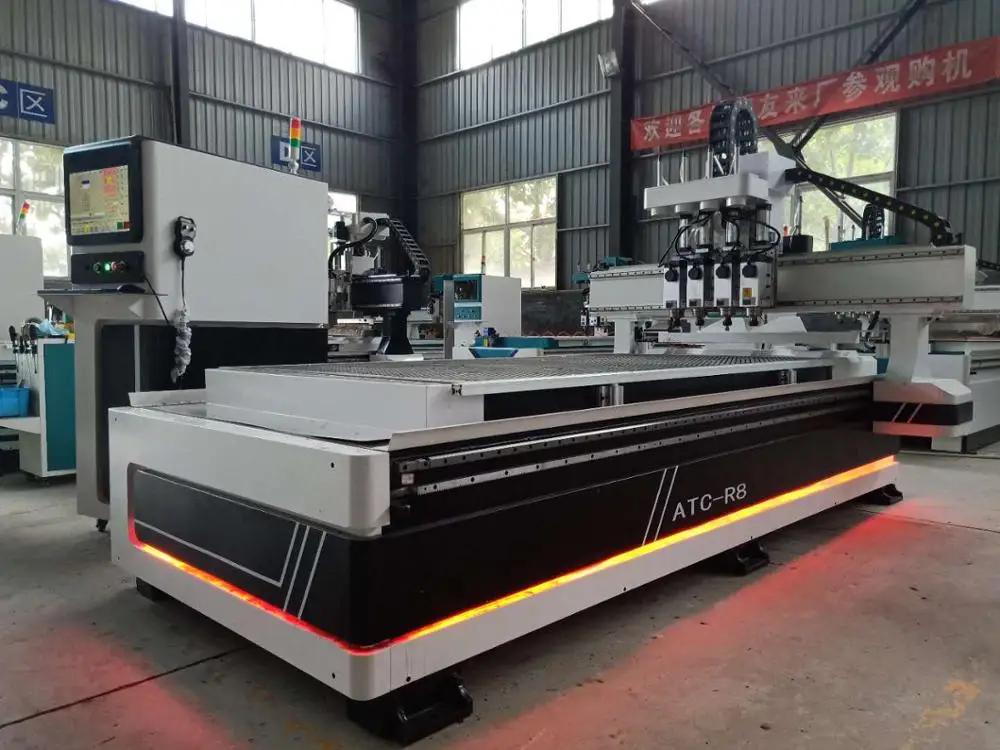

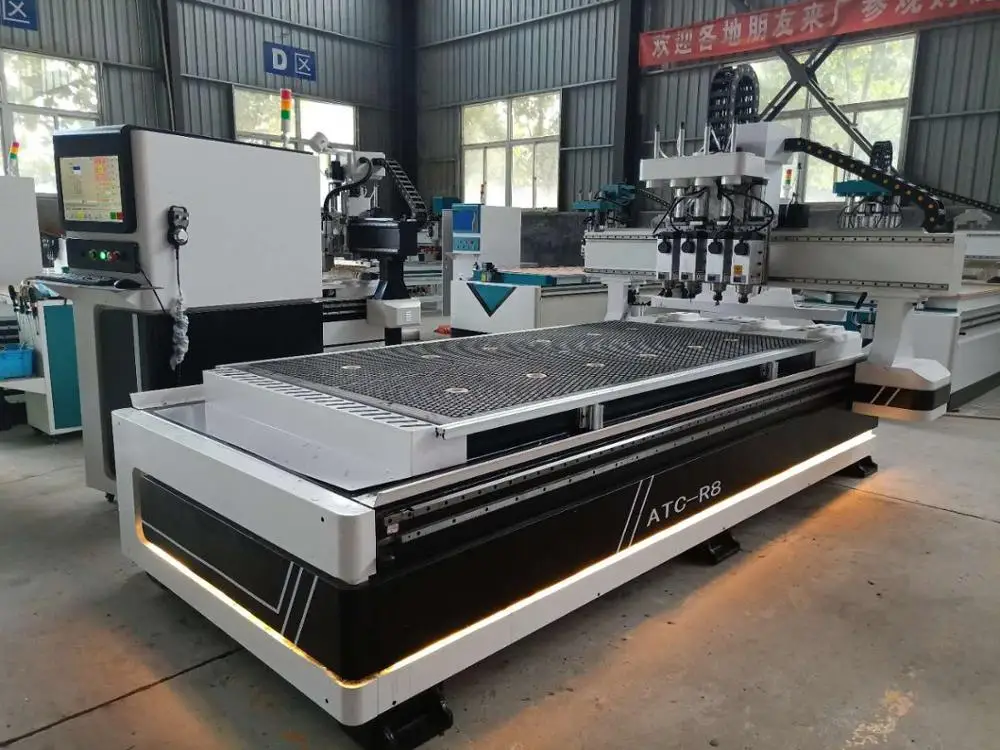

 Machine Picture





Machine Configuration

Longteng third generation in-line R8 - speed opener equipment parameters
Working stroke (S*Y*Z)	1220*2440*200mm	Speed of spindle	0-24000/MIN
Spindle	GDZ  air-cooled 9KW Spindle	Tool magazine	12 straight tool
Servo motor	dongling 1500W (2-in-1 drive) Feili mei 1800W (four drives)	servo drive	supporting servo motor driver
Inventer	11kw sino-foreign joint venture haipumonte	Speed of tool change	Speed change
System	Taiwan Syntec system	transmission track	genuine product original Y-axis 30 square gauge
Slider	Original Y axis 30 slider	Screw	TBI original 2510 lead screw
Cable	High flexible shield towing chain cable	Limit	Opening machine for positive and negative direction
Rack	Original HICK	Electrical componment	Original Zhengtai
Reducer	Original genuine Motorcycle	Cylinder	Walley(good quality and strong durability)
Blank line speed	120000MM/MIN	Maximum speed	35000MM/MIN
Vacuum pump	Water circulation 7.5kw	Dust collecter	Double bag 5.5kw
Working voltage	AC380v	Machine weight	2600KG
Appearance of the whole machine	third-generation longteng patent structure (independent control cabinet)
Bed structure	Heavy aging treatment welding bed body of bed structure (drilling precision of five-face milling is 0.02mm)
Gantry mechanism	beam thick wall square pipe and steel belt welding synchronous bed processing technology The monolithic cast structure of the column does not deform for a long time
Electronic control cabinet	longteng patented cabinet series, fully sealed large-screen intelligent cabinet
Z axis component	Z axis motor lock function, Z axis motor screw support
Vacuum adsorption table	patent design 50MM adsorption caliber, PVC pipe connection sealing, not running plate
The way of tool sensor	automatically tool sensor
Charging and positioning	double-sided all-package positioning cylinder with aluminum strip
Automatic blanking	automatic tiling horizontal push blanking belt auxiliary aluminum bar stop function
Dust removal method	spindle automatic partition type integrated dust removal and push material secondary dust removal

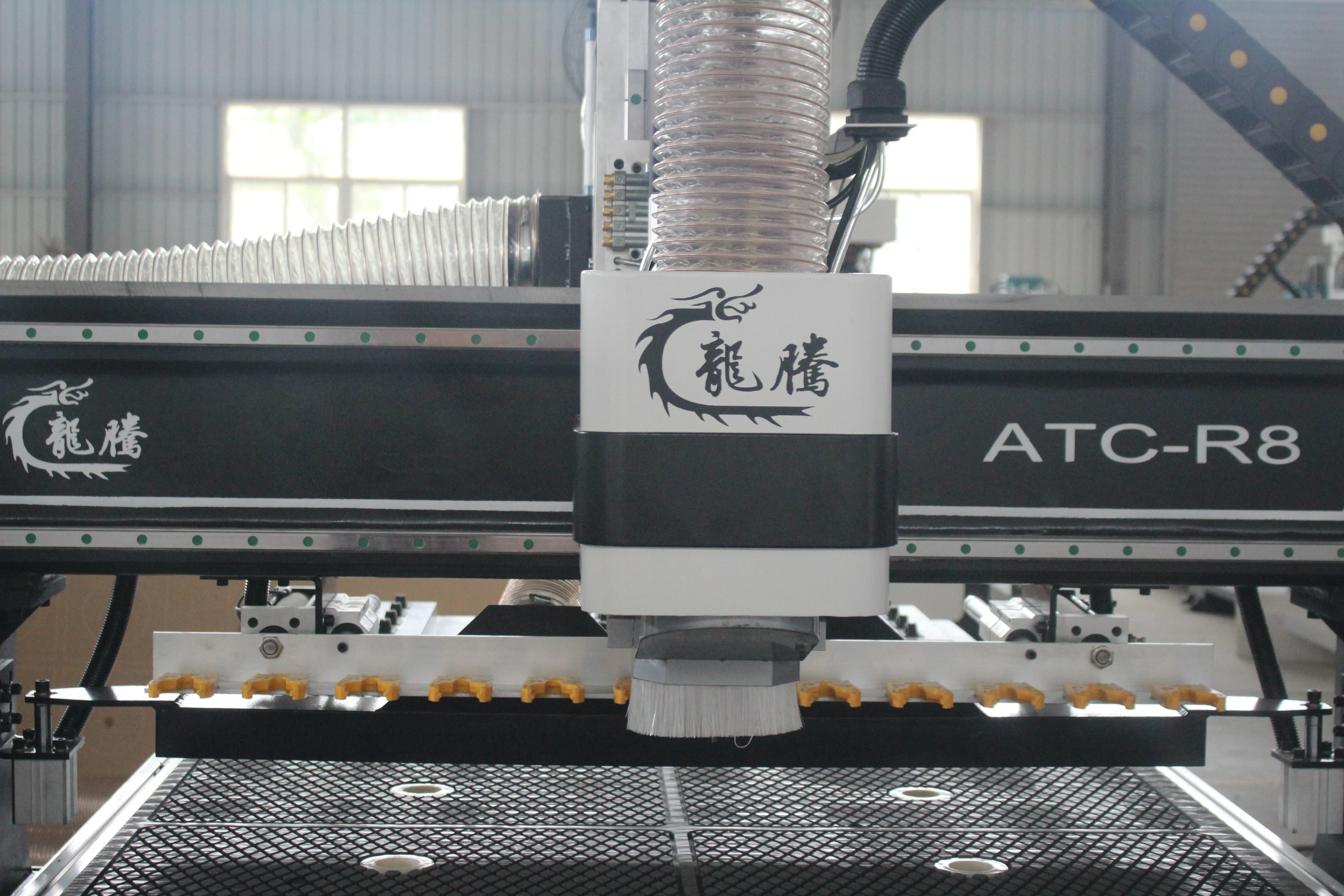

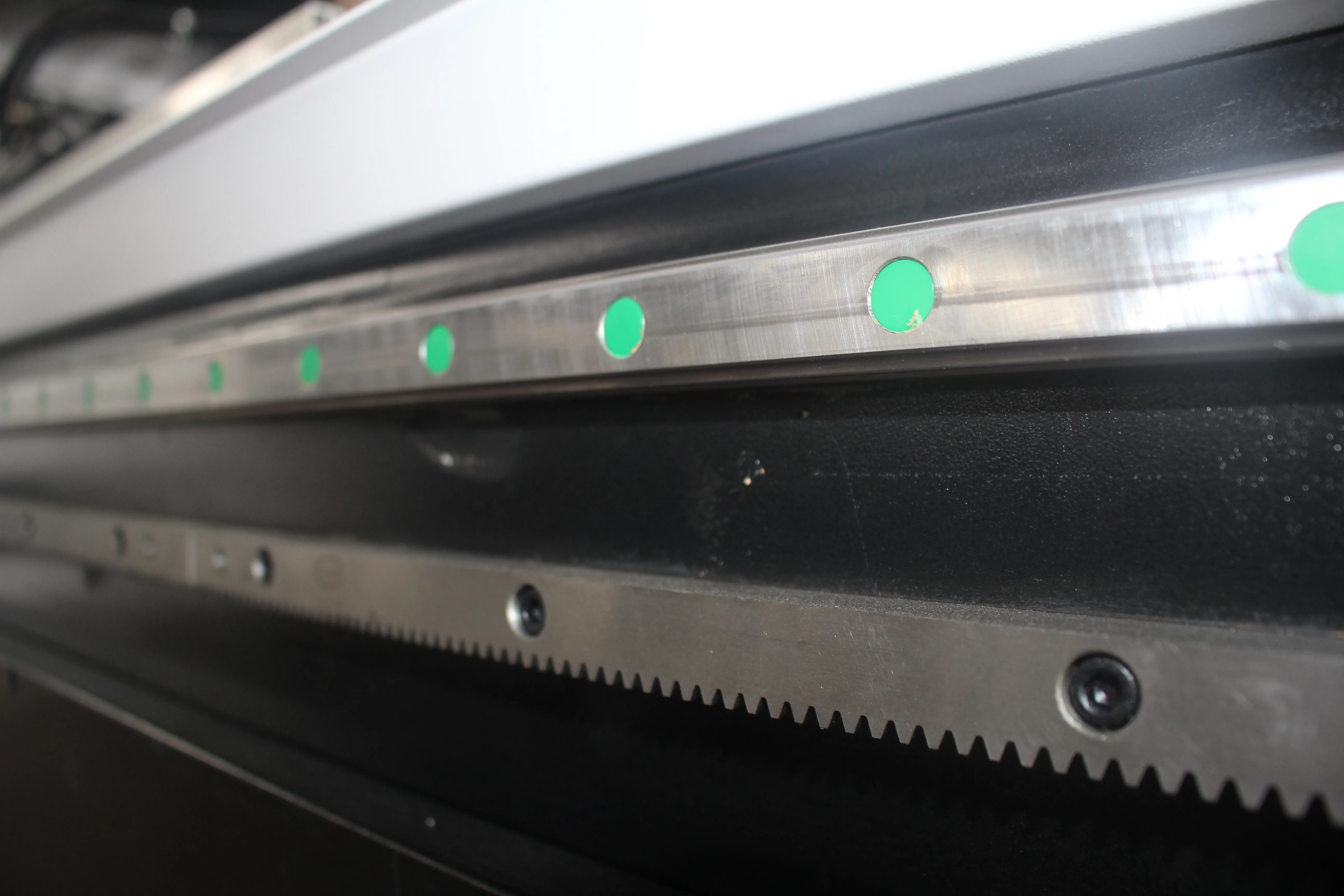

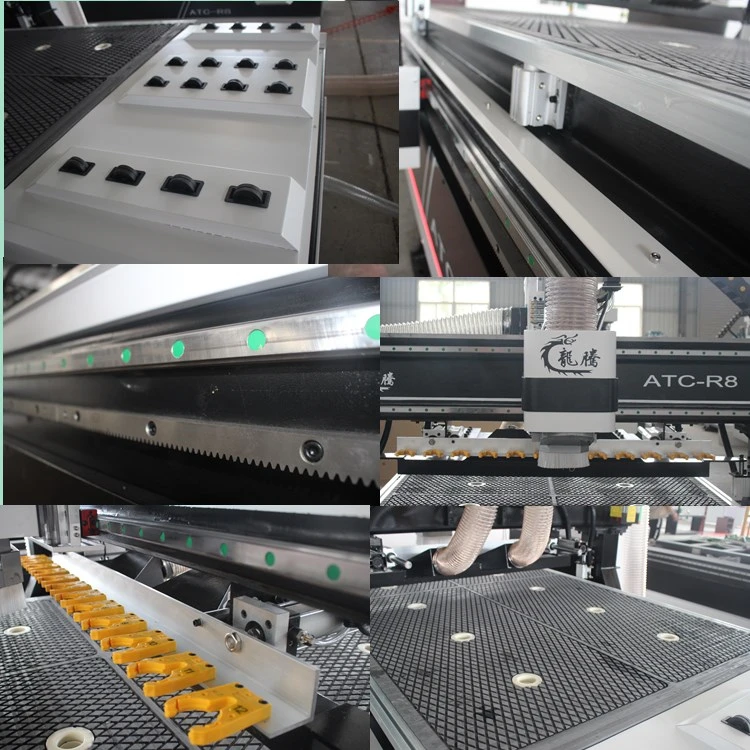

Product details



Product samples



Cetificate



About us

 JINAN JCUT CNC EQUIPMENT CO,.LTD is located in Jinan,Shandong,China. Our company was established in 2008.

    We are professional CNC router machine, laser cutting&engraving machine and plasma cutting machine manufacturer.Our machine mainly used for advertising,woodworking,steel cutting and stone processing industries.

After serval years' development, JCUT products are used by over 50,000 companies, schools , government offices in more than 30 countries. For instance, countries and area like USA, England, France, Germany, Canada, Russia, India, Southeast Asia, Middle East and so on.

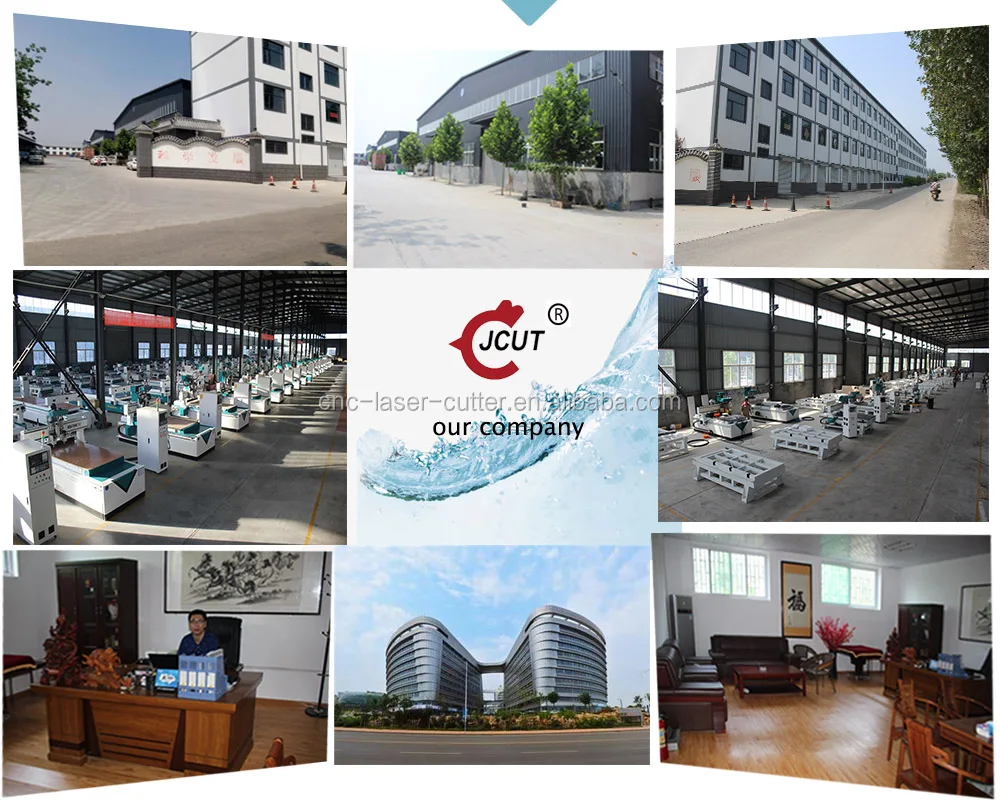

Factory picture



Our clients



FAQ



FAQ.

Q1: This is the first time I buy the machine, is it easy to operate?

We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team viewer"online, with telephone or Skype explain.



Q2: How to choose a suitable machine?

You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience.



Q3 :How can I trust your company and your products?

The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory. The testing video and pictures will be available before delivery.



Q4.If machine have any problem after I ordered it, what could I do?

Free parts send to you in machine warranty period if machine have any problem. Free after-sales service life for machine, please feel free contact us if your machine have any problem. We will give you 24hours service from phone and skype.



Q5. Can I visit your factory?

Yes! We greatly welcome customers to visit our factory!



Q6. What's your date of delivery?

For standard machine, about 15 working days; For customized machine, about 20 working day.



Q7.MOQ?

Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
